Description
Acoustical specifications
Frequency Response: 40 Hz – 120 Hz
Max SPL @ 1m: 129 dB
Transducers
Woofer: 12”, 2.5” v.c

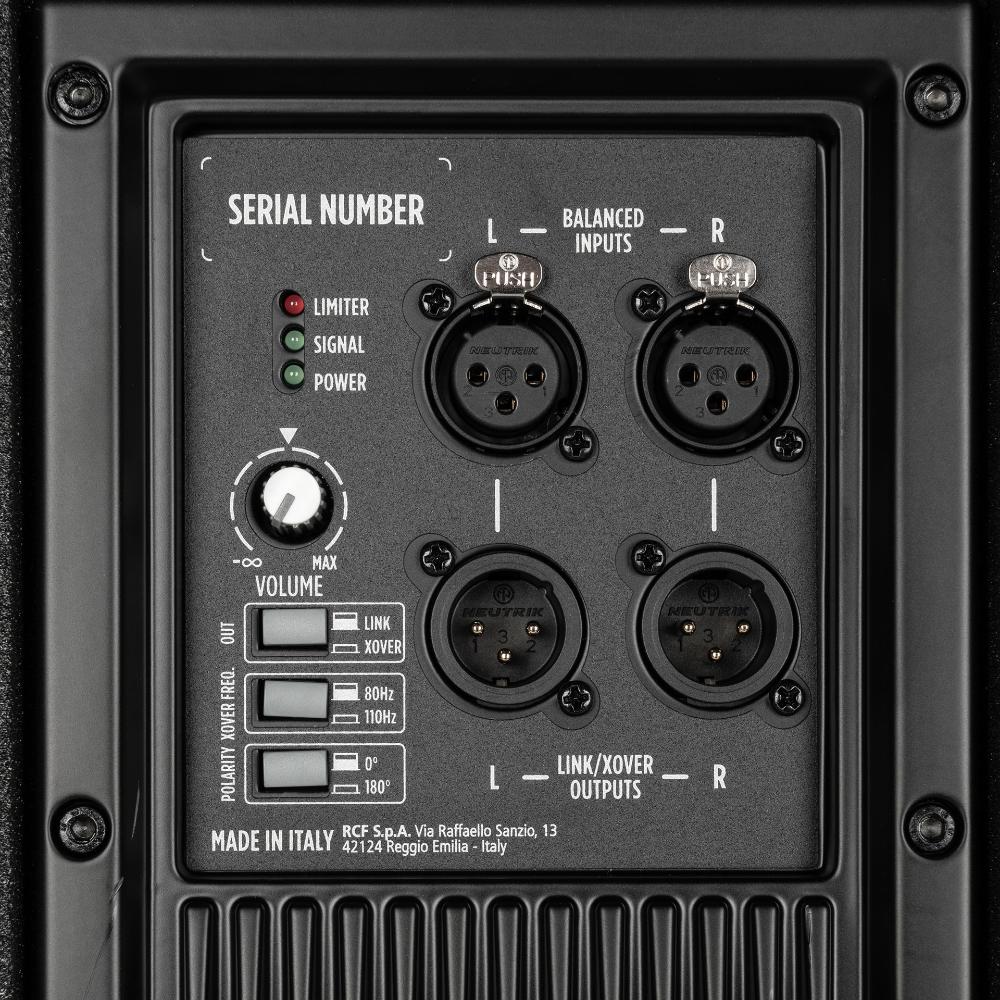

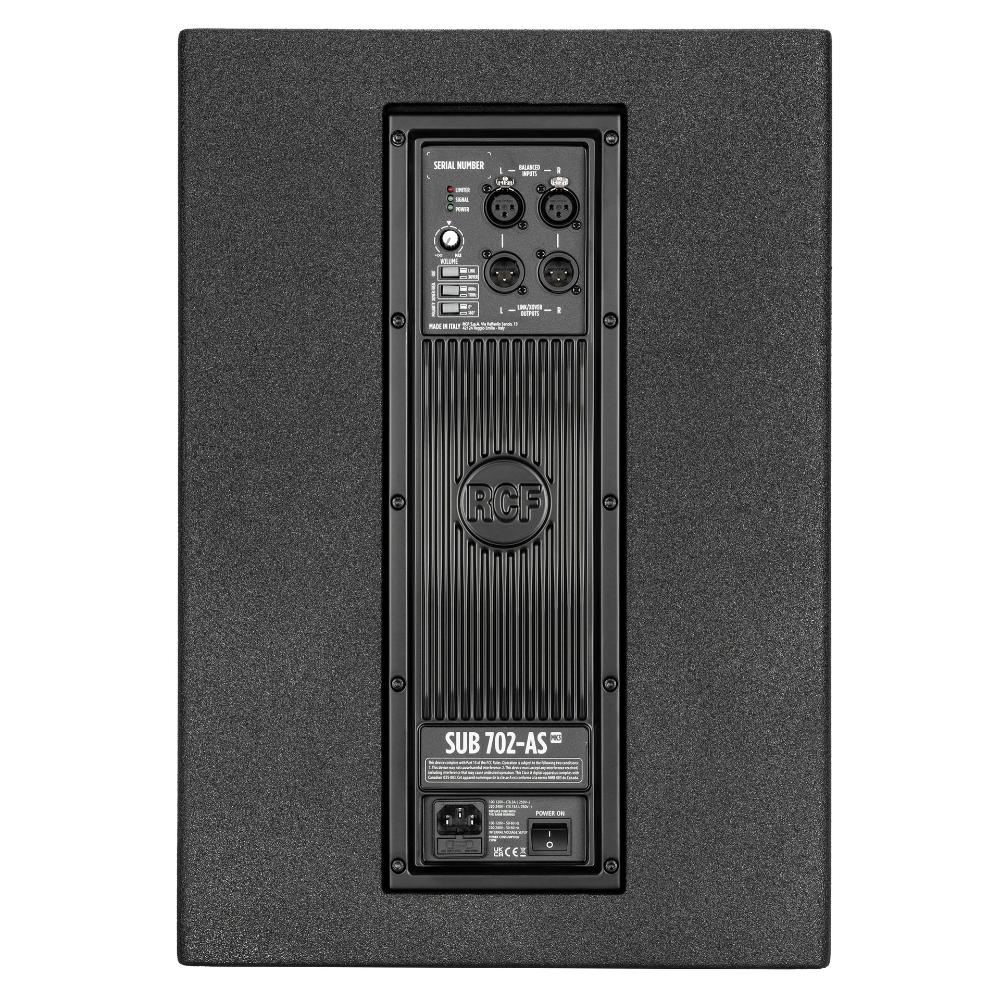

Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies: 110 Hz
Low-Pass Frequencies: 80 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ, Phase, Xover
Power section
Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood

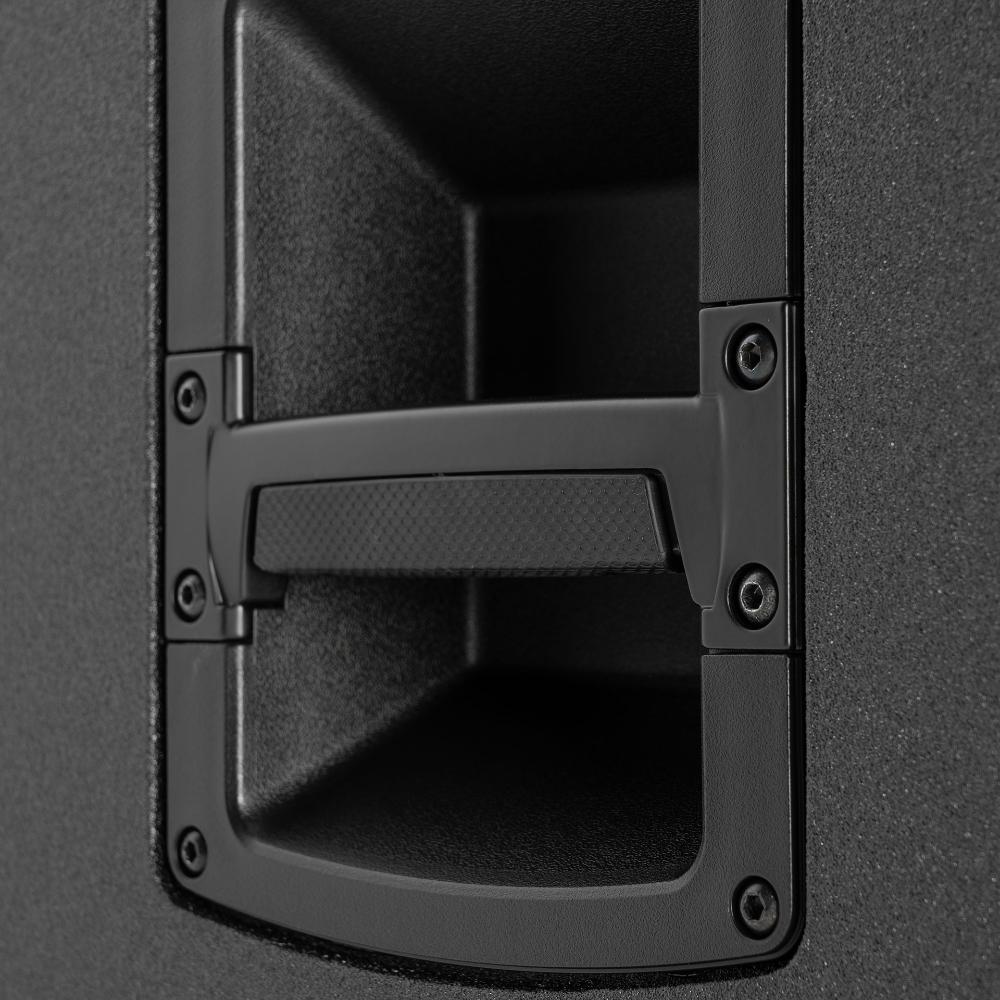

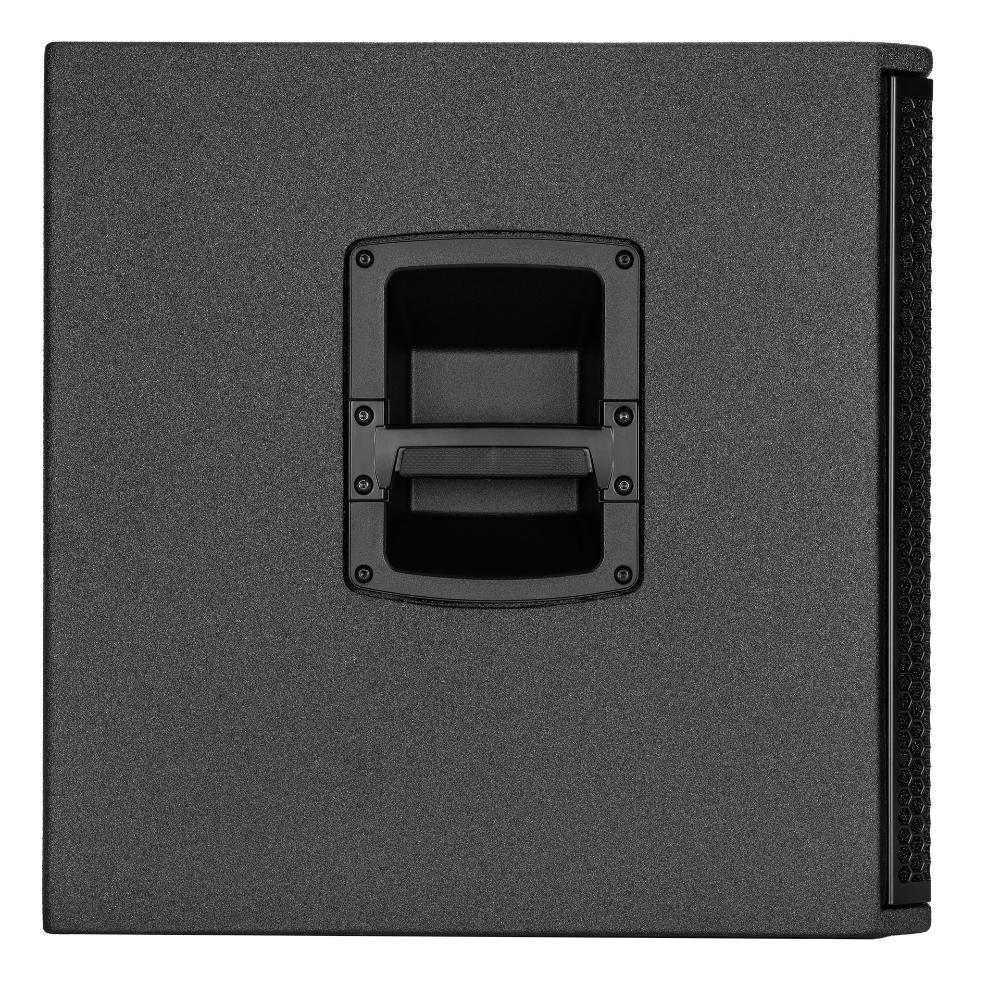

Handles: One each side

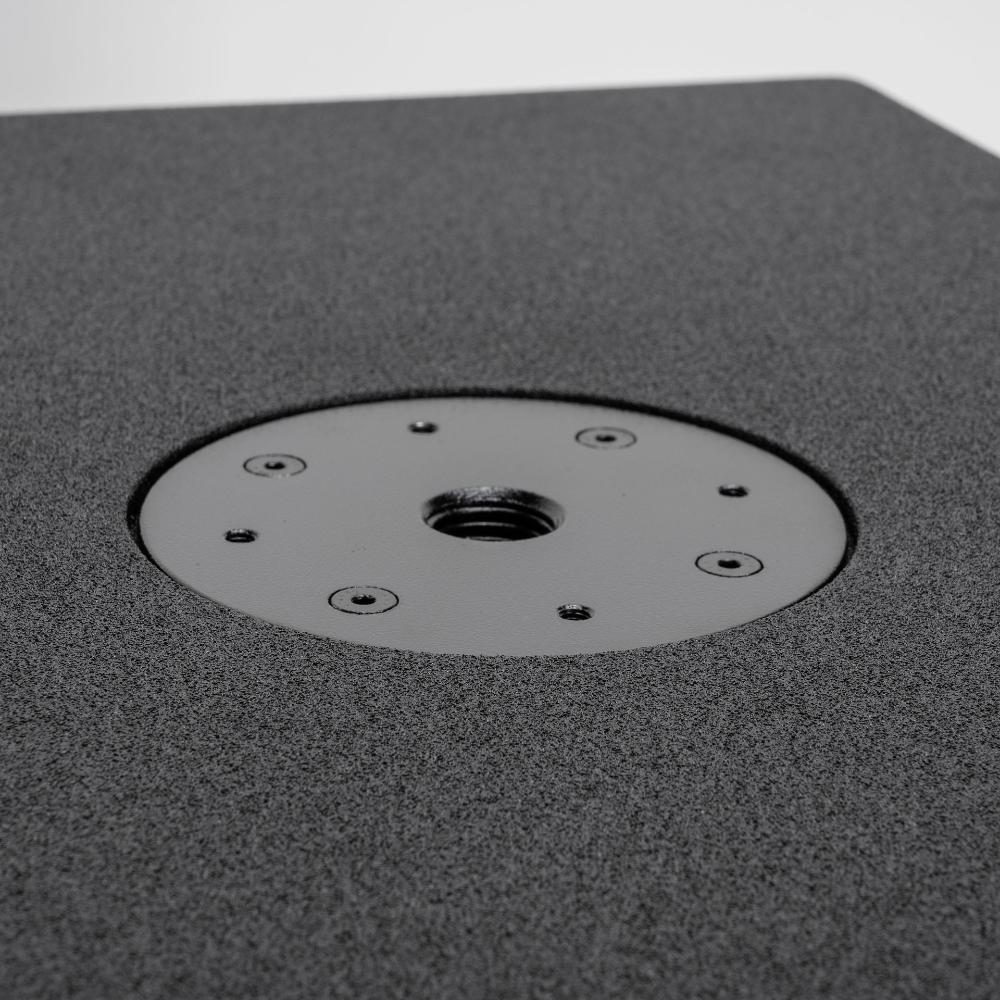

Pole mount/Cap: M20 thread

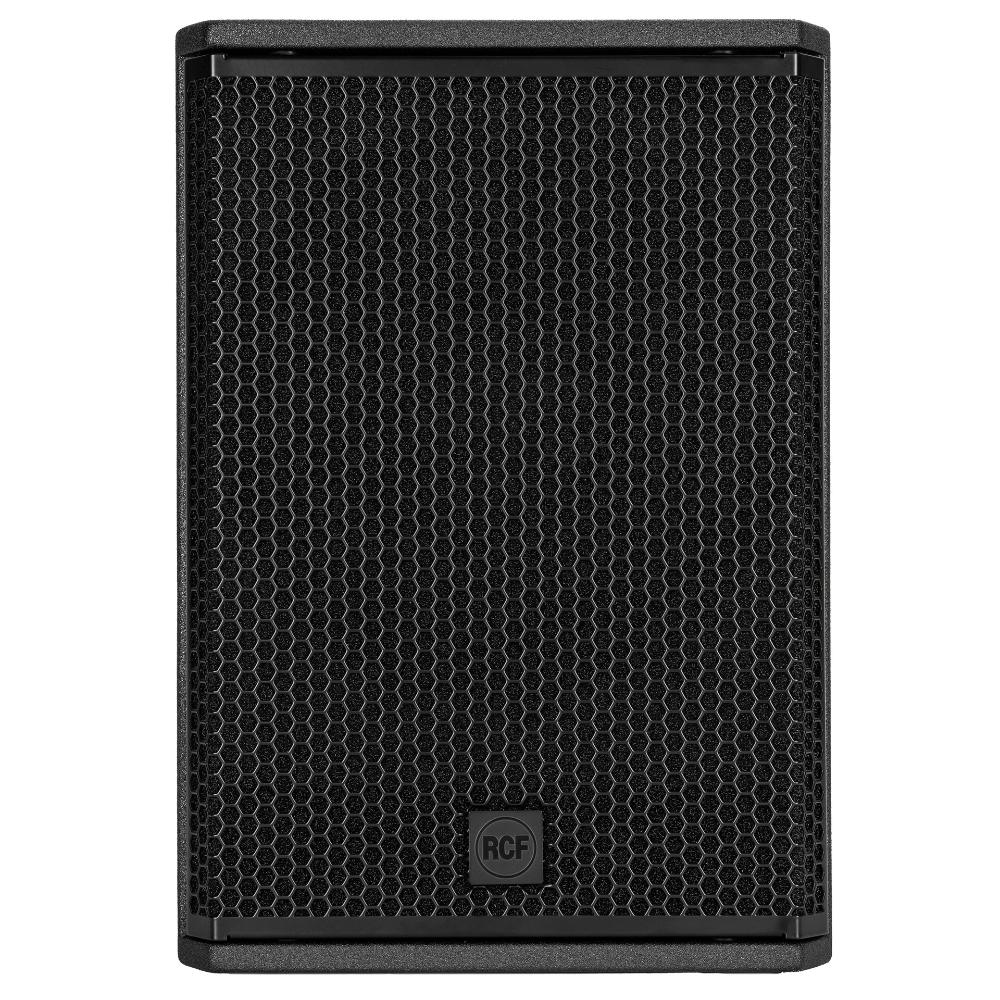

Grille: Steel with clothing
Colour: Black
Size / Weight
Height: 523 mm / 20.59 inches
Width: 360 mm / 14.17 inches
Depth: 515 mm / 20.28 inches
Weight: 21.5 kg / 47.4 lbs
