Description
Output Power
• 2500 W peak (1600 W LF + 900 W HF)
• 1250 W continuous RMS (800 W LF + 450 W HF)
Drivers
• Low-Frequency: 15.0” driver, 2.5” (63 mm) high-temperature voice coil, 800 W RMS @ 2 Ω
• High-Frequency: 1.0” exit ceramic driver with 1.4” (35 mm) coil, 450 W RMS @ 4 Ω
Audio Performance
• Crossover Frequency: 2 kHz
• Maximum SPL: 135 dB (peak), 132 dB (continuous) @ 1 m
• Frequency Response: 44 Hz – 20 kHz (±3 dB)
• Frequency Range: 33 Hz – 20 kHz (-10 dB)
• Horn Coverage: 90° horizontal × 60° vertical (nominal)

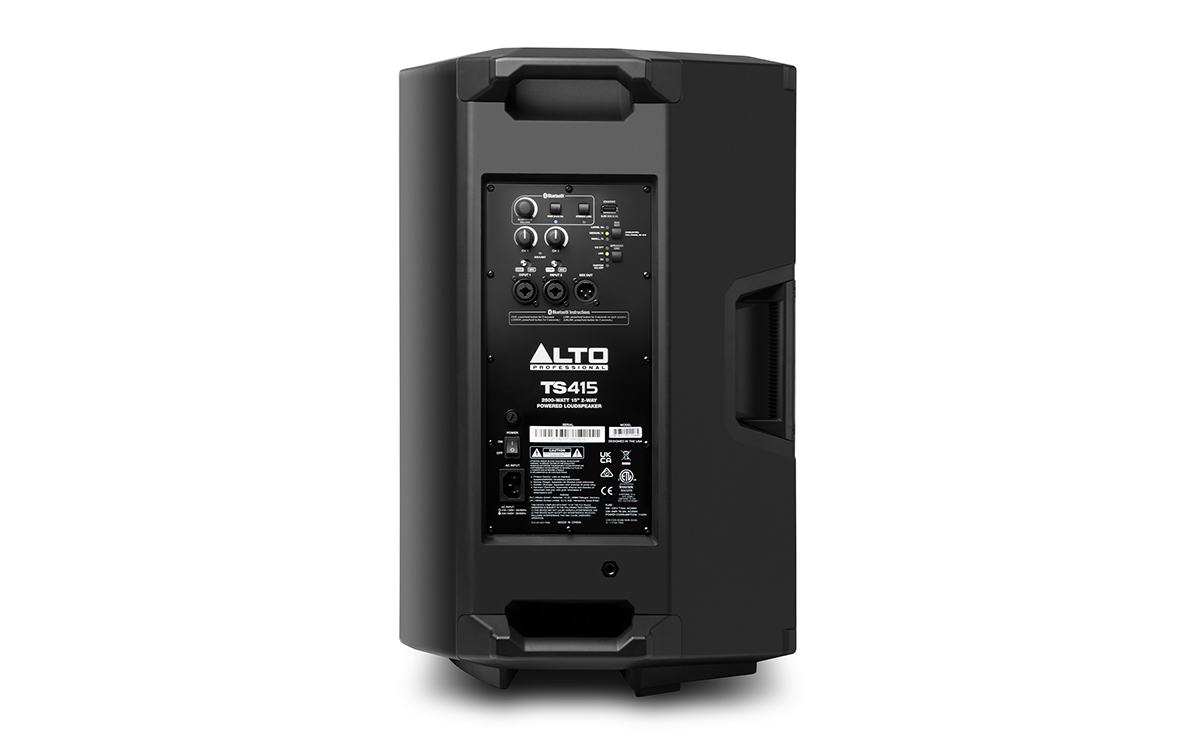

Connectors
• (2) XLR + 1/4” (6.35 mm) TRS combo inputs (Balanced)
• (1) XLR output (Link)
• (1) IEC power cable input
Bluetooth
• Operating Frequency: 2402 MHz – 2480 MHz
Input Specifications
• Input Impedance:
- Line: 20 KΩ balanced
- Line: 10 KΩ unbalanced
- Mic: 1.2 KΩ
• Line Gain/Volume Control Range: -∞ to 0 dB
- +4 dBu nominal
- +10 dBu for max output
• Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB
USB Charging
• USB Charging Port: 5V / 2.1A
Controls
• Power switch
• (2) Gain control knobs (1 per input)
• (2) Mic/Line switches
• Bluetooth volume control encoder
• Pairing button
• Stereo Link button
• Sub Size button
• Speaker Use button
Indicators
• (1) Input Channel Signal/Limit/Clip LED
- Green = Ch1/2 Signal
- Red = Ch1/2 Limiter
• (1) Bluetooth LED (Blue)
• (1) Link LED (Orange)
• (4) DSP Presets LED (Green)
• (3) HPF LED (Green)
Power
• Connection: IEC
• Voltage: 100–120V~, 50/60 Hz; 220–240V~, 50/60 Hz
• Consumption: 1100 W
• Fuse:
- 100–120V: T15AL AC250V
- 220–240V: T6.3AL AC250V
Protection
• Electronic clip protection
• Thermal protection
• Transducer overdrive protection
Enclosure
• Injected molded enclosure

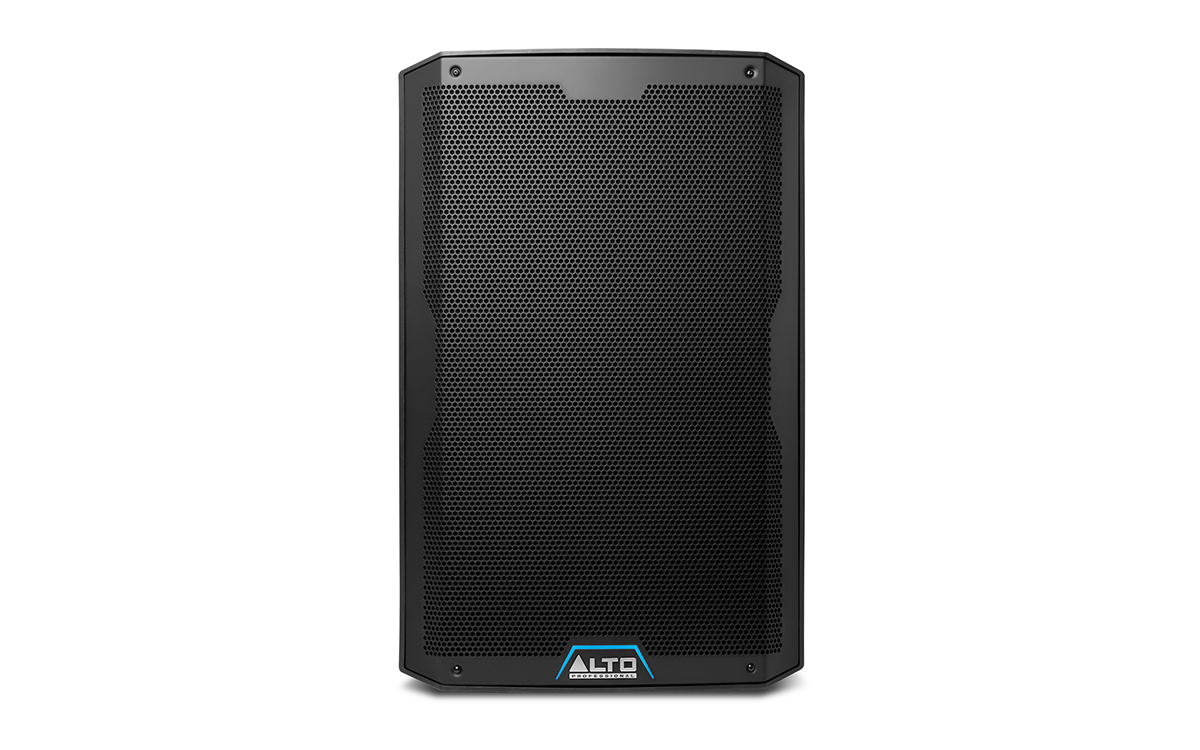

• Perforated metal grille
Mounting / Installation
• Standard 36 mm pole socket
• Flown application with integral M10 suspension points

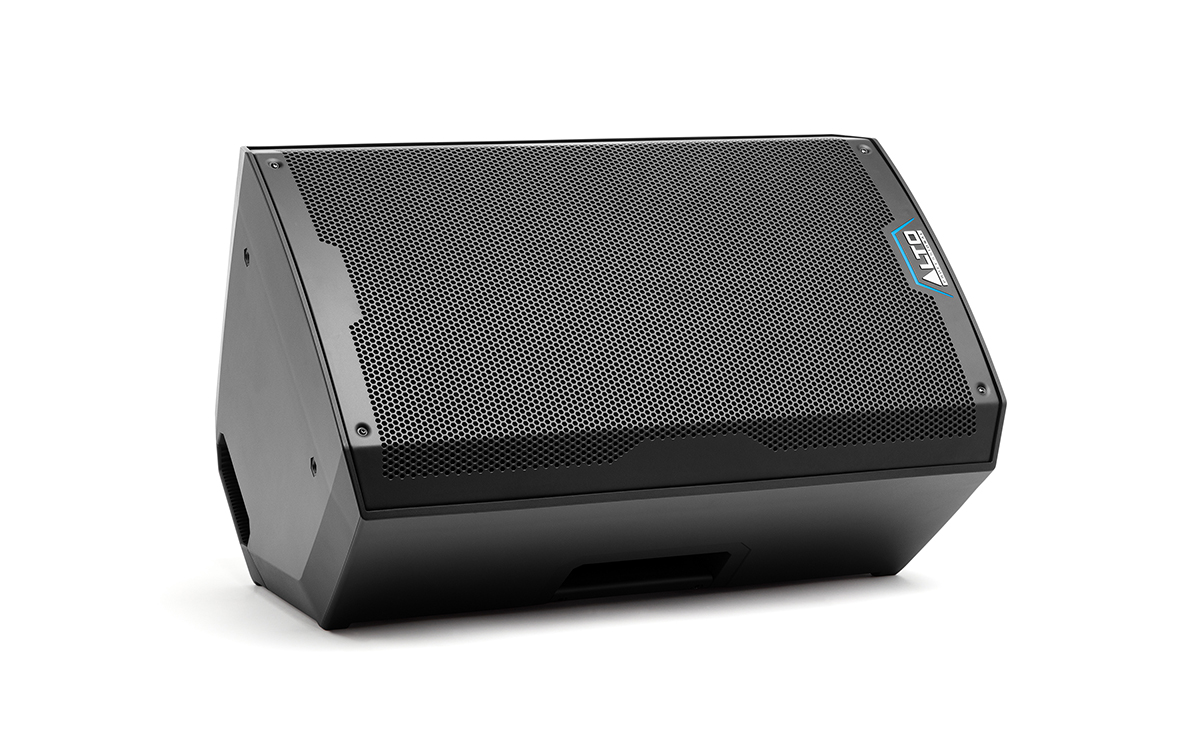

• Wedge monitor position
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Dimensions (H × W × D): 25.3″ × 16.4” × 15.8” / 643 × 417.5 × 402 mm
Weight: 38.0 lbs / 17.2 kg
