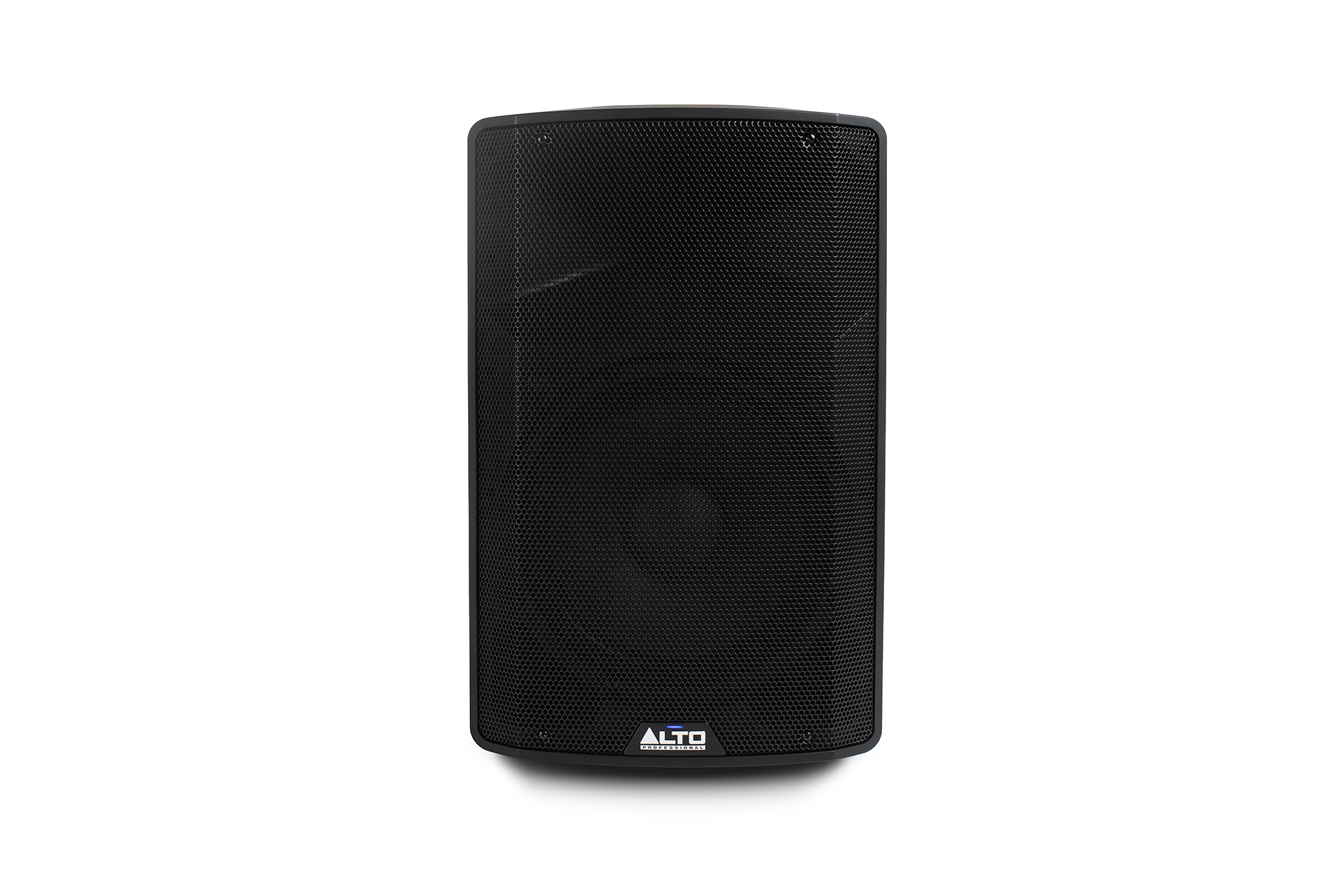

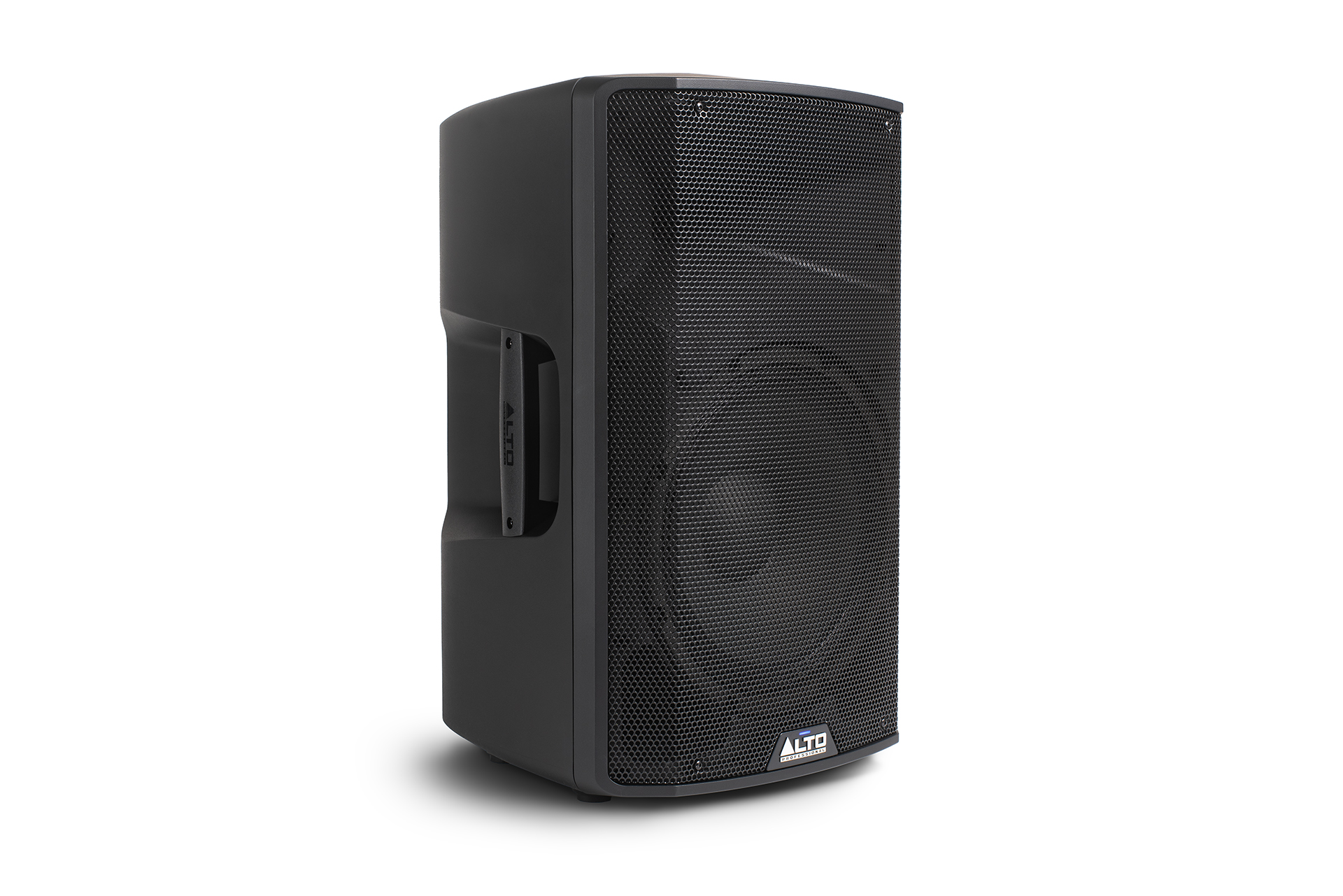

ALTO TX412 – 700W 12-inch Powered Loudspeaker with Bluetooth

Description

Mic Input CH 1:

• Connector: XLR/TRS combo input connector (mic is XLR only)
• Dynamic Range: 108 dB (A-Weighted)
• THD +N: <0.01%
• Noise EIN: >-110 dB (A-Weighted)
• Maximum Input Level: +1.5 dBu
• Gain Range: 50 dB
• Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
• Input Impedance: 600Ω

Line Inputs CH 1:

• Connector: XLR/TRS Combo Input Connector (line is TRS only)
• Dynamic Range: 108 dB (A-Weighted)
• THD +N (%, -1 dBFS input): <0.01%
• Maximum Input Level: +16 dBu
• Gain Range: 24 dB
• Frequency Response (20 Hz – 20kHz): 20 Hz – 20 kHz (+/- 0.1 dB)
• Input Impedance: 20k

Mix Out:

• Connector: XLR output connector
• Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
• Output Level (for 0.5% THD): Fixed +10 dBu
• Input Impedance (unbalanced): 100

General:

• System Type: 2-way active ported loudspeaker
• Drivers:
  • Low-Frequency: 12.0” (305 mm) driver, 2.0” (51 mm) voice coil
  • High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
• Amplifier: 700 watts (peak), Class D power
• Horn Coverage: 90º horizontal x 60º vertical (nominal)
• Frequency Response: 70 Hz – 20 kHz (-3 dB)
• Max SPL: 120 dB @ 1 m
• Equalization: Contour switch with low- and high-frequency +3 dB boost

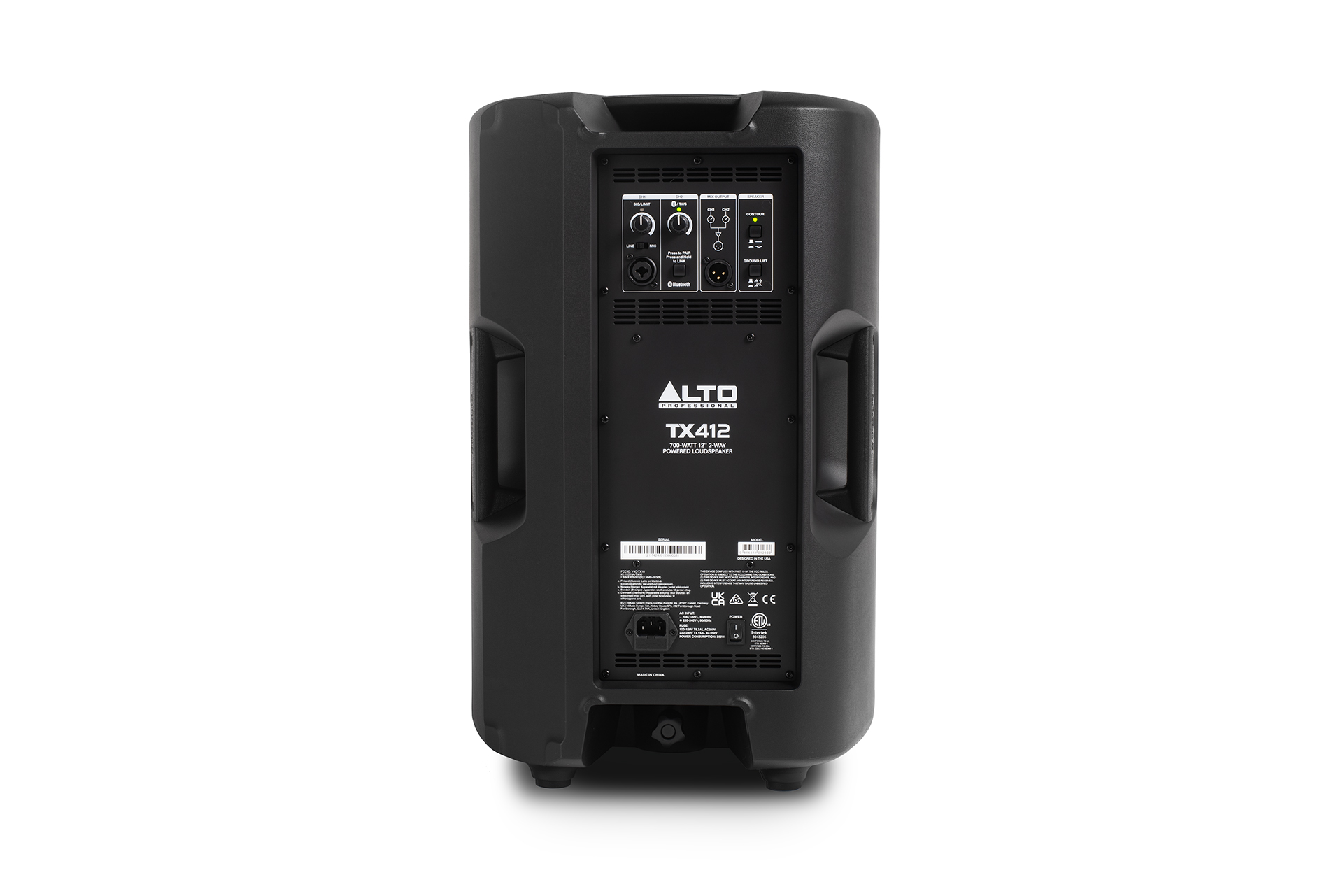

Connectors:

• (1) XLR/TRS input (Line/Mic)
• (1) XLR/TRS output
• (1) IEC power cable input

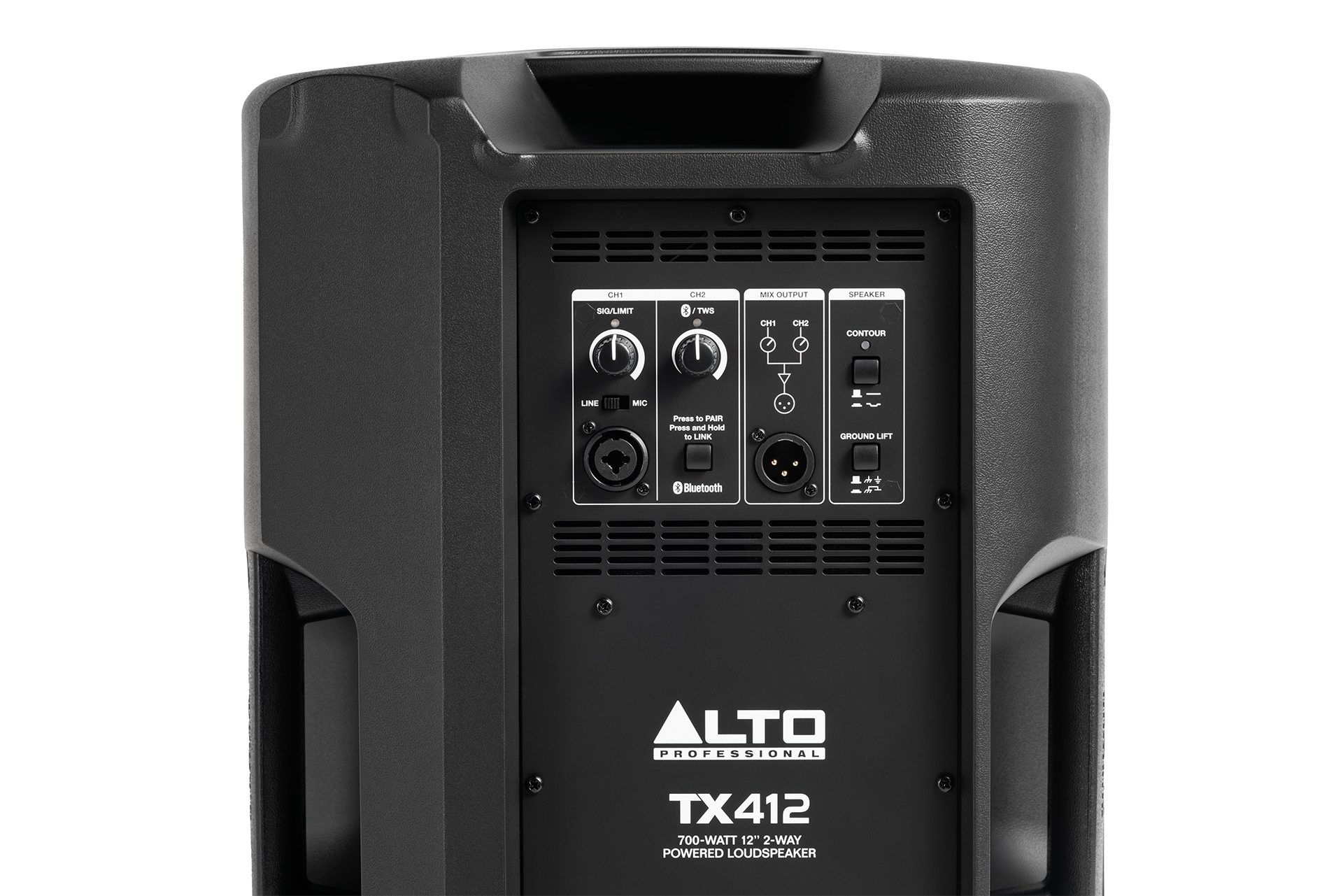

Controls:

• Power switch
• Volume control knob
• Contour switch
• Ground-lift switch

Indicators:

• (2) power LEDs (1 front panel, 1 rear panel)
• Clip limiter LED

Bluetooth:

• Version: 5.0
• Profiles: A2DP, AVRCP

Power:

• Connection: IEC
• Voltage: 100–120V~, 50/60 Hz; 220–240V~, 50/60 Hz
• Fuse: 100-120V T6.3AL AC250V; 220-240V T3.15AL AC250V
• Consumption: 350W

Protection:

• Thermal
• Overload analog limiter/compressor

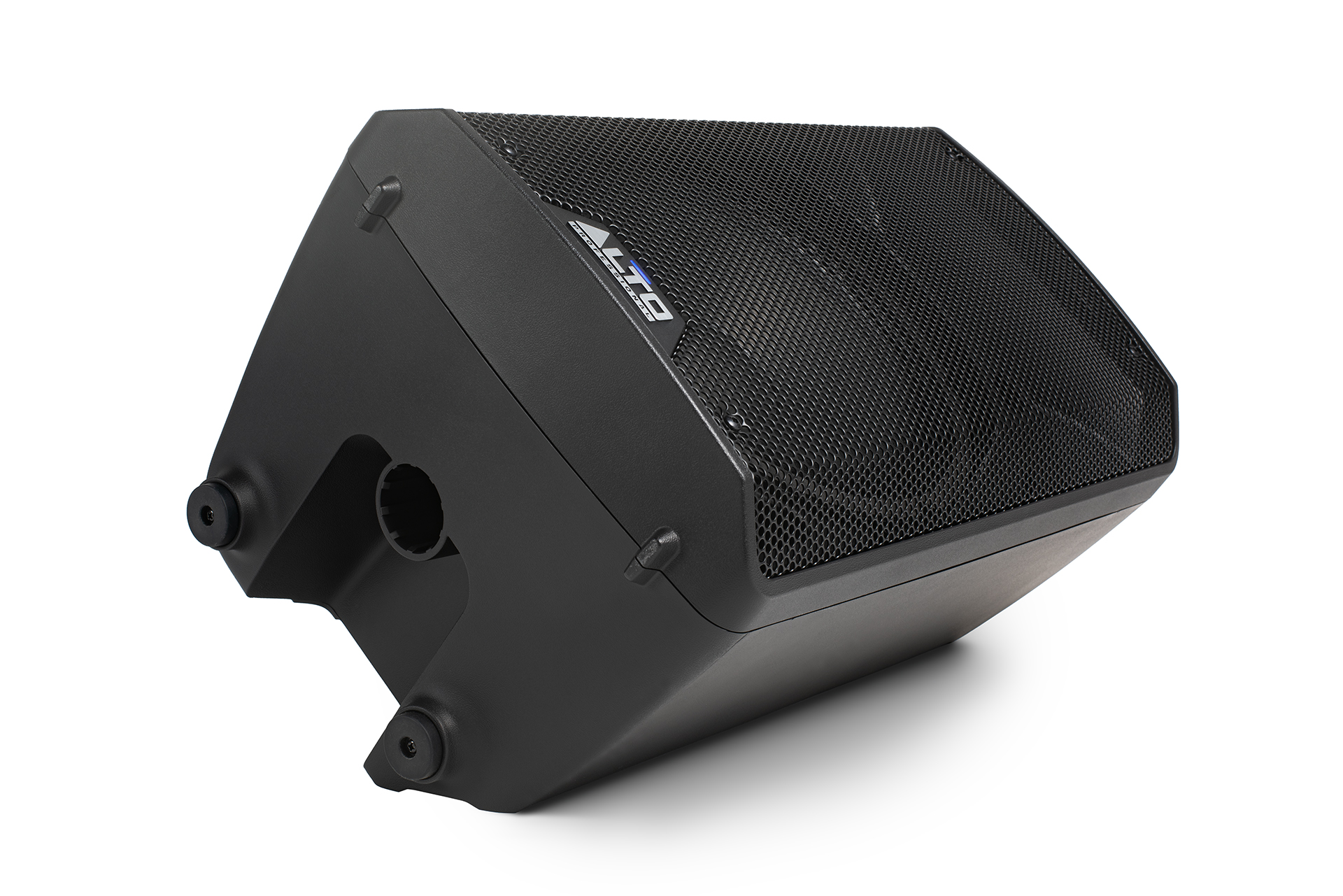

Enclosure:

• Injection-molded polypropylene
• Multi-angle for main or monitor applications
• Metal grille
• Rubber feet

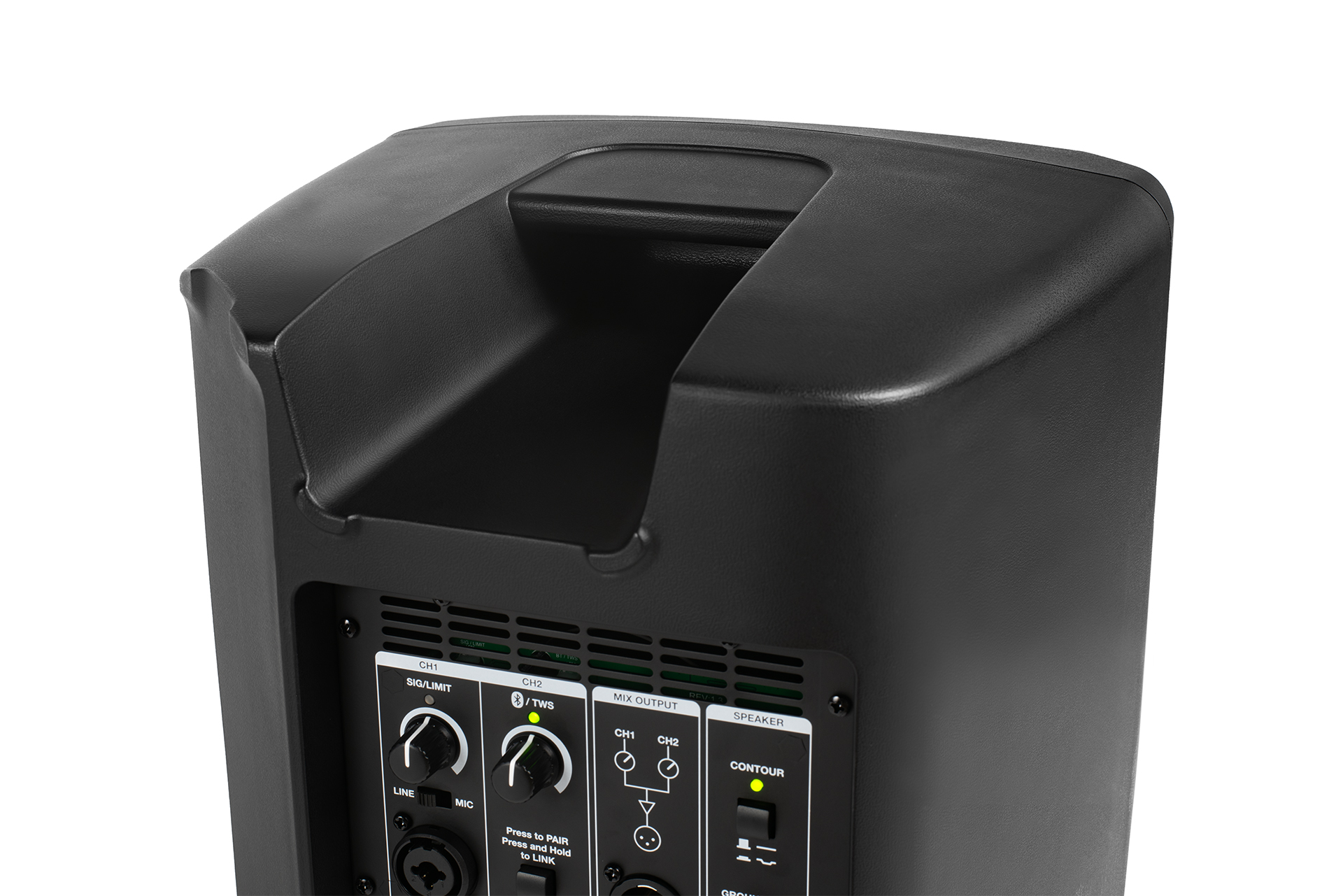

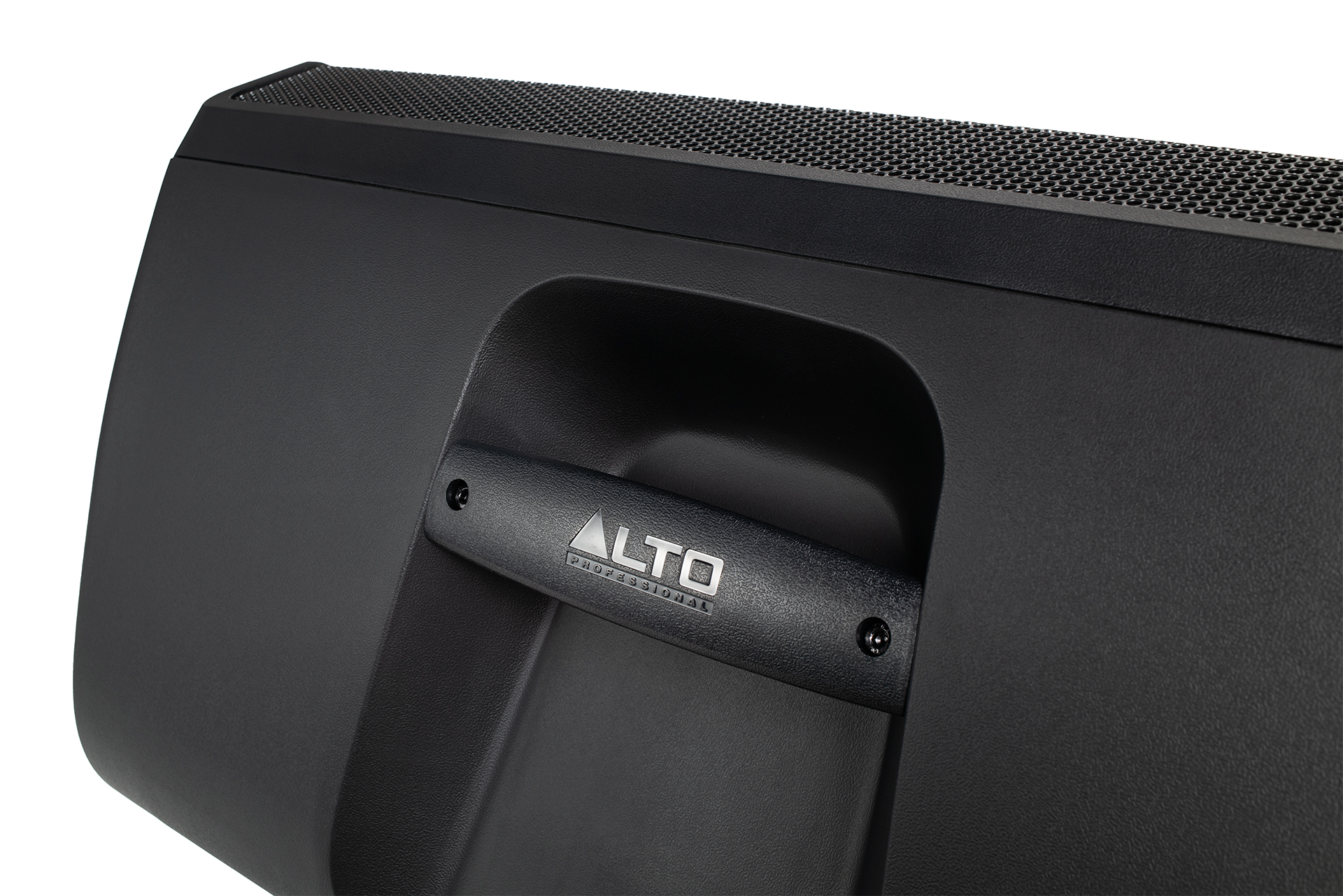

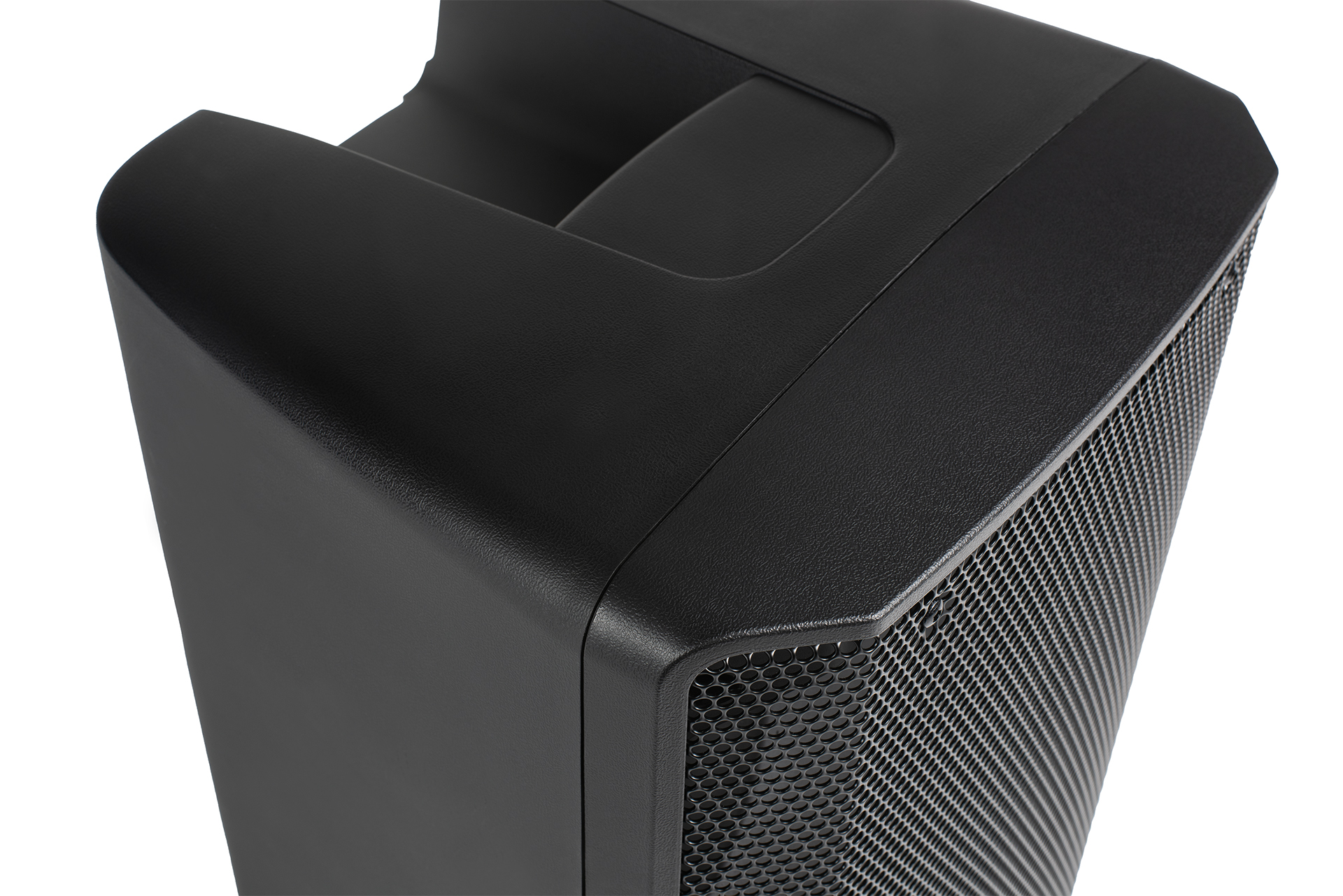

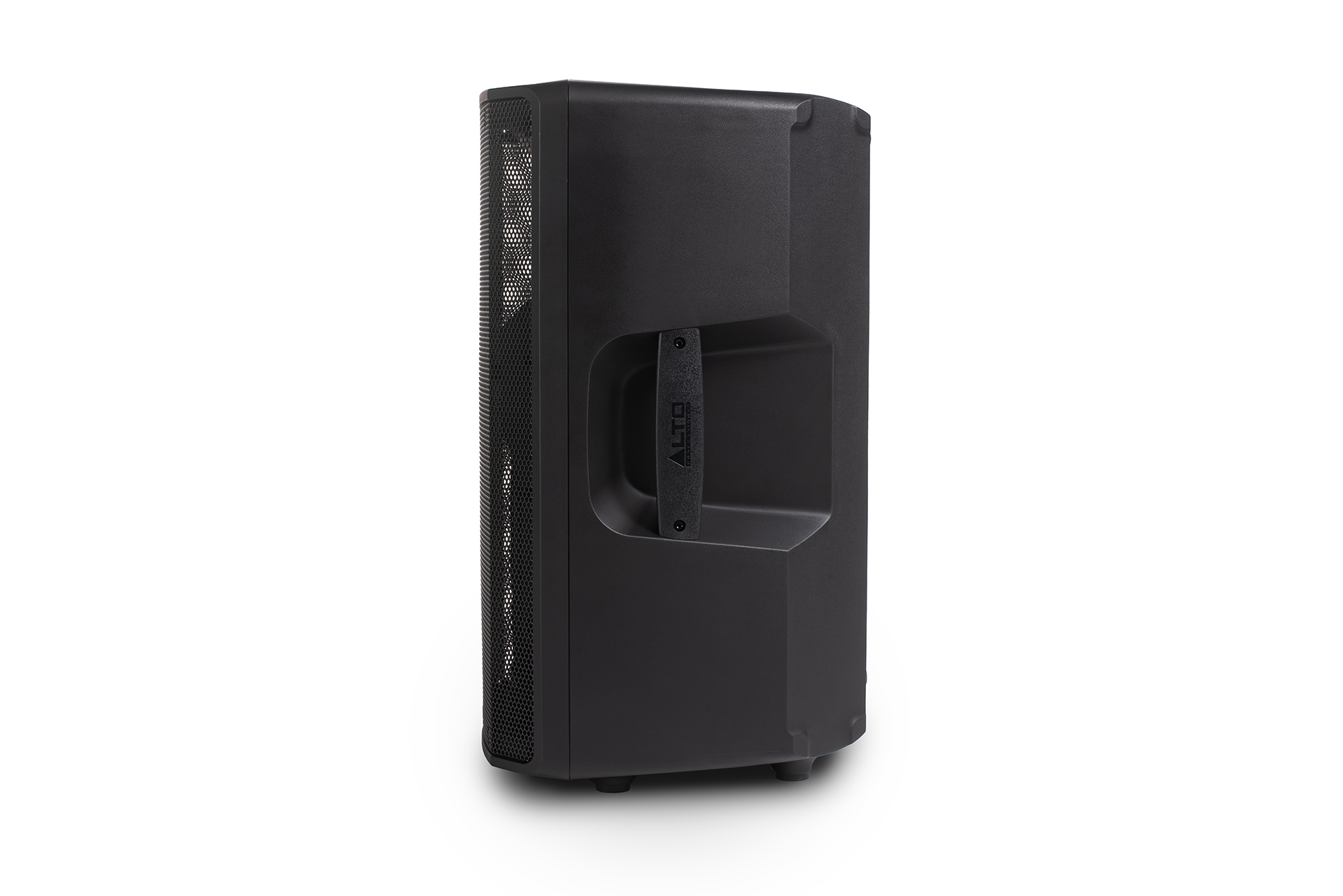

• 2 handles (both sides)

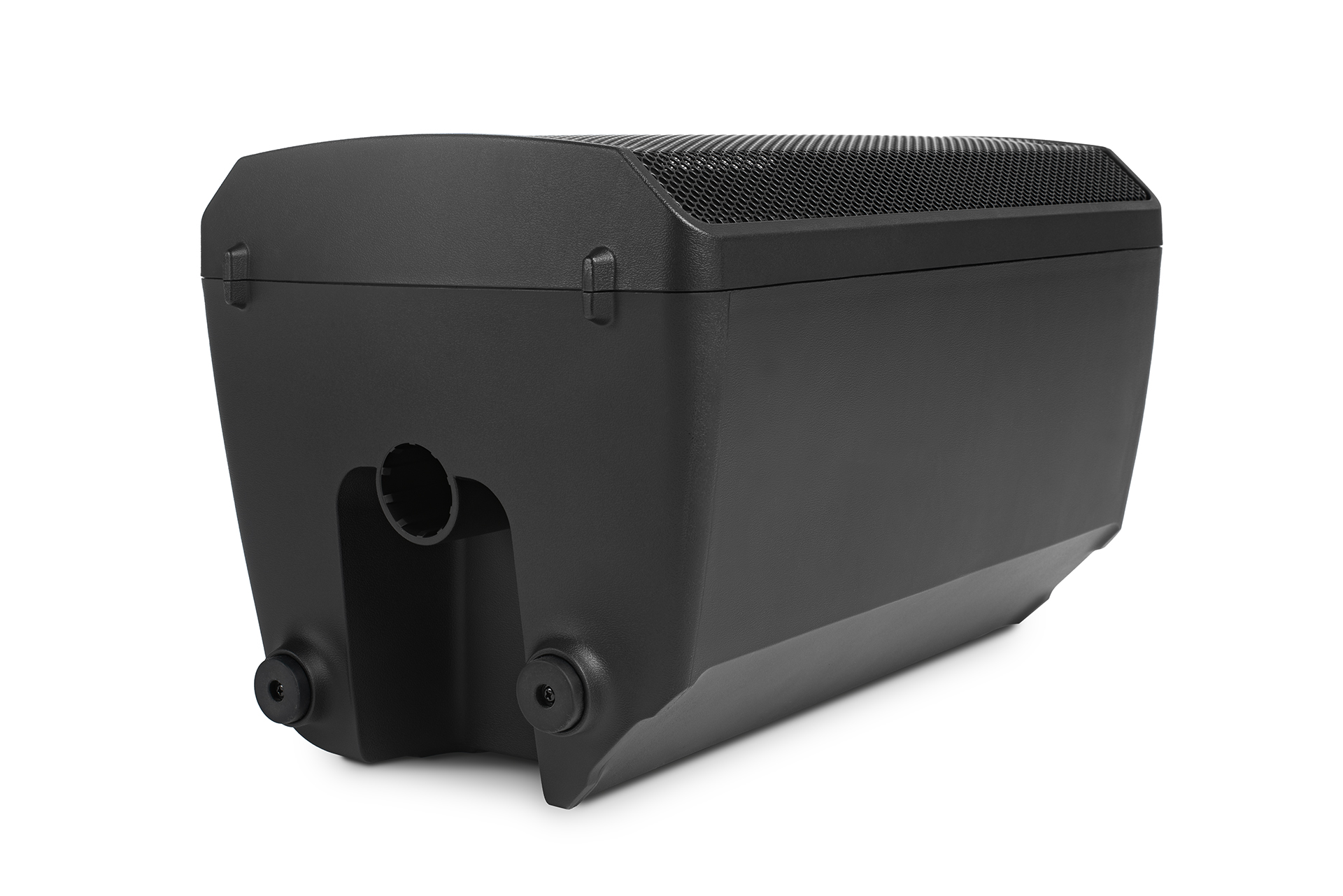

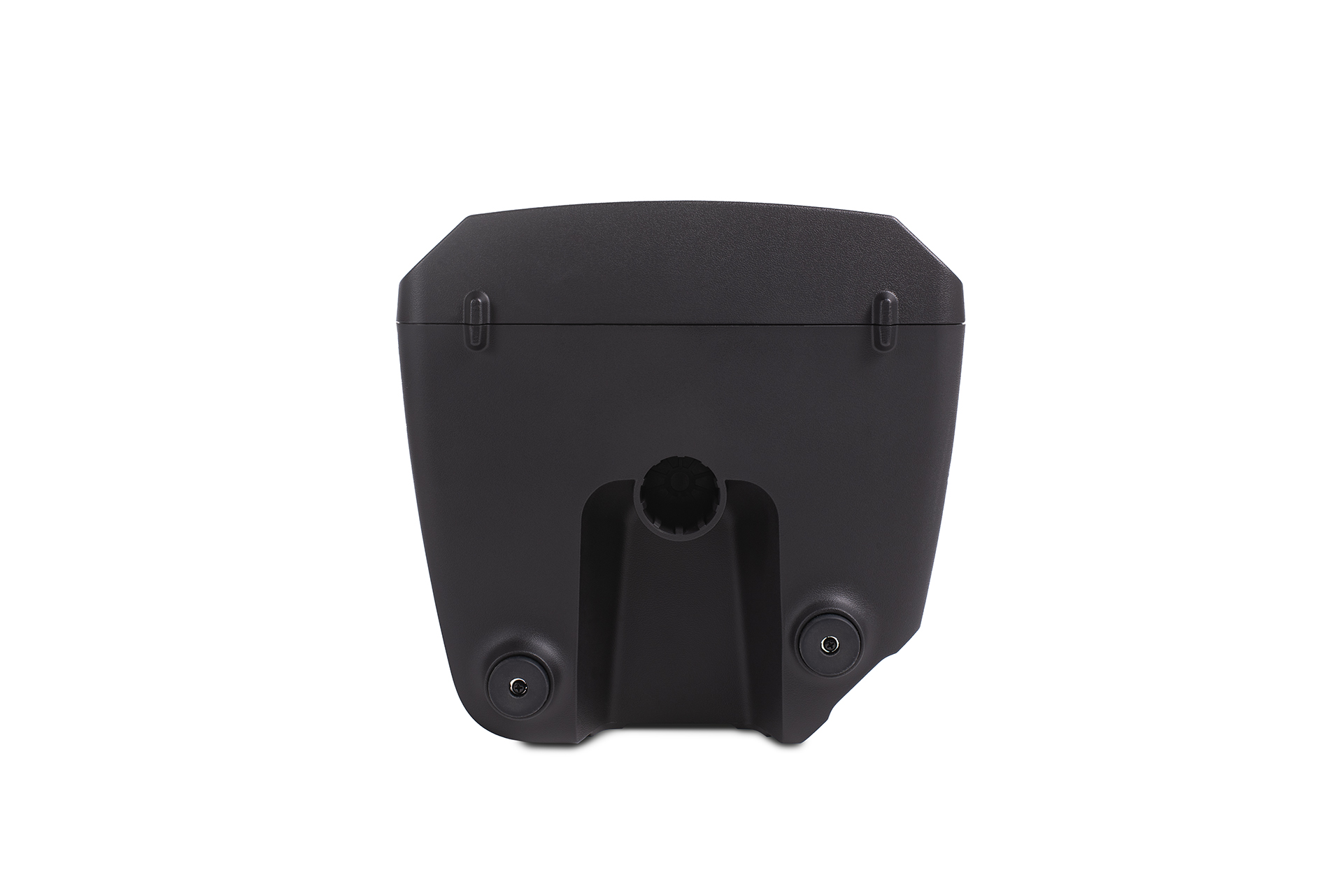

Mounting/Installation: Standard 36 mm pole socket, Wedge monitor

Dimensions (height x width x depth): 23.7” x 15.0” x 13.5” / 602 x 381 x 343 mm

Weight: 29.3 lb / 13.3 kg
