Description
- Connector: XLR/TRS combo input connector (mic is XLR only)
- Dynamic Range: 108 dB (A-Weighted)
- THD +N: <0.01%
- Noise EIN: >-110 dB (A-Weighted)
- Maximum Input Level: +1.5 dBu
- Gain Range: 50 dB
- Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
- Input Impedance: 600 Ω
- Connector: XLR/TRS combo input connector (line is TRS only)
- Dynamic Range: 108 dB (A-Weighted)
- THD +N (%, -1 dBFS input): <0.01%
- Maximum Input Level: +16 dBu
- Gain Range: 24 dB
- Frequency Response (20 Hz – 20 kHz): 20 Hz – 20 kHz (+/- 0.1 dB)
- Input Impedance: 20k Ω
- Connector: XLR output connector
- Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
- Output Level (for 0.5% THD): Fixed +10 dBu
- Input Impedance (unbalanced): 100 Ω

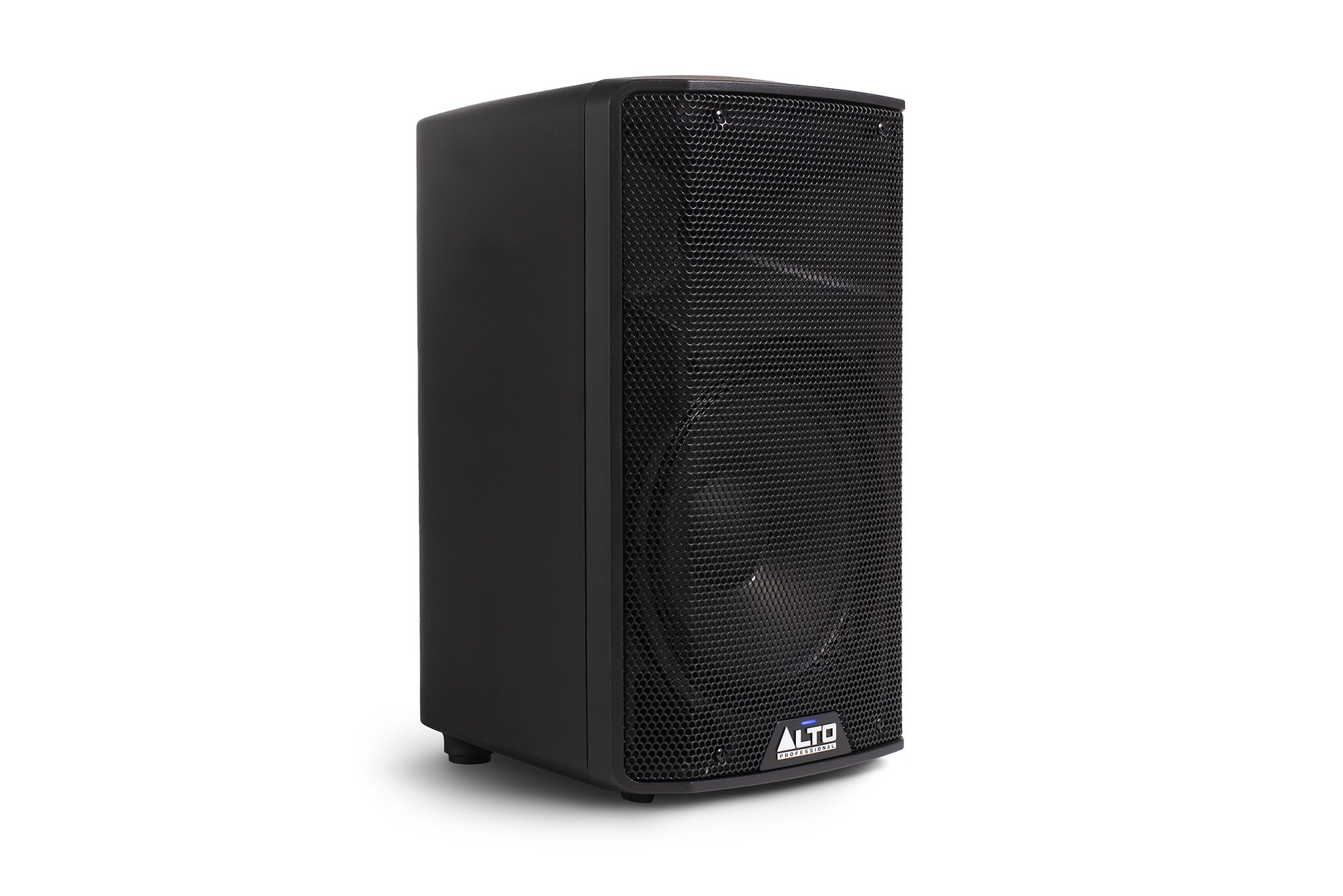

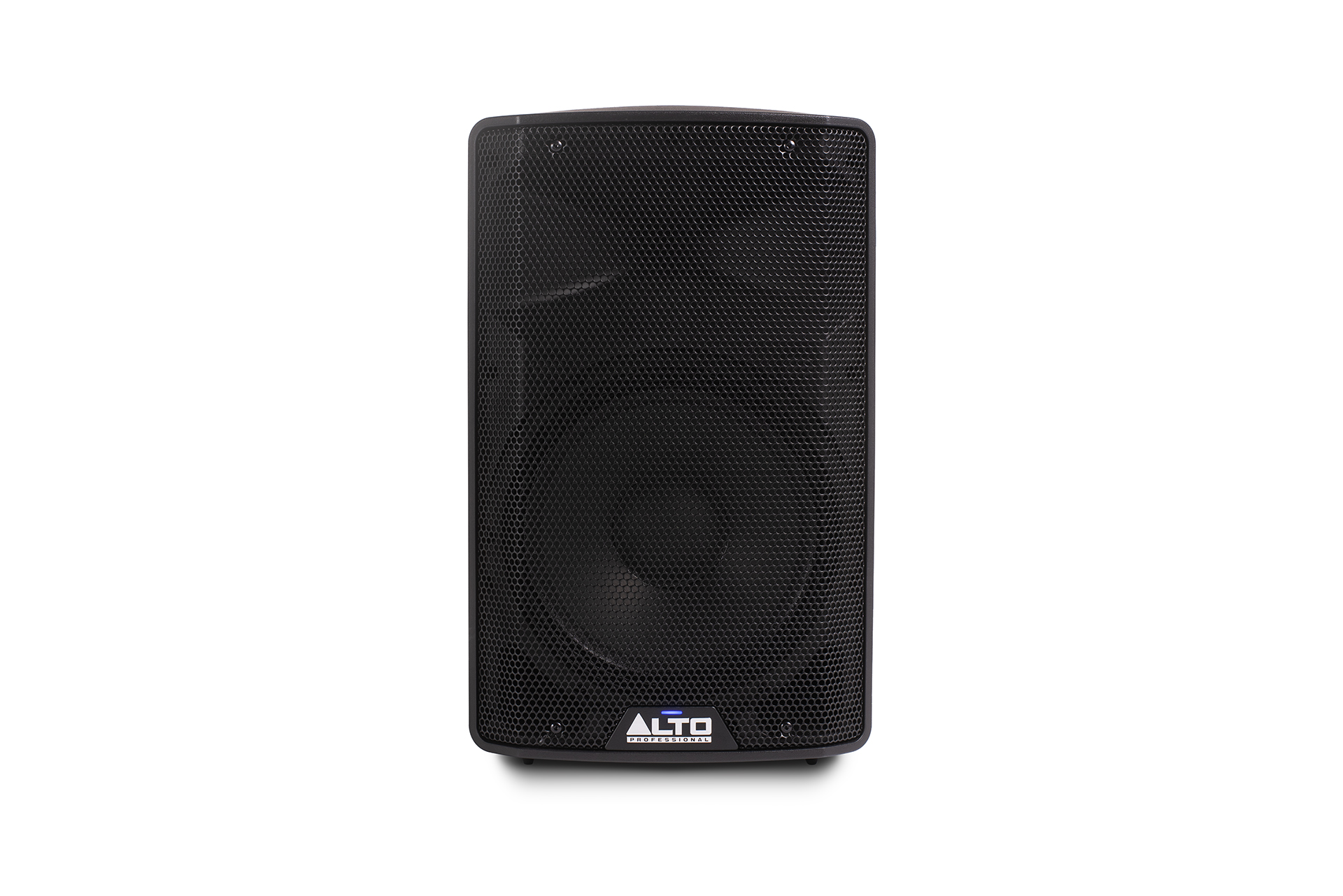

- System Type: 2-way active ported loudspeaker
- Low-Frequency: 10.0” (254 mm) driver, 1.4” (35.5 mm) voice coil
- High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
- Amplifier: 300 watts (peak), Class D power
- Horn Coverage: 90º horizontal x 60º vertical (nominal)
- Frequency Response: 75 Hz – 20 kHz (-3 dB)
- Max SPL: 117 dB @ 1 m
- Equalization: Contour switch with low- and high-frequency +3 dB boost

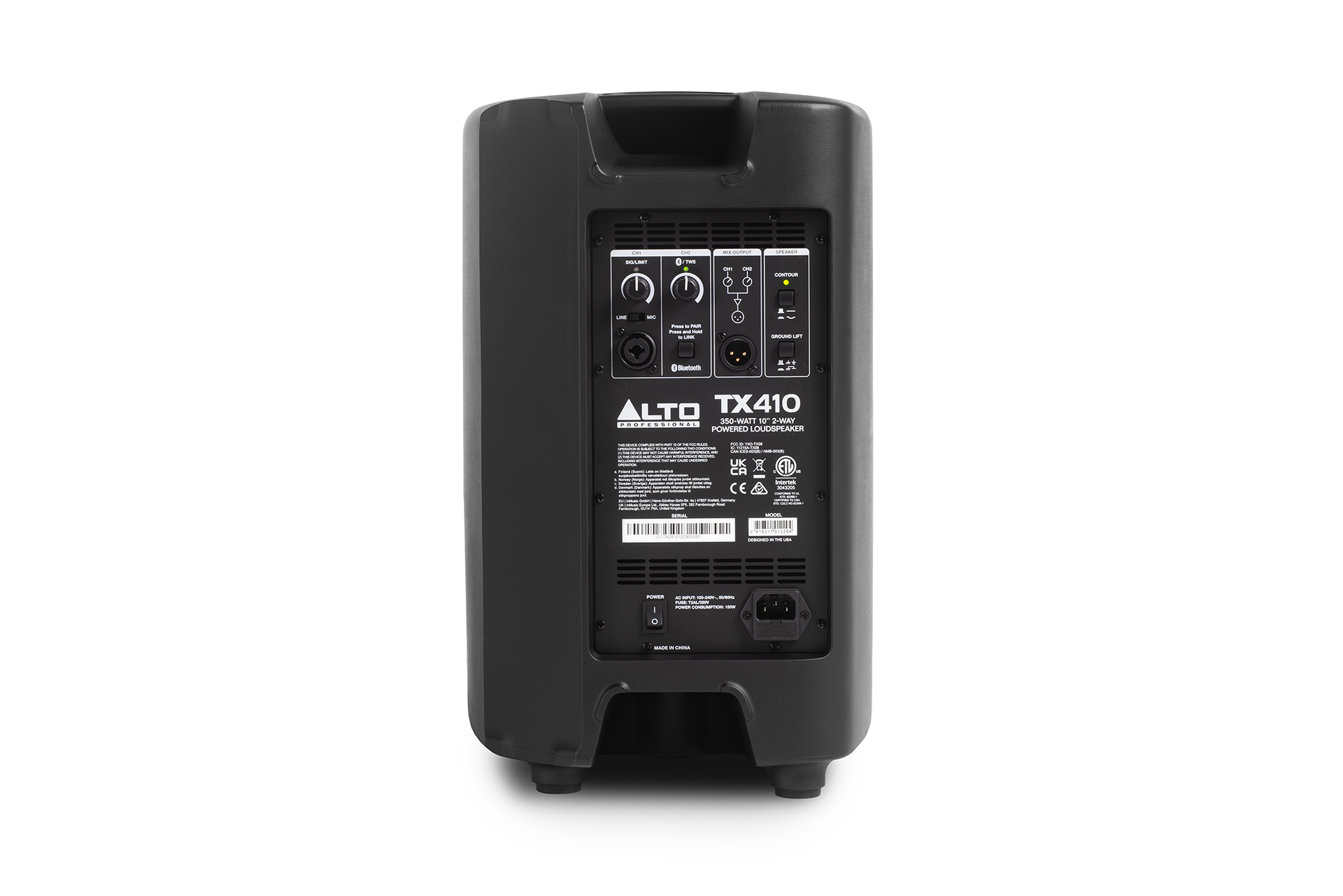

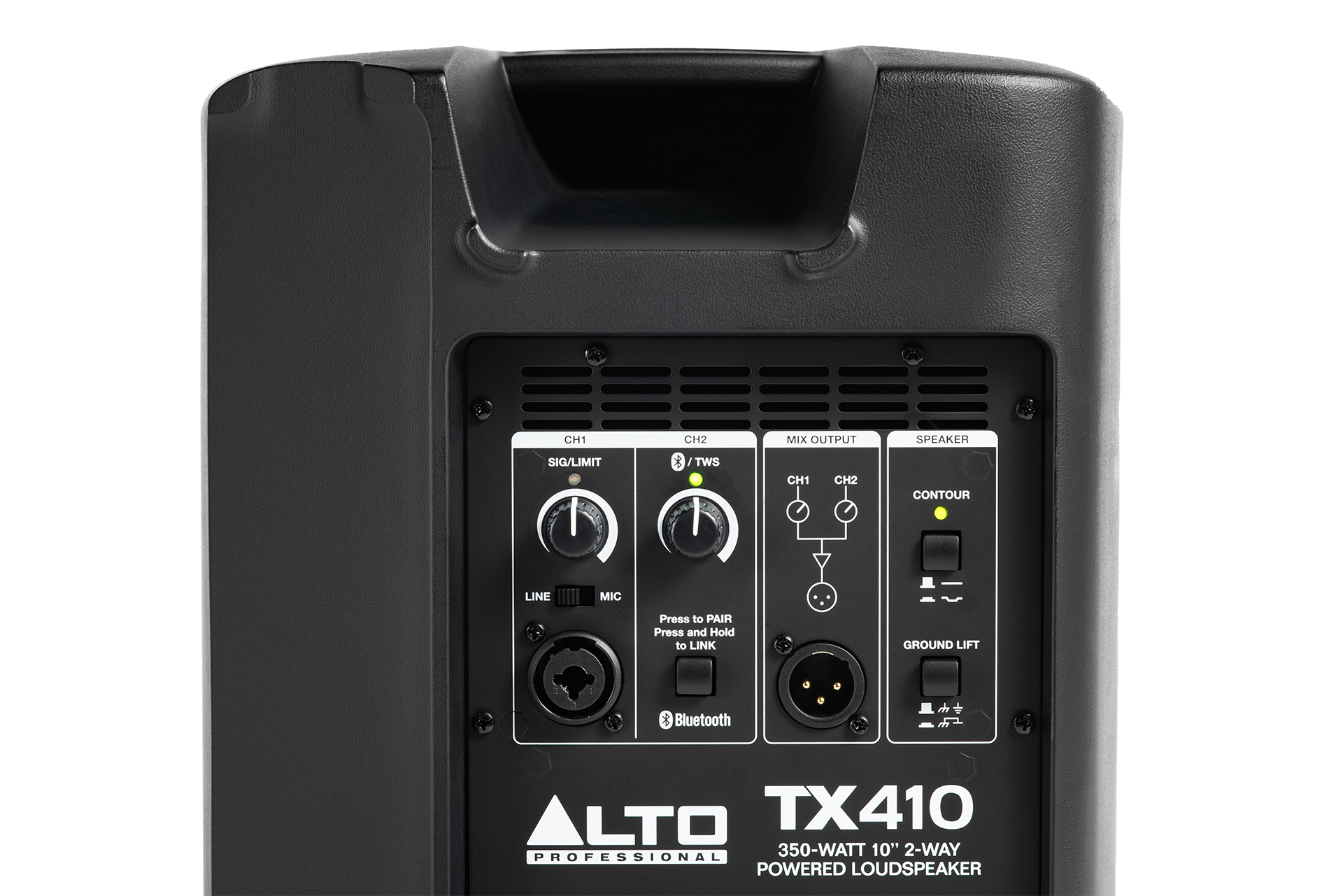

- Connectors: (1) XLR/TRS input (Line/Mic), (1) XLR/TRS output, (1) IEC power cable input
- Controls: Power switch, volume control knob
- Indicators: Clip limiter LED
- Bluetooth:
• Version: 5.0
• Profiles: A2DP, AVRCP - Power:
• Connection: IEC
• Voltage: 100–240 V~; 50/60 Hz
• Fuse: T2AL/250V
• Consumption: 150W - Protection: Thermal, overload analog limiter/compressor

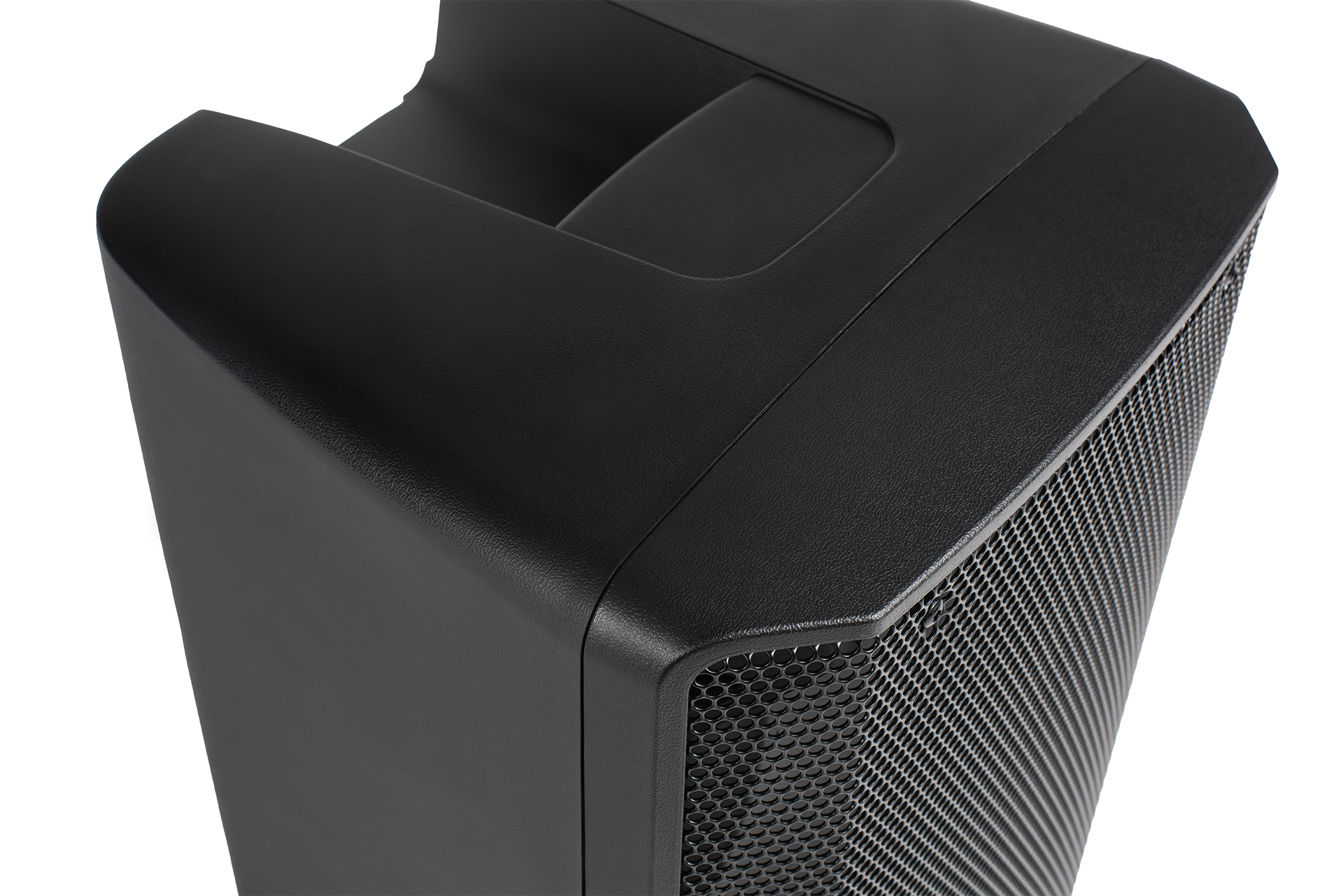

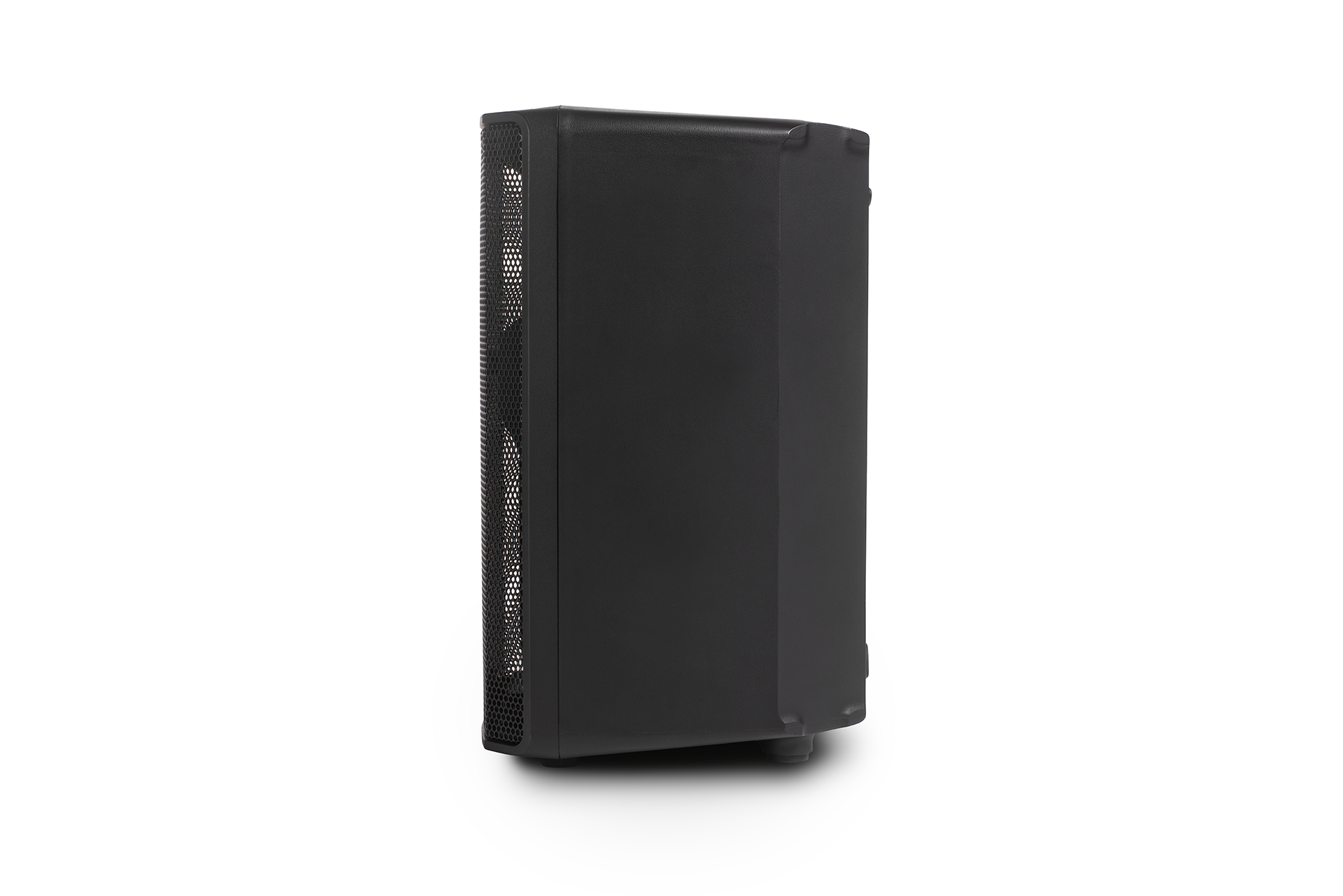

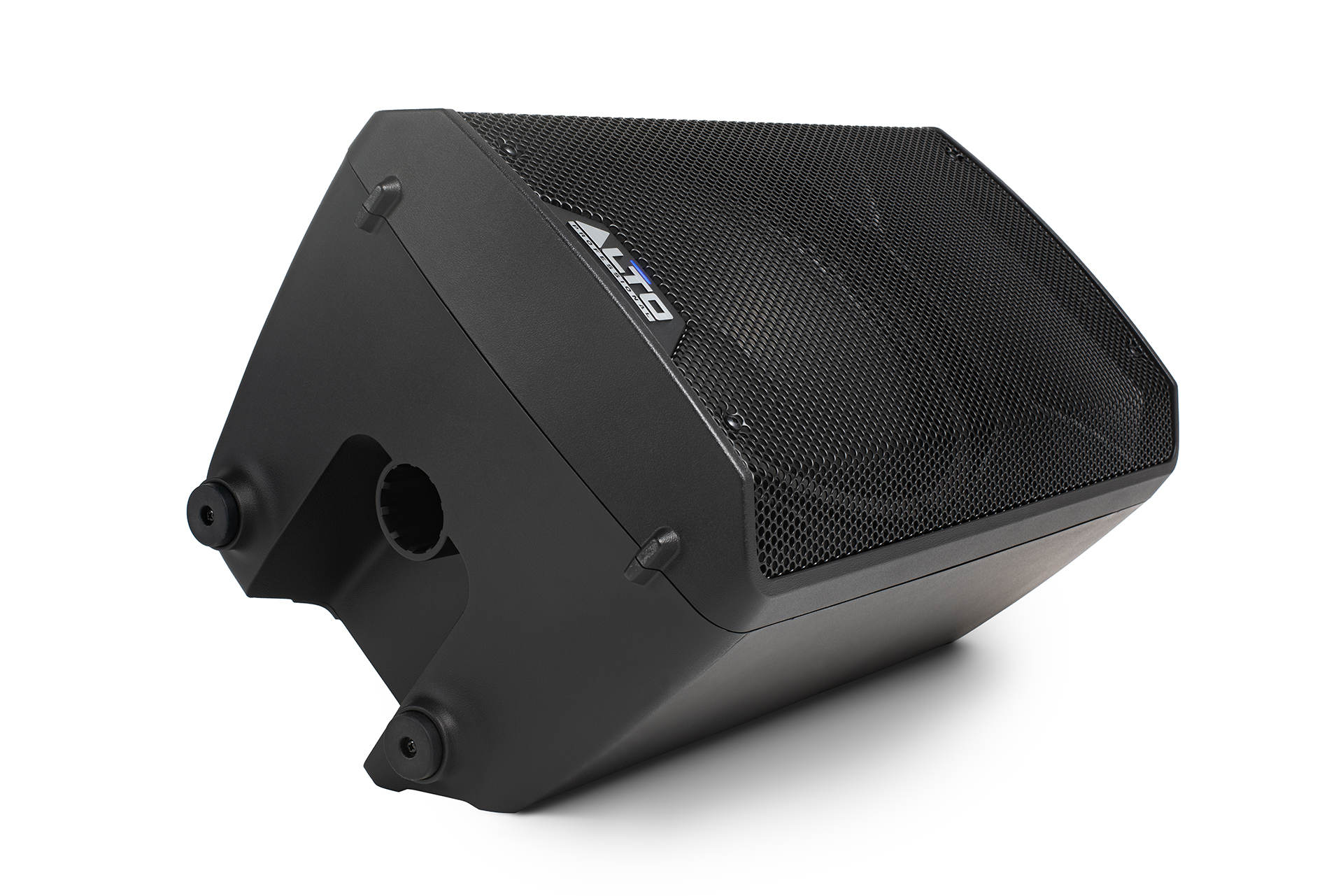

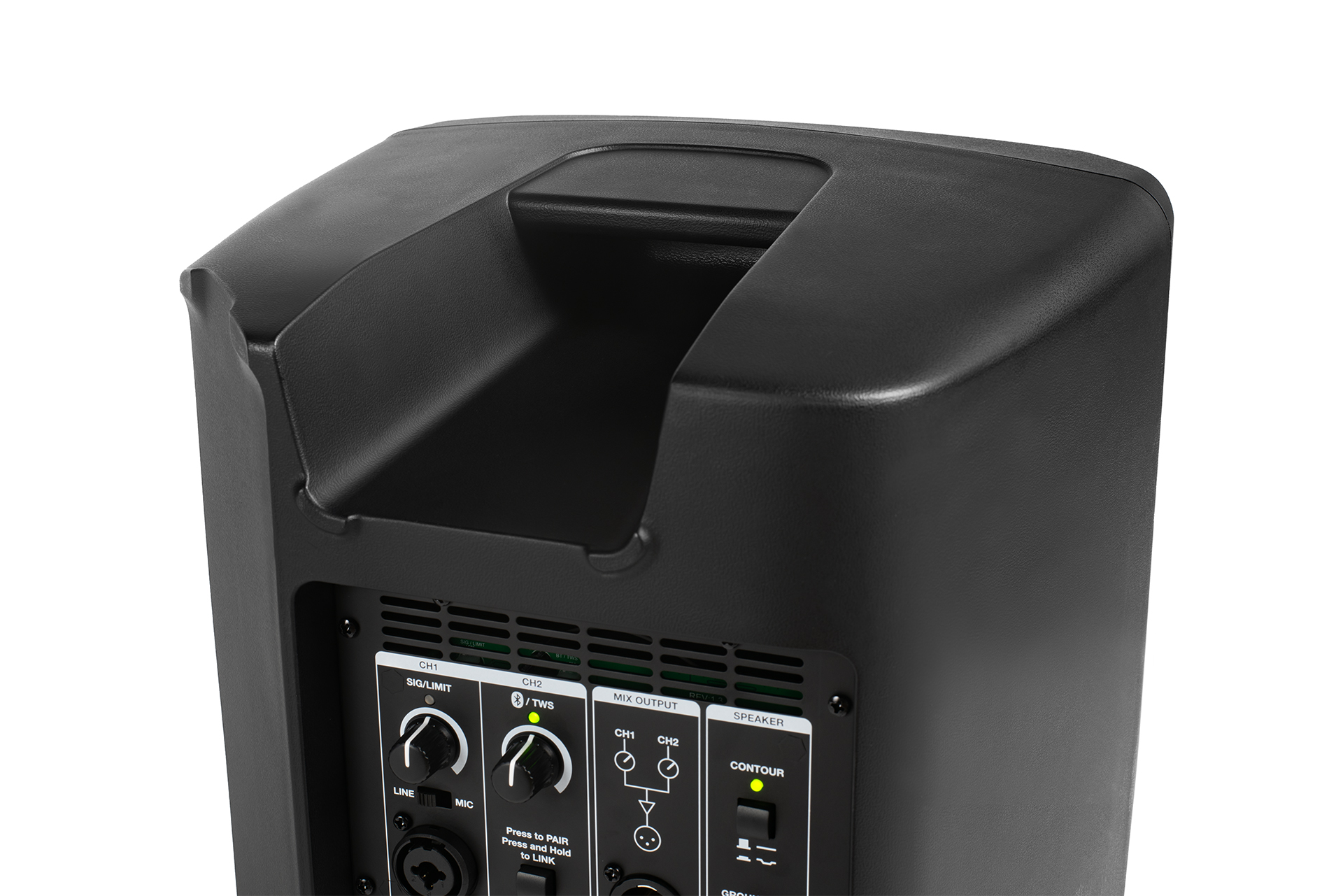

- Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top

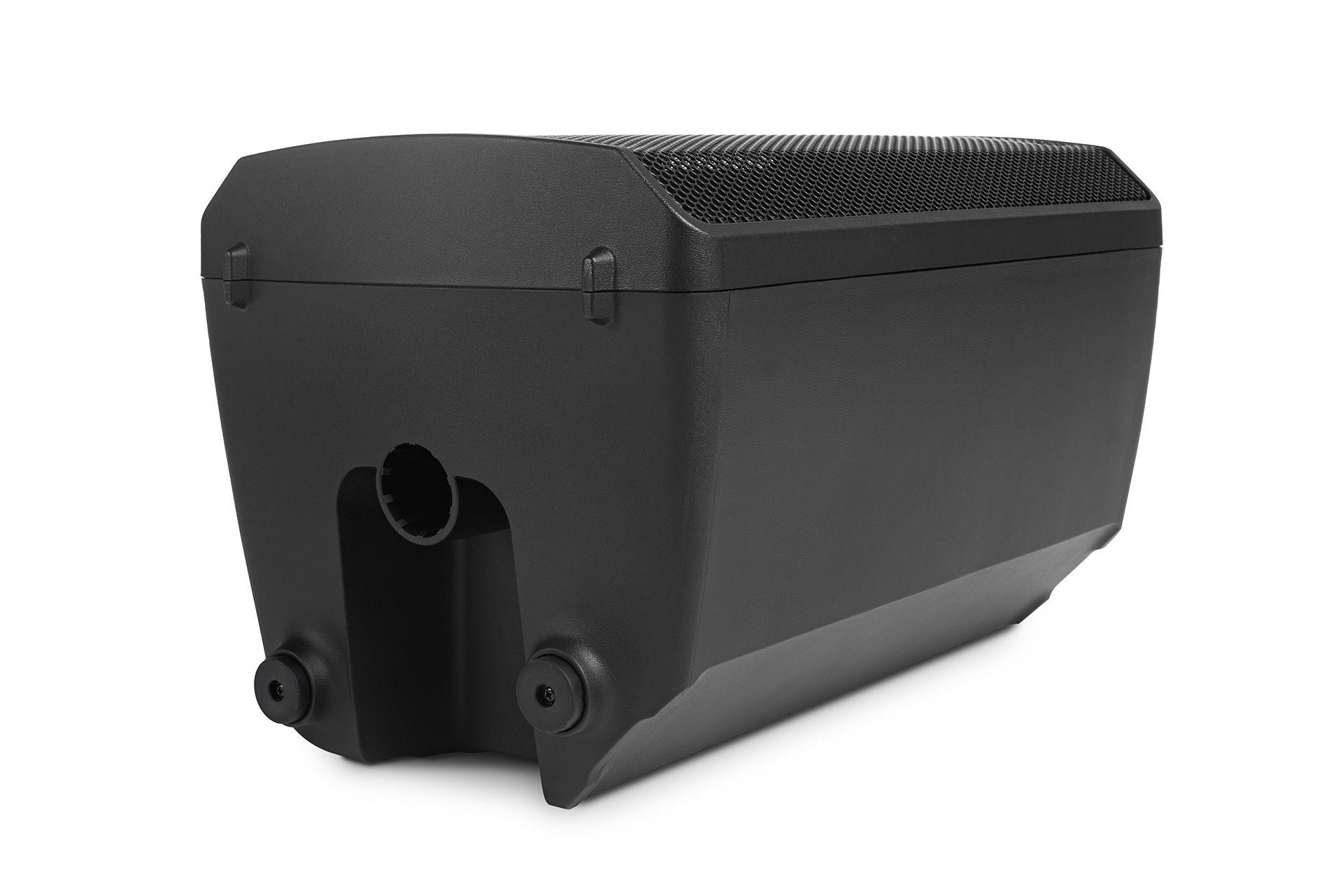

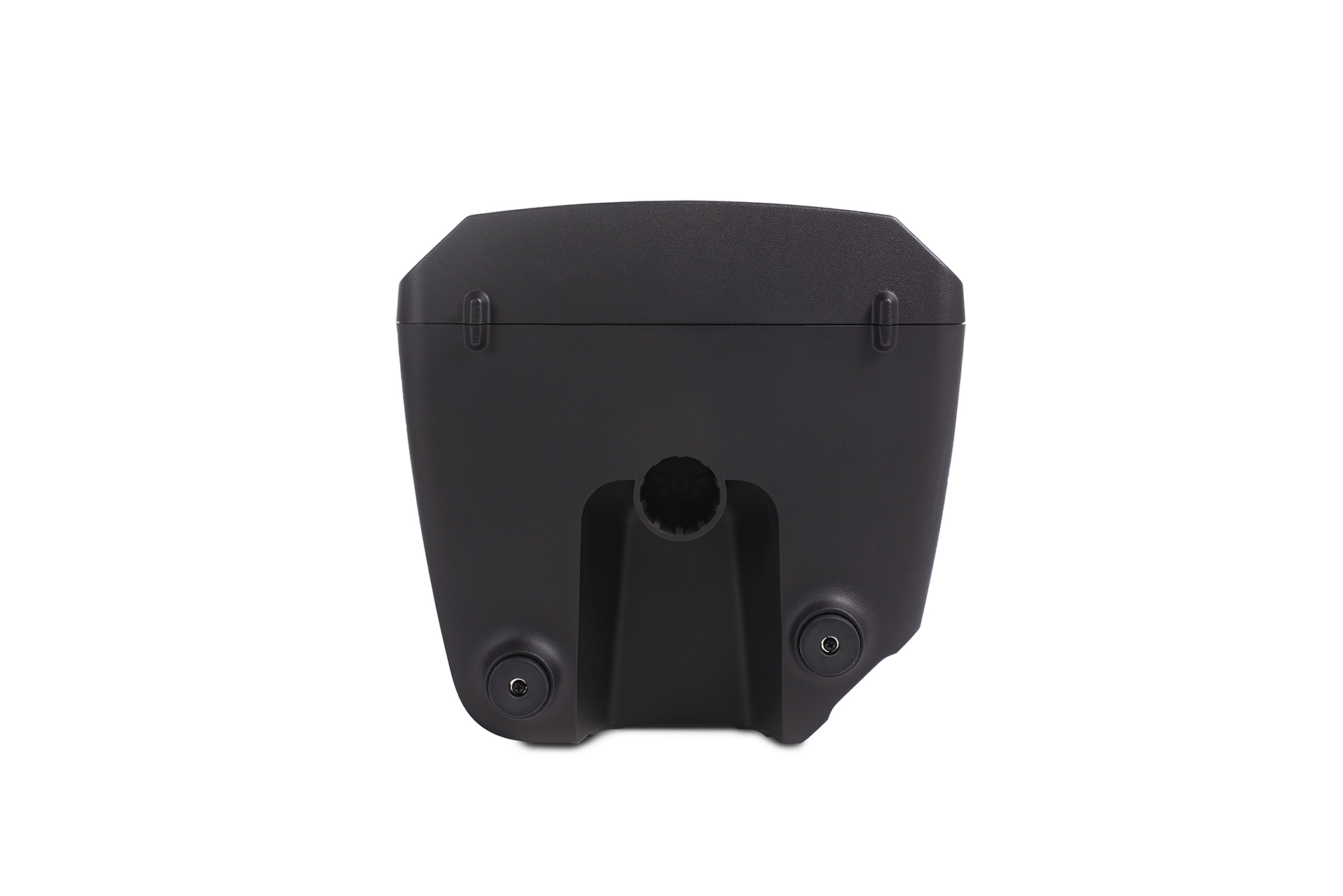

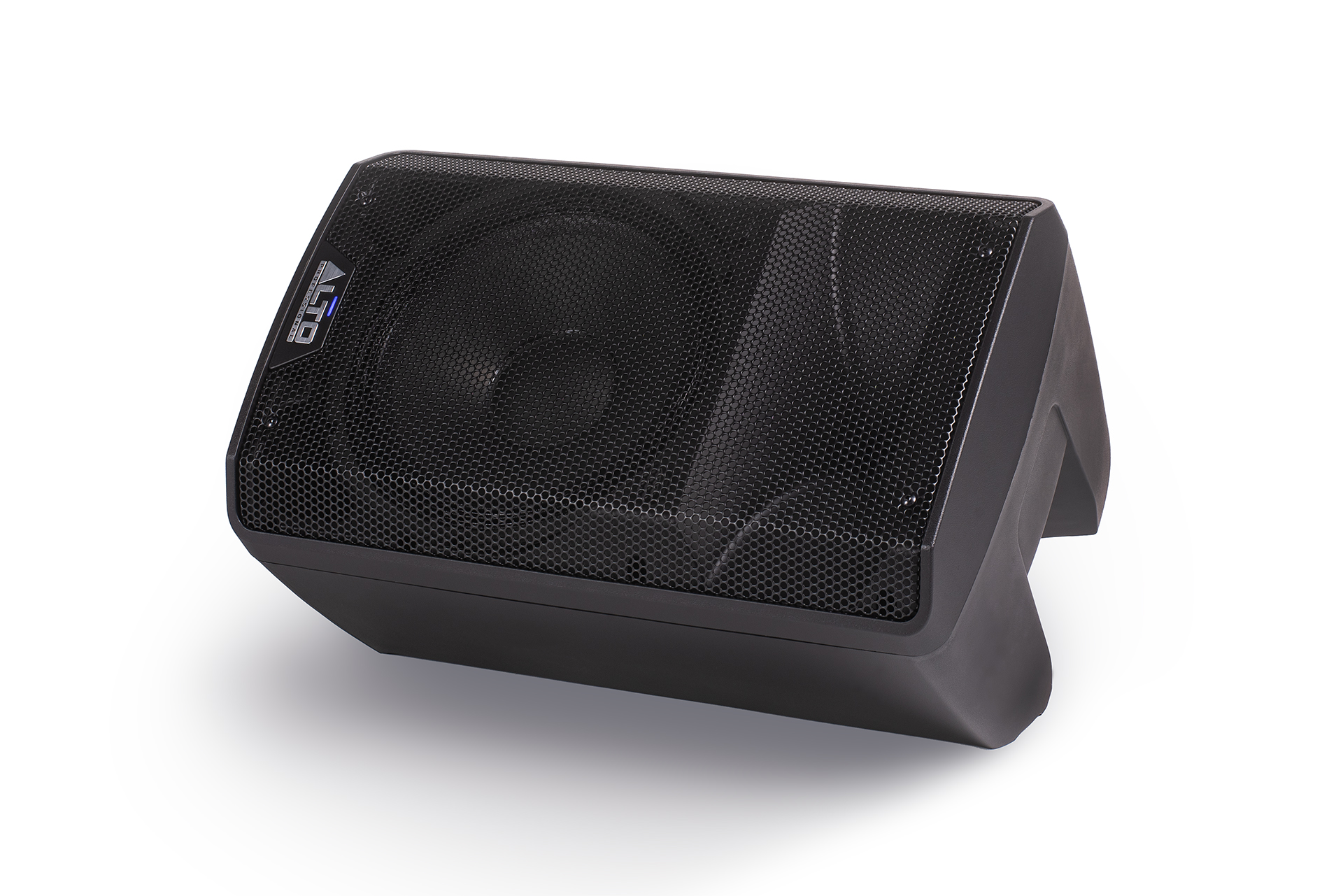

- Mounting / Installation: Standard 36 mm pole socket, wedge monitor
- Dimensions (H x W x D): 18.2” x 11.2” x 11.0” / 462 x 284 x 279 mm
- Weight: 15.0 lb / 6.8 kg
