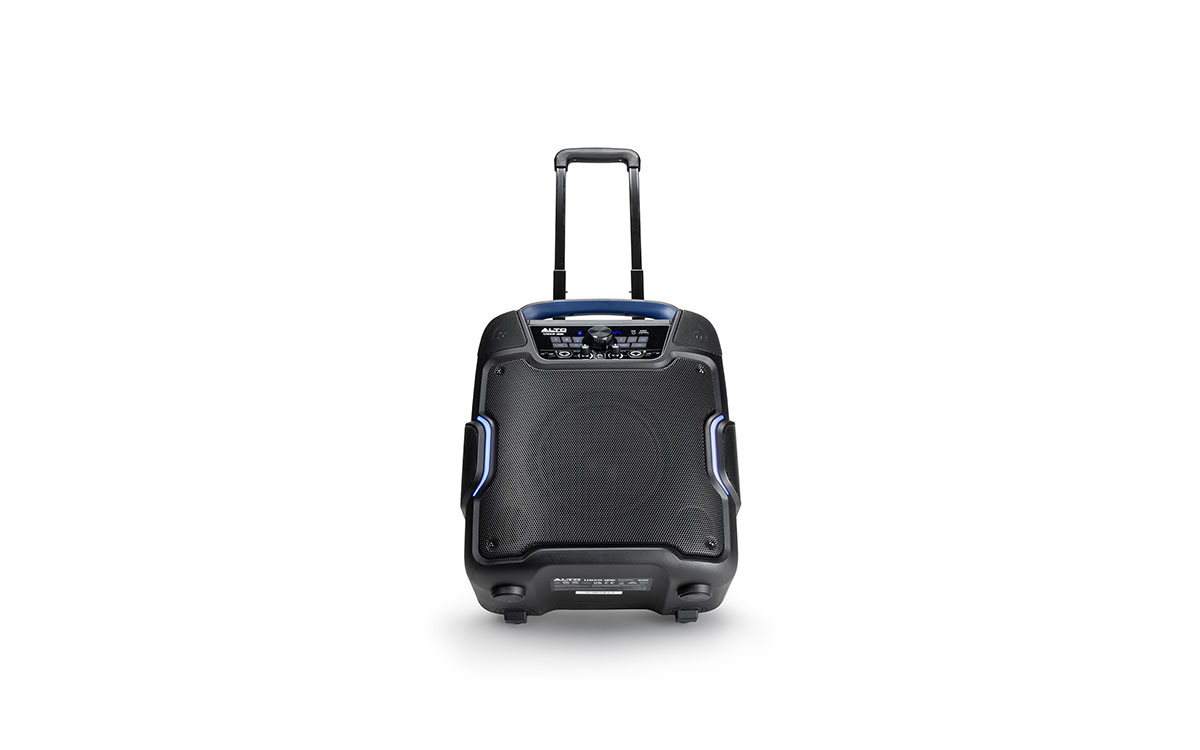

Description
Output Power: 200 W
Charge Port: 5V, 1A
Mic Inputs 1–2
• Connector: XLR / 1/4” TRS Combo Input Connector
• Dynamic Range: 108 dB (A-weighted)
• THD+N: <0.01%
• Noise EIN: >-110 dB (A-weighted)
• Maximum Input Level: +1.5 dBu
• Gain Range: 50 dB
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Input Impedance: 600 Ω
Line Inputs 1–2
• Connector: XLR / 1/4” TRS Combo Input Connector
• Dynamic Range: 108 dB (A-weighted)
• THD+N: <0.01%
• Maximum Input Level: +16 dBu
• Gain Range: 24 dB
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Input Impedance: 20 kΩ
Instrument Inputs 1–2
• Connector: XLR / 1/4” TRS Combo Input Connector
• Dynamic Range: 108 dB (A-weighted)
• THD+N: <0.02%
• Gain Range: 24 dB
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Maximum Input Level: +6 dBu
• Input Impedance: 1 MΩ
Channel EQ
• EQ Configuration: Channels 1 and 2 have independent 2-band shelving EQs
High EQ
• Filter Type: 12 dB/octave shelving filter
• Cutoff Frequency: 12 kHz
• Gain/Attenuation: ±15 dB
Low EQ
• Filter Type: 12 dB/octave shelving filter
• Cutoff Frequency: 80 Hz
• Gain/Attenuation: ±15 dB
Aux Input
• Connector: 1/8” (3.5 mm) TRS Input Connector
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Maximum Input Level: +12 dBu
• Input Impedance: 20 kΩ
Line Output
• Connector: 1/4” (6.35 mm) TRS Output Connector
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Output Level: Fixed +10 dBu
• Input Impedance (unbalanced): 100 Ω
Amplifier & Drivers
• Frequency Response: 60 Hz – 20 kHz
• Max SPL: 110 dB
• Power Amp: 100 W RMS mono-bridged
• LF Driver: 8.0” (203 mm) woofer
• HF Drivers: (2) 1.0” (25 mm) tweeters
• Side Drivers: (2) 3.0” (76 mm) drivers
Bluetooth Specifications
• Profile: A2DP, AVRCP
• Version: 5.0
• Frequency Bands: 2400 – 2483.5 MHz
• Maximum RF Power: <20 dBm (EIRP)
• Range: Up to 100 ft / 30.5 m
Battery
• Type: Lead-acid battery
• Capacity: 12V, 7A, 84 Wh
• Battery Life: Up to 100 hours
• Charging Time: 10 hours
USB-A Charging
• Front USB Port: 5V, 1A
• Top USB Port: 5V, 2.2A
Power
• Connection: IEC
• Voltage: 100–240 VAC, 50/60 Hz
• Power Consumption: 120 W
Dimensions (H × W × D): 21.5” × 17.5” × 13.6” / 493 × 383.6 × 266.6 mm
Weight: 22.9 lbs. / 10.4 kg
