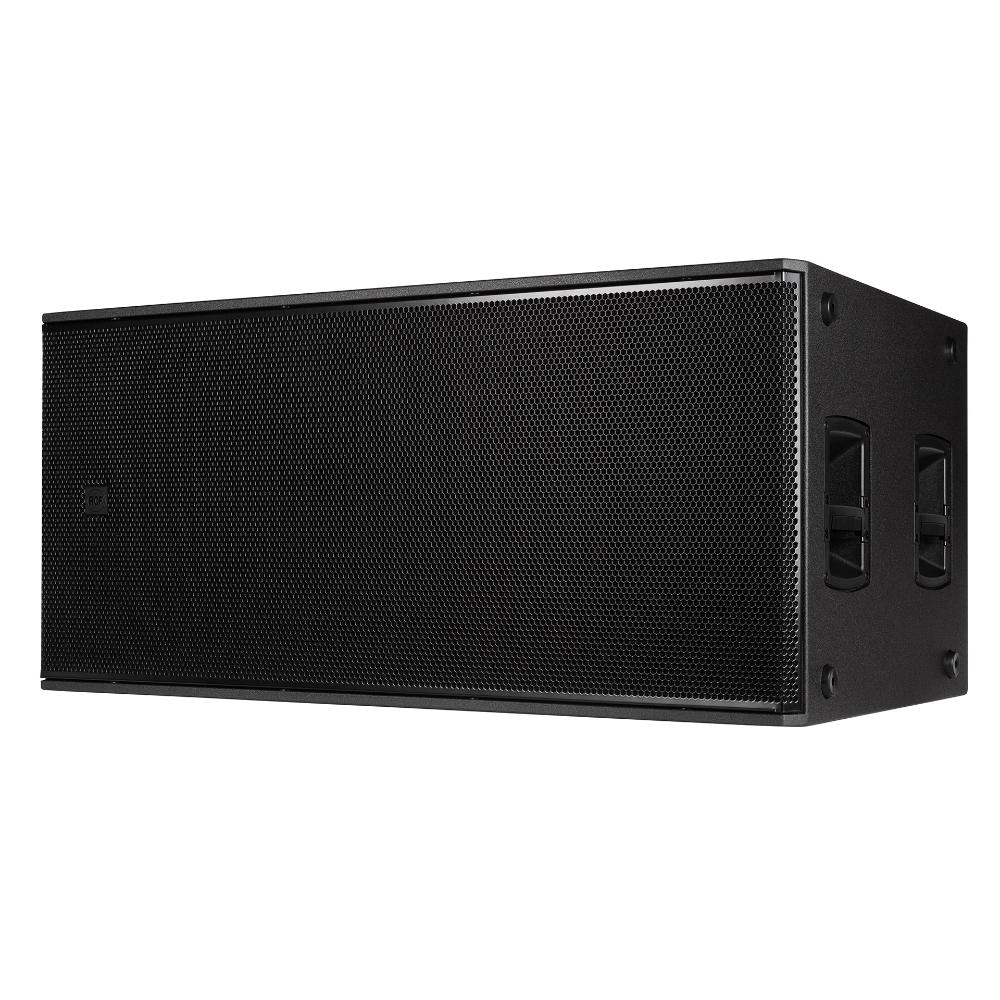

Description
Acoustical specifications
Frequency Response: 30 Hz – 120 Hz
Max SPL @ 1m: 137 dB
Transducers

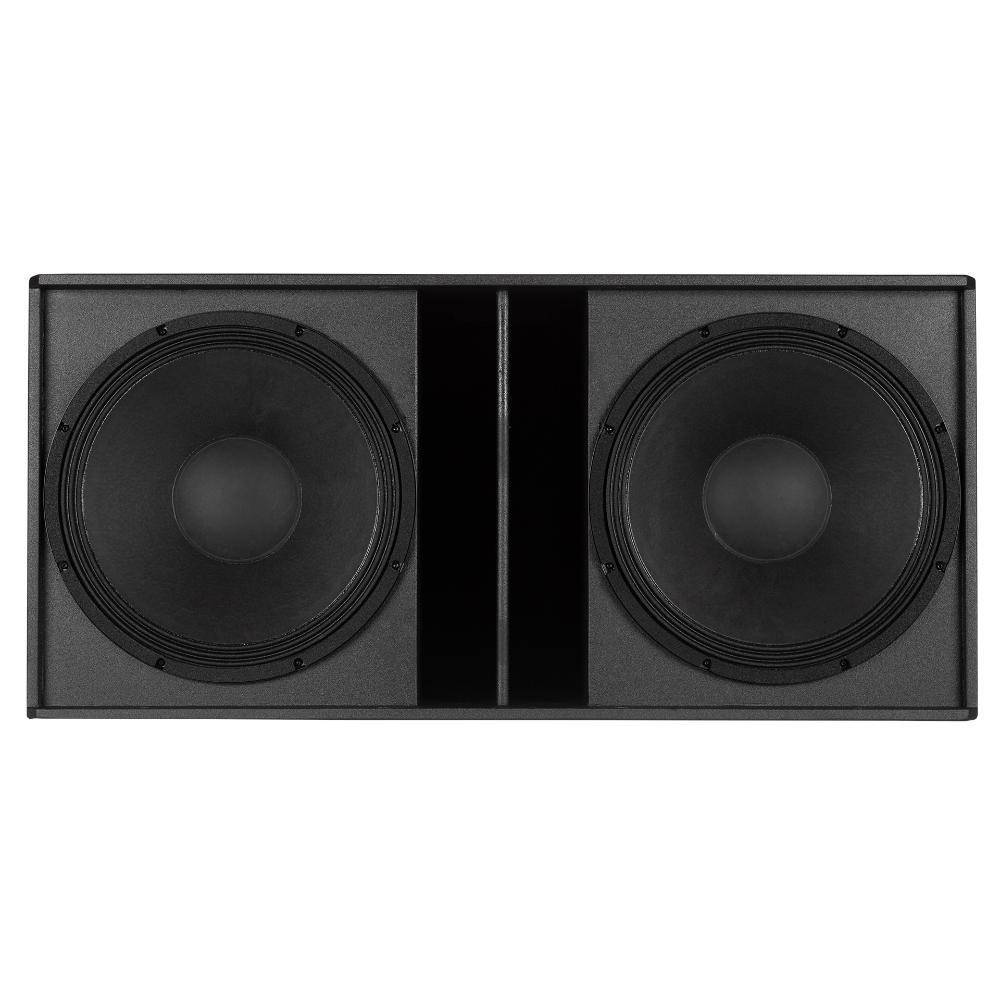

Woofer: 2 x 18”, 4.0” v.c
Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: Selectable
Protections: Thermal, Excurs., RMS
Limiter: Soft Limiter
Controls: Xover, Phase Switch, Deep/Punch, Output Delay Setting

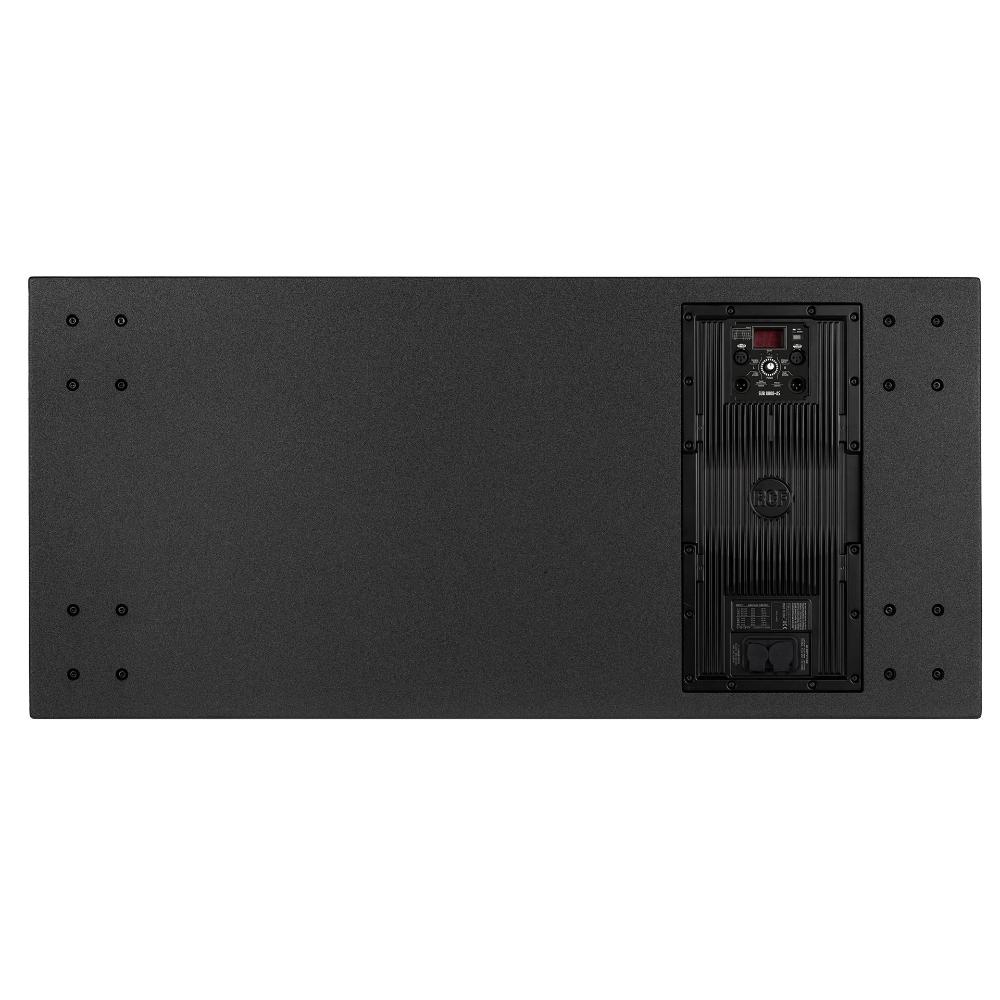

Power section
Total Power: 4400 W Peak
Low frequencies: 4400 W Peak
Cooling: Convection/Forced
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Plywood
Hardware: 2 x M20

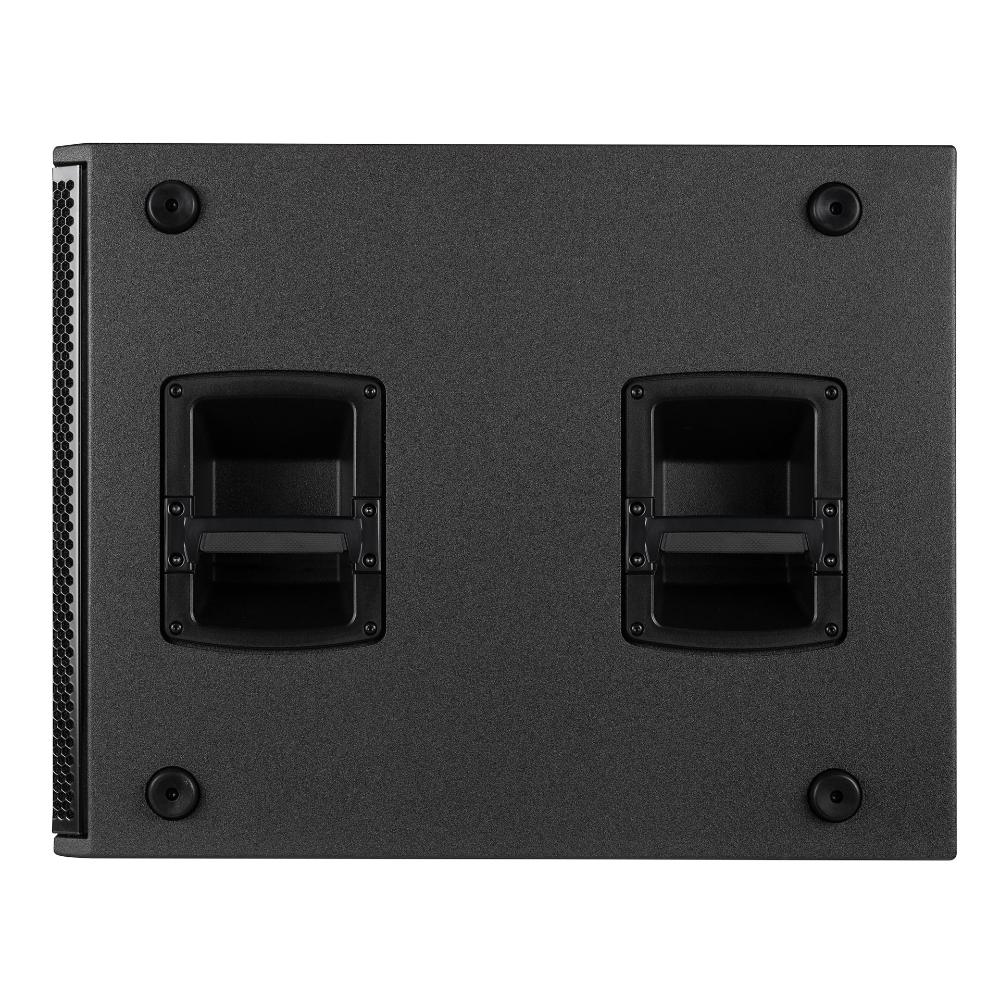

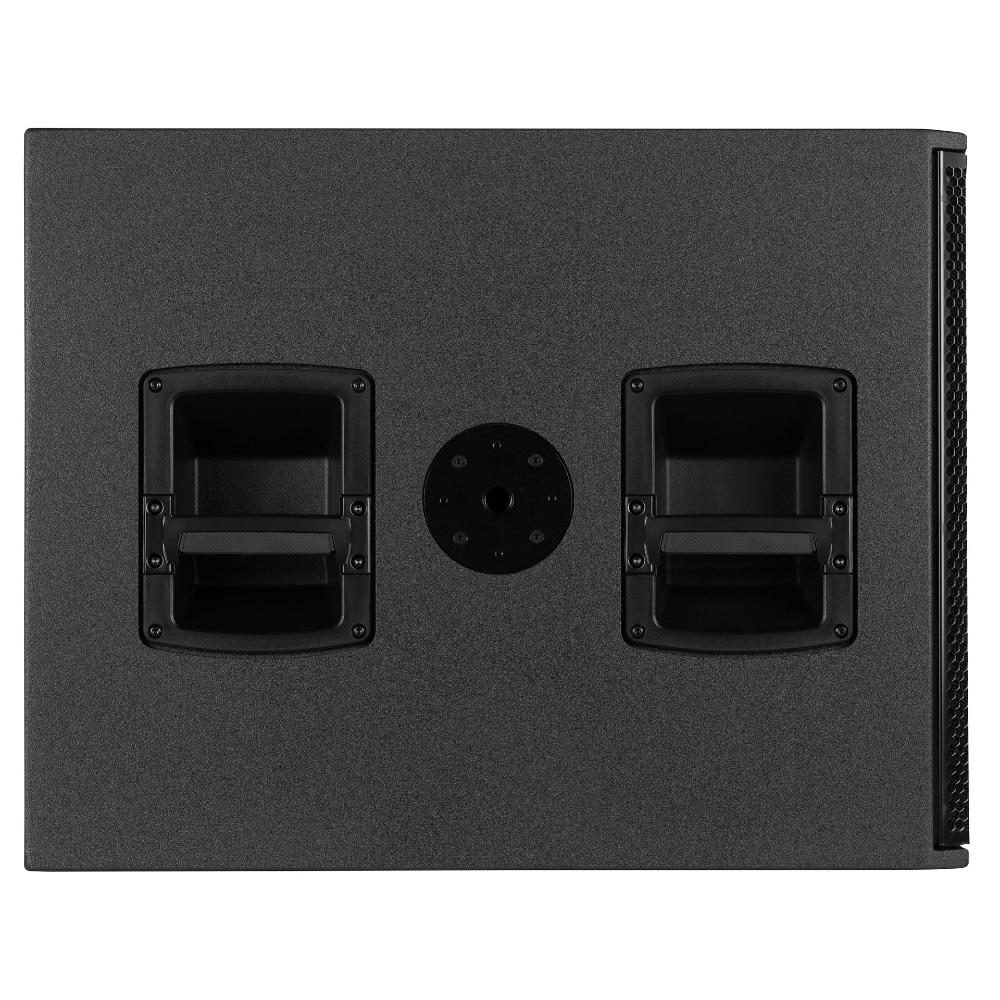

Handles: 2 x side

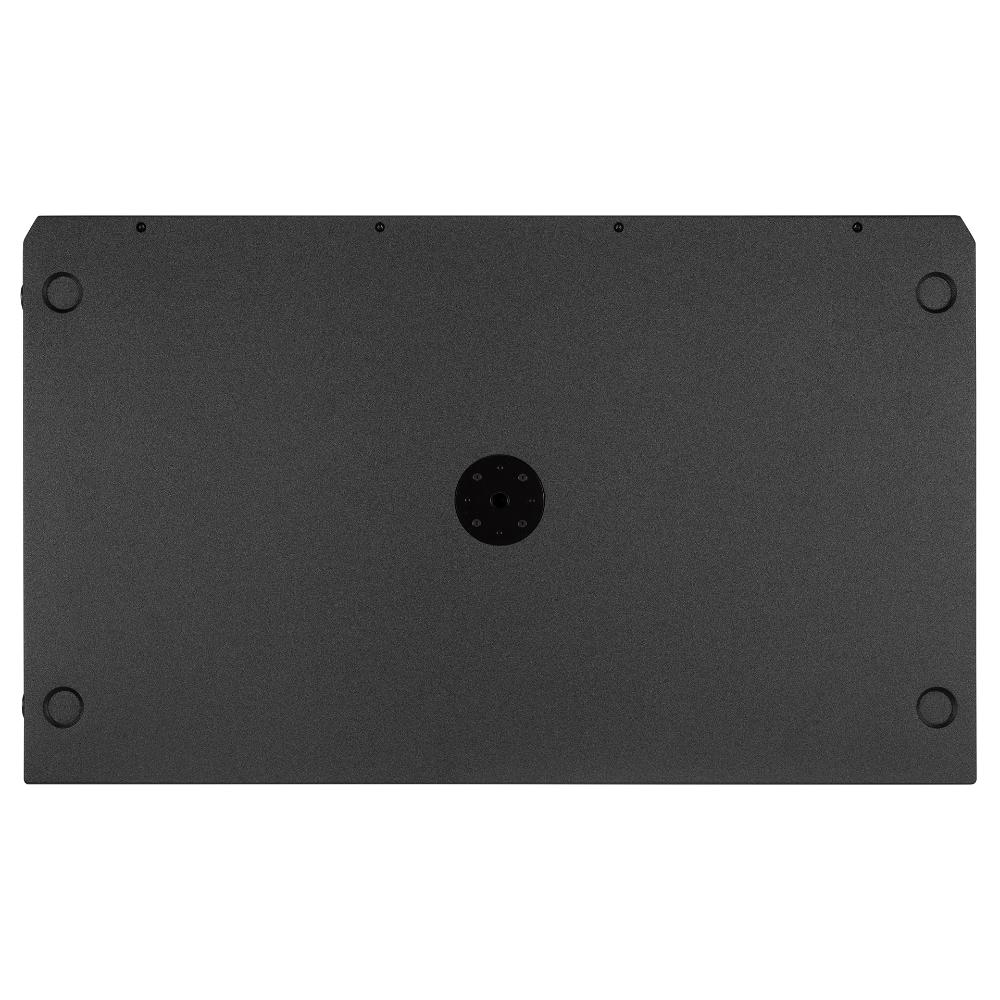

Pole mount/Cap: M20 thread
Grille: Steel
Color: Black
Size / Weight
Height: 550 mm / 21.65 inches
Width: 1180 mm / 46.46 inches
Depth: 700 mm / 27.56 inches
Weight: 80 kg / 176.37 lbs
