Description
Acoustical specifications
Frequency Response: 40 Hz – 120 Hz
Max SPL @ 1m: 131 dB
Transducers
Woofer: 15”, 3.0” v.c

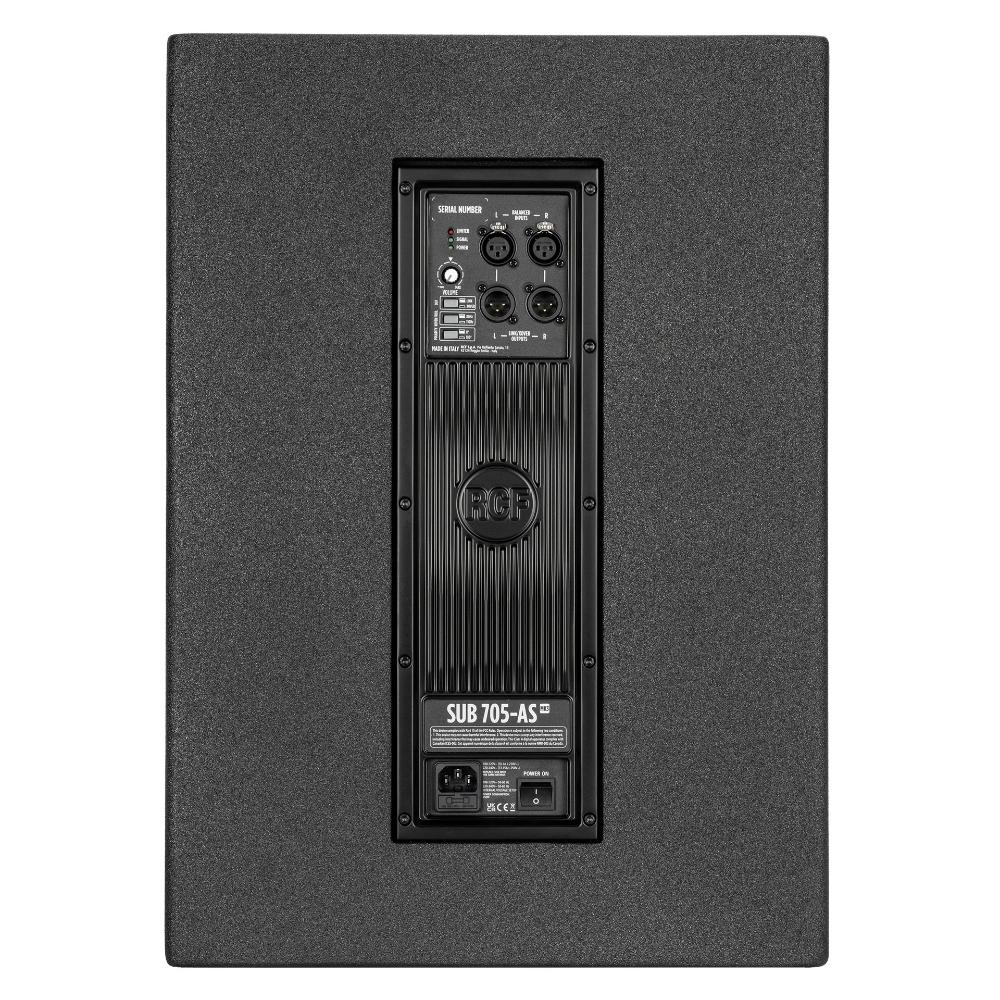

Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies: 110 Hz
Low-Pass Frequencies: 80 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ, Phase, Xover
Power section
Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood

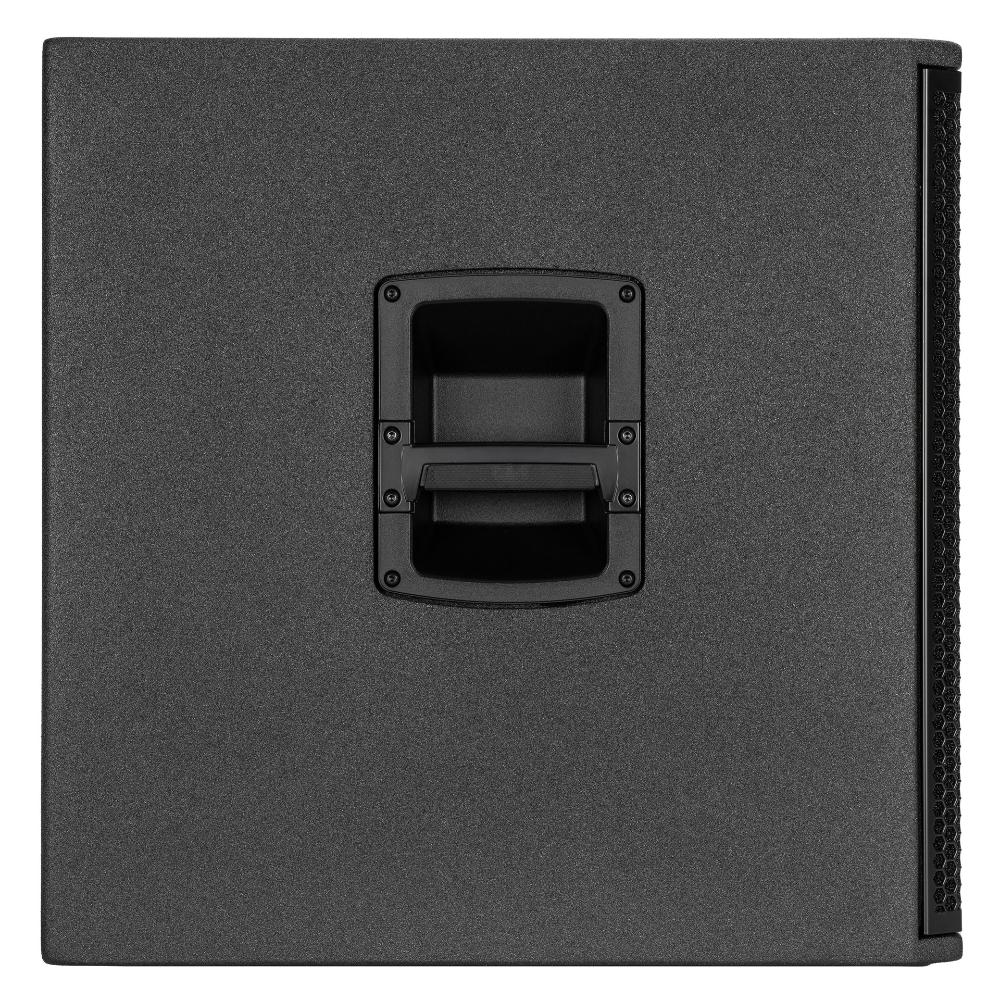

Handles: One each side

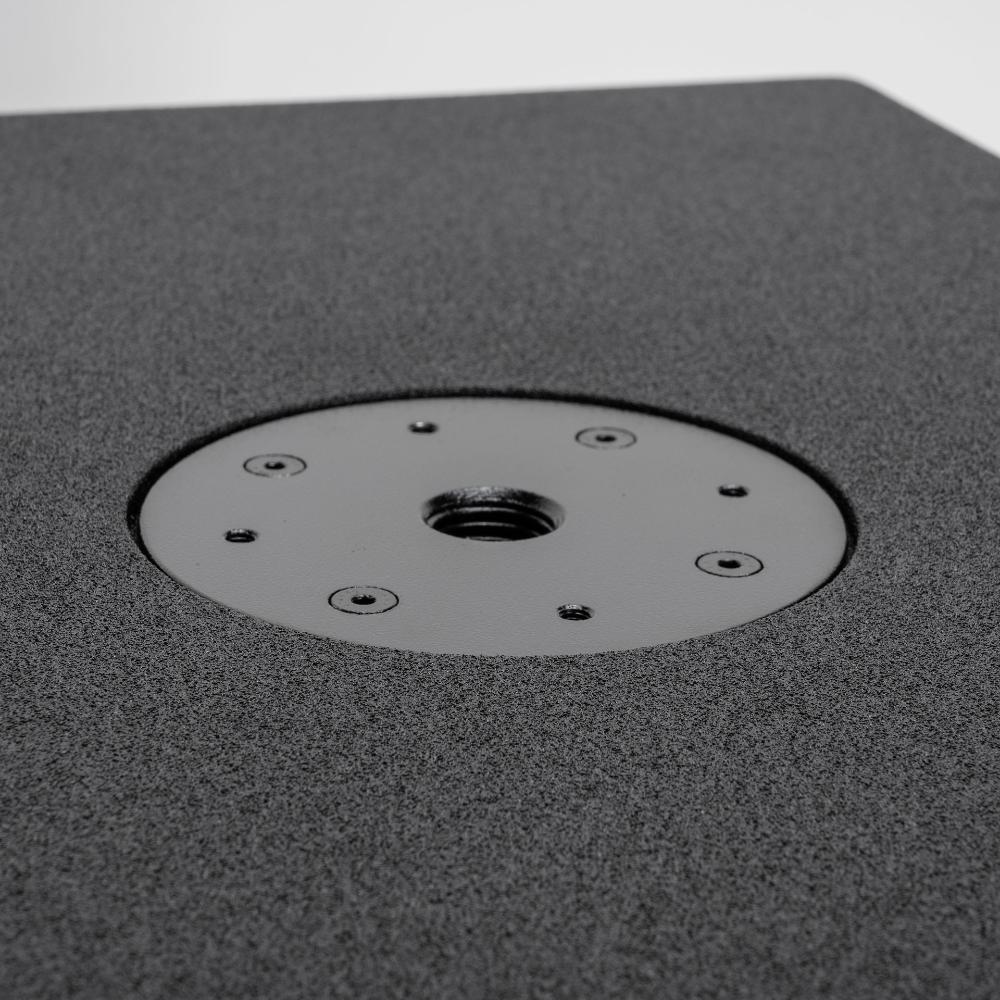

Pole mount/Cap: M20 thread

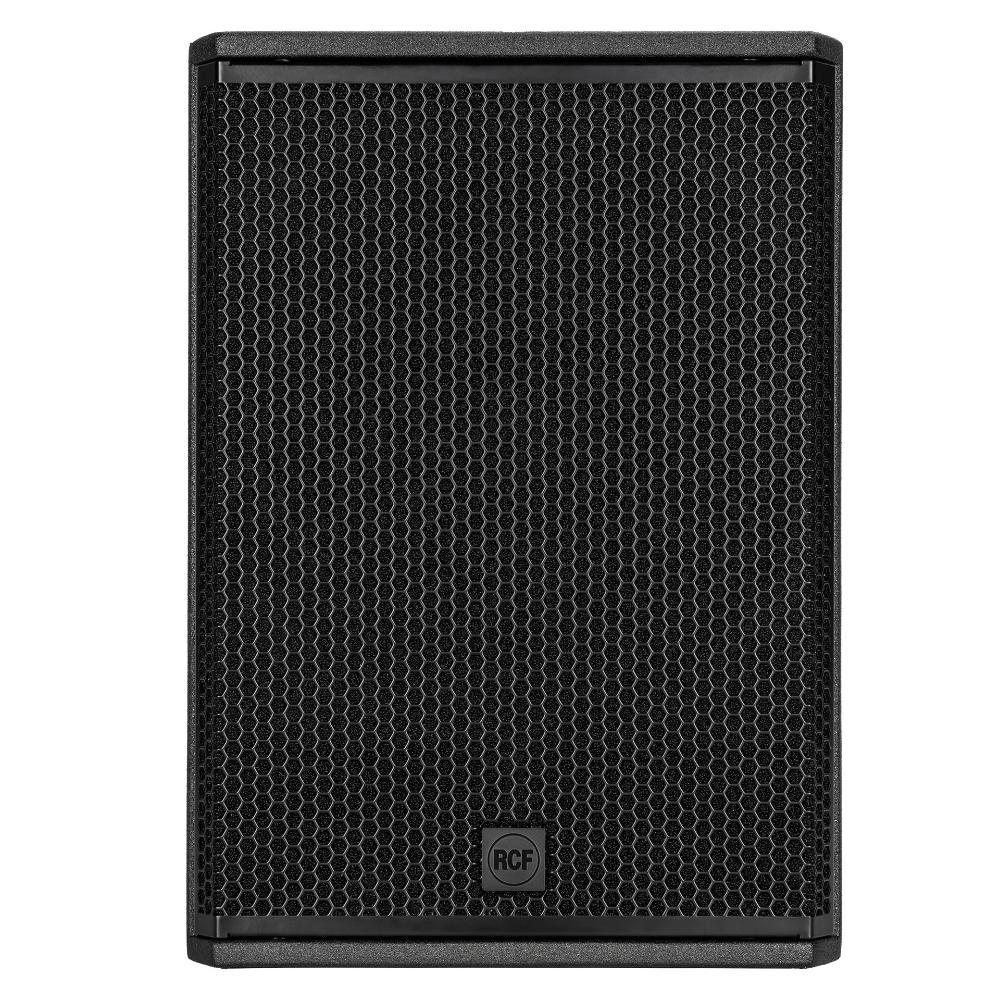

Grille: Steel with clothing
Color: Black
Size / Weight
Height: 598 mm / 23.54 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 30 kg / 66.14 lbs
