Description
Mic Input CH 1
• Connector: XLR/TRS combo input connector (mic is XLR only)
• Dynamic Range: 108 dB (A-Weighted)
• THD +N: <0.01%
• Noise EIN: >-110 dB (A-Weighted)
• Maximum Input Level: +1.5 dBu
• Gain Range: 50 dB
• Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
• Input Impedance: 600 Ω
Line Input CH 1
• Connector: XLR/TRS combo input connector (line is TRS only)
• Dynamic Range: 108 dB (A-Weighted)
• THD +N (%, -1 dBFS input): <0.01%
• Maximum Input Level: +16 dBu
• Gain Range: 24 dB
• Frequency Response (20 Hz – 20 kHz): 20 Hz – 20 kHz (+/- 0.1 dB)
• Input Impedance: 20k Ω
Mix Out
• Connector: XLR output connector
• Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
• Output Level (for 0.5% THD): Fixed +10 dBu
• Input Impedance (unbalanced): 100 Ω
General

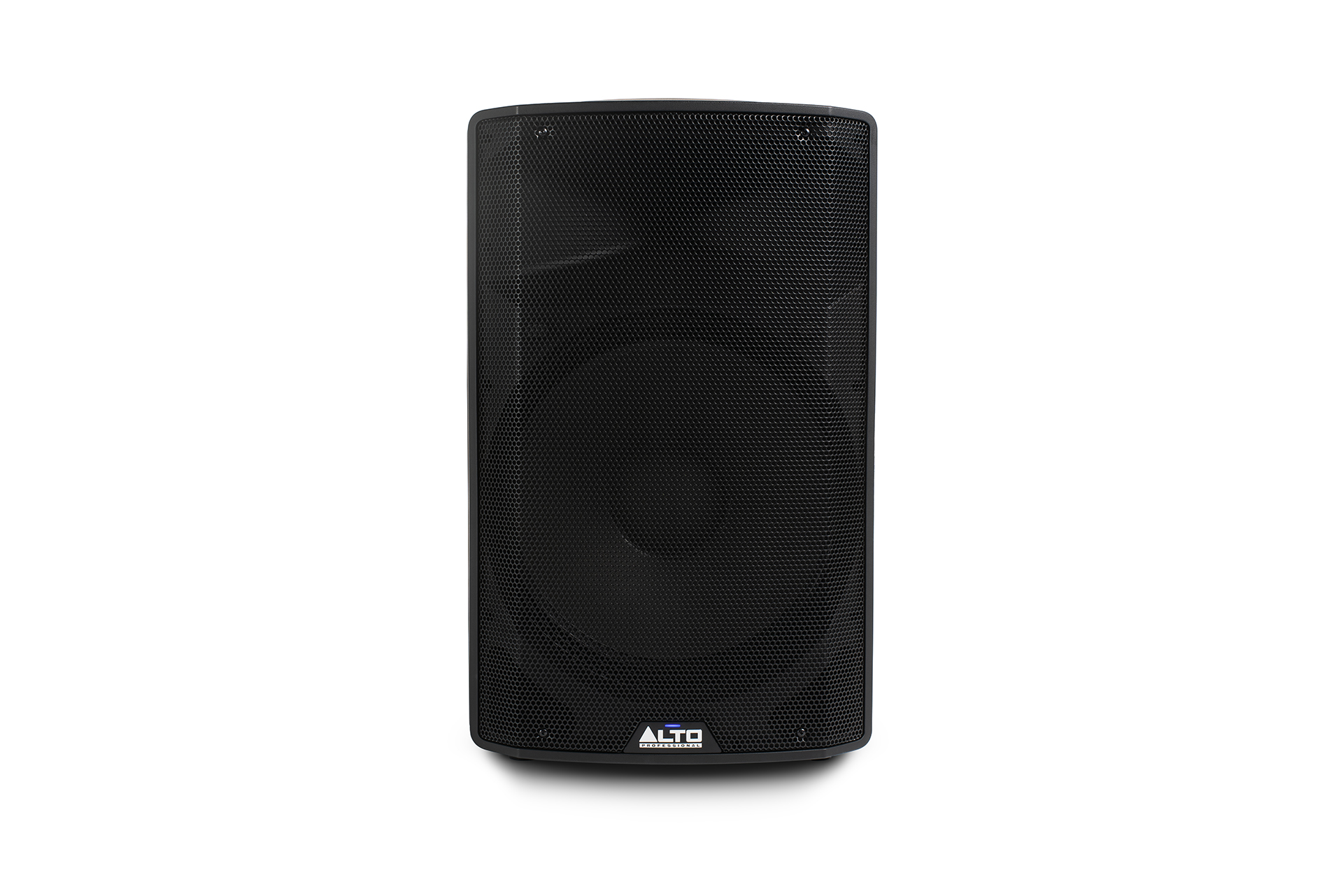

• System Type: 2-way active ported loudspeaker
• Drivers:
• Low-Frequency: 15.0” (381 mm) driver, 2.0” (51 mm) voice coil
• High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
• Amplifier: 700 watts (peak), Class D power
• Horn Coverage: 90º horizontal x 60º vertical (nominal)
• Frequency Response: 75 Hz – 20 kHz (-3 dB)
• Max SPL: 121 dB @ 1 m

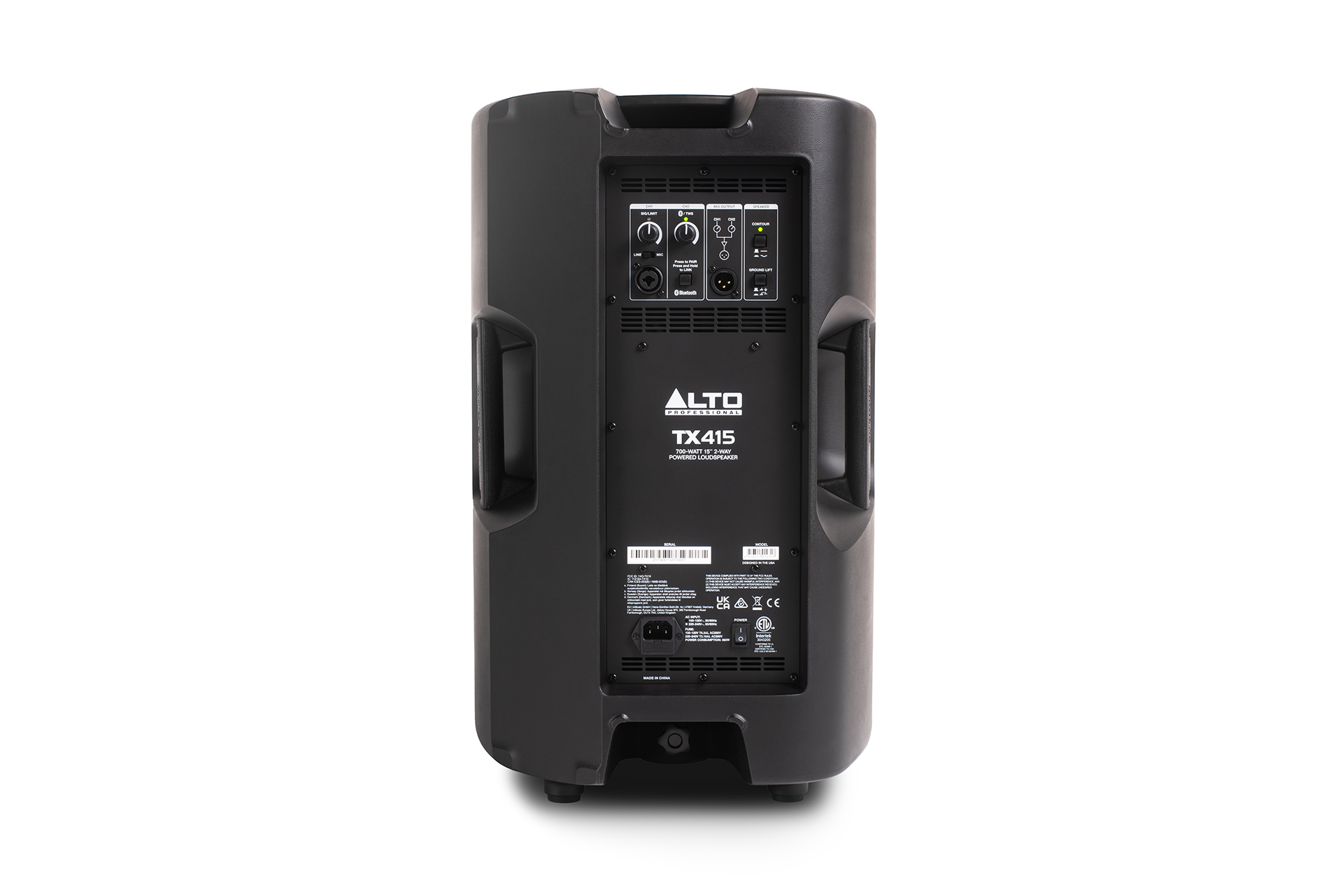

Connectors
• (1) XLR/TRS input (Line/Mic)
• (1) XLR/TRS output
• (1) IEC power cable input

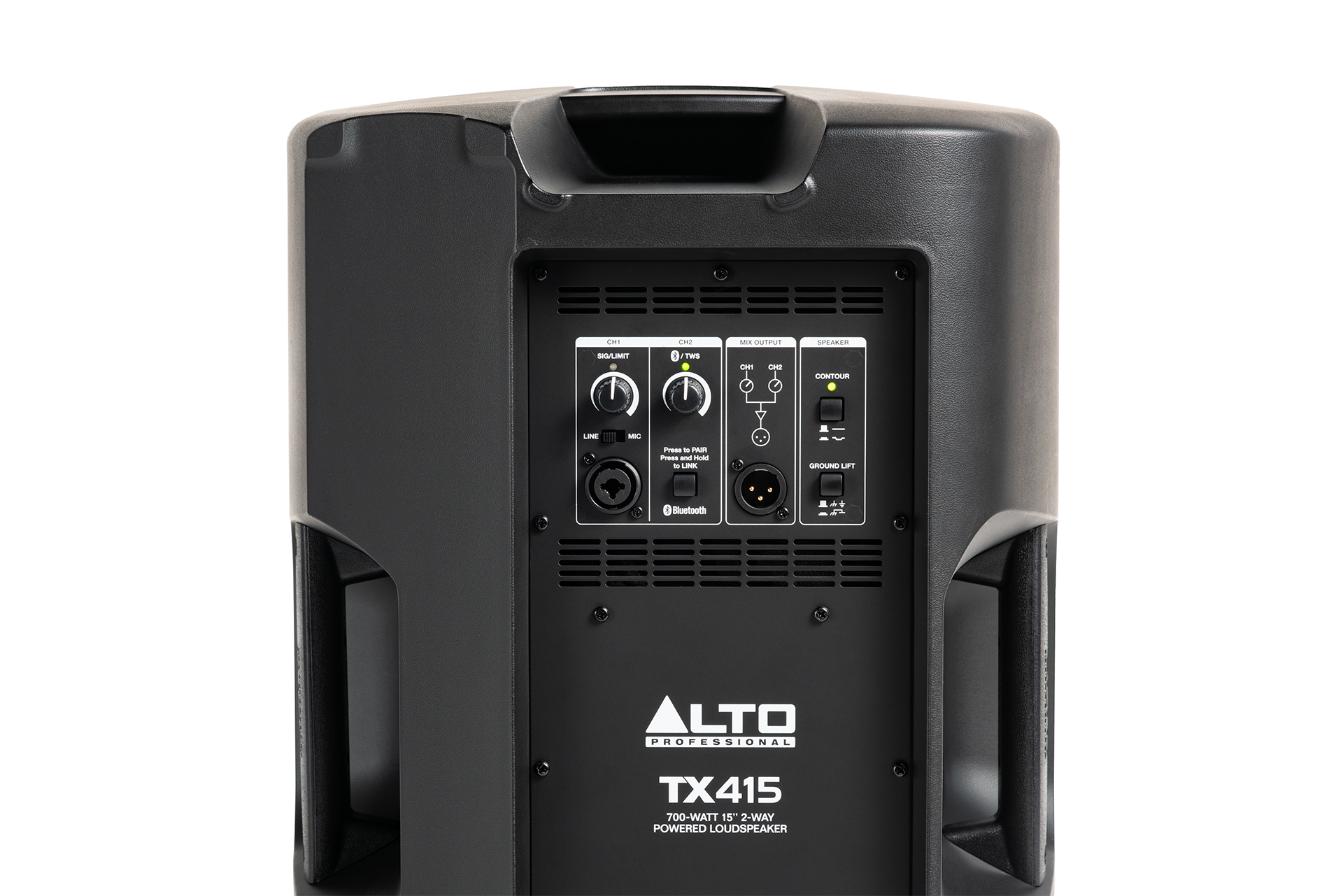

Controls
• Power switch
• Volume control knob
• Contour switch
• Ground-lift switch
Indicators
• Clip limiter LED
Bluetooth
• Version: 5.0
• Profiles: A2DP, AVRCP
Power
• Connection: IEC
• Voltage: 100–120V~, 50/60 Hz; 220–240V~, 50/60 Hz
• Fuse: 100-120V T6.3AL AC250V; 220-240V T3.15AL AC250V
• Consumption: 350W
Protection
• Thermal
• Overload analog limiter/compressor

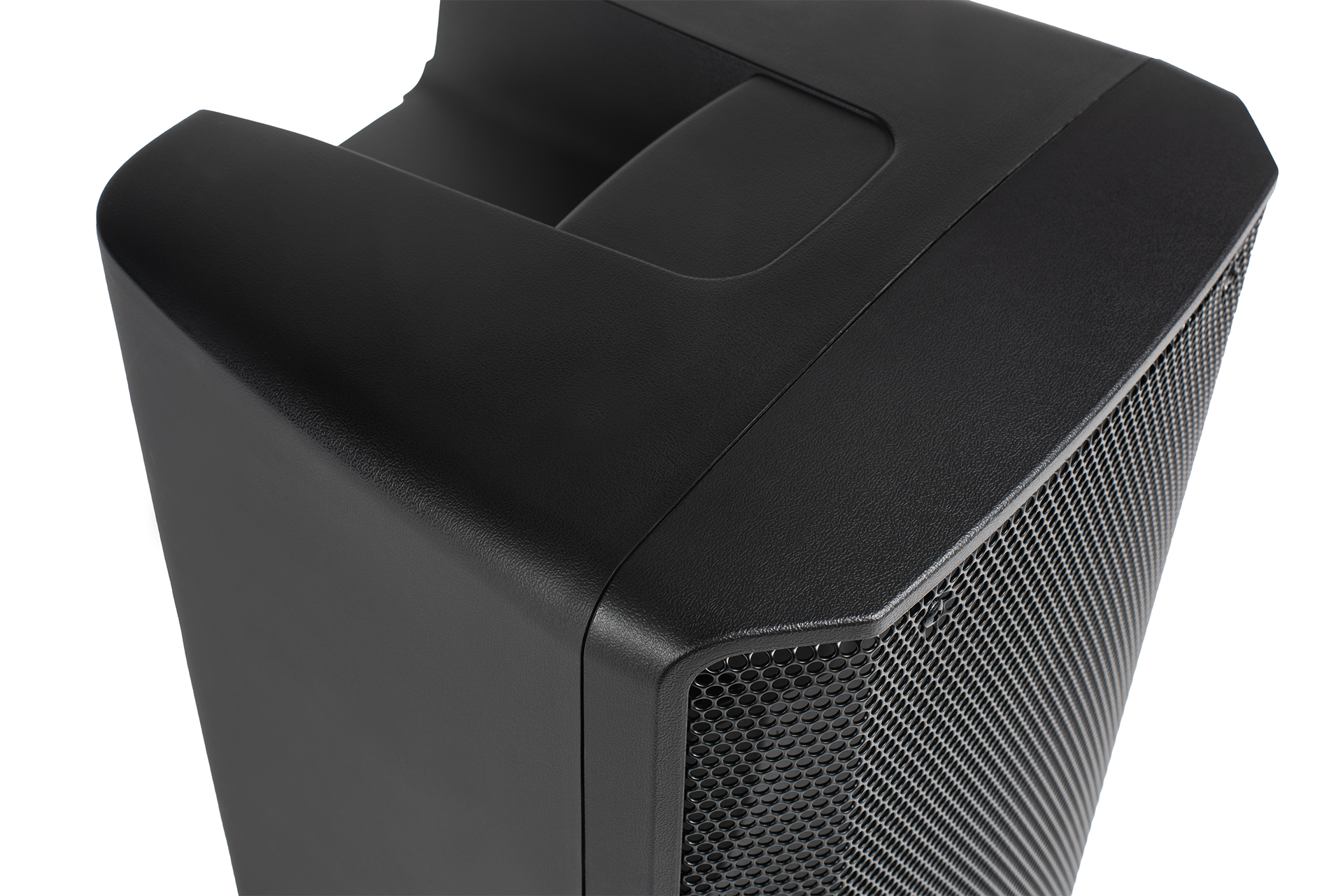

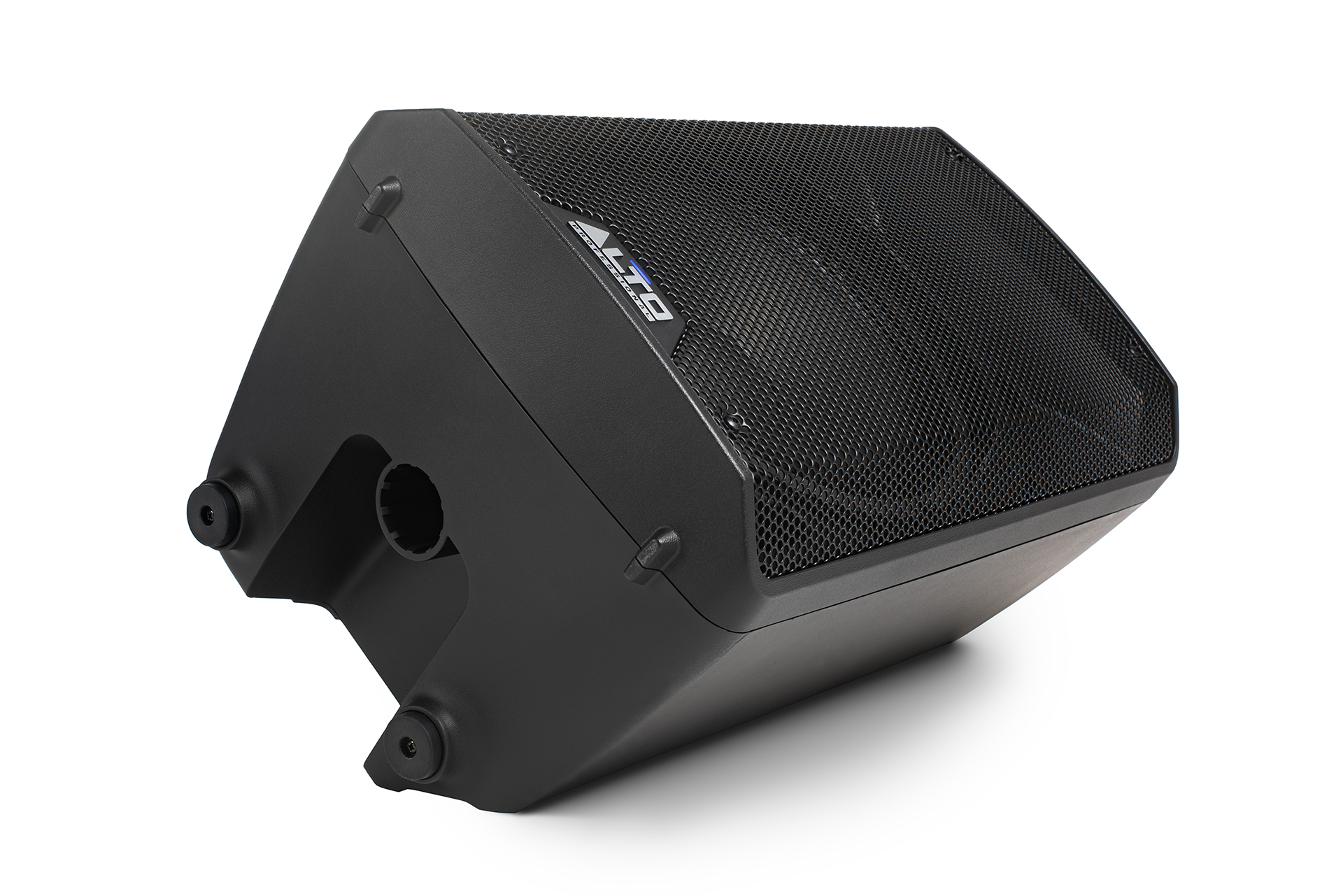

Enclosure
• Injection-molded polypropylene
• Multi-angle for main or monitor applications
• Metal grille
• Rubber feet

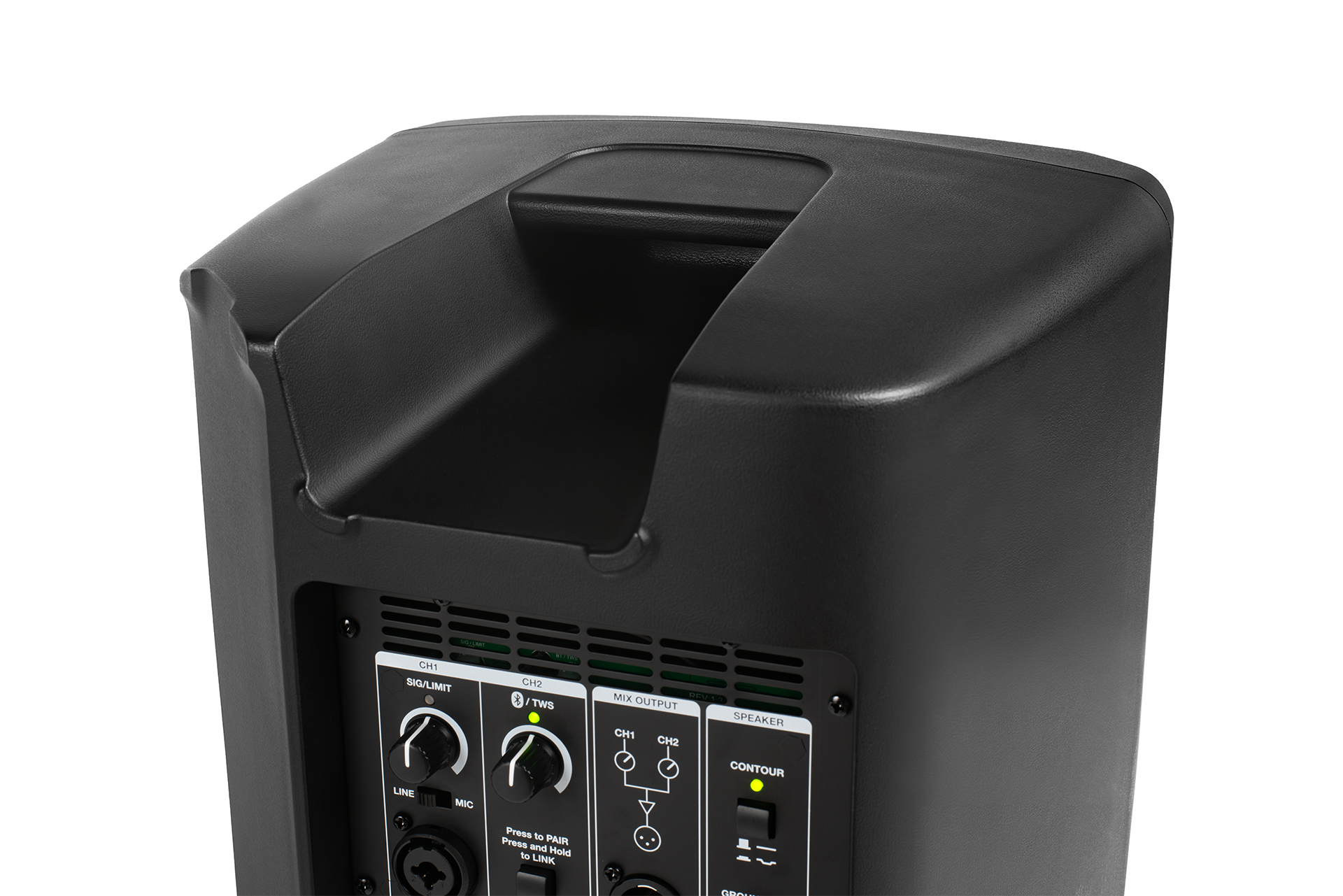

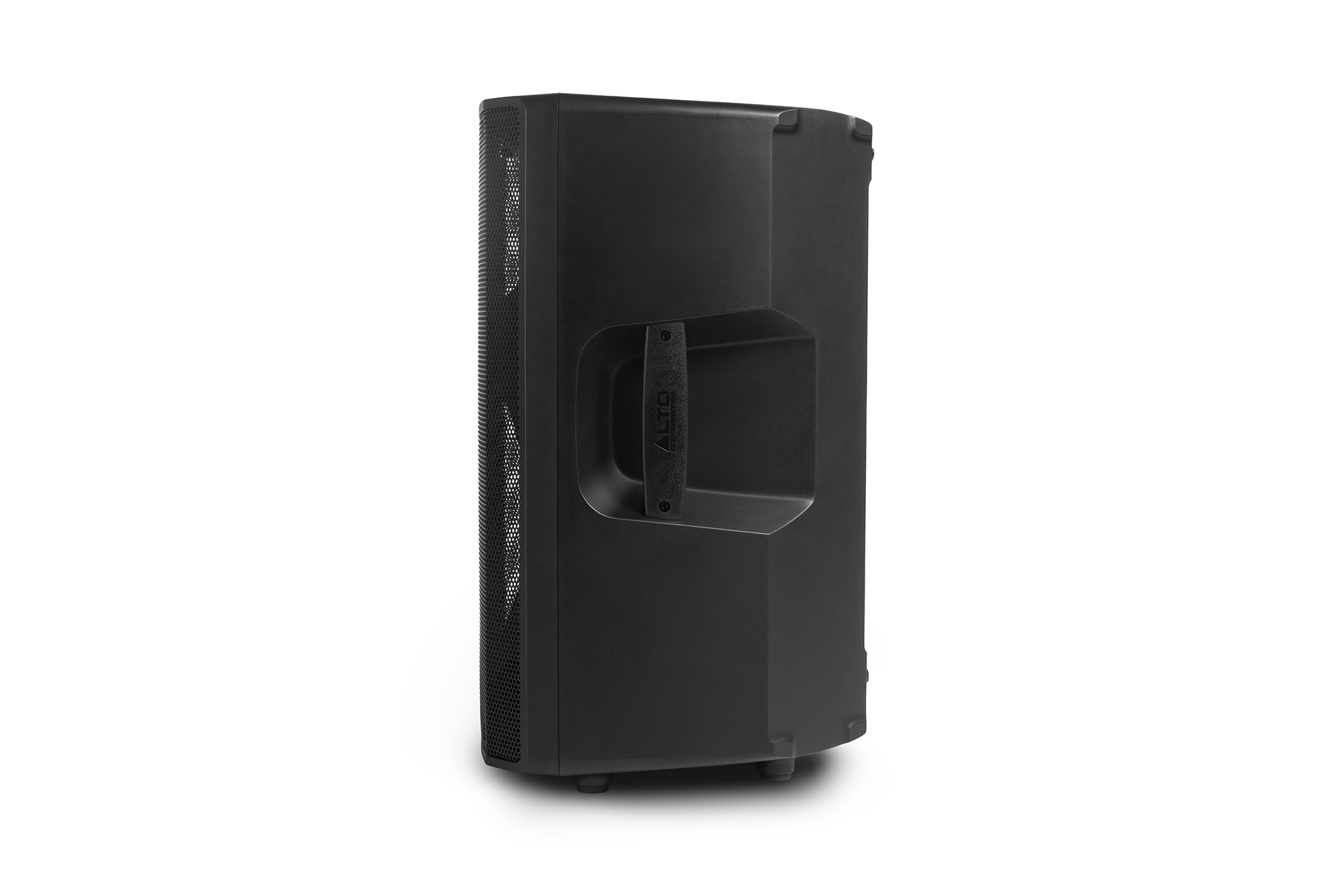

• 2 handles (both sides)

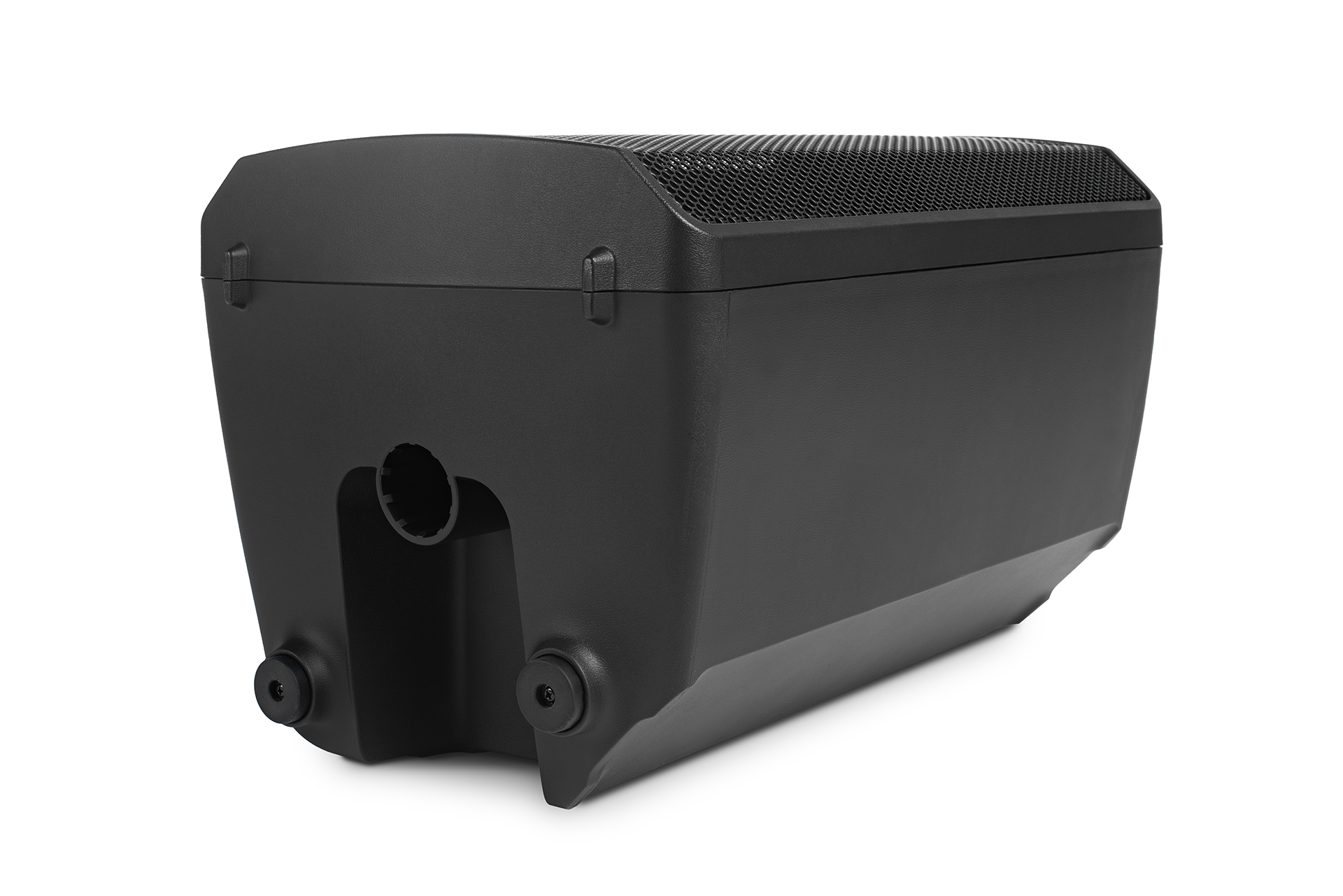

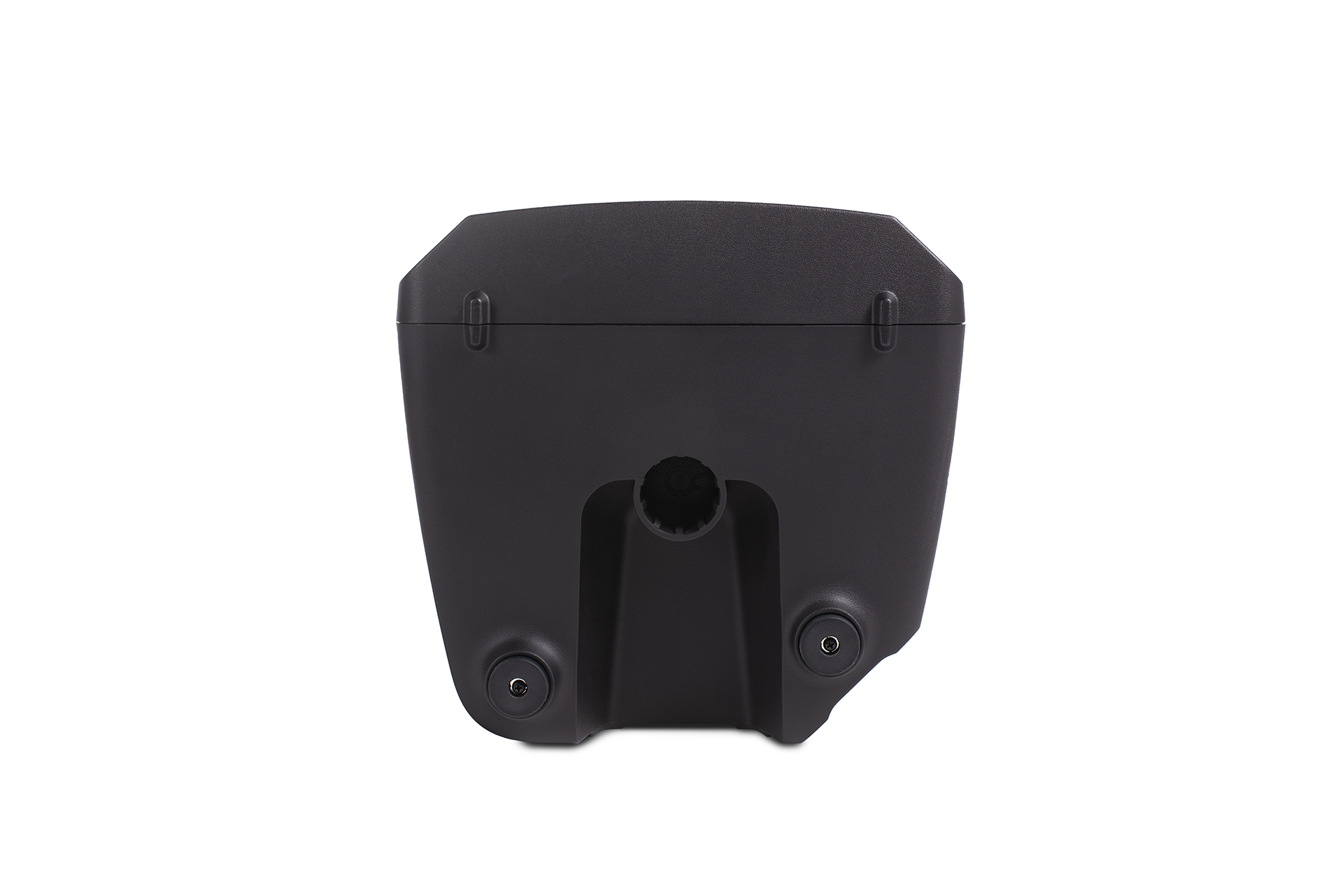

Mounting / Installation: Standard 36 mm pole socket, Wedge monitor
Dimensions (H × W × D)： 24.9” × 15.2” × 14.6” / 634 × 386 × 371 mm
Weight： 31.7 lb /14.4 kg
