Description
Frequency Response: 20 Hz – 22 kHz (±1 dB)
THD + N (Total Harmonic Distortion): <0.005% (@ 4 dBu, 1 kHz)
Gain Range
- Mic Inputs (Channels 1–2): 0 – 50 dB
- Line Inputs (Channels 1–2): 15 dBu – 35 dBu
- Line Inputs (Channels 3–6): -20 dBu – +20 dBu
Maximum Voltage Gain
- MIC Input to Main Mix Output: 70 dB
- MIC Input to Control Room / Phones Output: 80 dB
- MIC Input to AUX Send: 60 dB
Signal-to-Noise Ratio (SNR)
- All Inputs: >110 dBu
Crosstalk
- Adjacent Inputs: < -80 dB @ 1 kHz
- Inputs to Outputs: < -75 dB @ 1 kHz (Stereo L/R, Channels 1–2, Panned Hard Left or Right)
Phantom Power
- Voltage: +45 ~ +49 V (Switch Controlled)
Impedance
- Mic Inputs: 3.9 kΩ
- All Other Inputs: >10 kΩ
- AUX Outputs: 1 kΩ
- All Outputs: 120 Ω
Equalization (EQ)
- High: ±15 dB @ 12 kHz
- Low: ±15 dB @ 80 Hz
Bluetooth
- Profile: A2DP
- Version: Bluetooth 5.0
- Operating Frequency: 2402 MHz – 2480 MHz
- Range: 100 ft. / 30.5 m

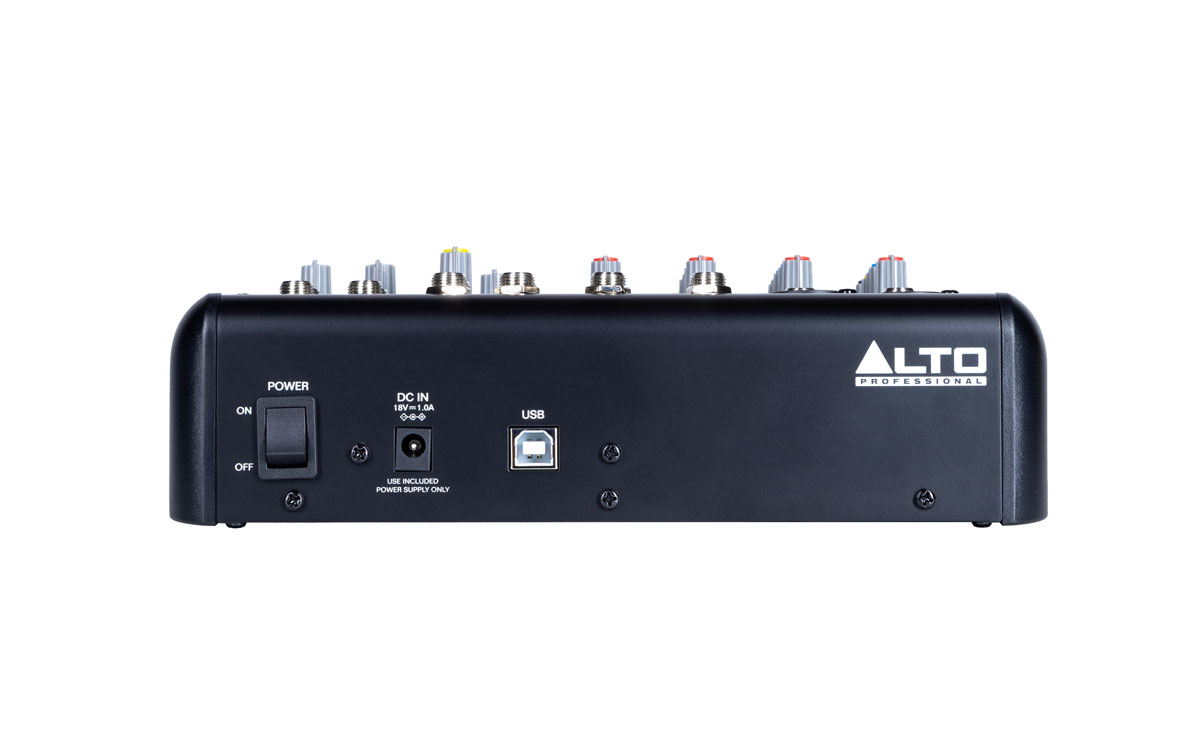

Connectors
- Outputs: (5) 1/4″ (6.35 mm) TRS Outputs
- Stereo Inputs: (6) 1/4″ (6.35 mm) TRS Stereo L/R Inputs
- Headphone Outputs: (2) 1/4″ (6.35 mm) TRS
- Mono Inputs: (2) 1/4″ (6.35 mm) TRS
- RCA Input: (1) Standard RCA L/R
- RCA Output: (1) Standard RCA L/R
- XLR Inputs: (2)
- USB Input: (1) USB Type-B
- Power Input: (1) DC Power Input
Controls
- Power Switch: (1)
- Volume Control Knobs: (10) (1 per Input, 1 AUX Return, 1 2TK In, 2 Headphone Outputs, 1 Bluetooth, 1 Main Out)
- Stereo Pan Control Knobs: (4) (1 per Input)
- AUX Volume Control Knobs: (4) (1 per Input)
- EQ Low Control Knobs: (4) (1 per Input)
- EQ High Control Knobs: (4) (1 per Input)
- Gain Control Knobs: (4) (1 per Input)
- Locking Switch Buttons: (3) (2 Source Select, 1 Bluetooth)
- Horizontal Sliding Switch: (1)
Indicators
- Power LED: (1)
- Peak LEDs: (4)
- Phantom LED: (1)
- Main Output Meter LEDs: (16)
- Bluetooth LED: (1)
Power
- Connection: DC
- Voltage: 18 V, 1 A
- Power Consumption: 18 W
Dimensions (W × D × H): 8.9″ × 8.5″ × 2.9″ / 225.5 × 217 × 74 mm
Weight: 3.2 lbs. / 1.4 kg
