Description
Acoustical specifications
Frequency Response: 50 Hz – 20000 Hz
Max SPL @ 1m: 137 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°

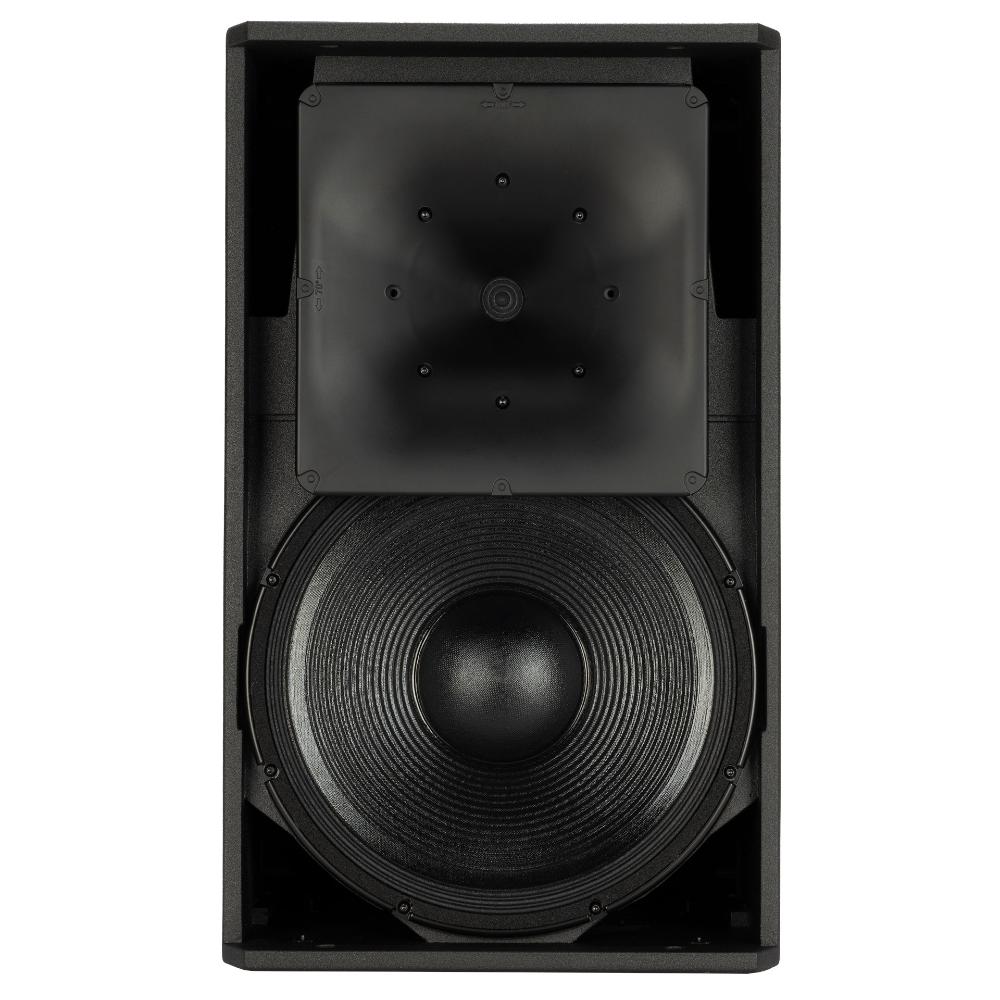

Transducers
Compression Driver: 1.4” neo, 4.0” v.c
Woofer: 1 x 15” neo, 3.5” v.c

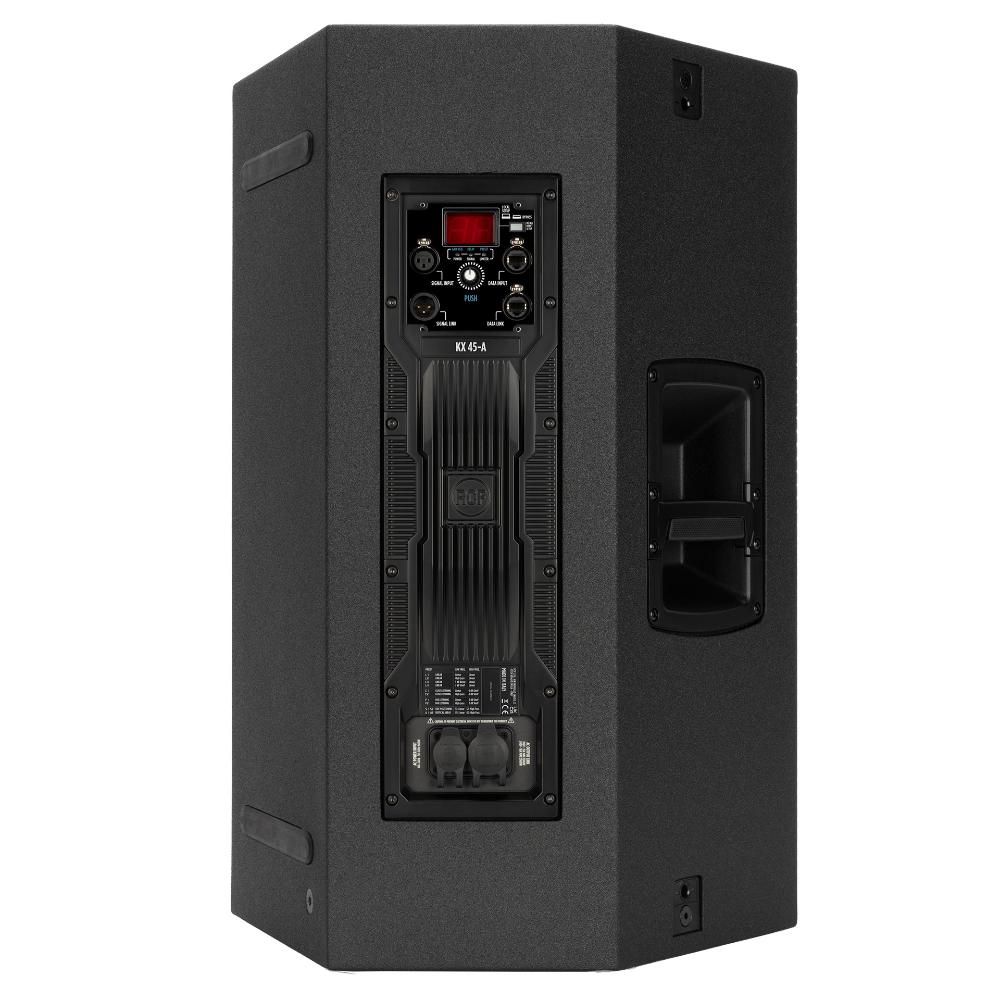

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 750 Hz
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: Gain Reduction, Proces., 8 sel. presets
RDNet: Onboard
Power section
Total Power: 3200 W Peak
High frequencies: 1200 W Peak
Low frequencies: 2000 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood

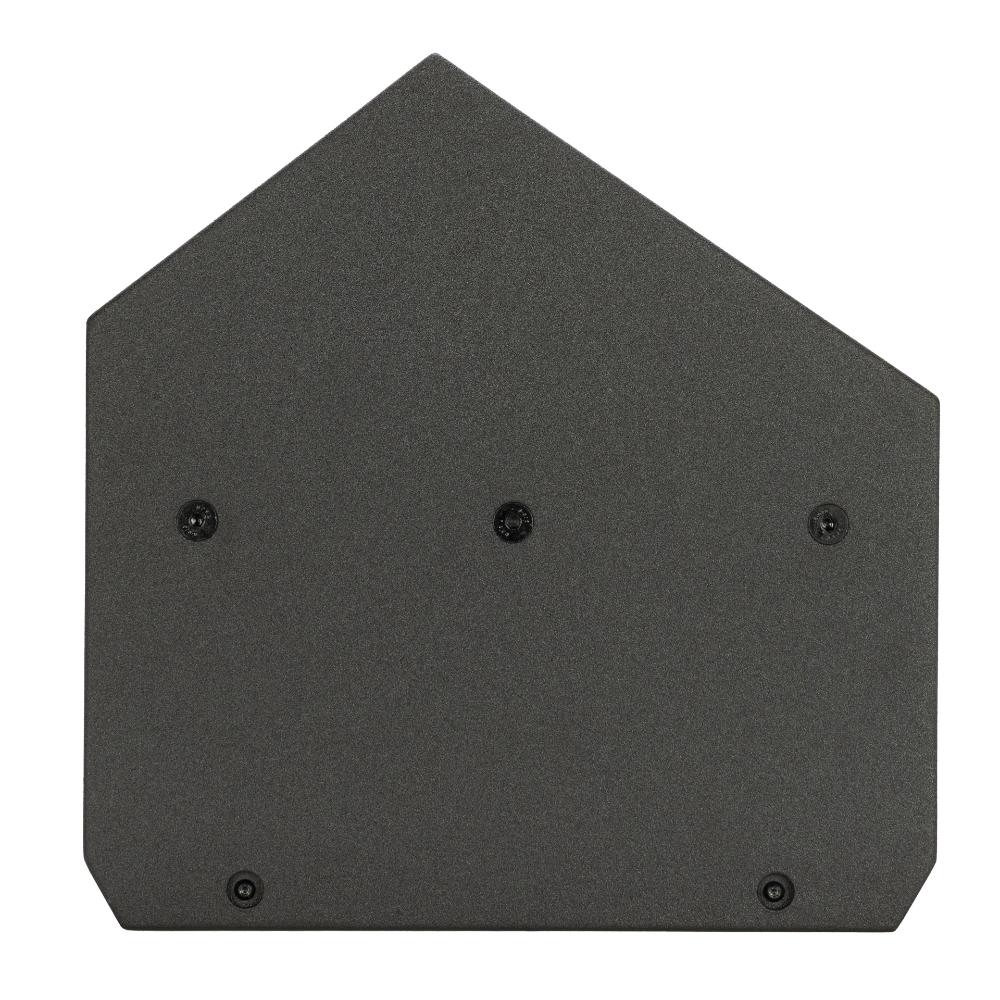

Hardware: Quick lock, pole mount, 3 x M10 on top, 3 x M10 on bottom sides

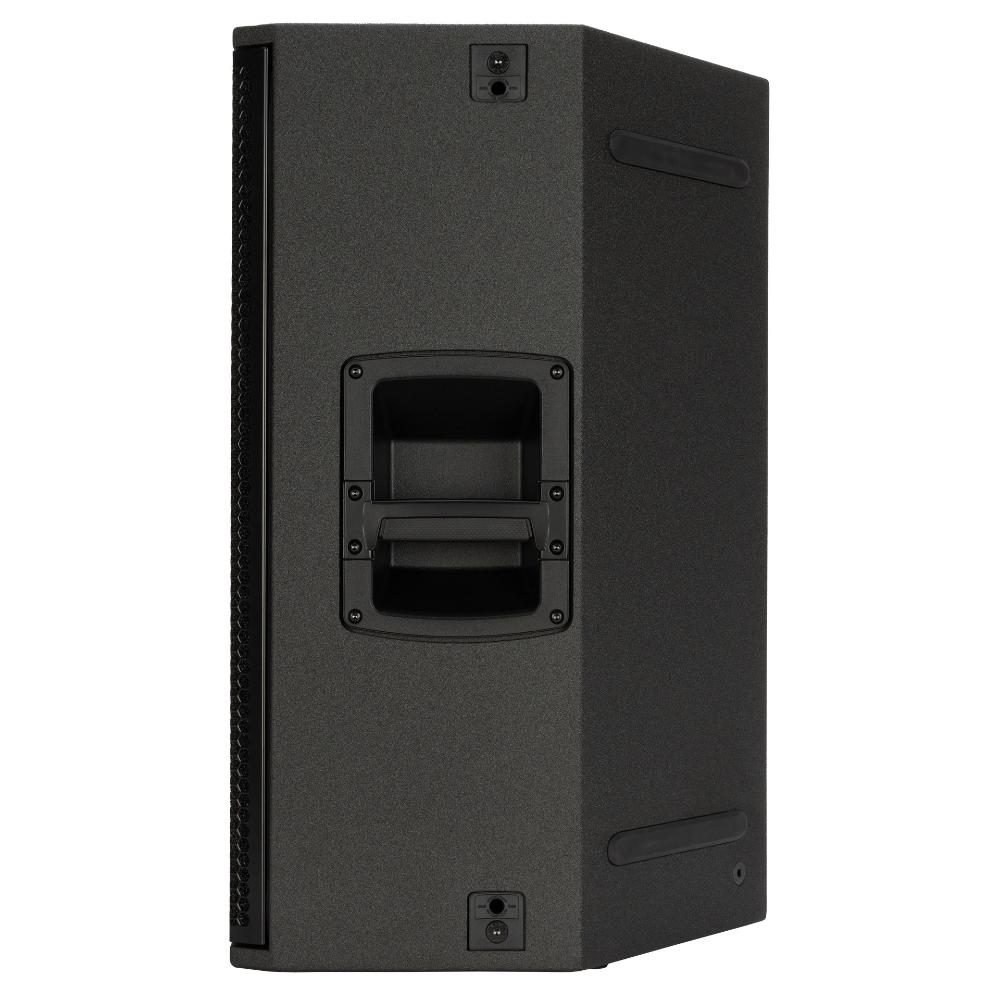

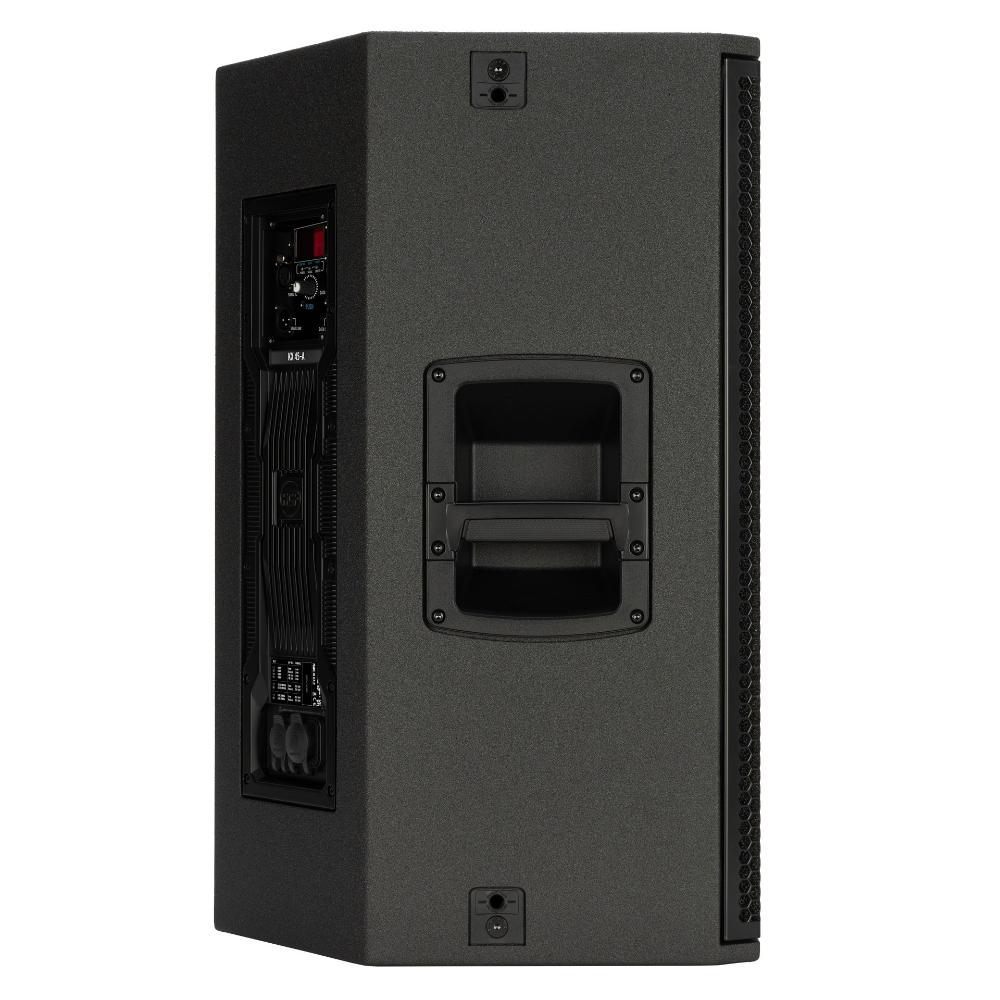

Handles: 2 on side

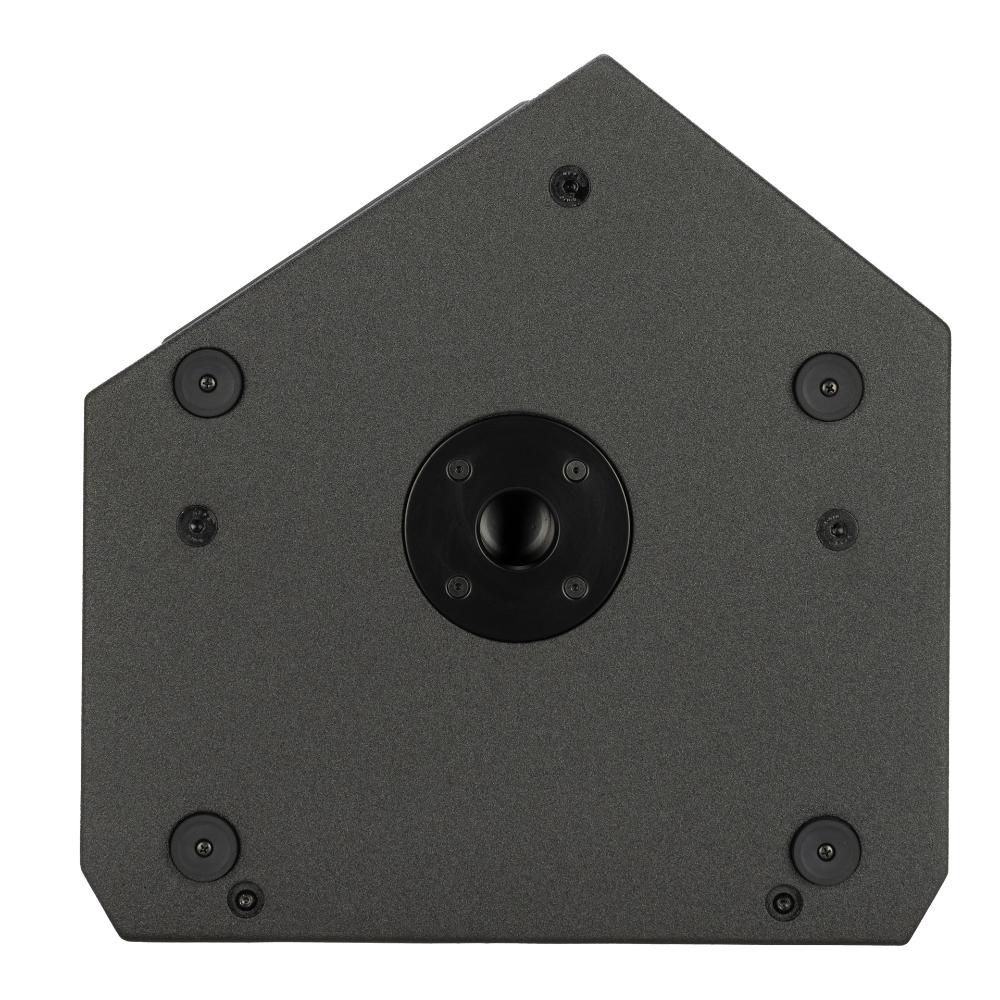

Pole mount/Cap: 35 mm insert

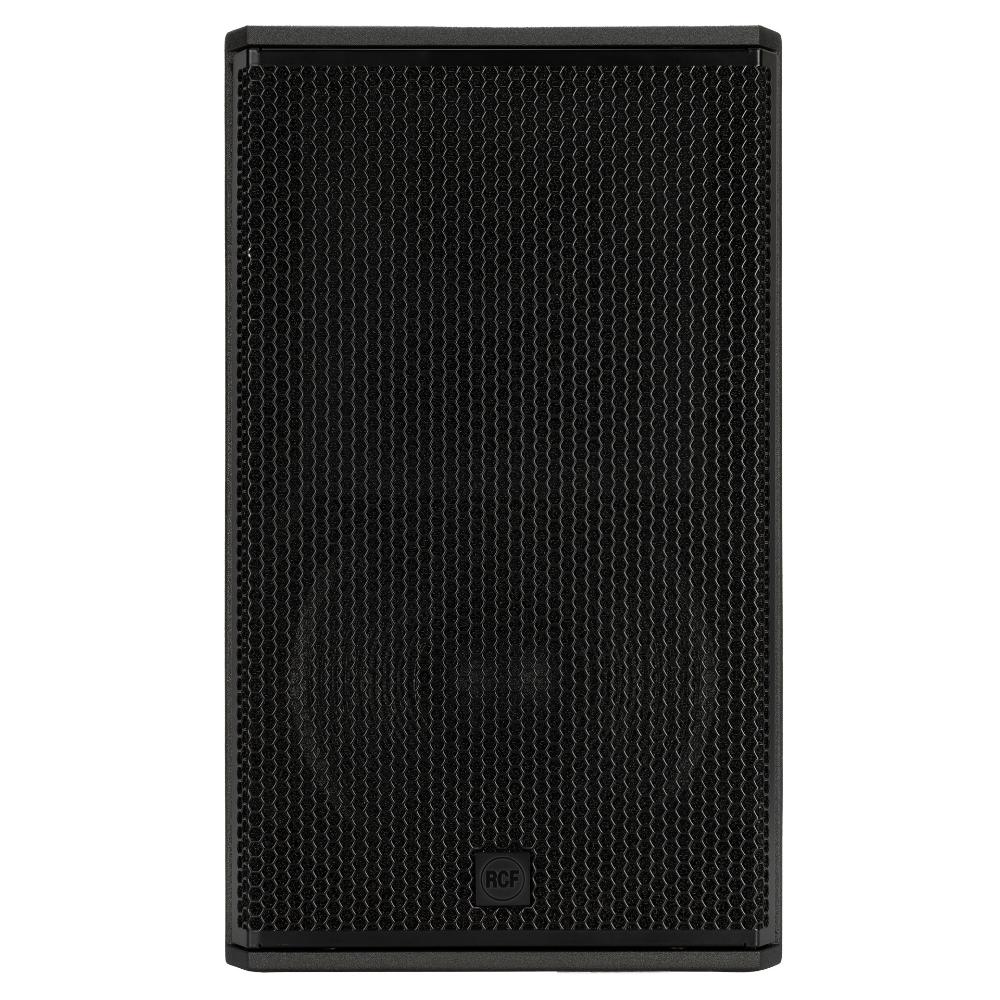

Grille: Steel with clothing
Color: Black
Size / Weight
Height: 705 mm / 27.76 inches
Width: 419.6 mm / 16.52 inches
Depth: 430 mm / 16.93 inches
Weight: 28.4 kg / 62.61 lbs
