Description
Acoustical specifications
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75” neo, 1.75” v.c
Full range: 6 x 3.0” neo, 1.0” v.c

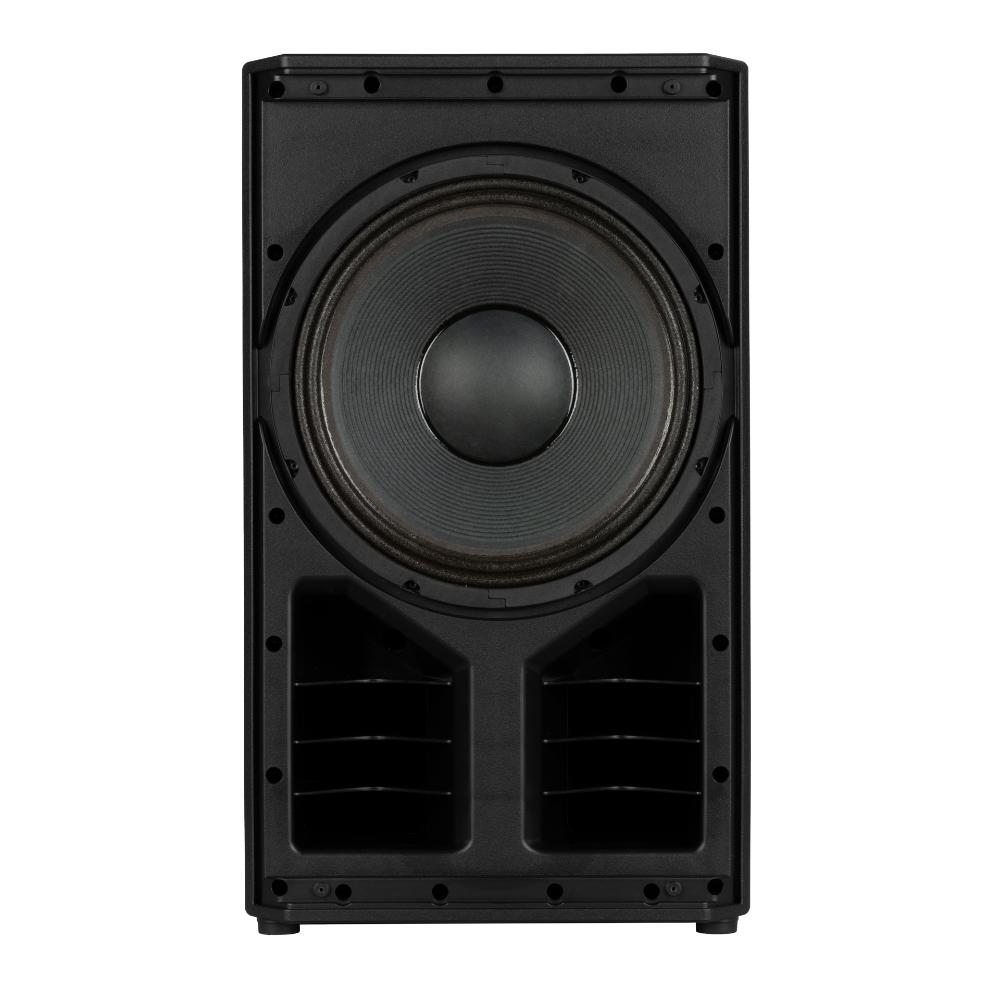

Woofer: 1 x 12”, 2.5” v.c

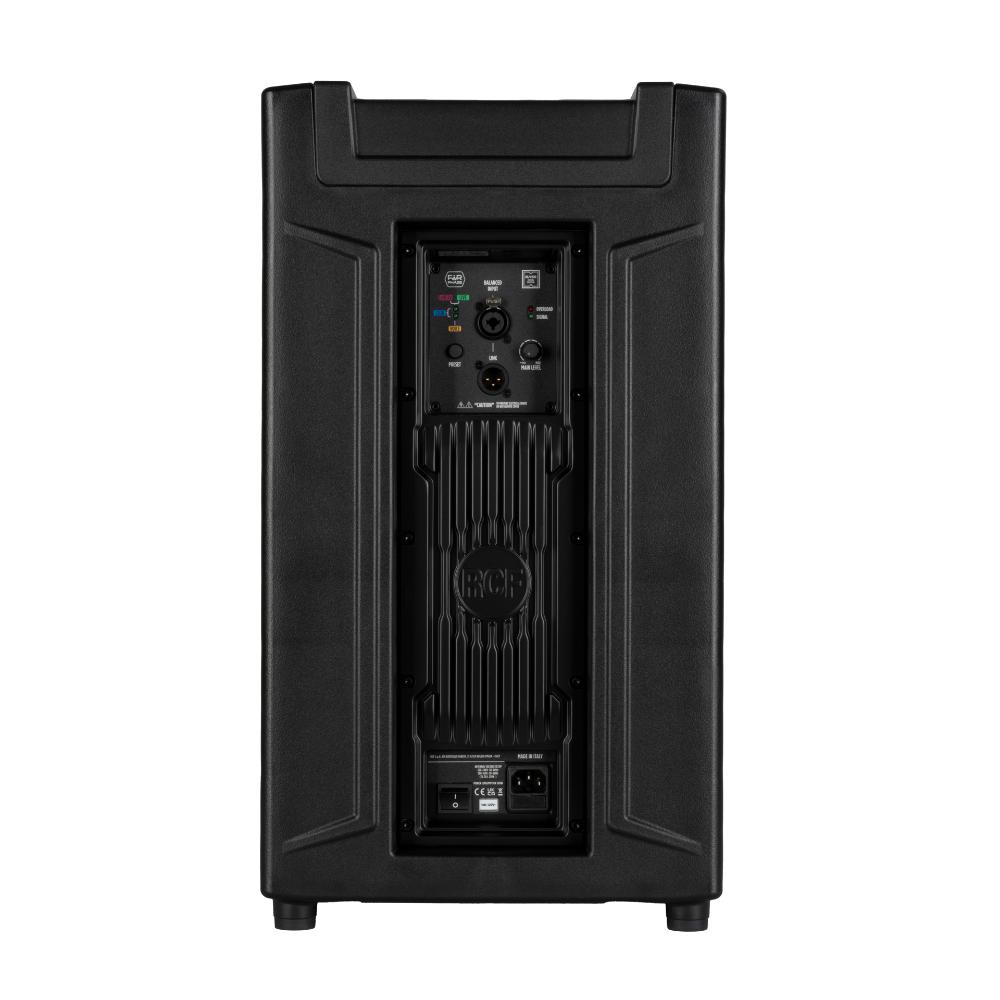

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: Linear/Live, Club, Voice
Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Color: Black, White – RAL 9003
Size / Weight
Height: 2080.1 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 462.6 mm / 18.21 inches
Weight: 26 kg / 57.32 lbs
