Description
Acoustical specifications
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Transducers

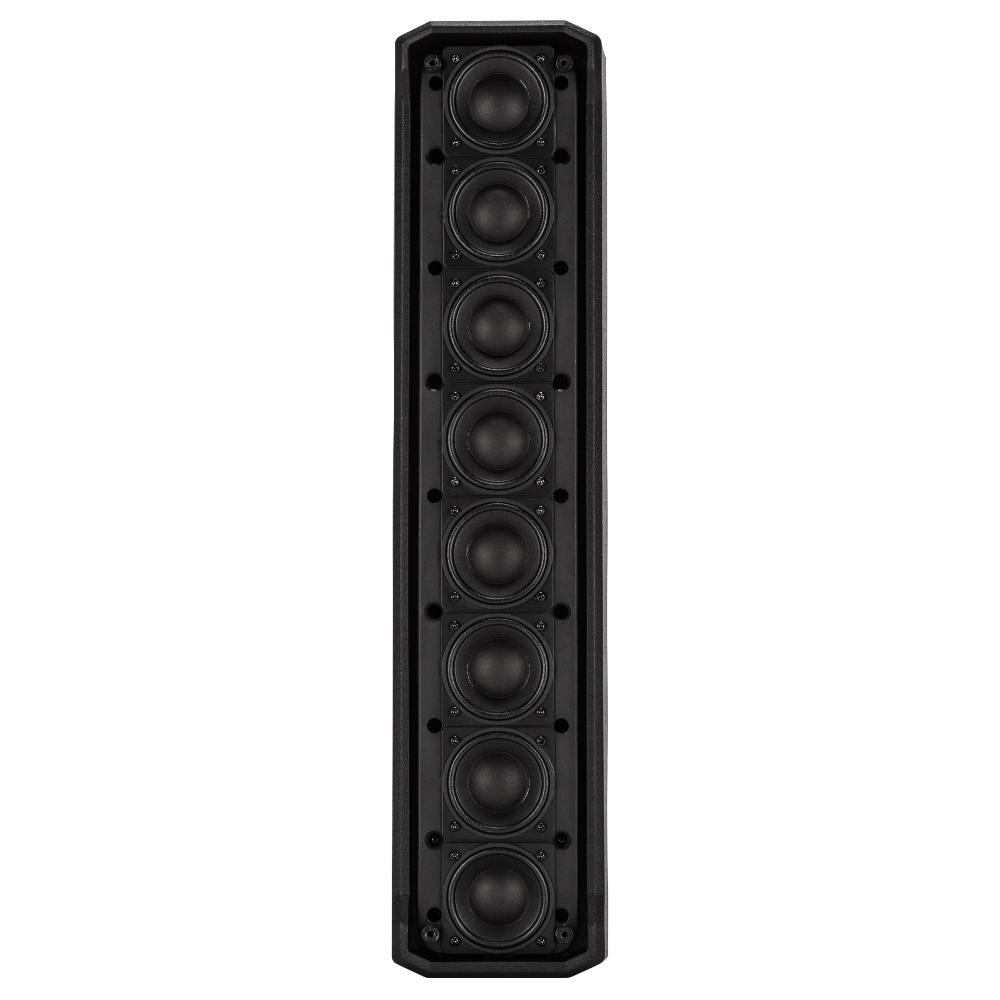

Full range:8 x 2.0”, 1.0” v.c

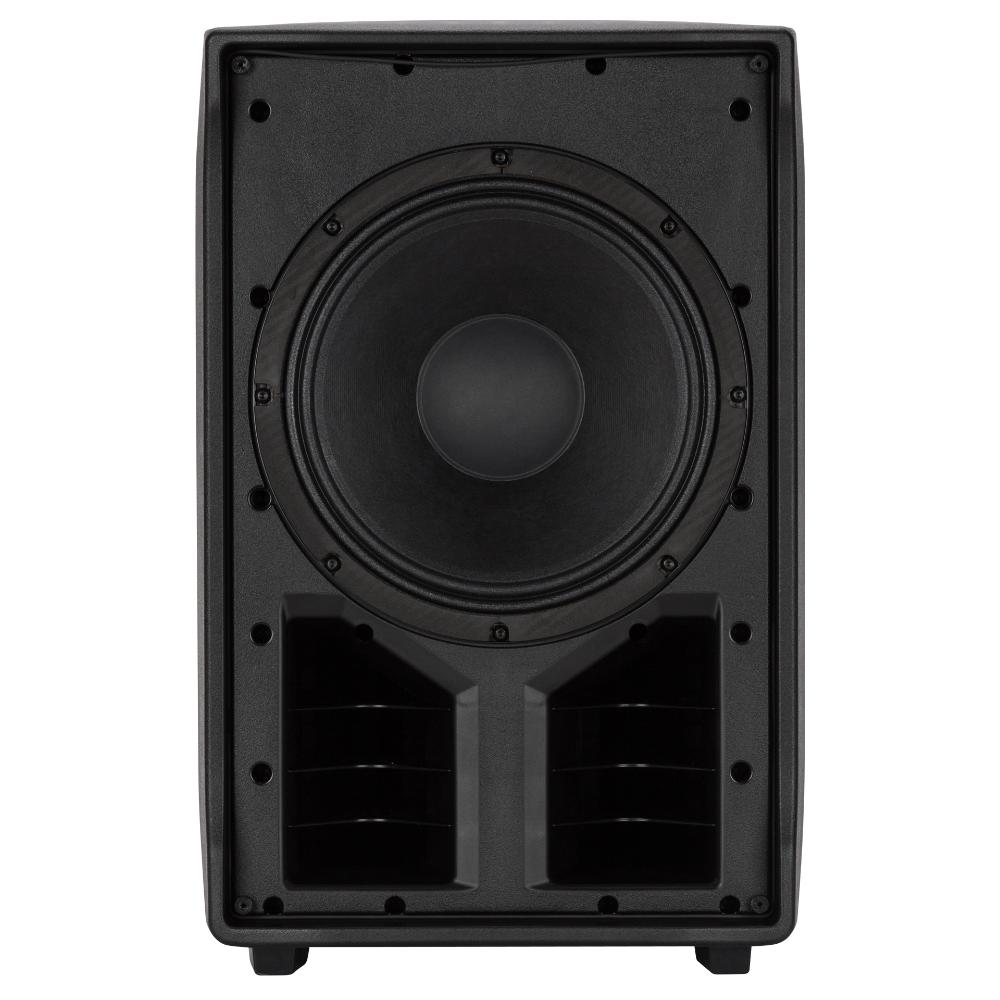

Woofer: 1 x 12”, 2.5” v.c
Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack

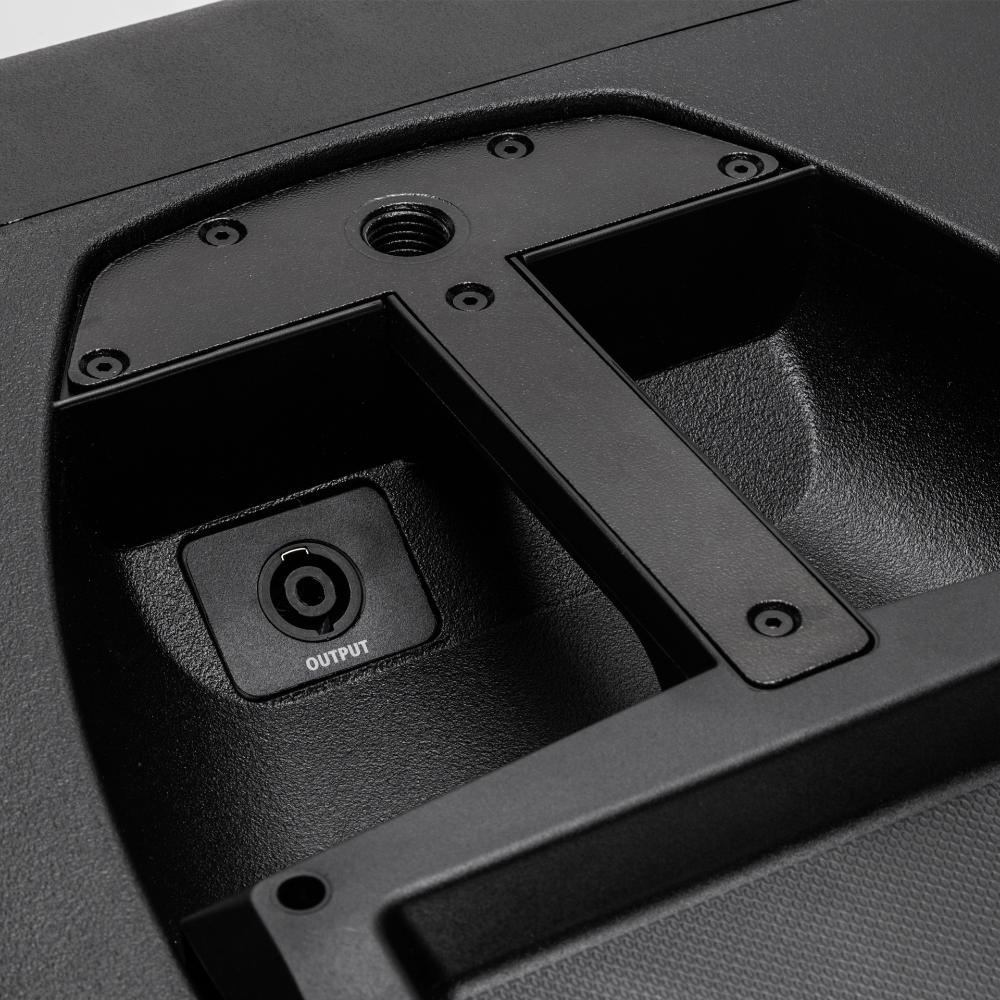

Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls; Volume, Boost, Mic/Line
Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Grille: Steel

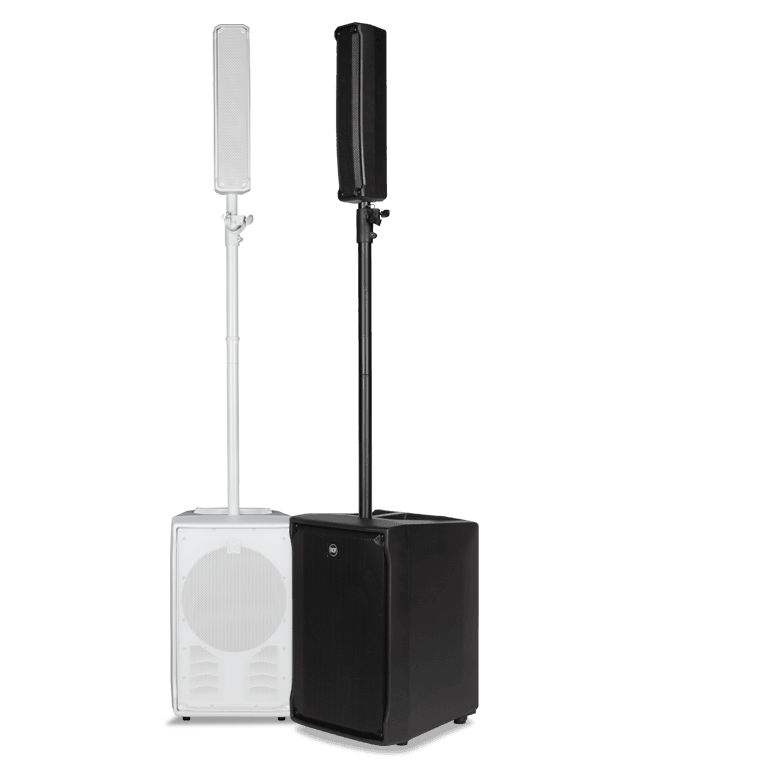

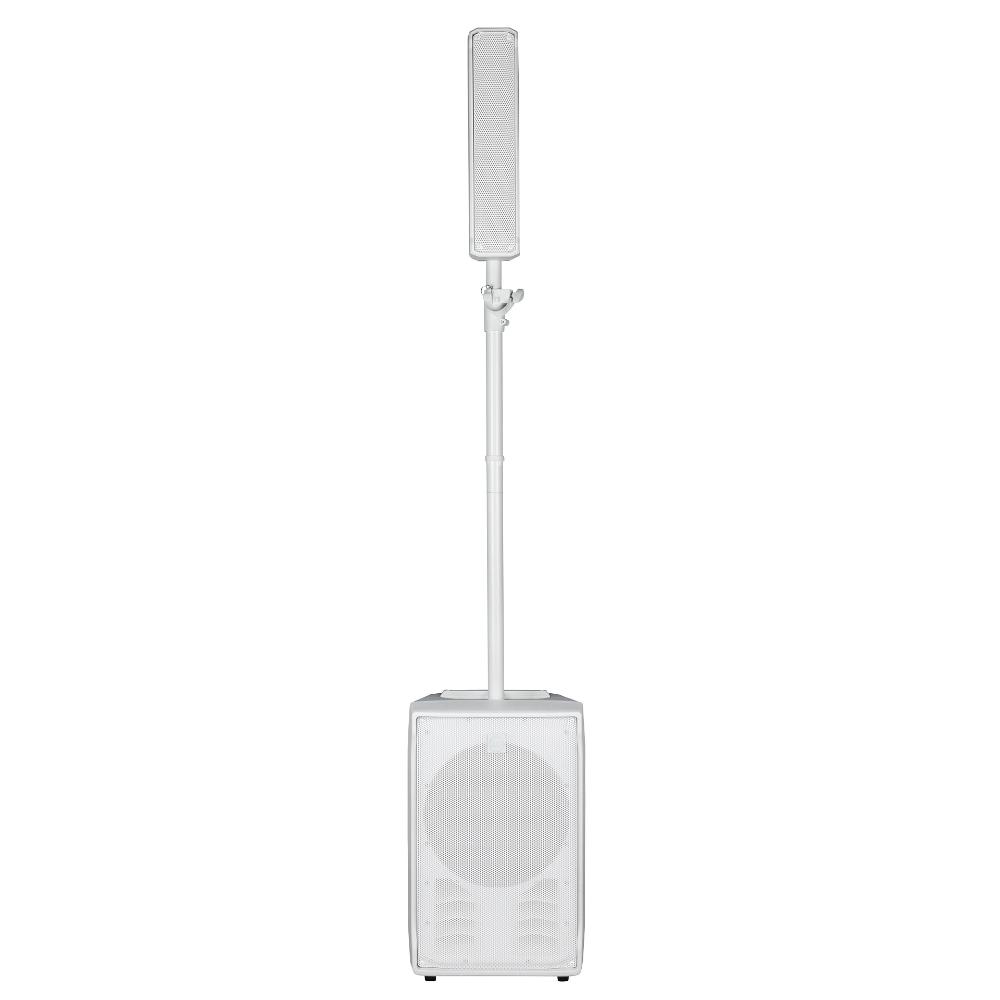

Color: Black, White
Size / Weight
Height: 2285 mm / 89.96 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 20.2 kg / 44.53 lbs
