Description
Acoustical specifications
Frequency Response: 37 Hz – 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75” neo, 1.75” v.c
Fullrange: 12 x 3.0” neo, 1.0” v.c

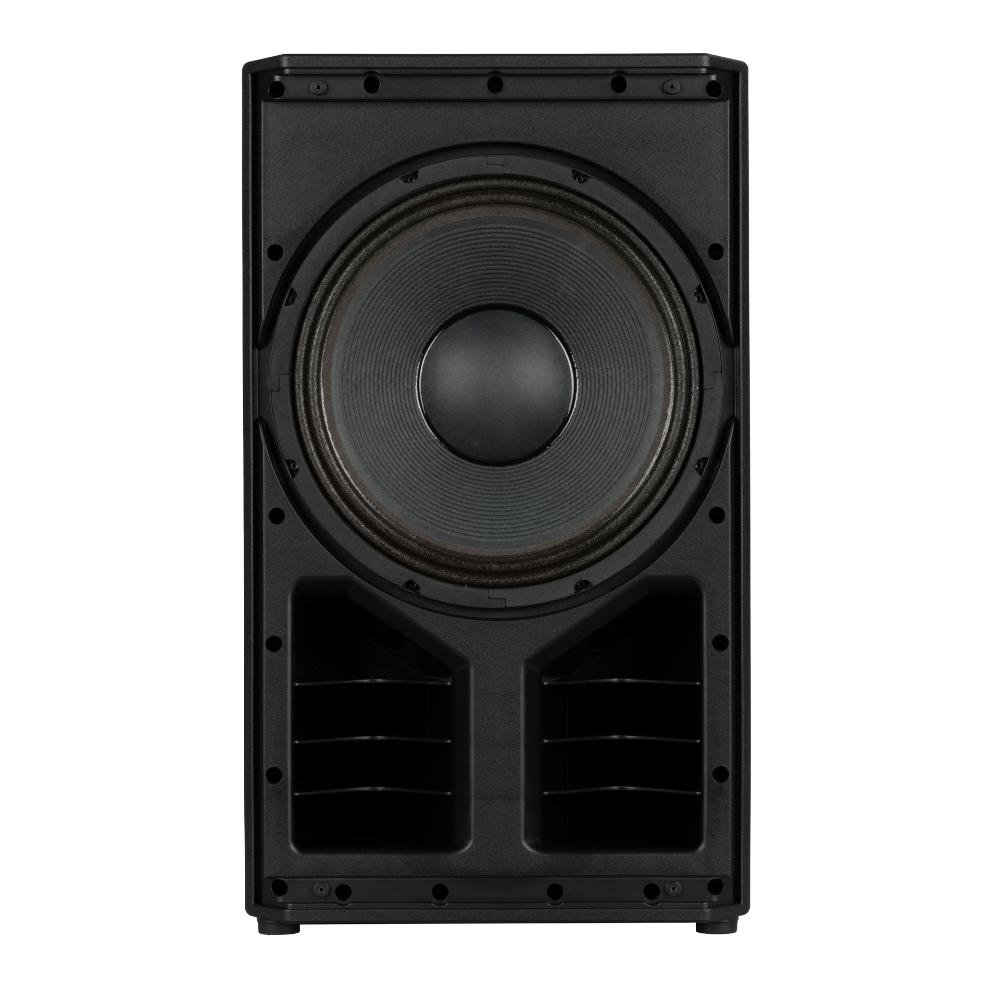

Woofer: 1 x 12”, 2.5” v.c

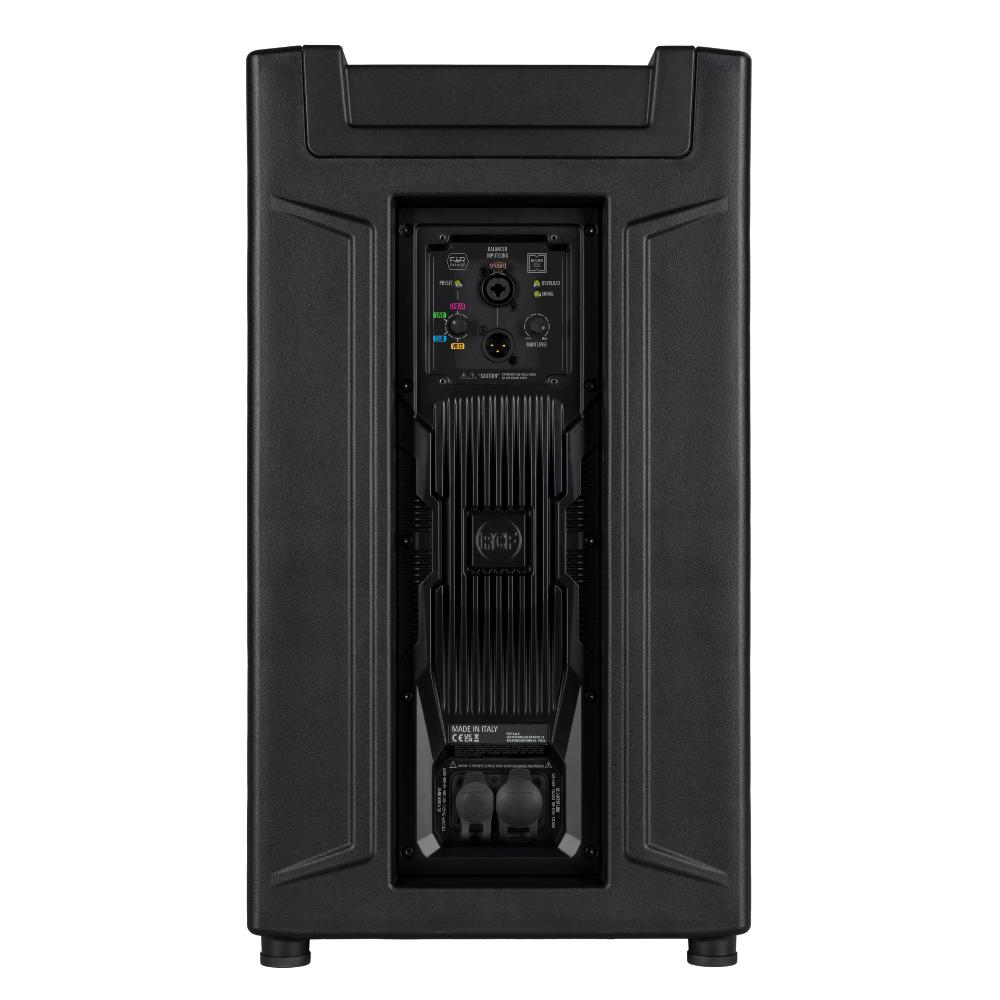

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: +4 dBu
Processor section
Crossover Frequencies: 160 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power: 3500 W Peak
High frequencies: 1500 W Peak
Low frequencies: 2000 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top

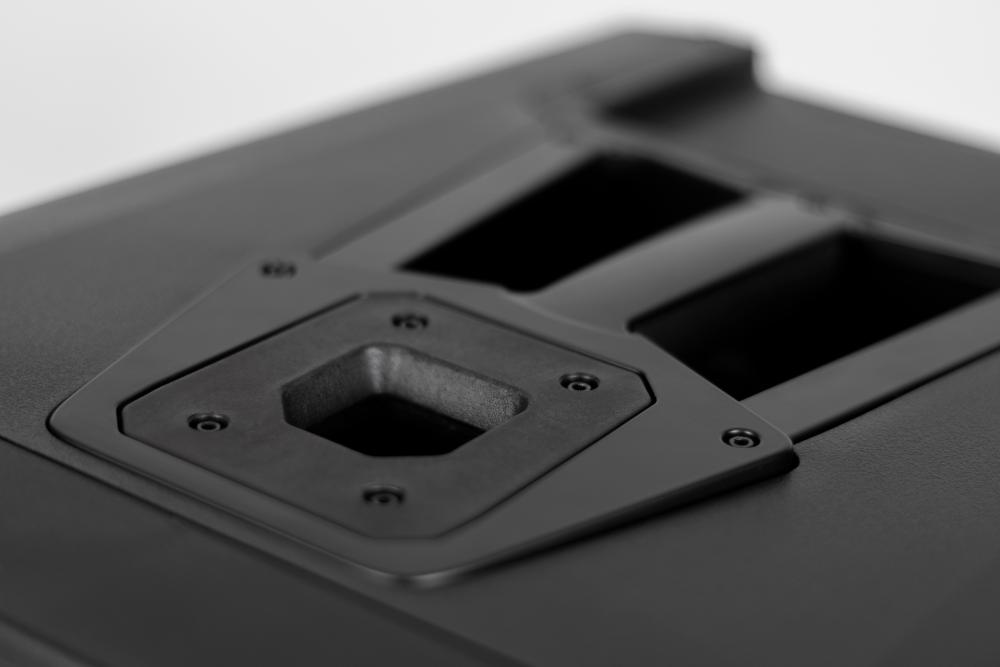

Pole mount/Cap: Quick-fit socket

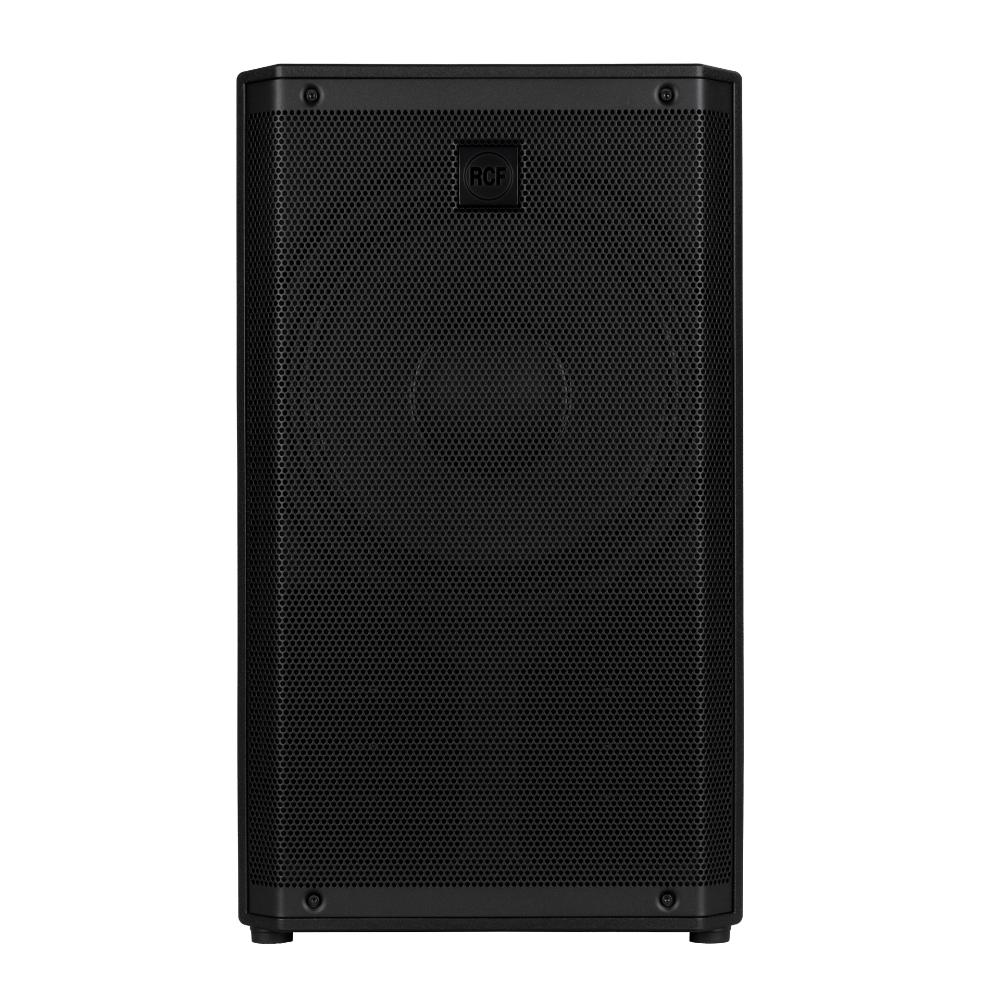

Grille: Steel

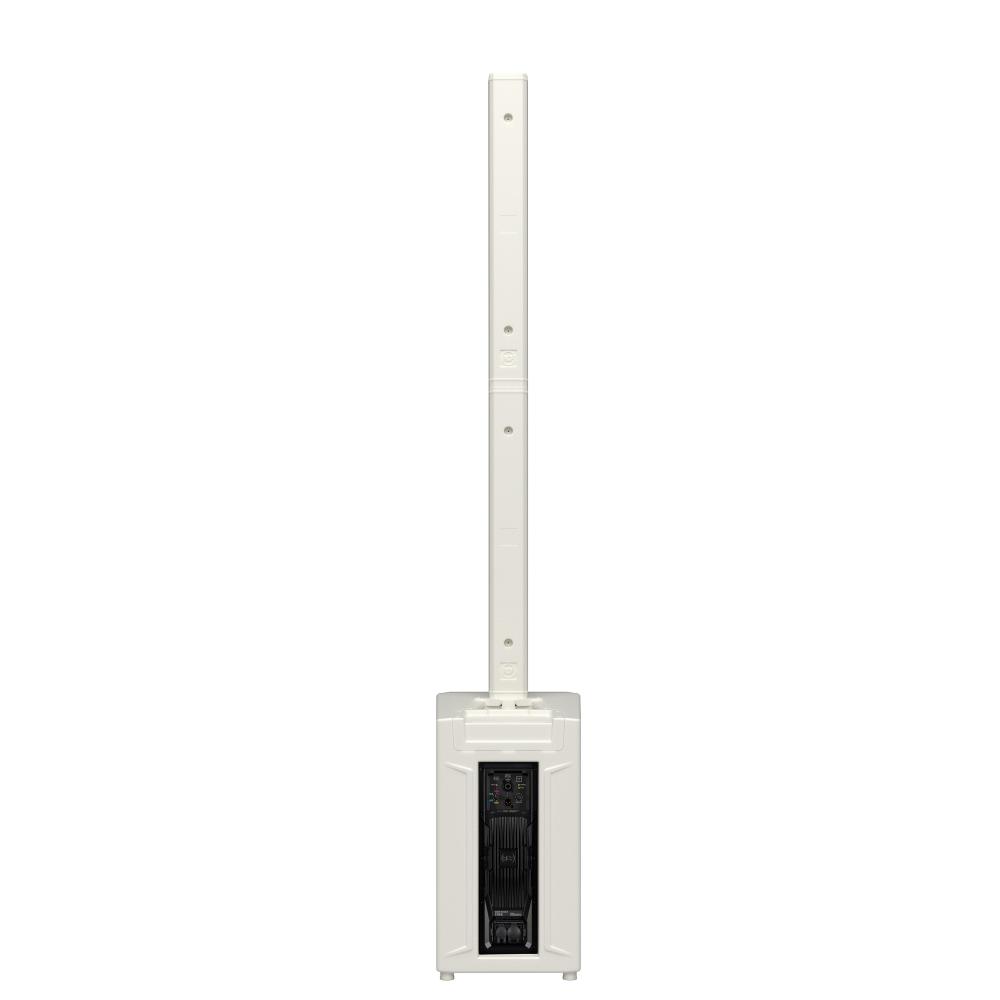

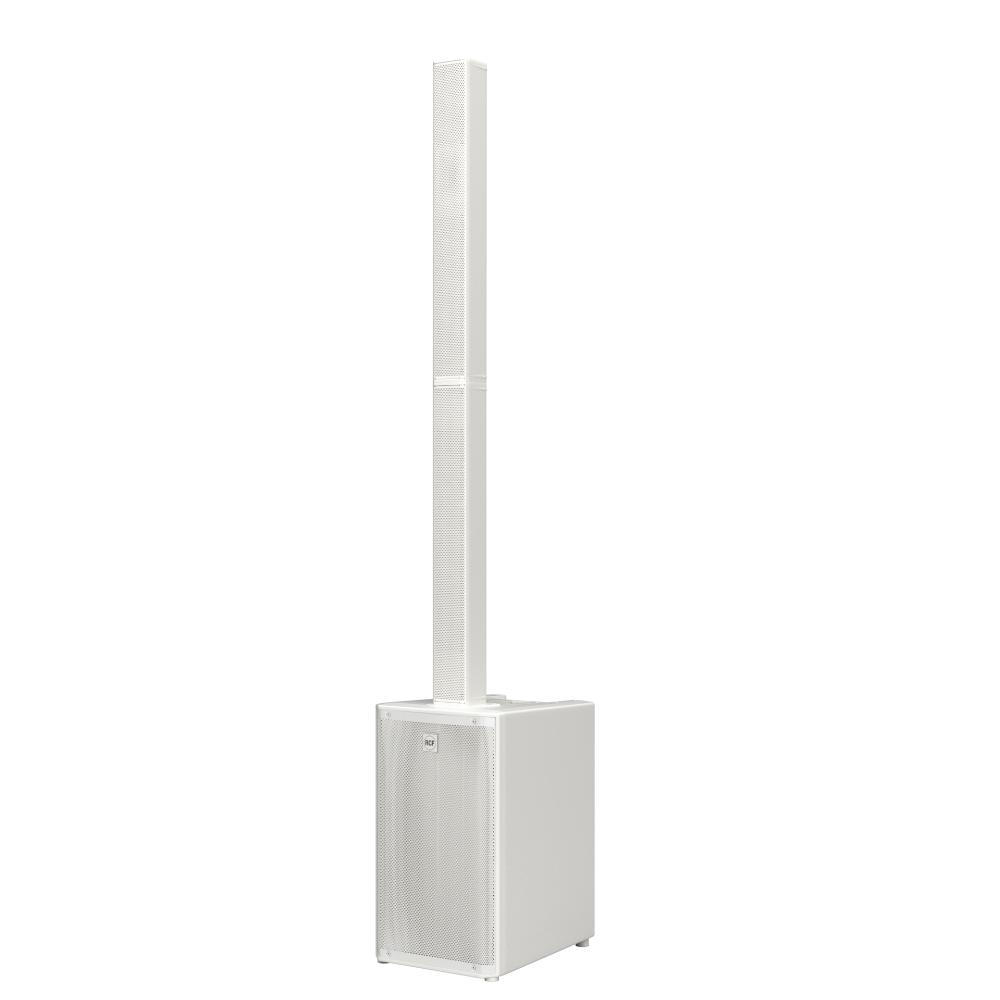

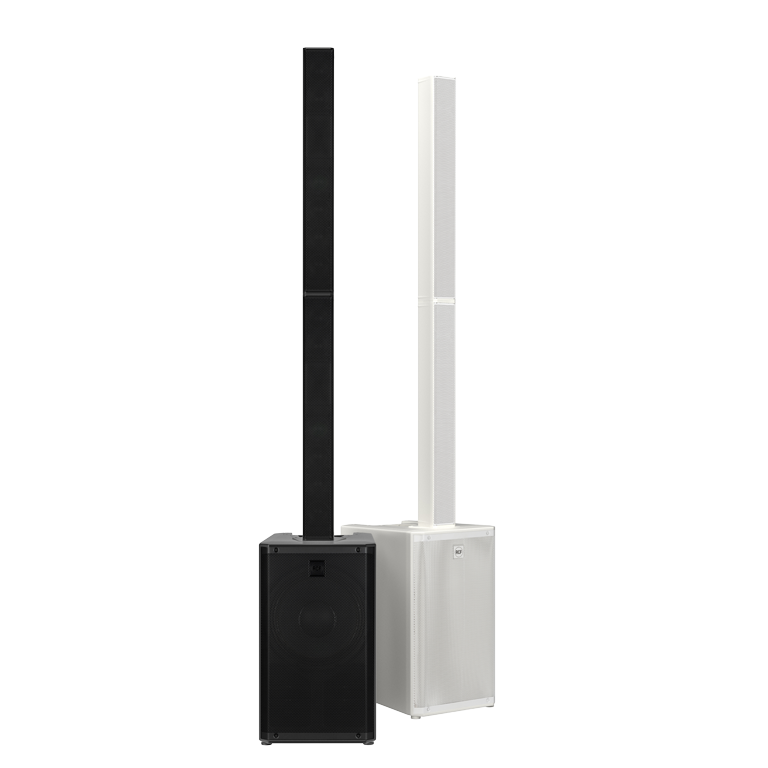

Color: Black, White – RAL 9003
Size / Weight
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 463 mm / 18.23 inches
Weight: 29 kg / 63.93 lbs
