Description

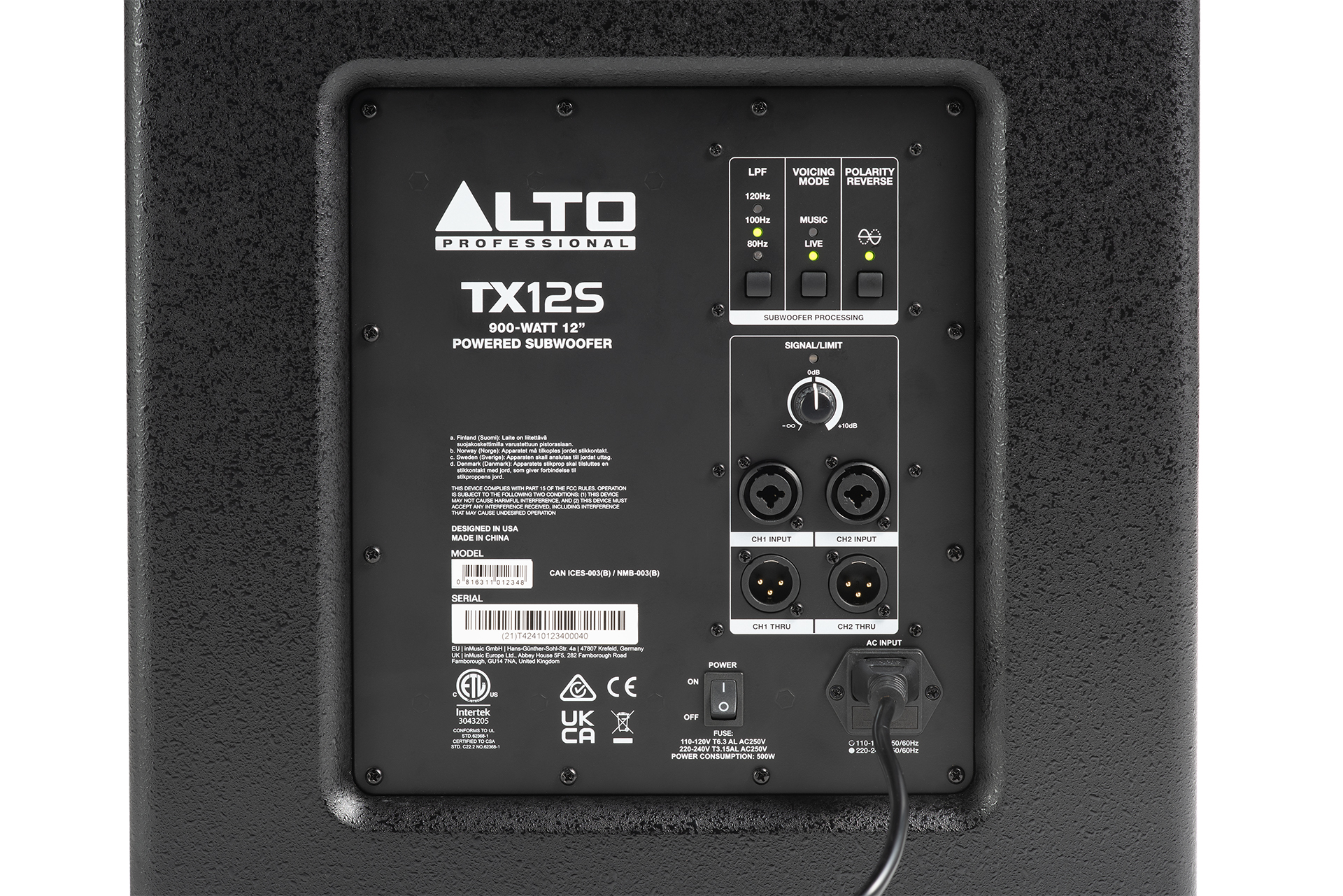

Line Inputs CH1 / CH2
- Connector: XLR/TRS Combo Input Connector (Line: TRS only)
- Dynamic Range: 108 dB (A-Weighted)
- THD + N (%, -1 dBFS Input): <0.01%
- Maximum Input Level: +16 dBu
- Gain Range: 24 dB
- Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
- Input Impedance: 20 kΩ
CH1 / CH2 Thru
- Connector: XLR Output Connector
- Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
- Output Level (for 0.5% THD): Fixed +10 dBu
- Output Impedance (Unbalanced): 100 Ω
General
Output Power
- Power Output: 900 W Peak, Class D Amplifier
Performance
- Frequency Response: 46 Hz – 115 Hz (-3 dB)
- Maximum SPL: 126 dB
Low-Frequency Driver
- Driver Size: 12.0″ (305 mm) Woofer
- Voice Coil: 2.0″ (51 mm)
User Low-Pass Filter
- 80 Hz
- 100 Hz
- 120 Hz (24 dB/Octave)
Low-Frequency Extension HPF
- Default: 50 Hz
- Extension On: 45 Hz
Polarity
- Phase Inversion: 180°
Enclosure
- Cabinet: Internally Braced MDF
- Finish: Splatter Spray

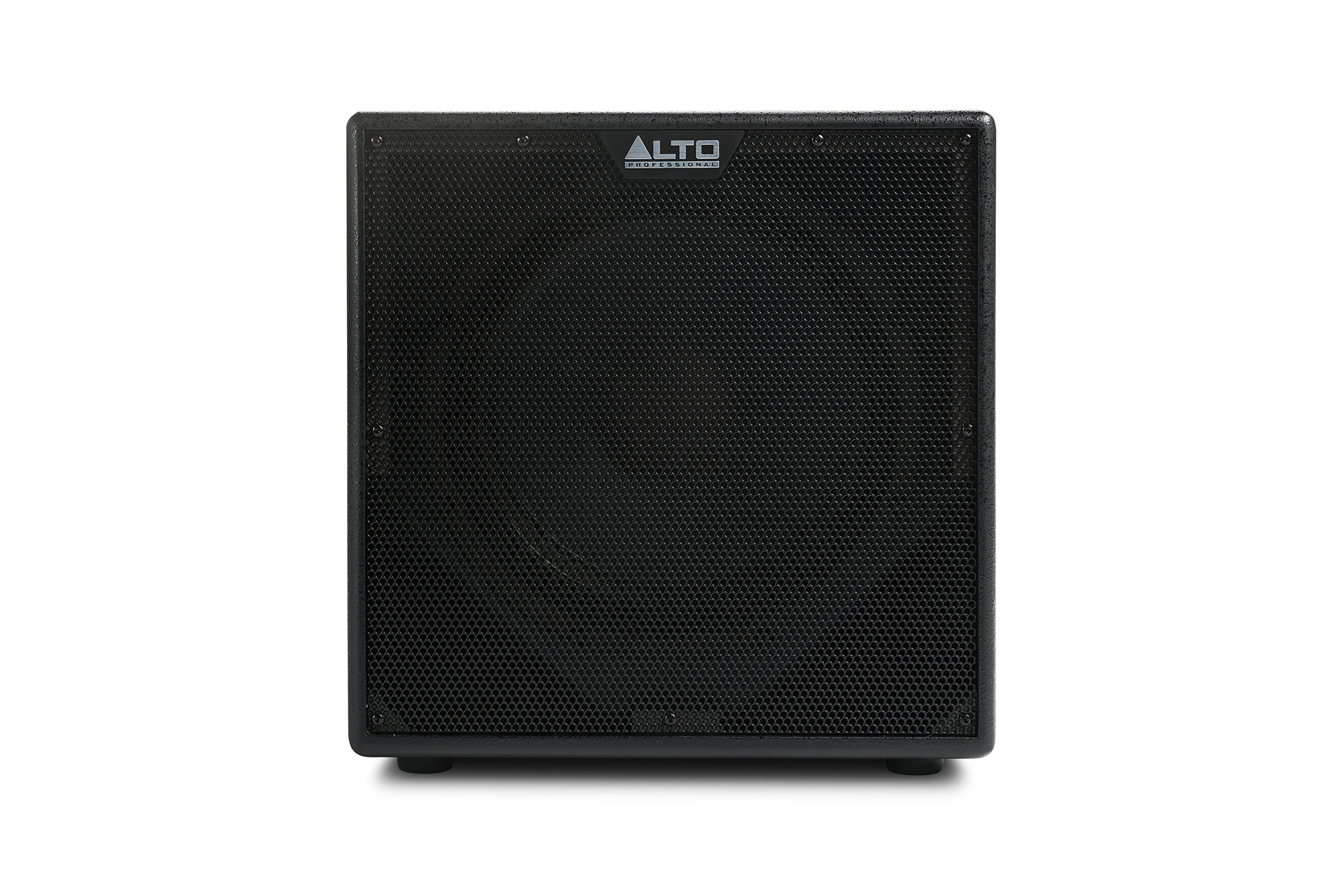

- Grille: Metal

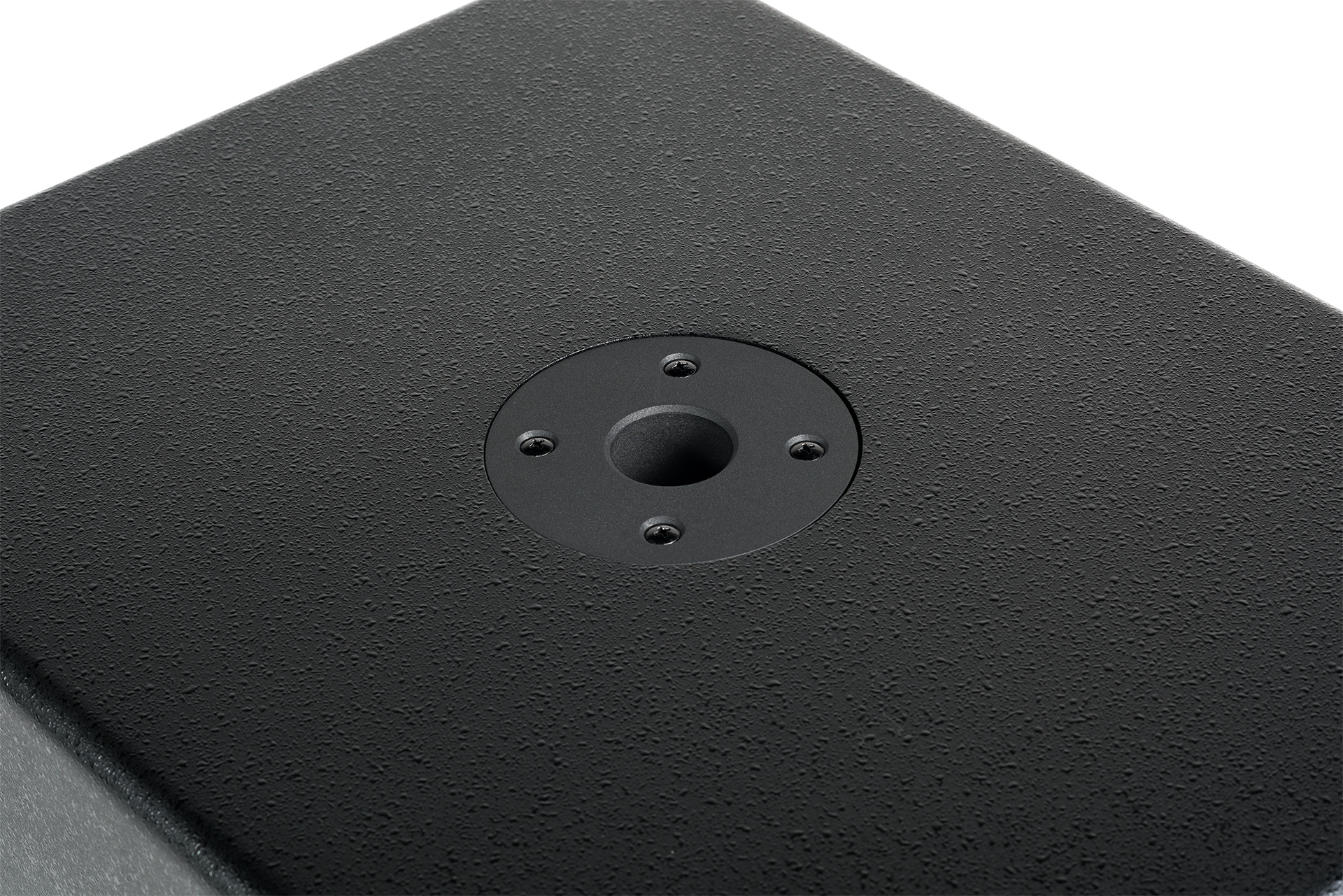

Mounting
- Pole Socket: Standard 36 mm
Power
- Connection: Standard IEC Power Cable
- Input Voltage:
- 100–120 V AC: 50/60 Hz
- 220–240 V AC: 50/60 Hz
- Power Consumption: 500 W
- Fuse:
- 100–120 V: T6.3AL AC250V
- 220–240 V: T3.15AL AC250V
Dimensions (H × W × D): 20.0″ × 15.9″ × 15.9″ / 510 × 405 × 405 mm
Weight: 49.3 lbs / 22.4 kg
