Description
Acoustical specifications
Frequency Response: 30 Hz – 120 Hz
Max SPL @ 1m: 136 dB
Transducers
Woofer: 1 x 18”, 4.0” v.c

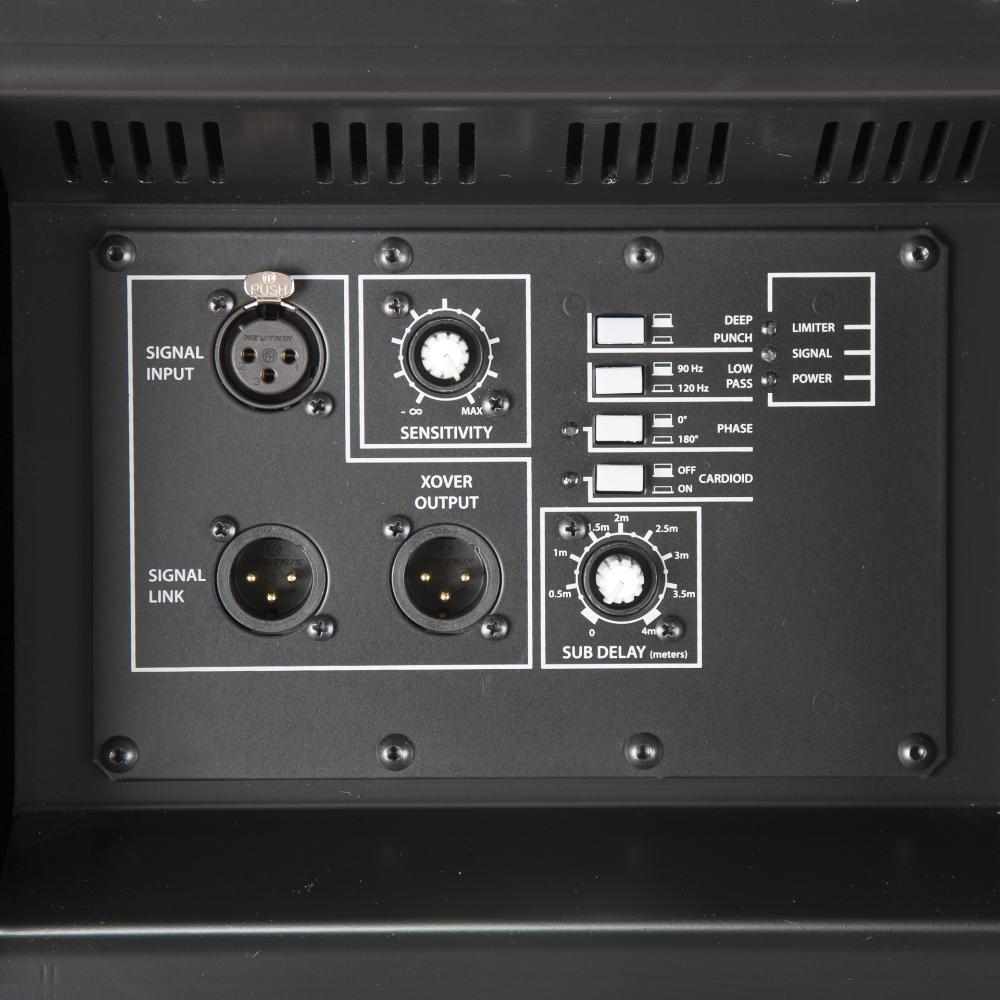

Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies: 120 Hz
Low-Pass Frequencies: 90 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Xover, Phase Switch, Deep/Punch, Output Delay Settings, Cardioid
Power section
Total Power: 2500 W Peak, 1250 W RMS
Low frequencies: 2500 W Peak, 1250 W RMS
Cooling: Convection

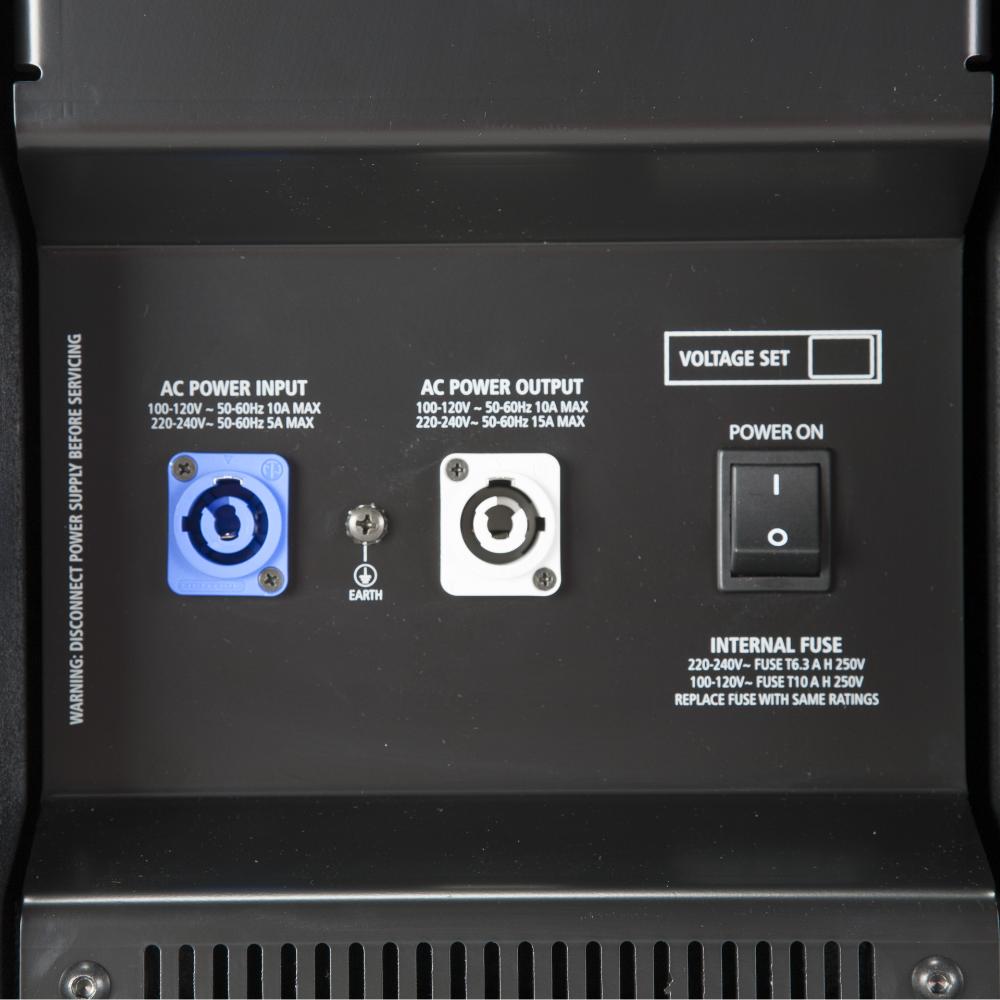

Connections: Powercon IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood
Hardware: Provision for four wheel mounting on the rear panel.
Handles: One handle each side
Pole mount/Cap: M20 thread
Grille: Steel with clothing
Color: Black
Size / Weight
Height: 700 mm / 27.56 inches
Width: 558 mm / 21.97 inches
Depth: 700 mm / 27.56 inches
Weight: 56 kg / 123.46 lbs
