Description
Acoustical specifications
Frequency Response: 35 Hz – 120 Hz
Max SPL @ 1m: 133 dB
Transducers

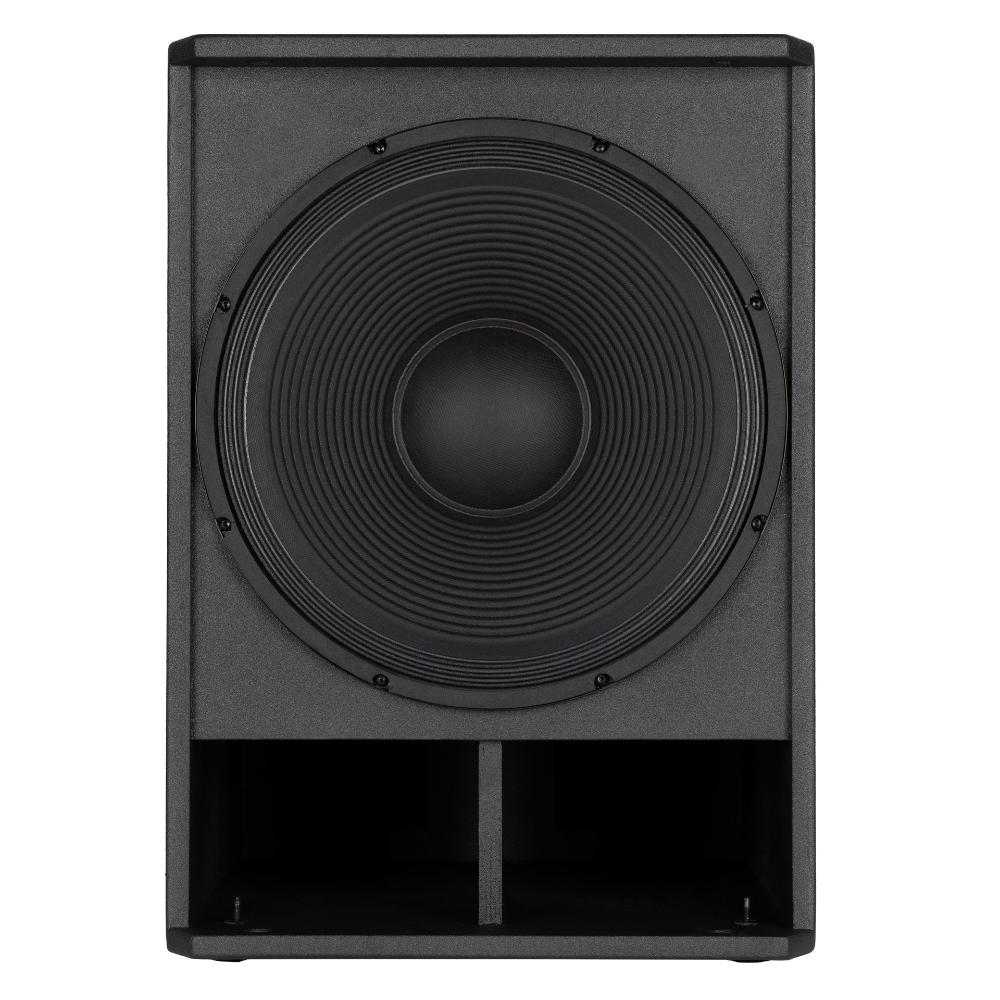

Woofer: 1 x 15”, 3.0” v.c

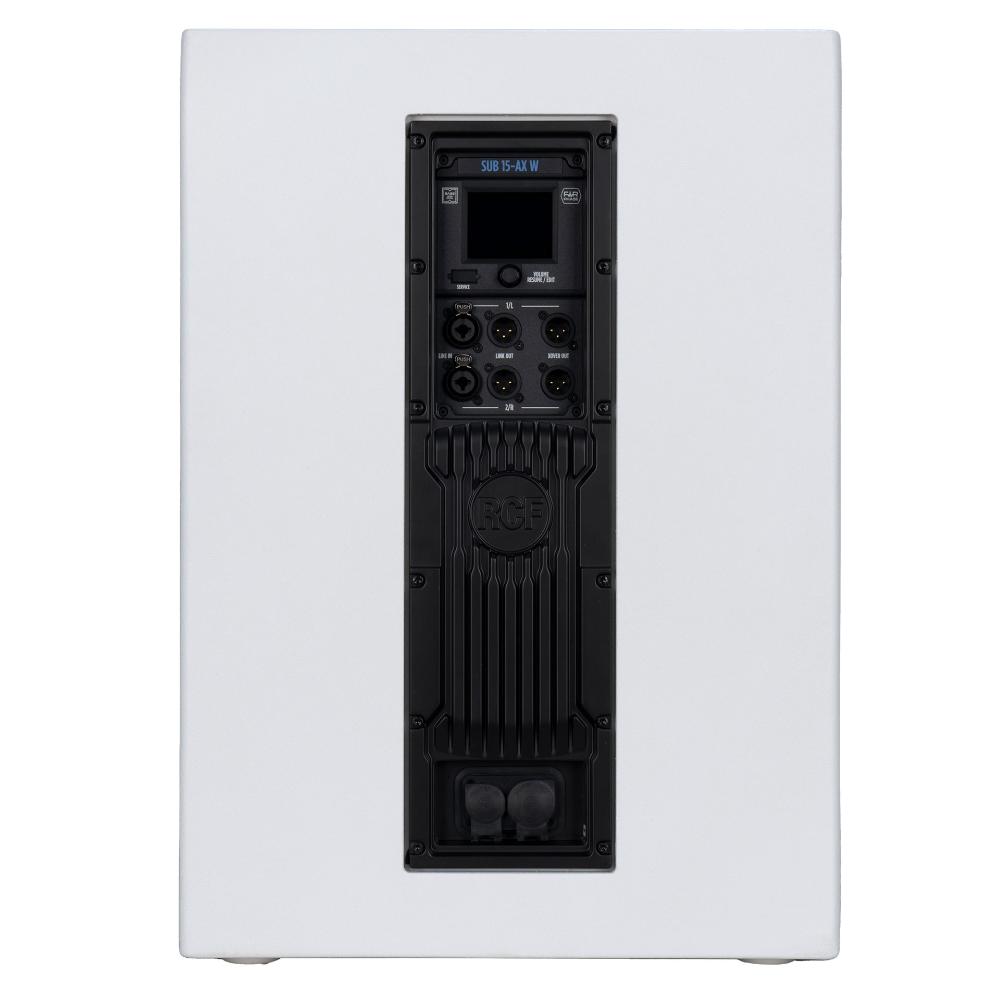

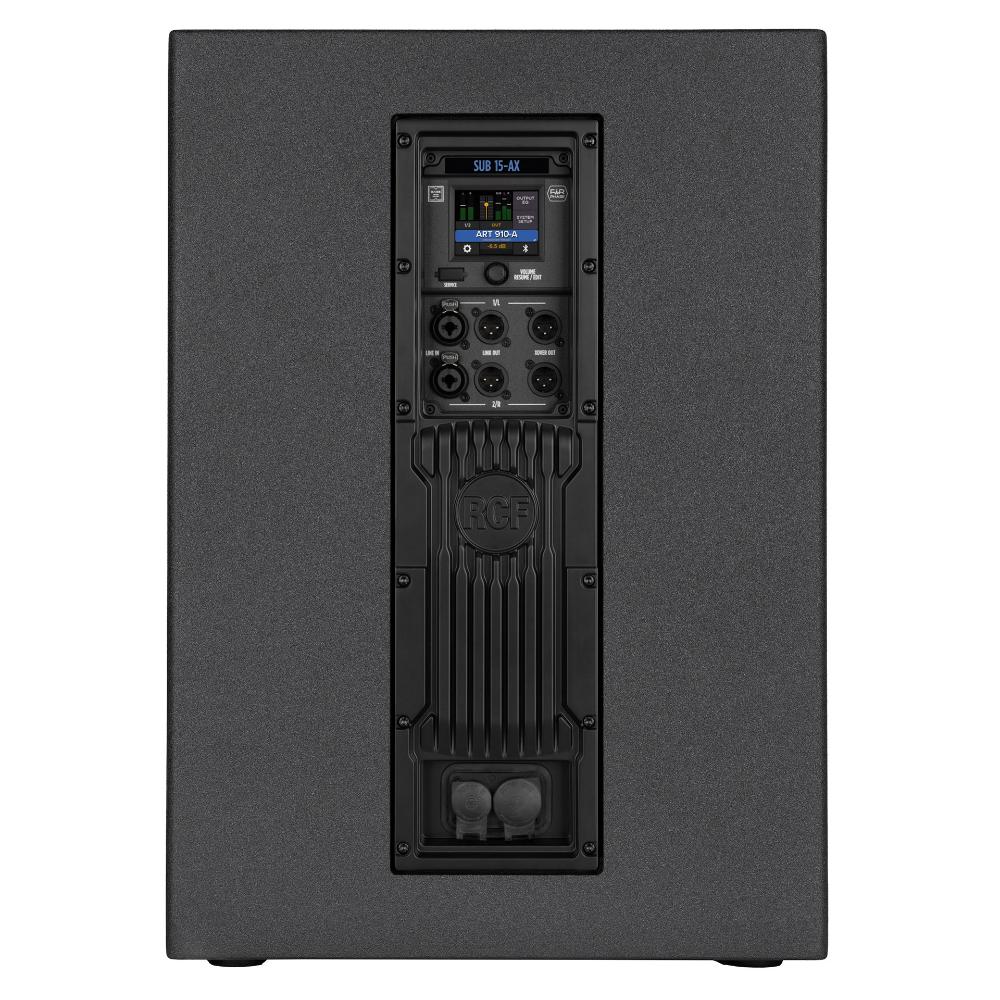

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Protections: Thermal
Limiter: Soft Limiter
Controls: Encoder for volume control and data entry.
Touch screen for parameter management and monitor.
Power section
Total Power: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Plywood

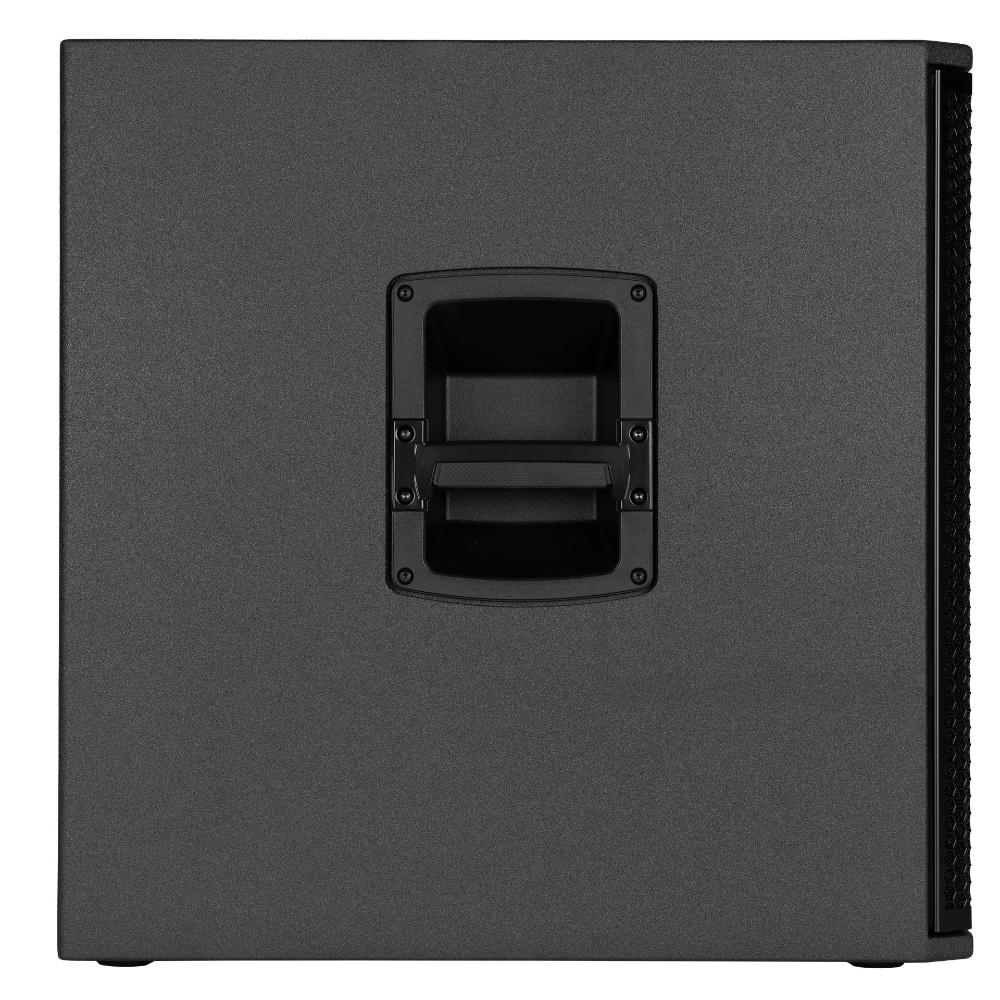

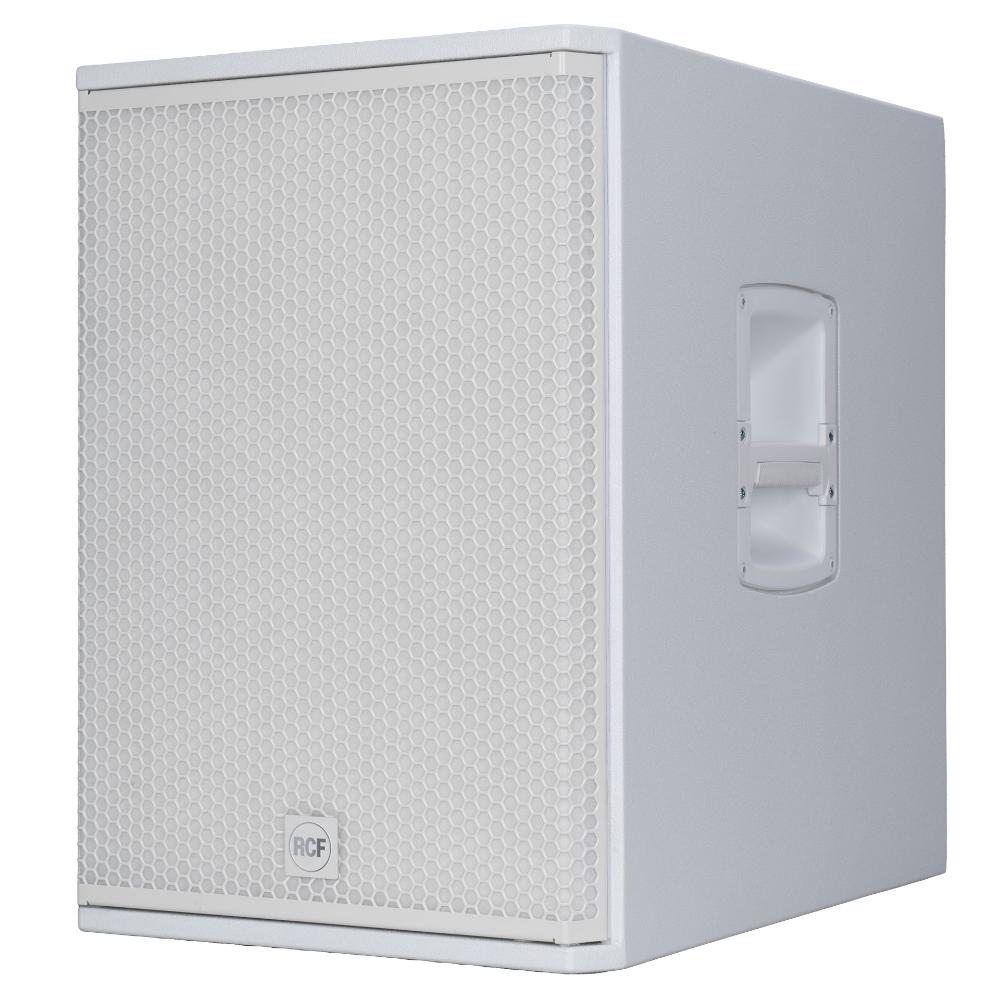

Handles: 1 handle per side

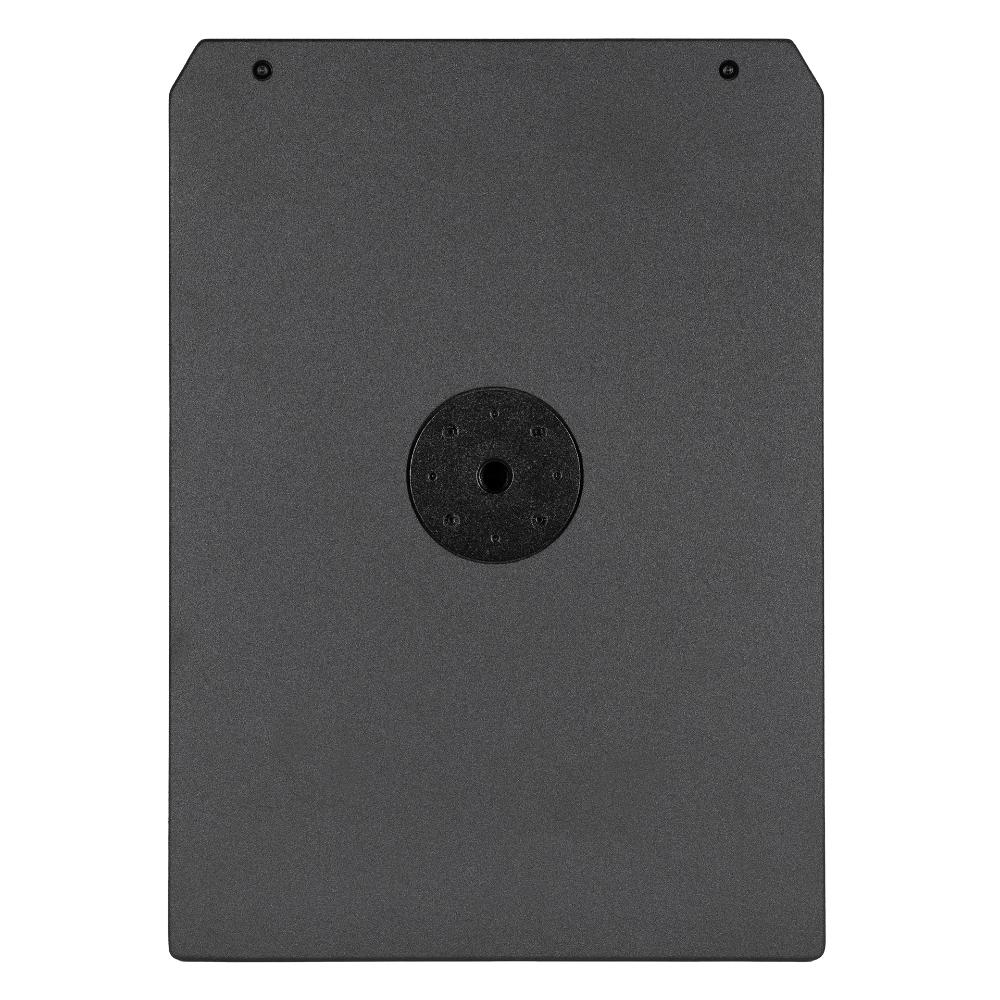

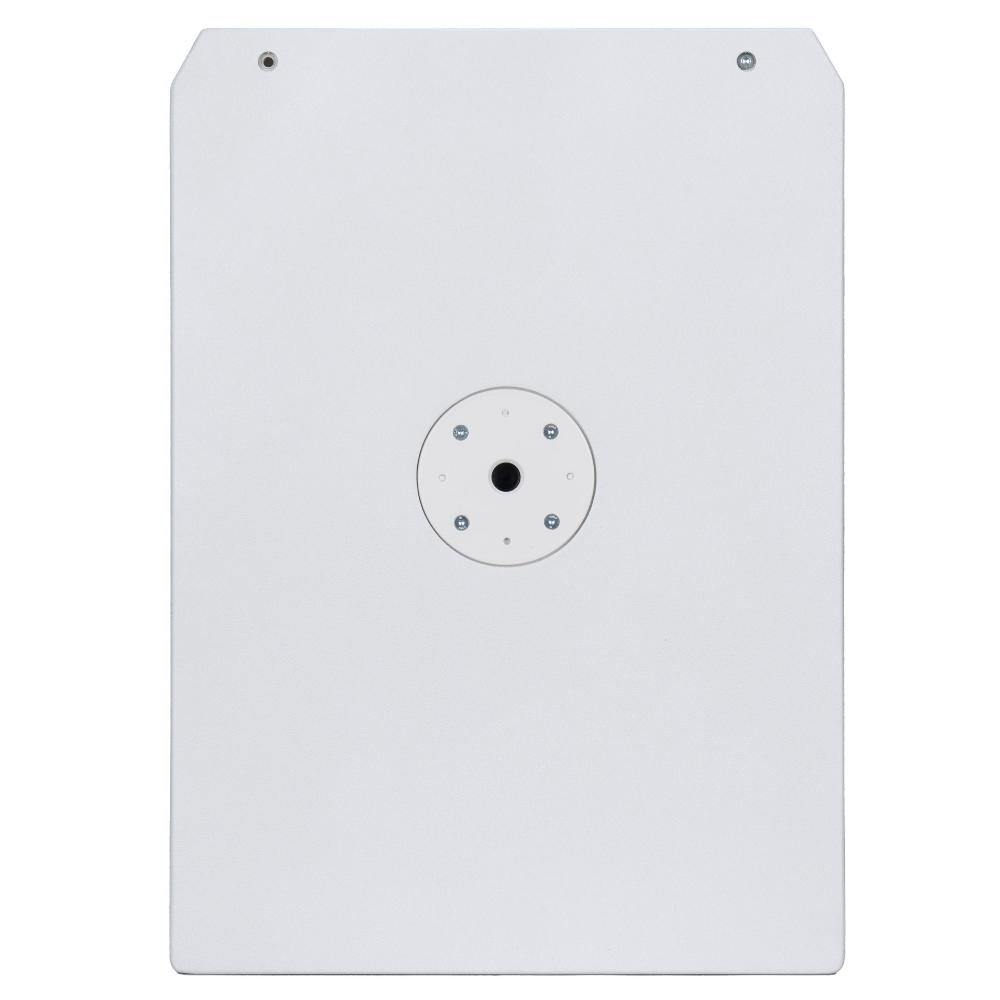

Pole mount/Cap: M20 thread

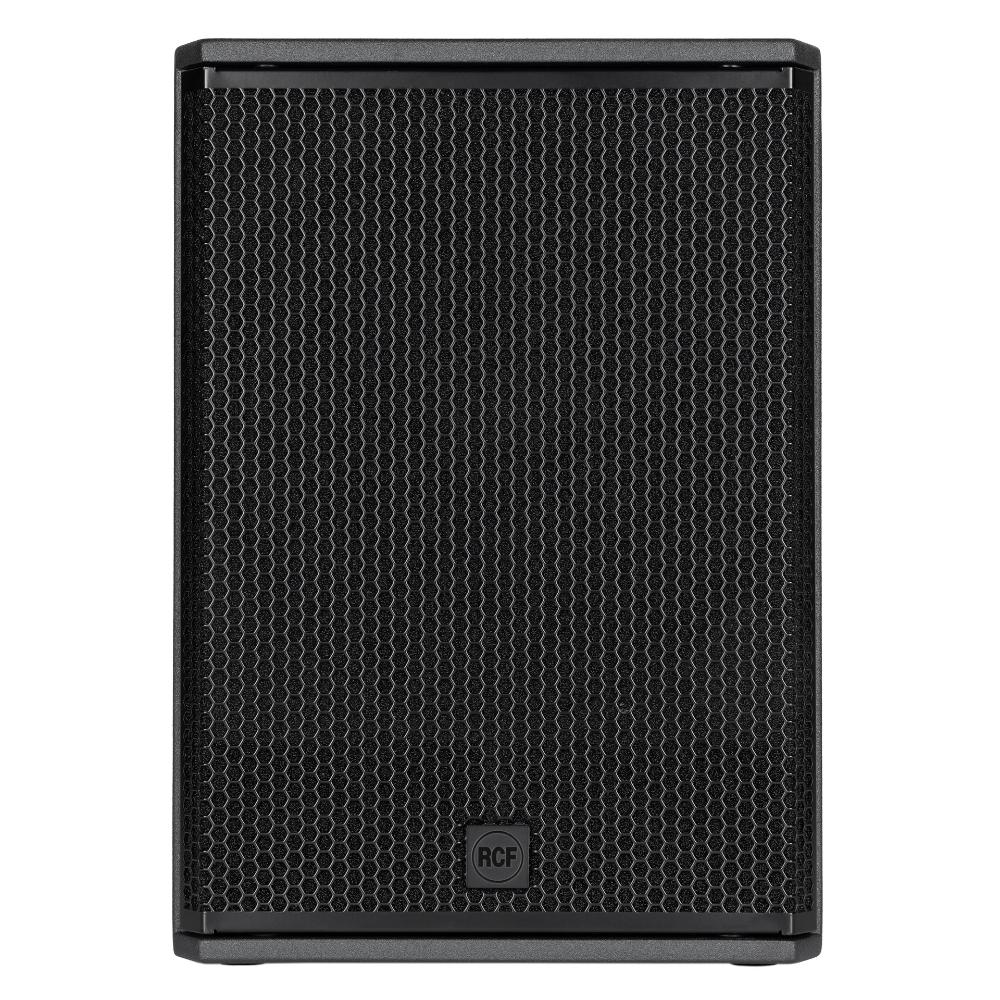

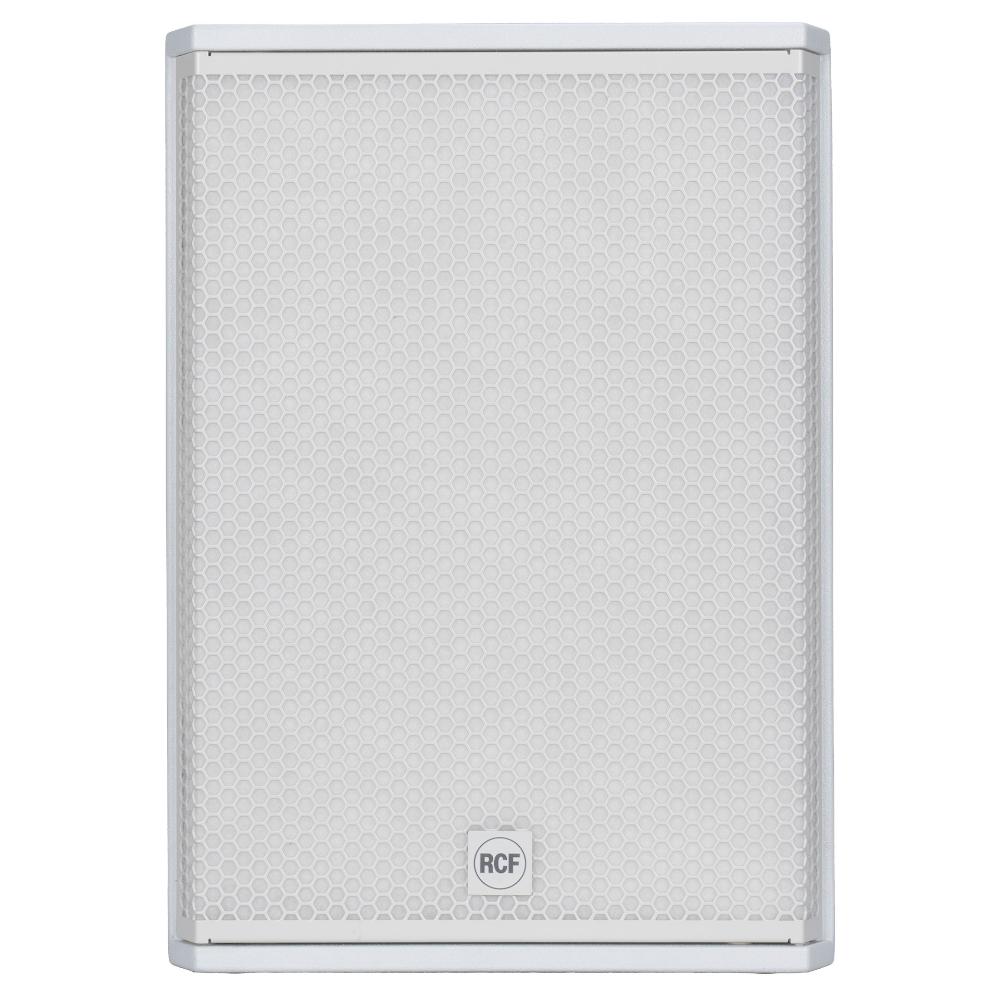

Grille: Steel

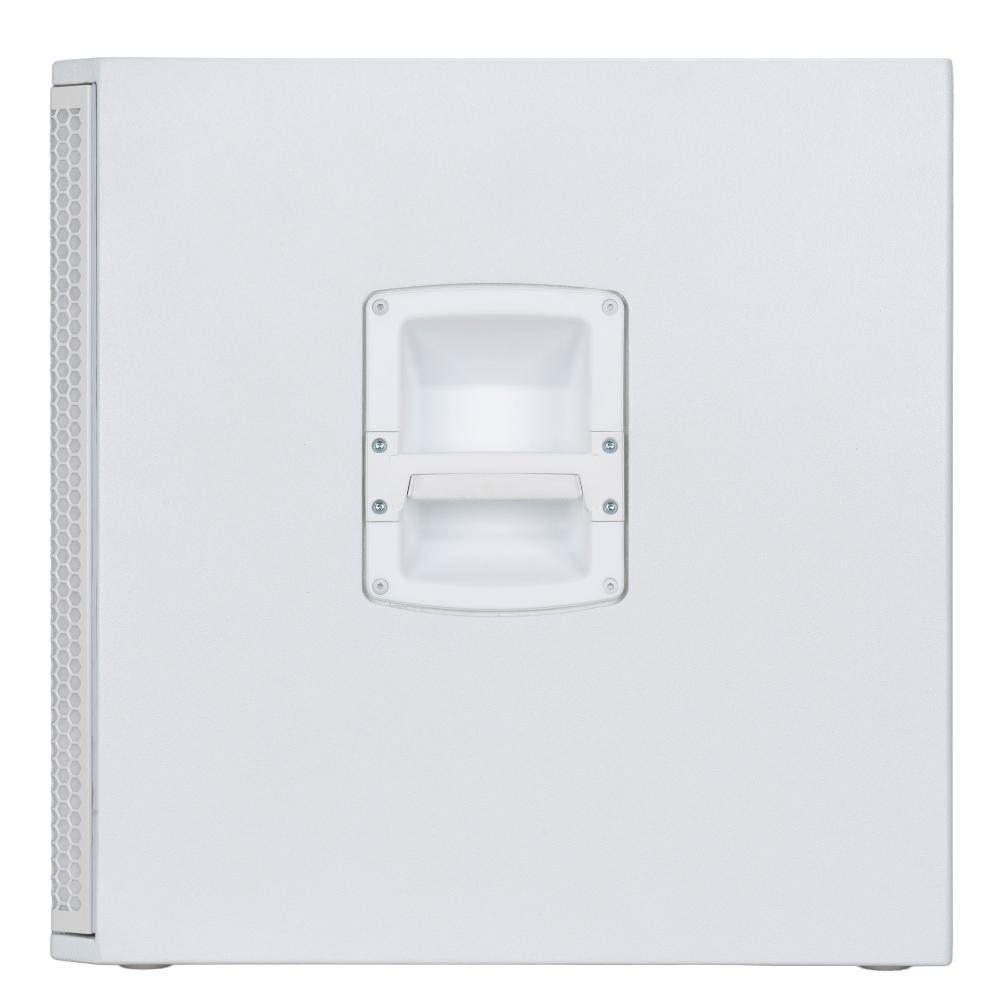

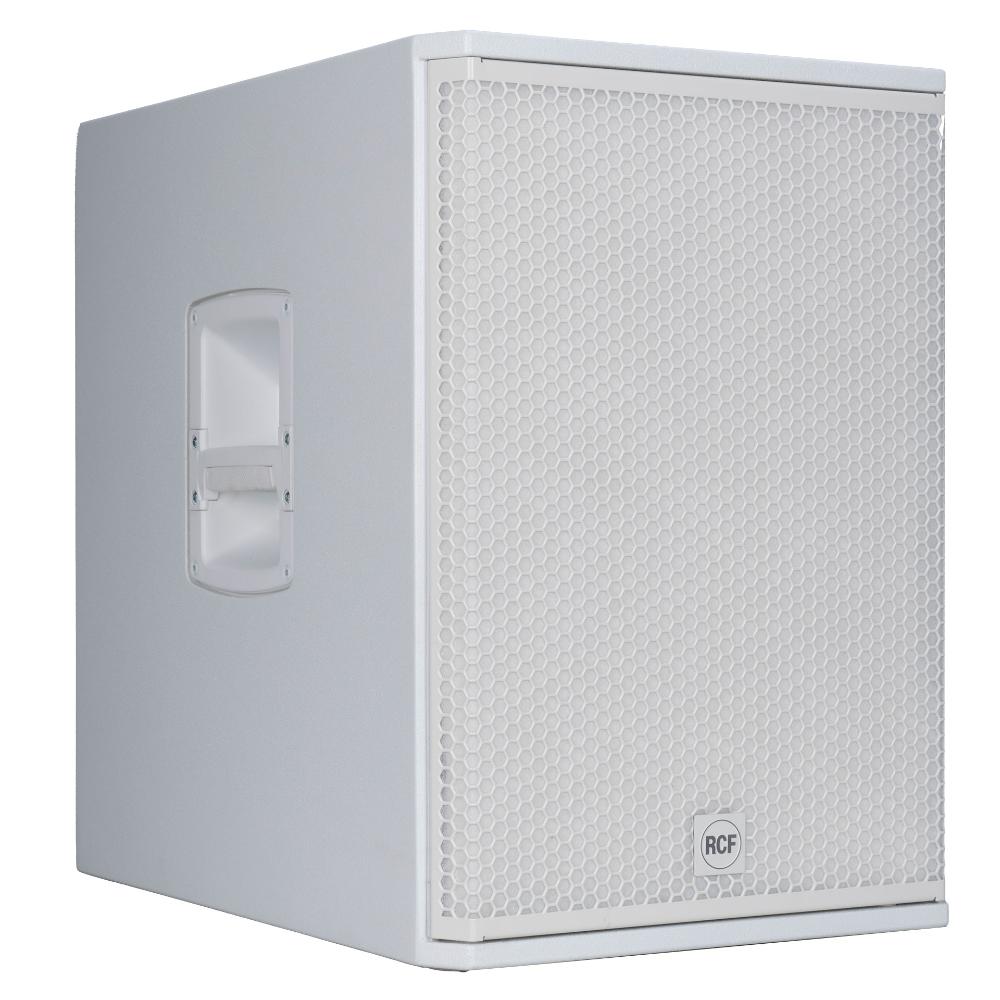

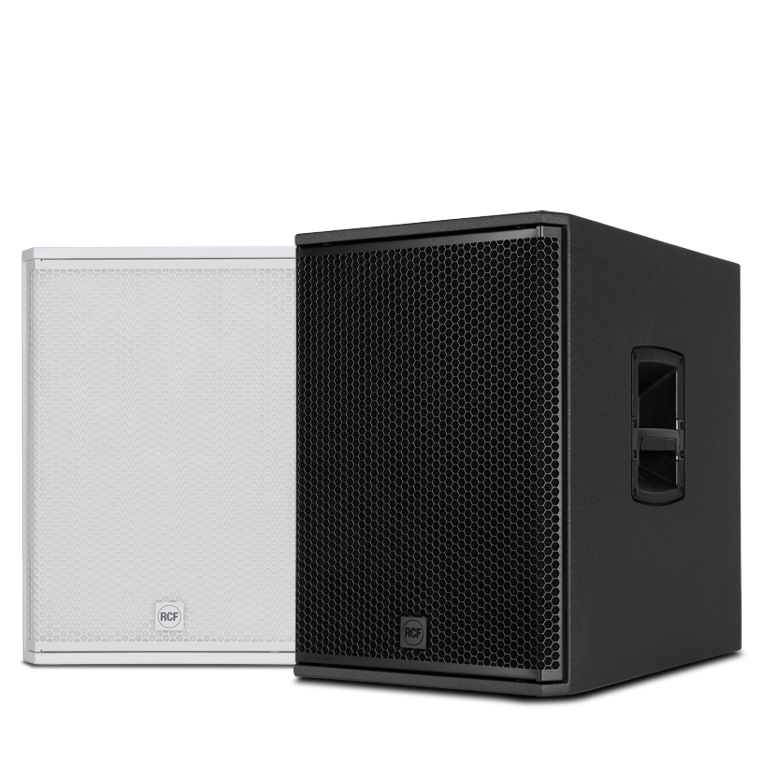

Color: Black, White
Size / Weight
Height: 590 mm / 23.23 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 31.4 kg / 69.23 lbs
