Description
Acoustical specifications
Frequency Response: 45 Hz – 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°

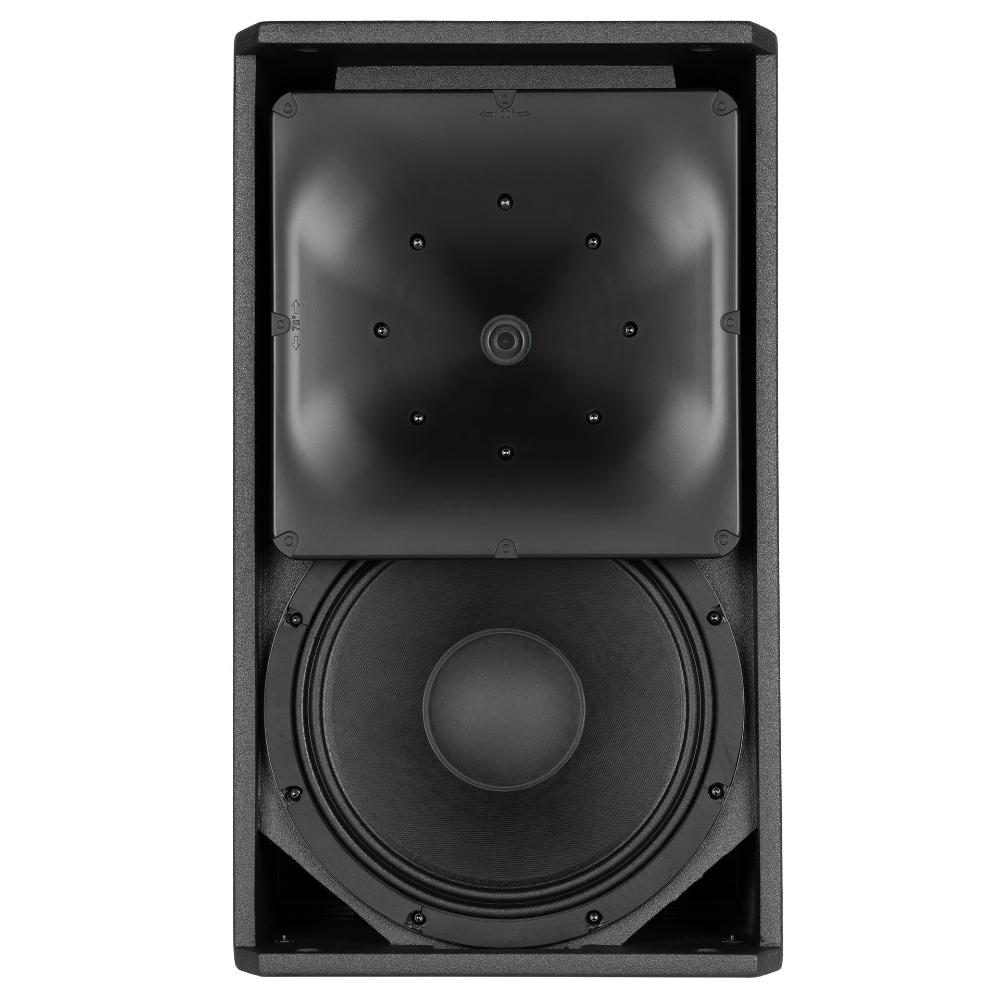

Transducers
Compression Driver: 1 x 1.4” neo, 3.0” v.c
Woofer: 1 x 12”, 2.5” v.c

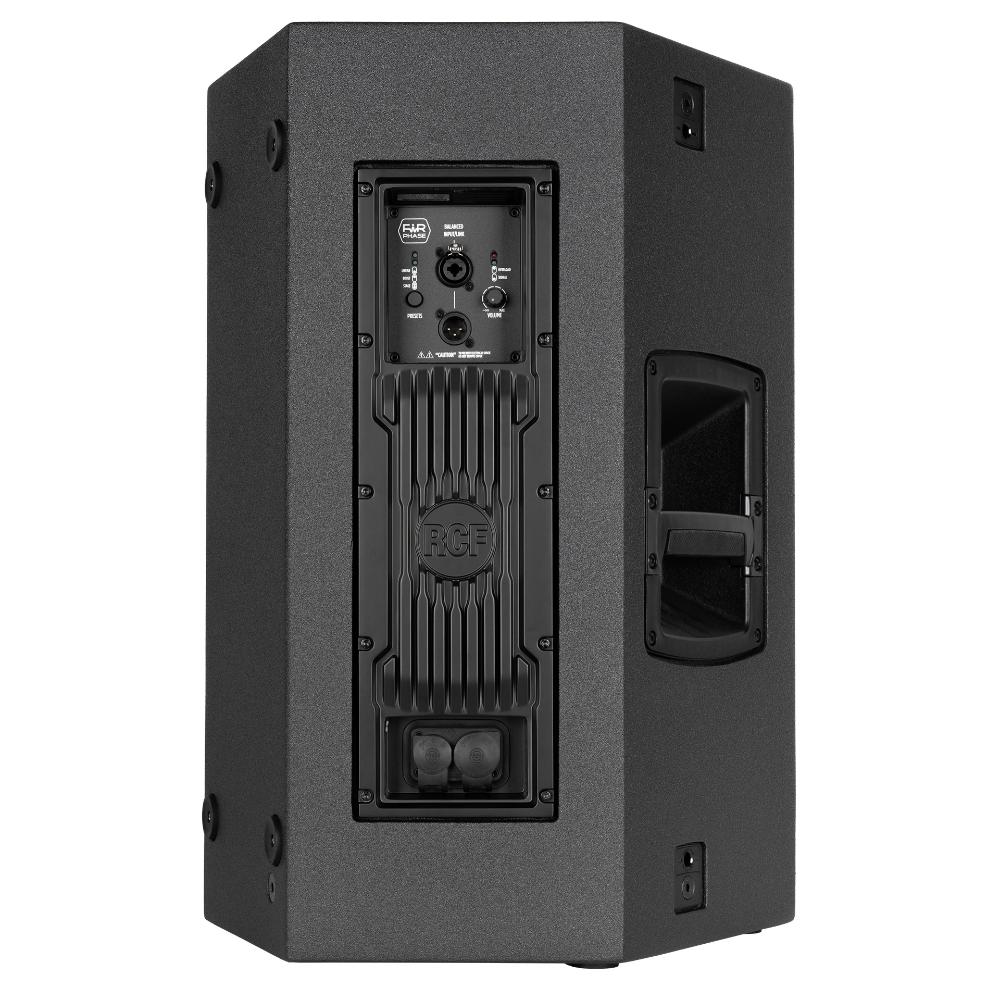

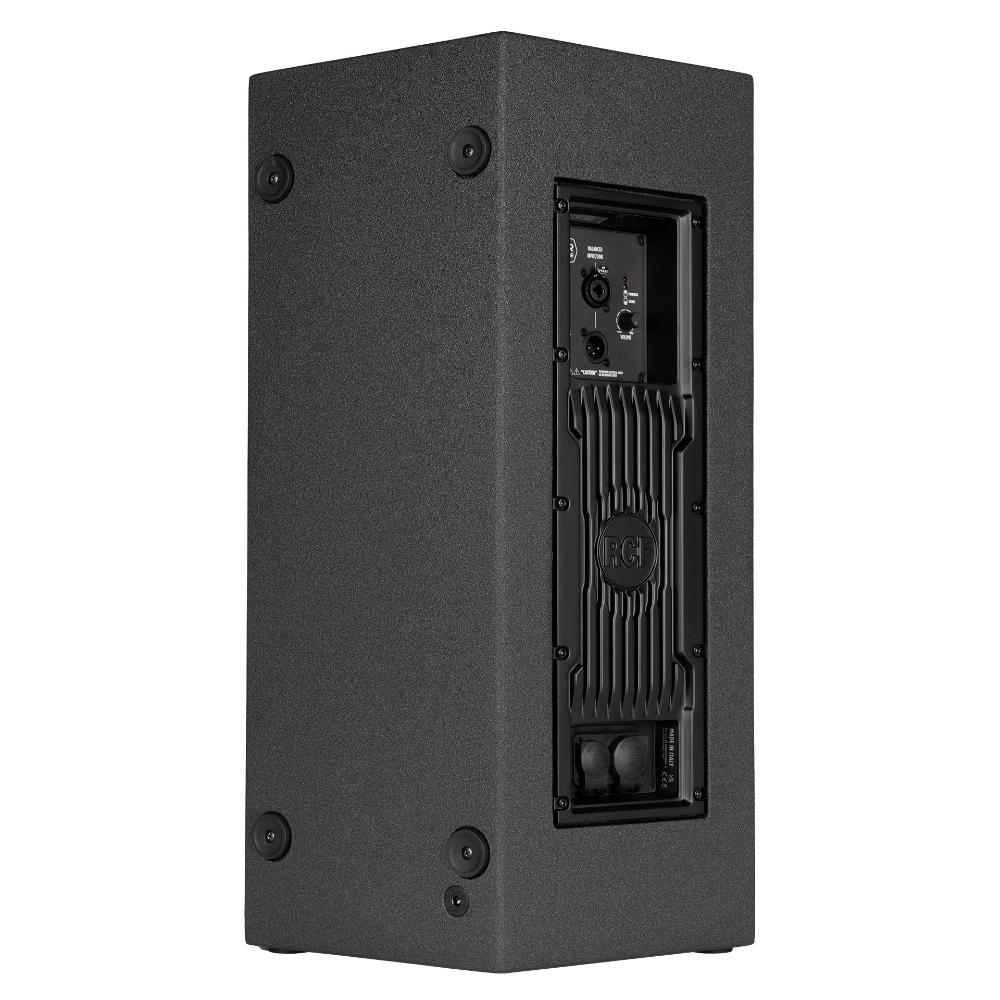

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 700Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume
Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Plywood

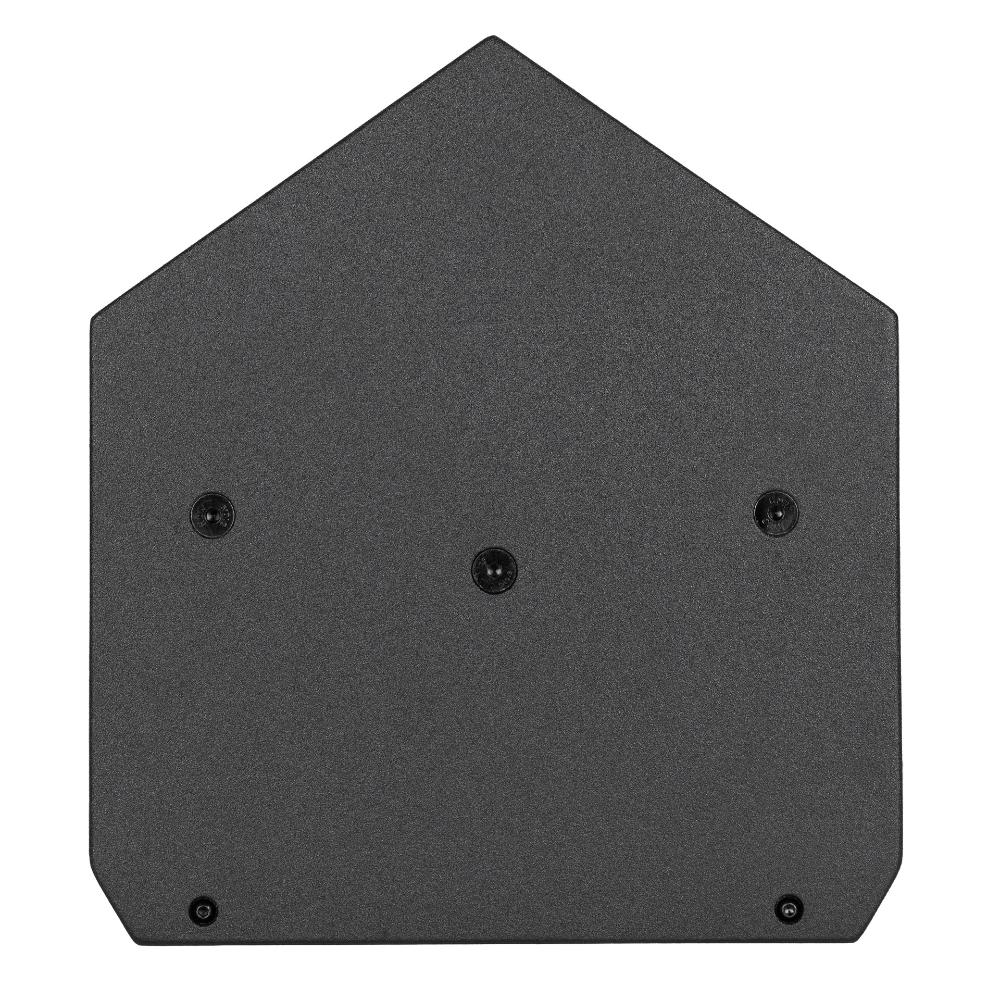

Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
2 each side quick lock pin seat
2 each side quick lock pin seat

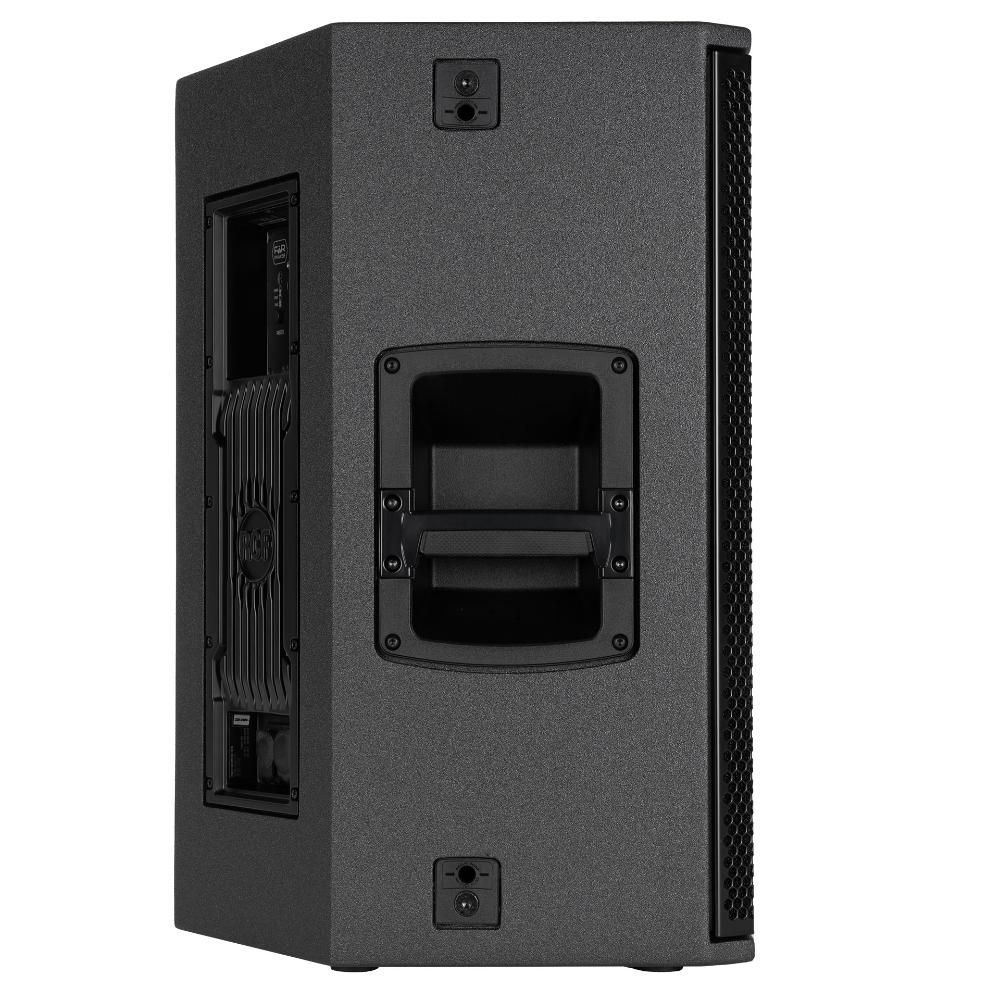

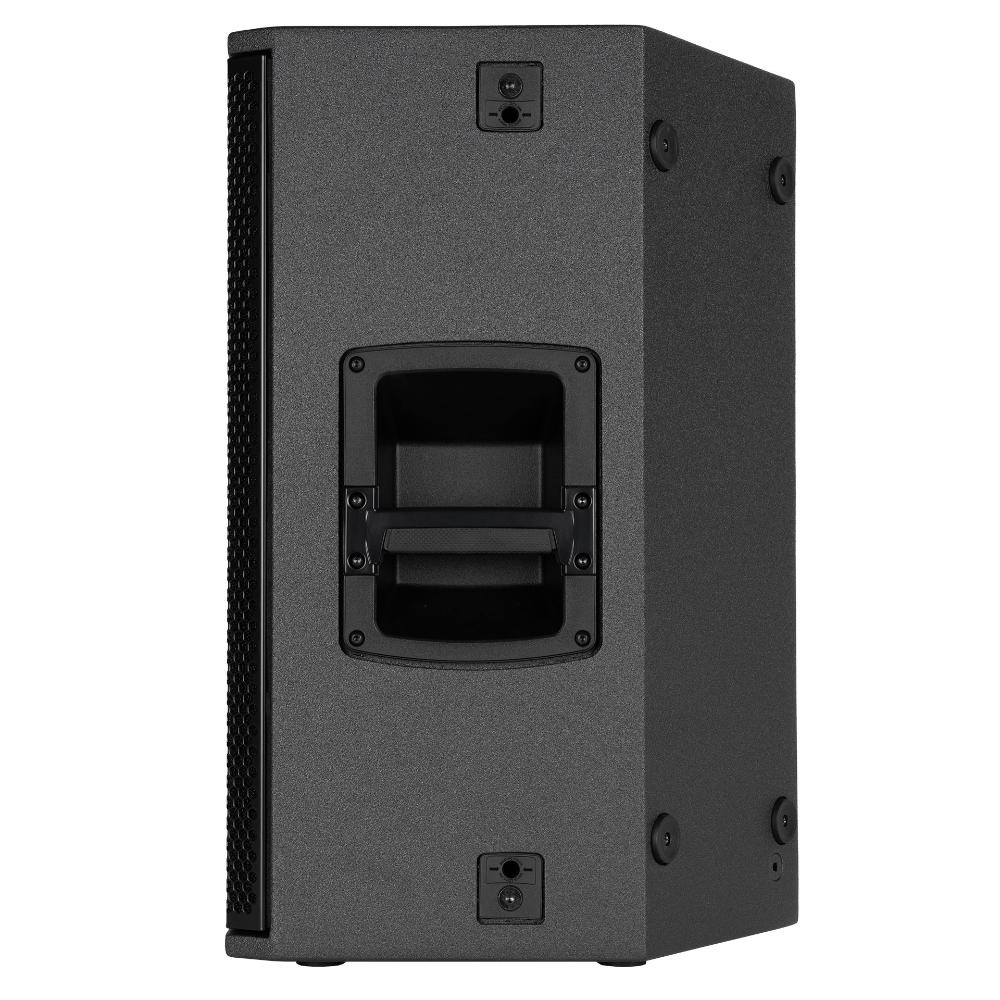

Handles: 1 x Side

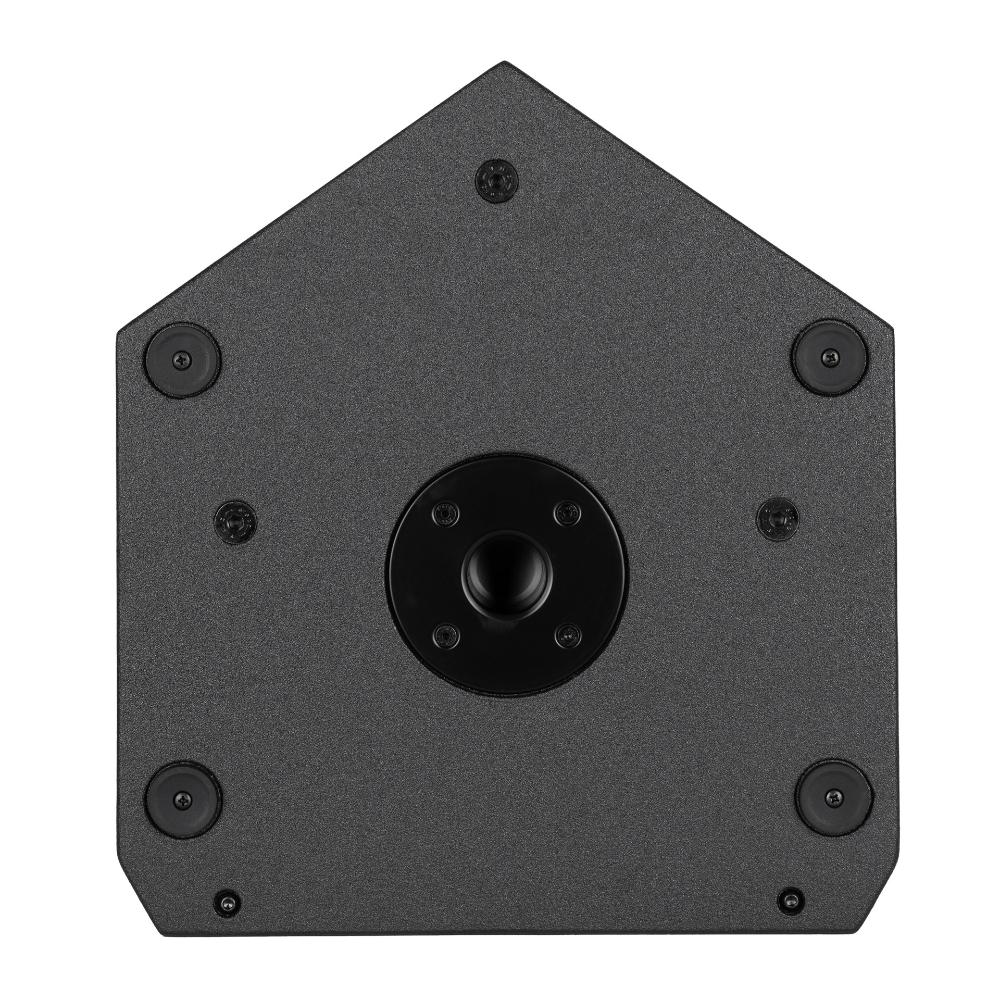

Pole mount/Cap: 35 mm insert

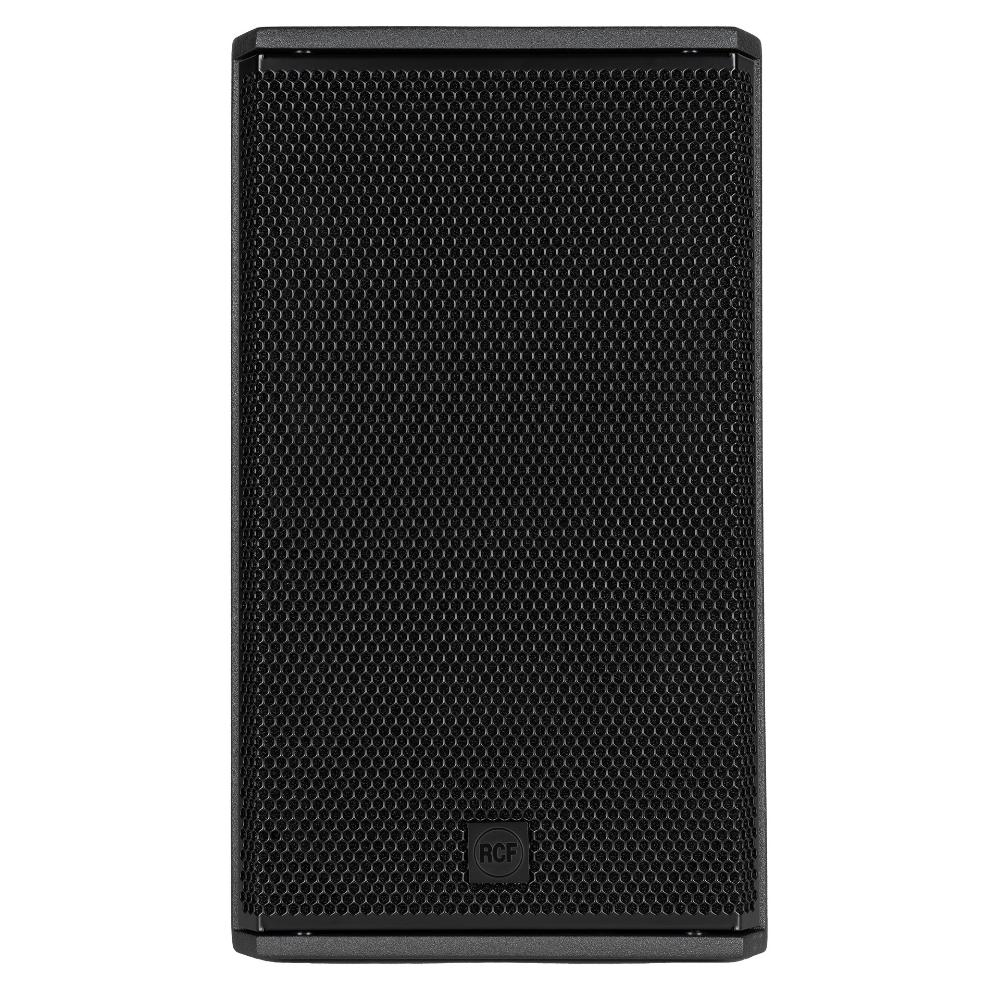

Grille: Steel

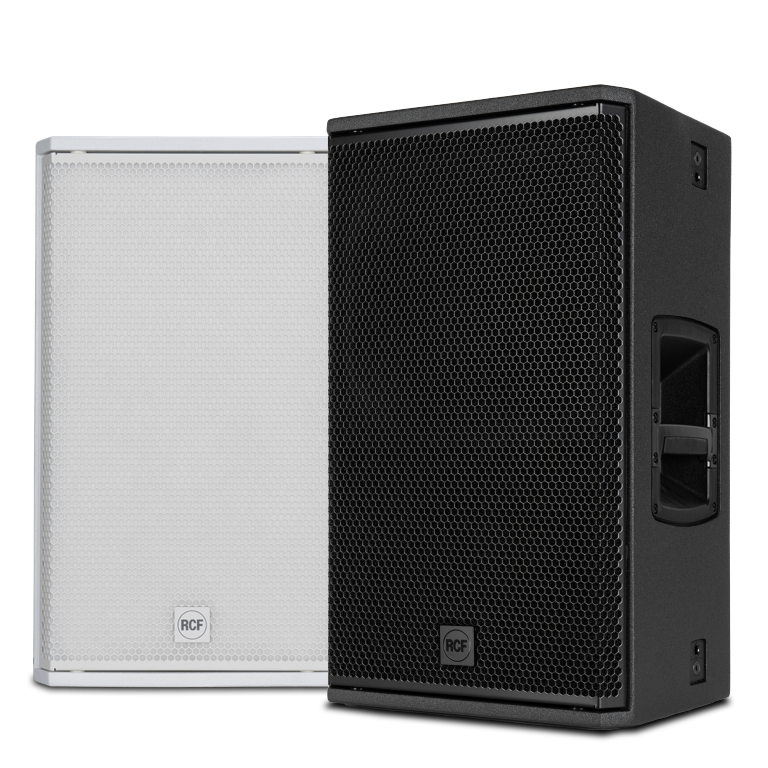

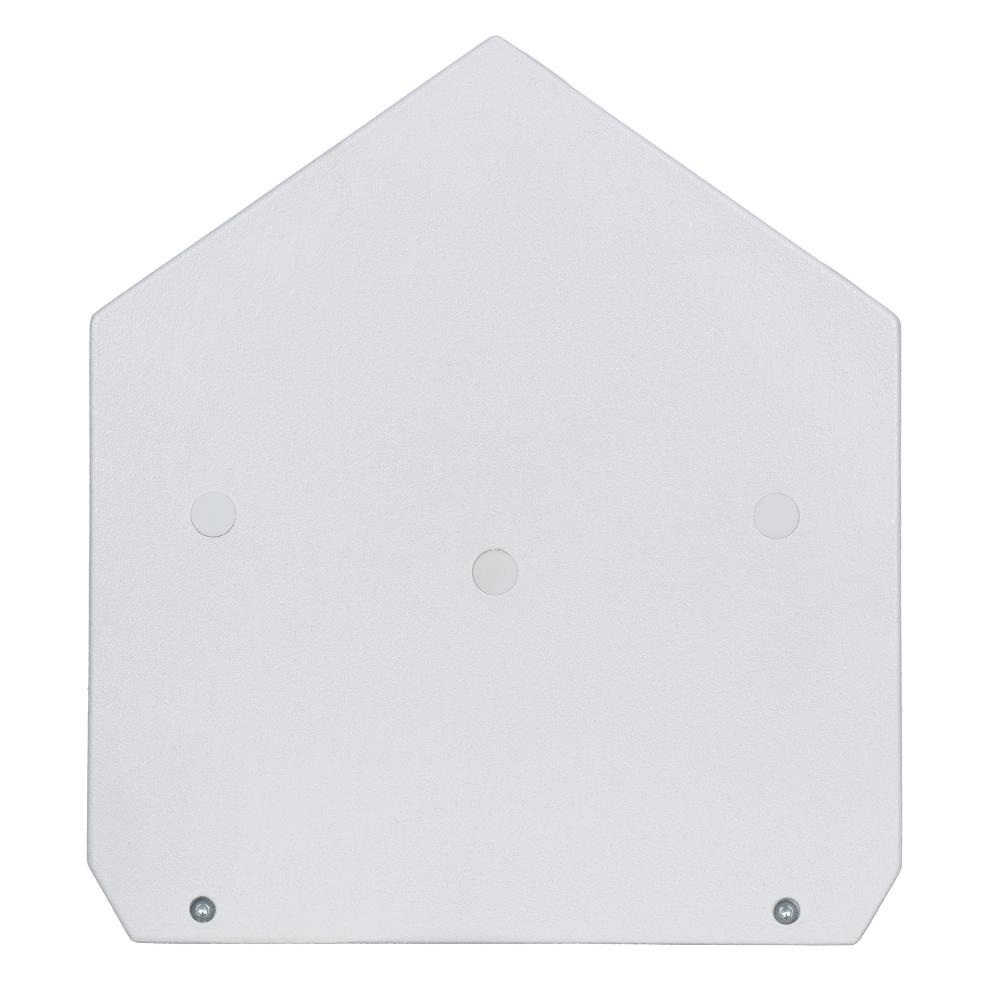

Color: Black, White
Size / Weight
Height: 620 mm / 24.41 inches
Width: 362 mm / 14.25 inches
Depth: 405 mm / 15.94 inches
Weight: 22.9 kg / 50.49 lbs
