Description
Acoustical specifications
Frequency Response (-10 dB): 70 Hz – 20000 Hz
Max SPL @ 1m: 112 dB
Coverage angle: 120°
System Sensitivity: 91 dB
Power section
Amplification: Full Range
Nominal Impedance: 16 ohm
Power Handling: 60 W
Peak Power Handling: 240 W Peak
Crossover Frequencies: 3000 Hz
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

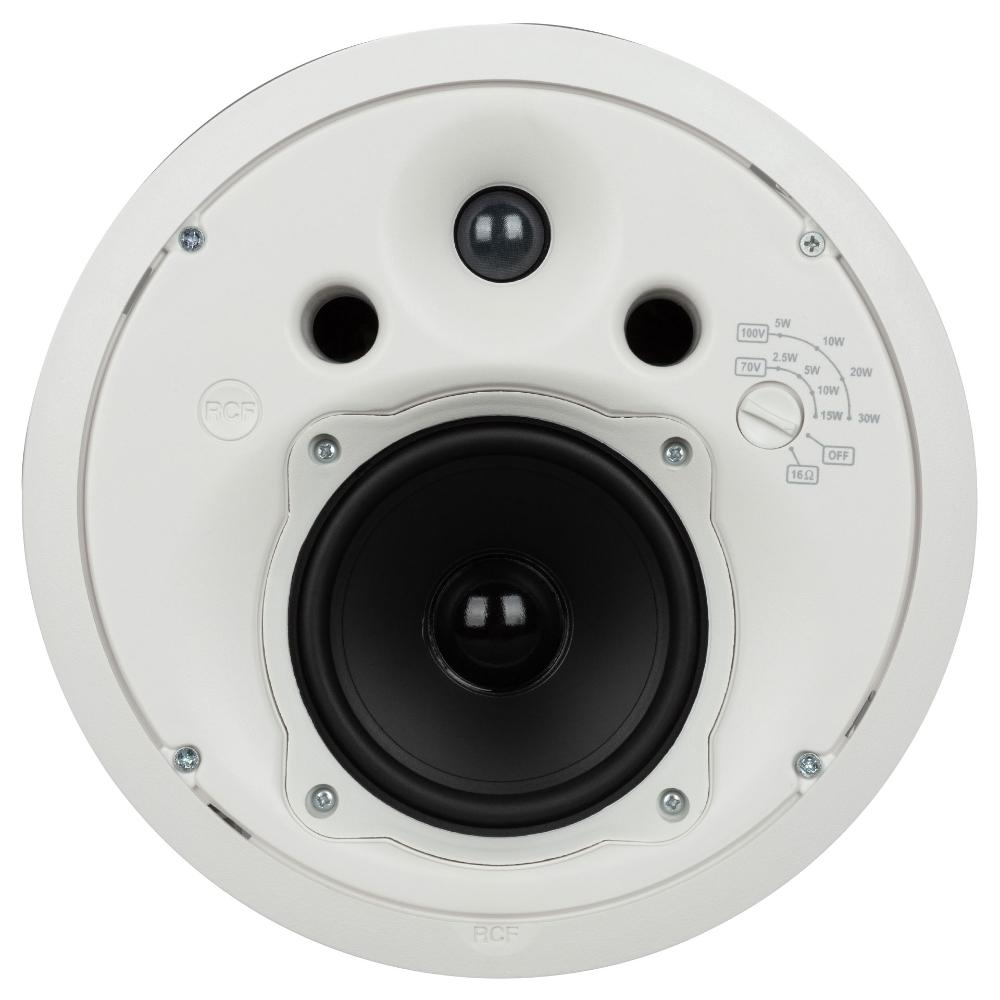

Transducers
Dome Tweeter: 1 x 1.0” neo
Woofer: 1 x 5.0” neo
Input/Output section

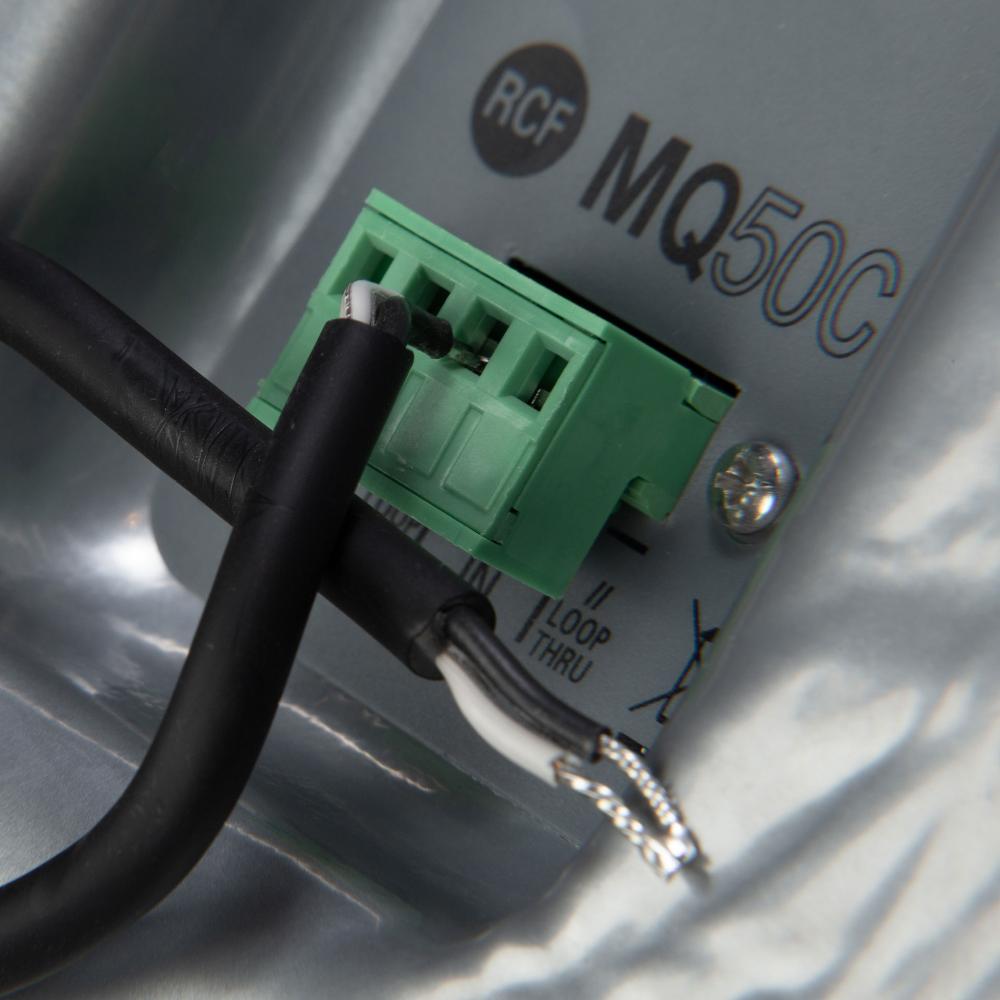

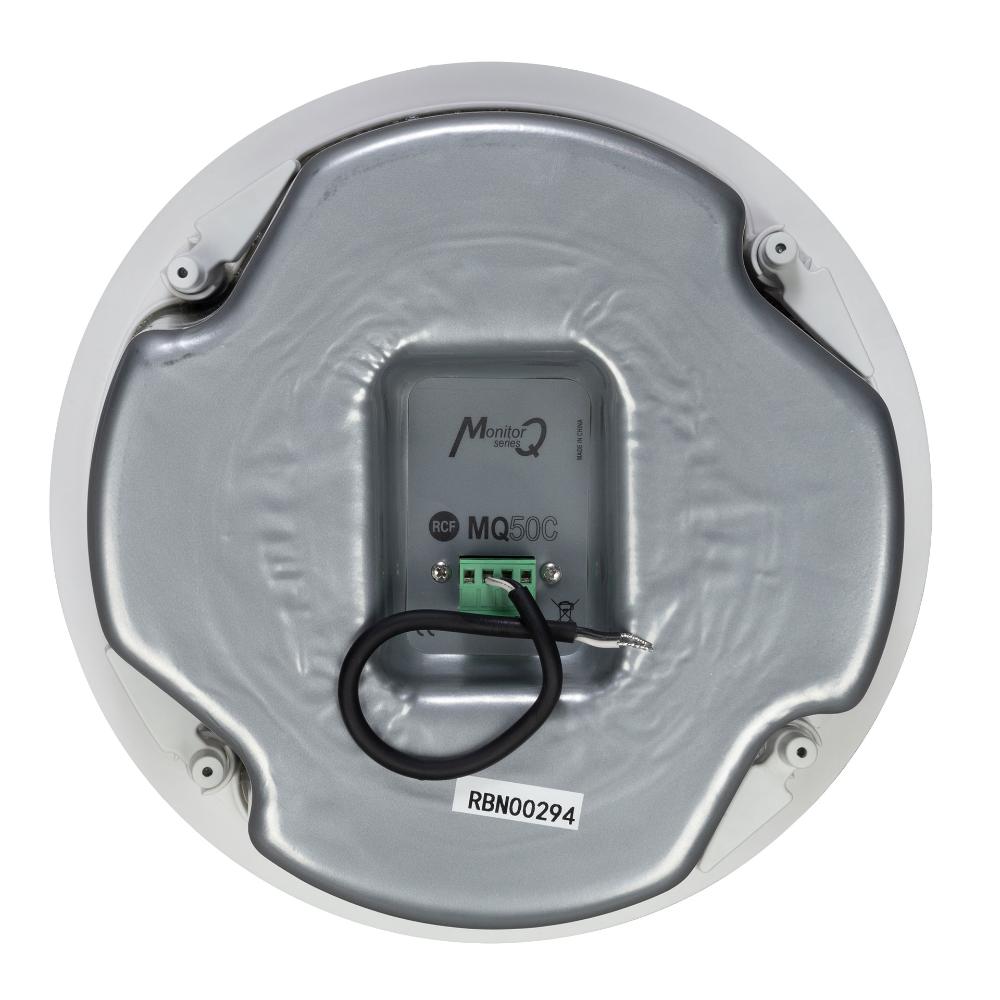

Input connectors: Euroblock
Output connectors: Euroblock

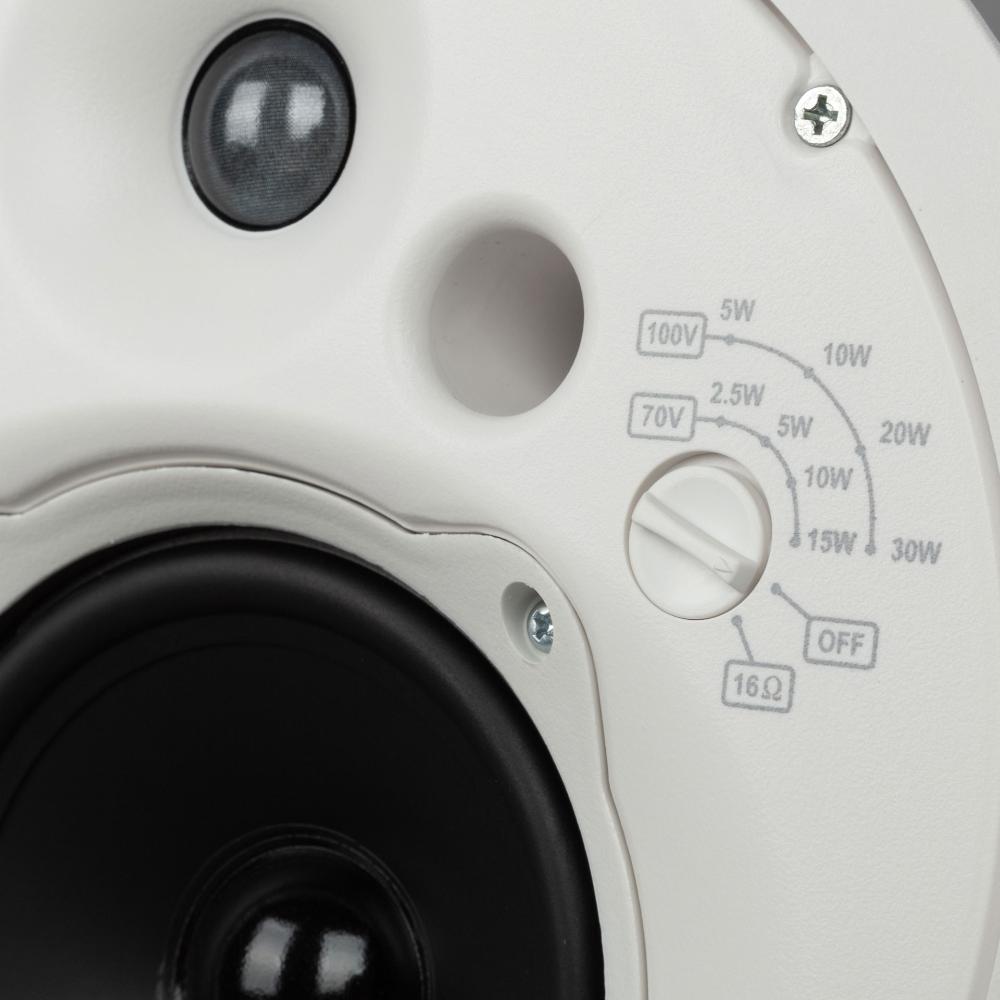

Constant Voltage Transformer: 100 V
Power Selection 1: 30 W – 333 ohm
Power Selection 2: 20 W – 500 ohm
Power Selection 3: 10 W – 1000 ohm
Power Selection 4: 5 W – 2000 ohm
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Plastic
Hardware: Plastic Material

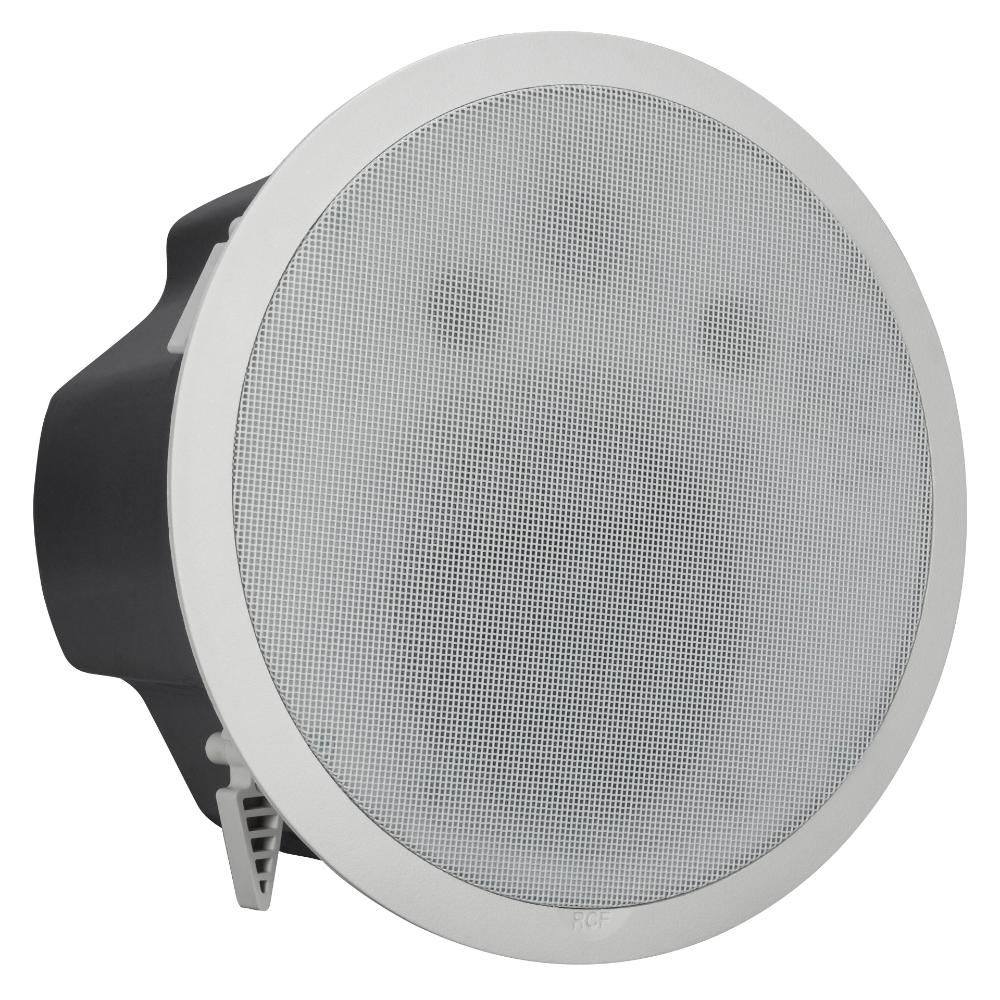

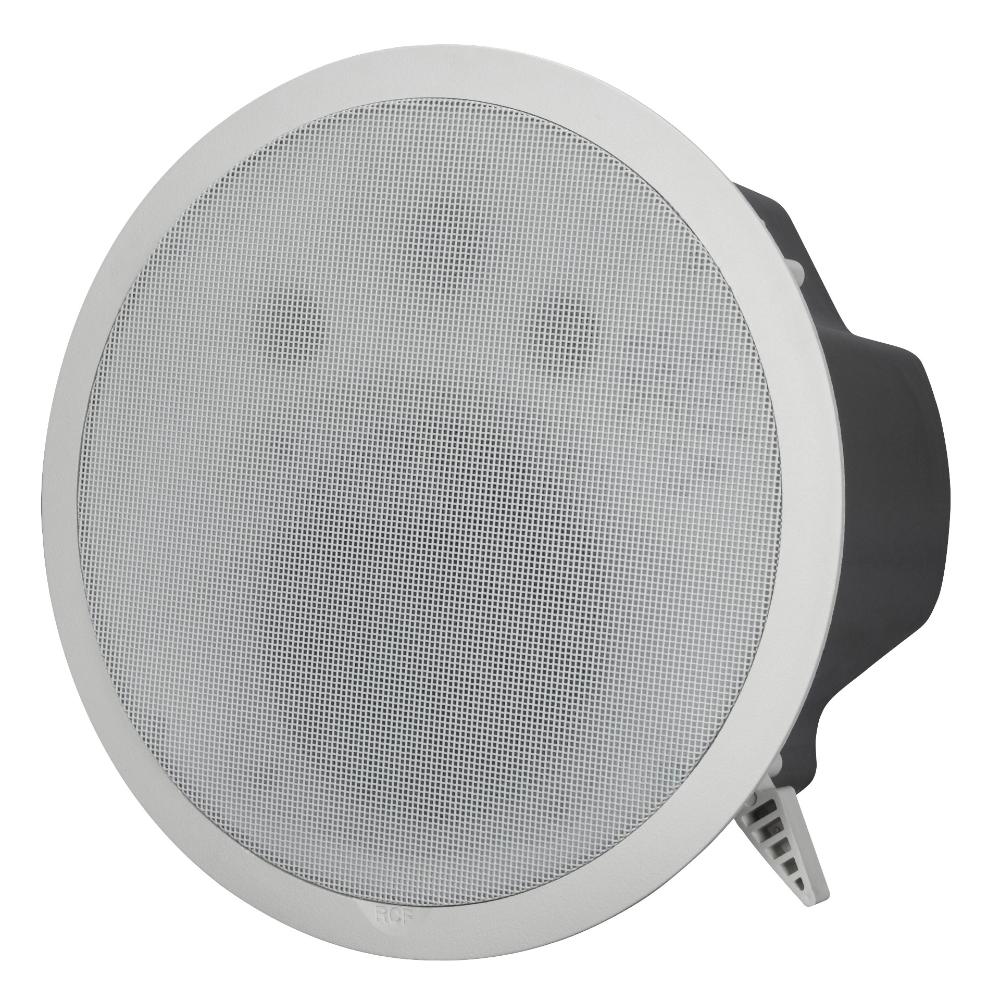

Grille: Steel
Color: White – RAL 9016, Black – RAL 9005
Size / Weight

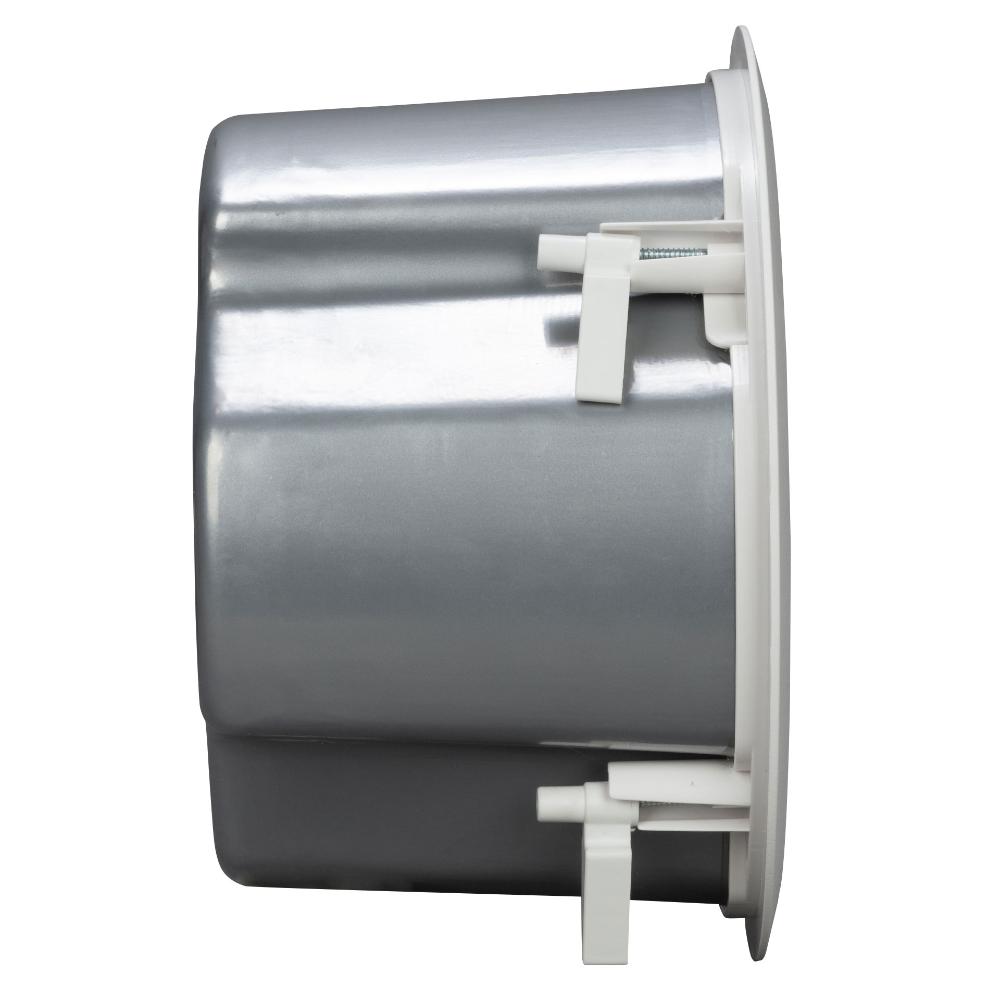

Depth: 156 mm / 6.14 inches
Recessed Depth: 140 mm / 5.51 inches
Diameter: 266 mm / 10.47 inches
Cut Out Diameter: 245 mm / 9.65 inches
Weight: 2.1 kg / 4.63 lbs
