Description
Acoustical specifications
Frequency Response: 35 Hz – 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers

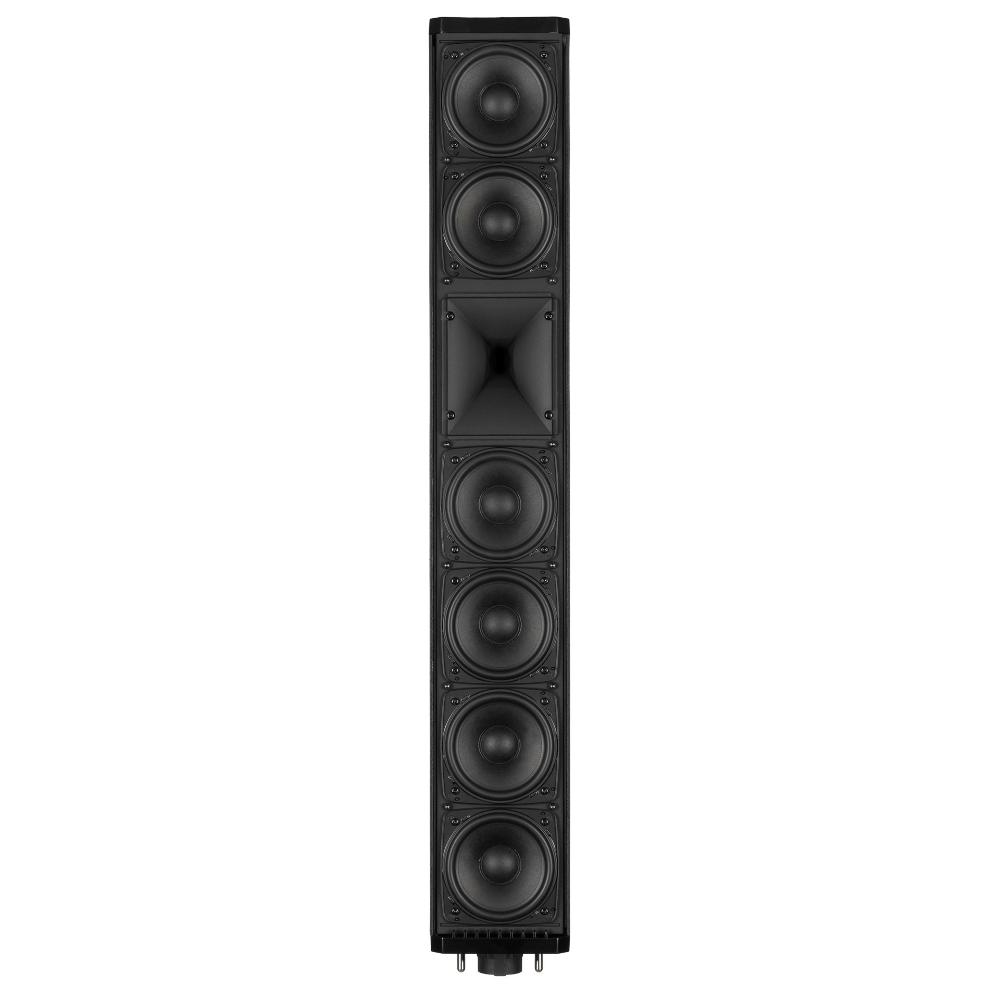

Compression Driver: 1 x 1.0” neo, 1.75” v.c

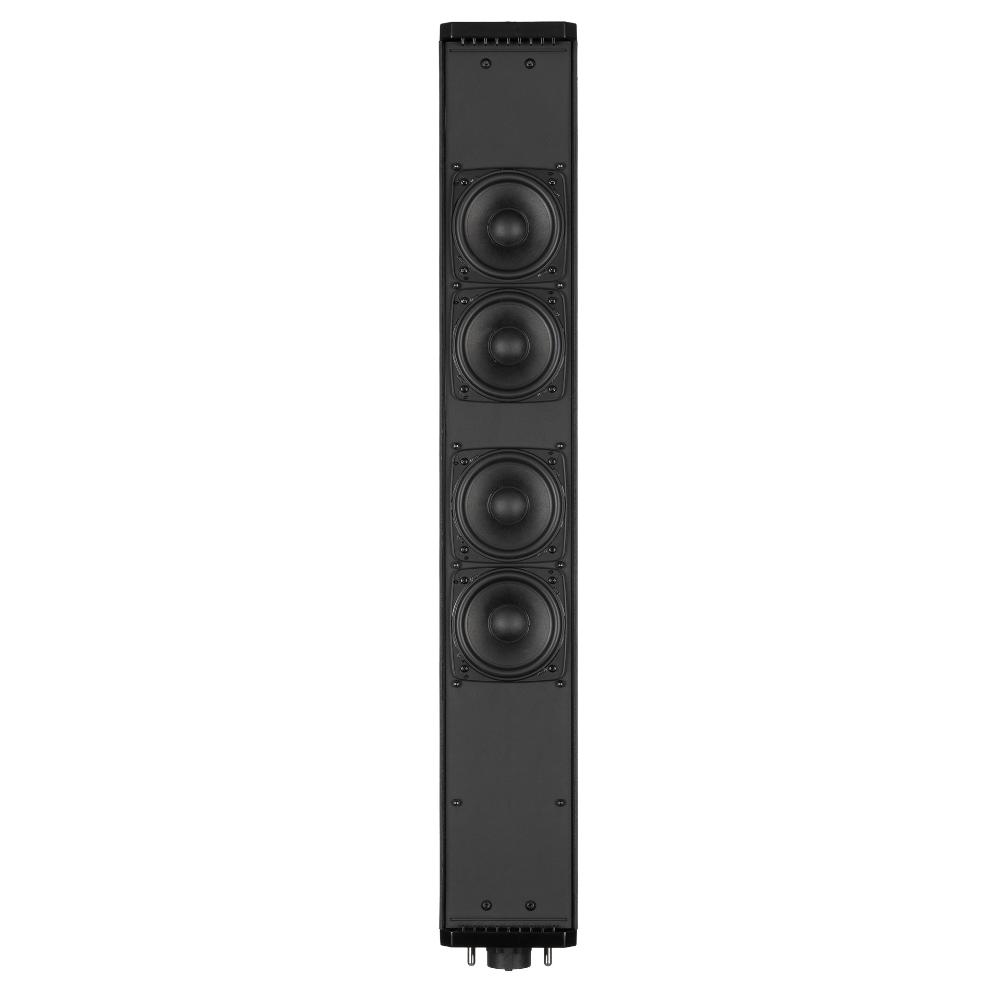

Fullrange: 10 x 4.0” neo, 1.0” v.c

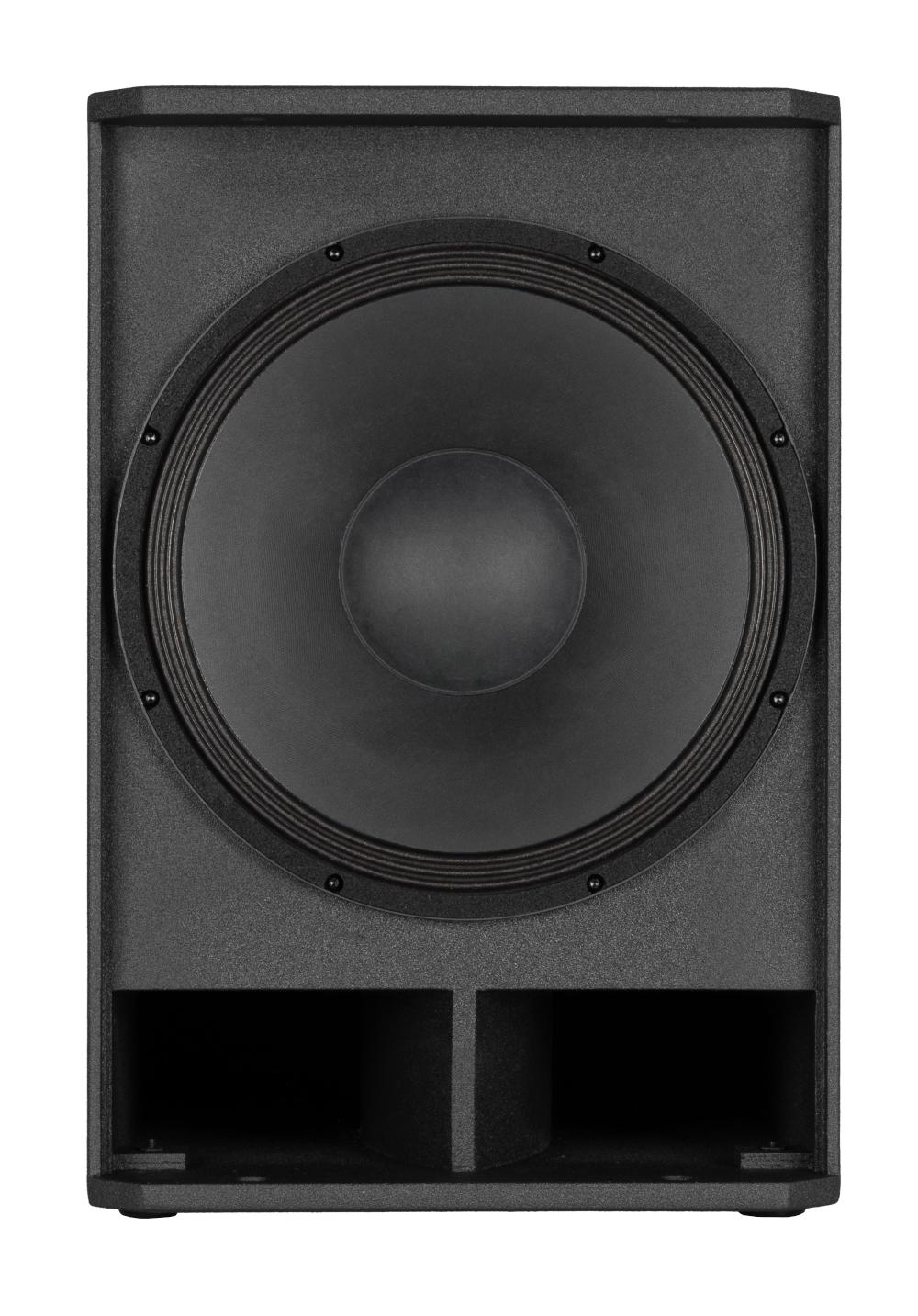

Woofer: 15”, 3.0” v.c

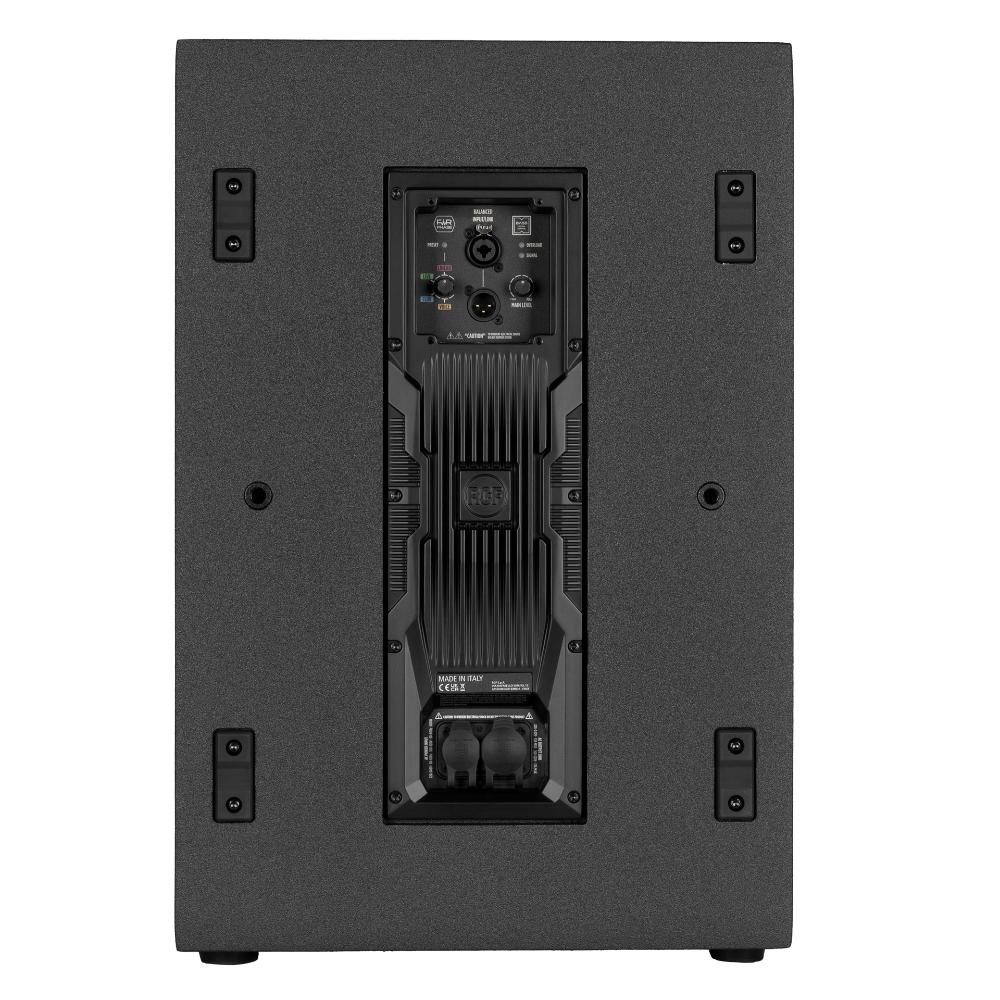

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: +4 dBu
Processor section
Crossover Frequencies: 160/1600 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: LINEAR, LIVE, CLUB, VOICE
Power section
Total Power: 3500 W Peak
High frequencies: 1500 W Peak
Low frequencies: 2000 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood/PP Composite

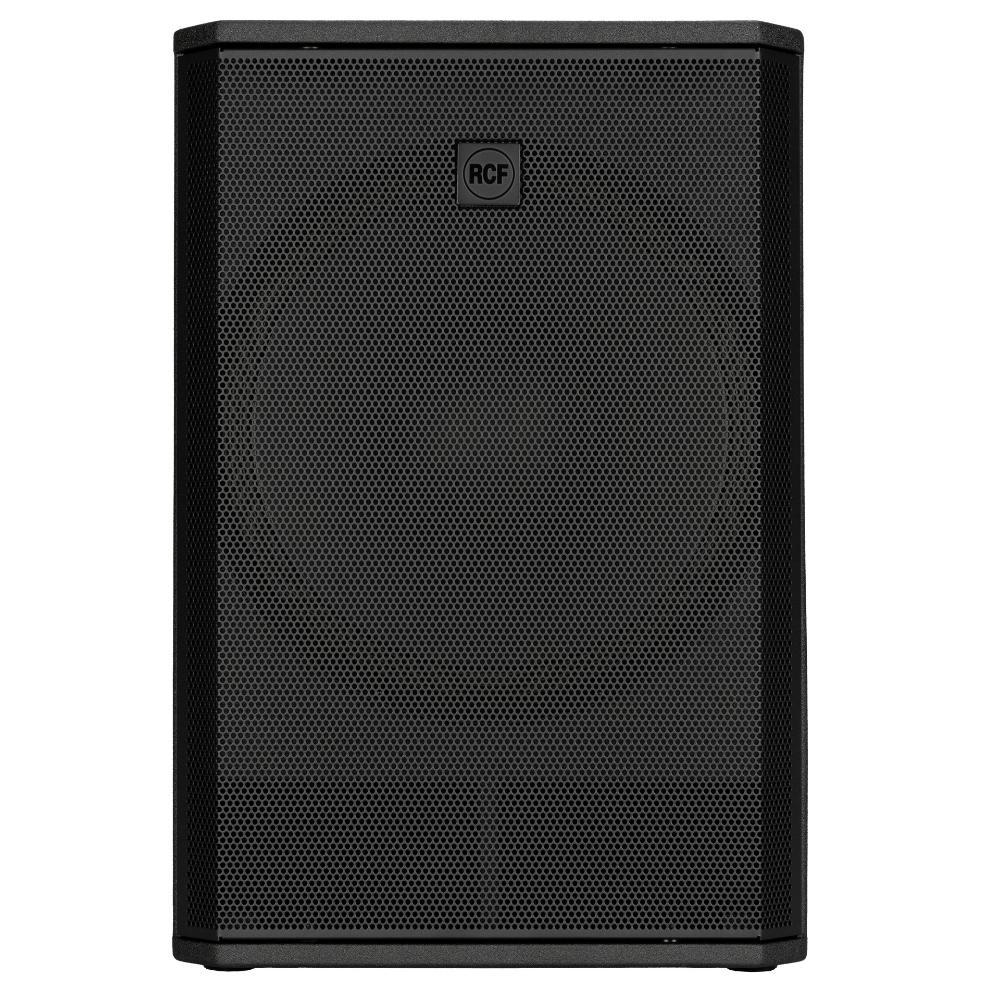

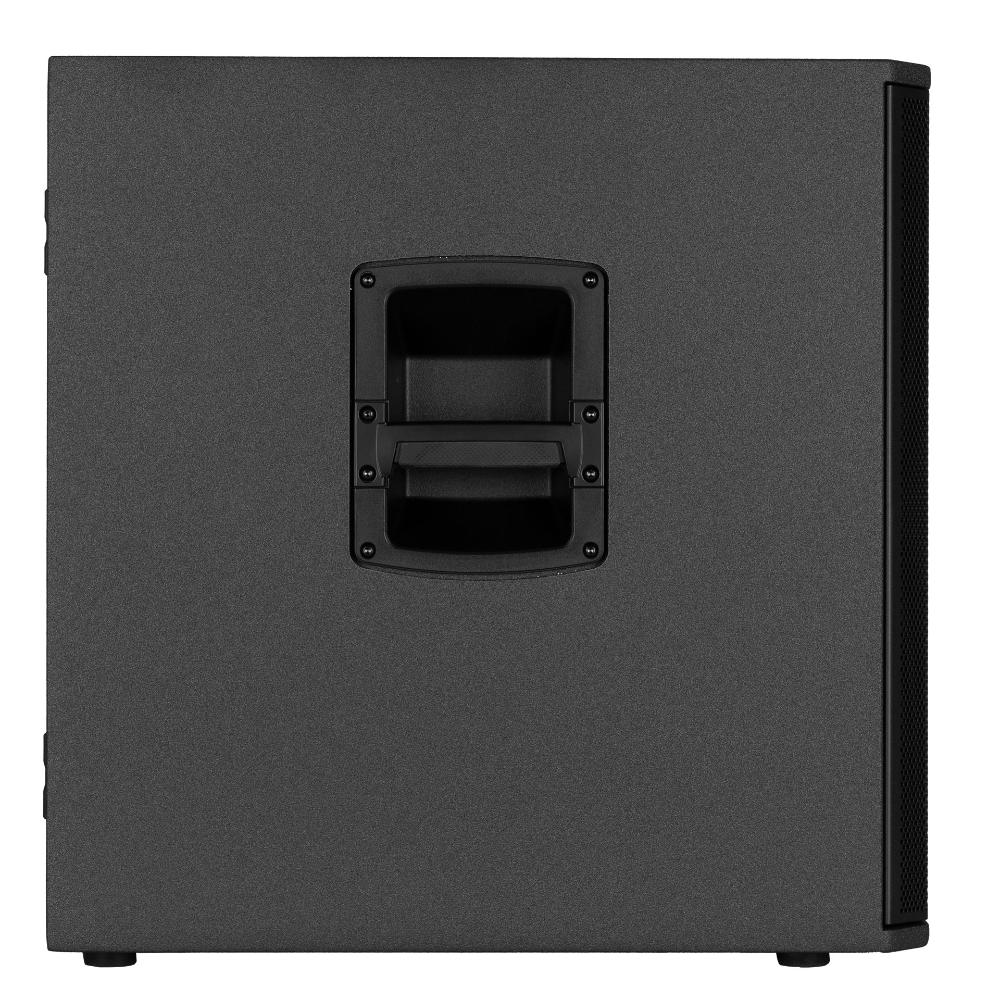

Handles: One handle each side of the subwoofer
Grille: Steel

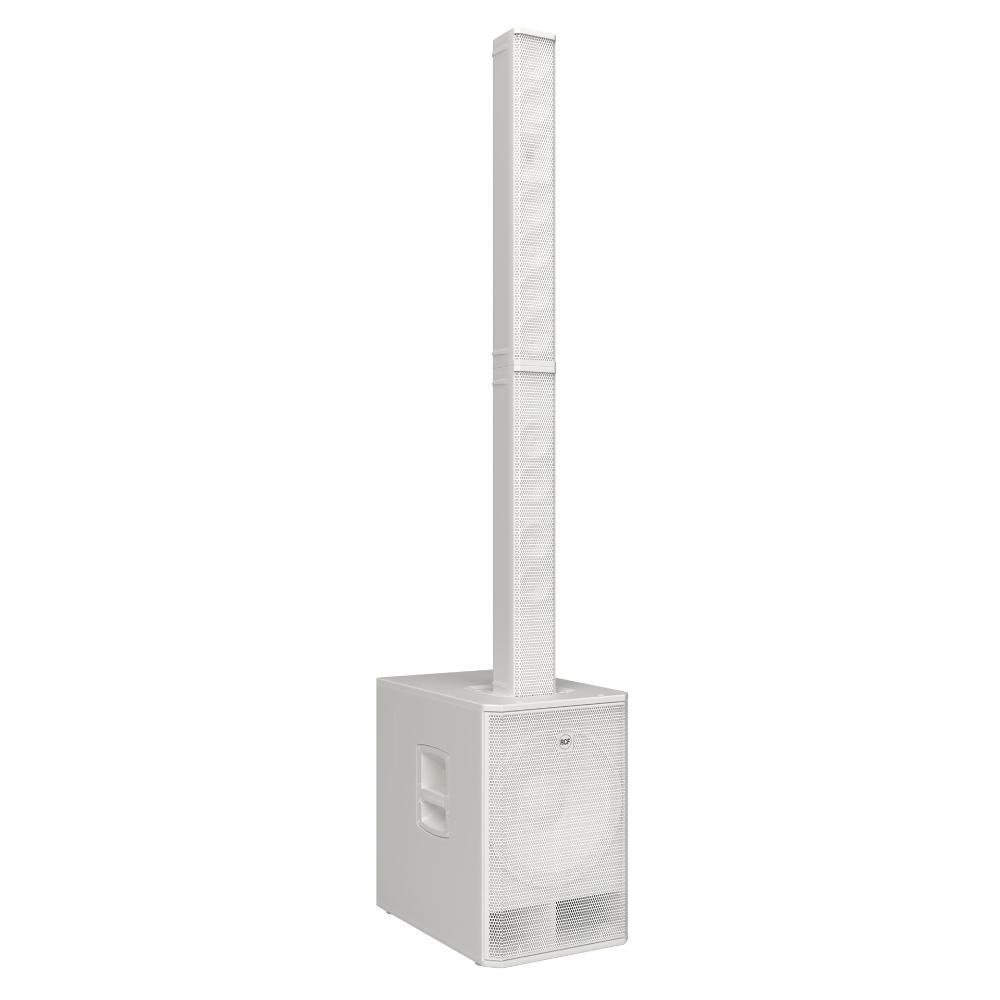

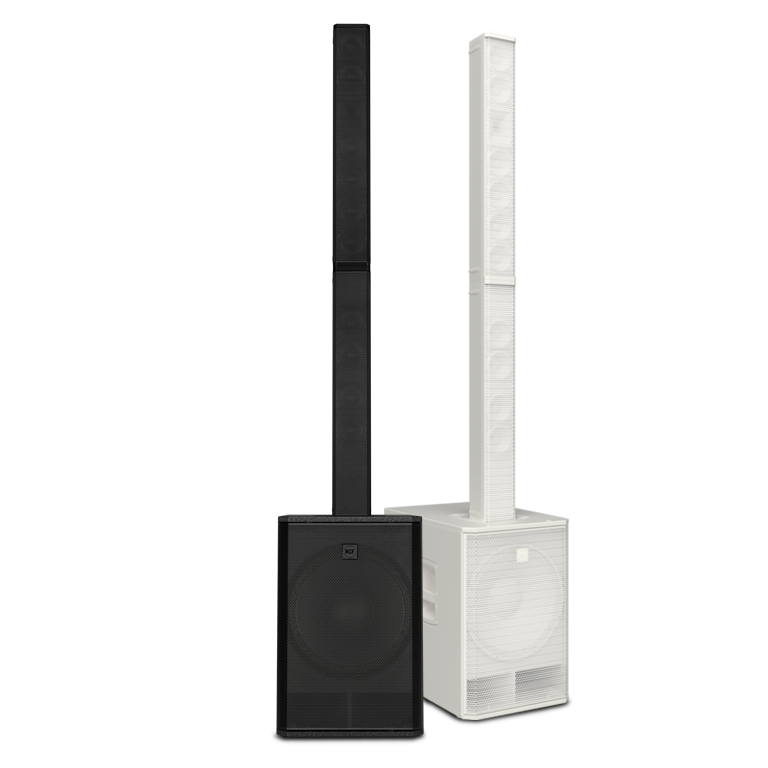

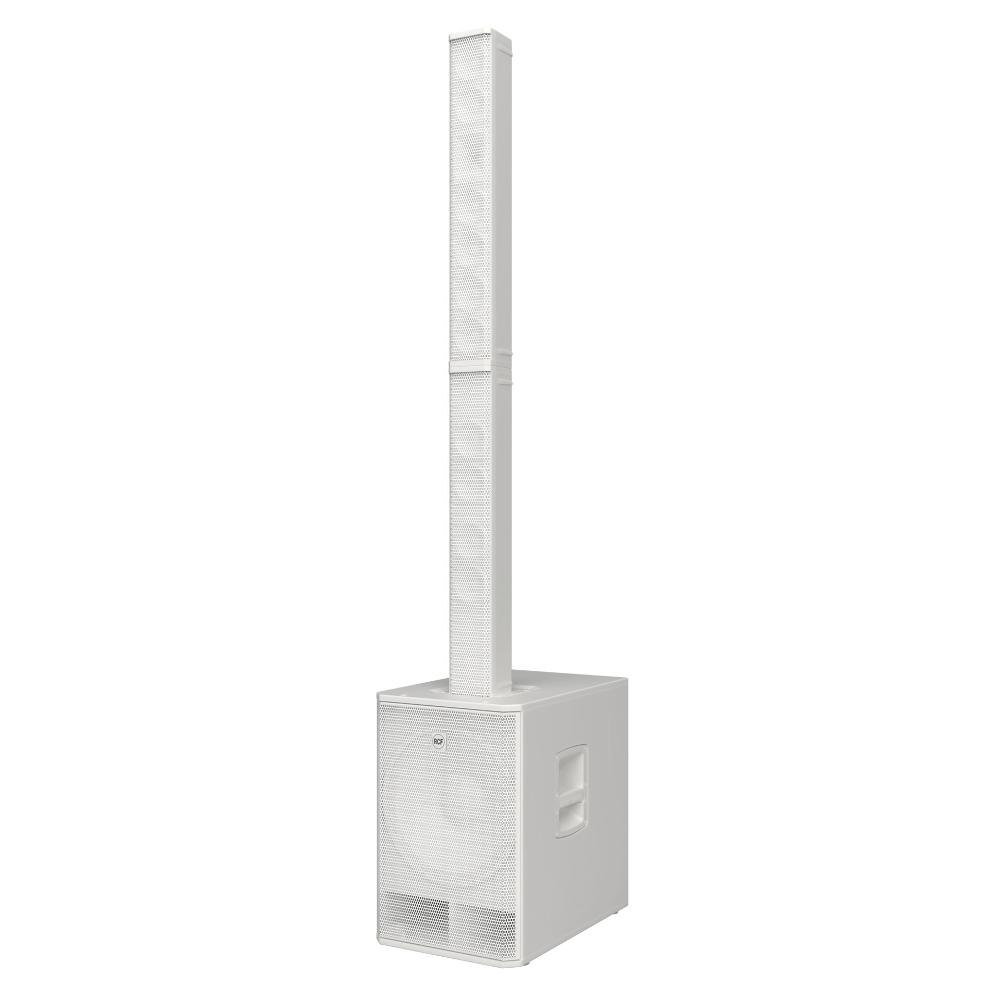

Color: Black, White – RAL 9003
Size / Weight

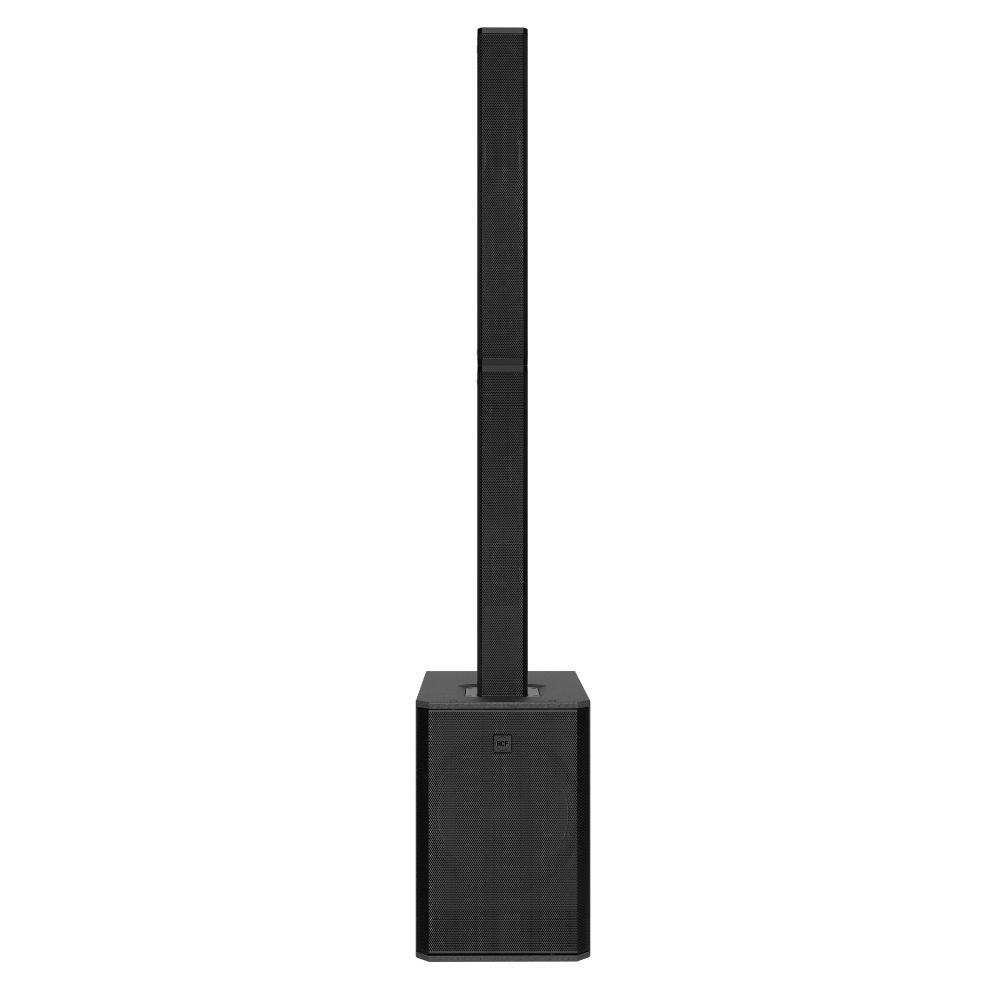

Height: 2223 mm / 87.52 inches
Width: 410 mm / 16.14 inches
Depth: 605 mm / 23.82 inches
Weight: 44.4 kg / 97.89 lbs
