Description
Acoustical specifications
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Transducers
Full range: 8 x 2.0”, 1.0” v.c

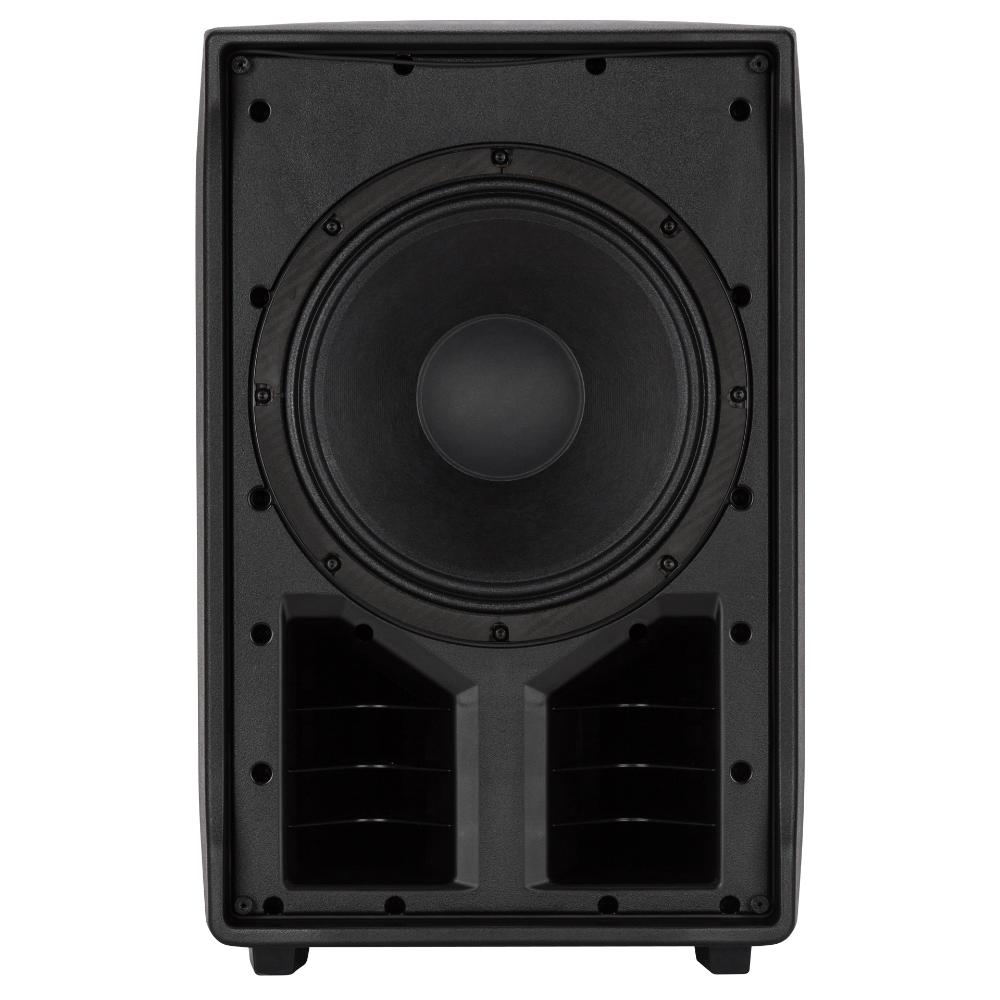

Woofer: 1 x 12”, 2.5” v.c

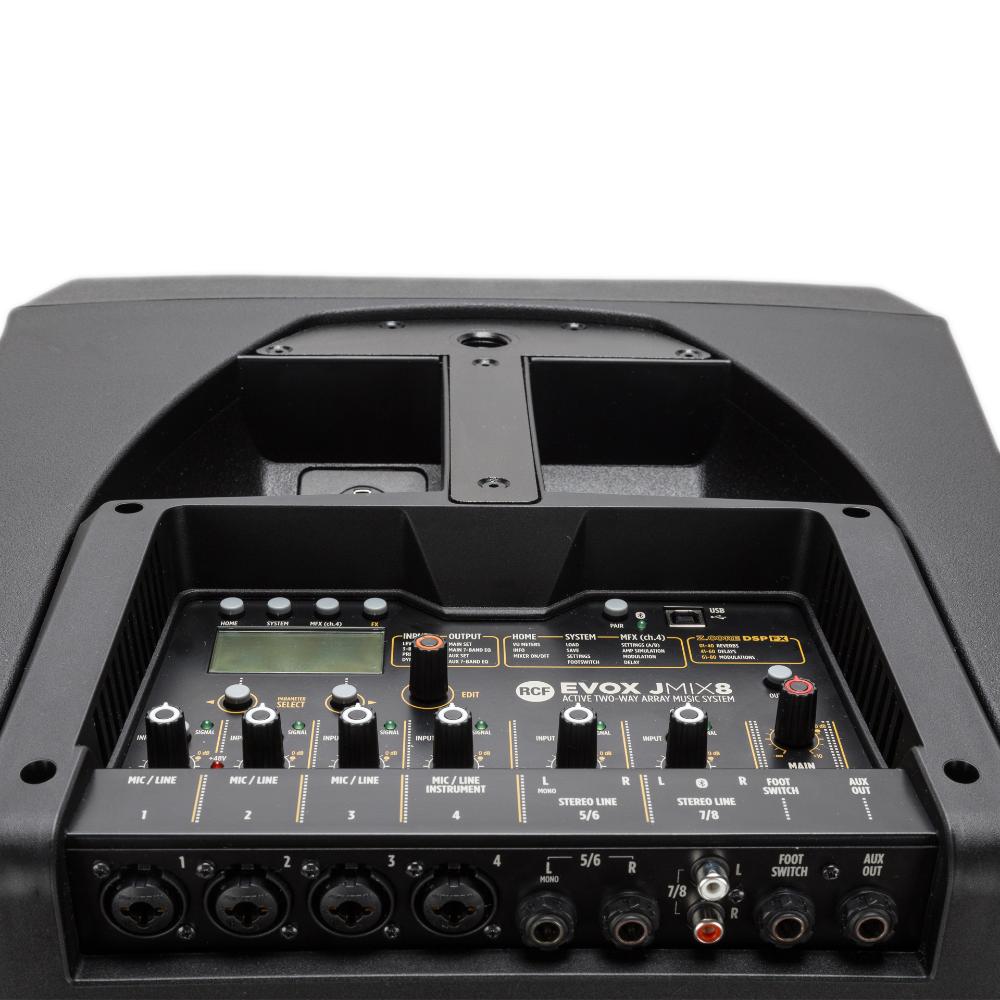

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Electronic specifications
Frequency Response: 20 Hz – 20 Hz
THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted
Processing
Processing Channels: 8
Signal Processing: 32 Bit Floating Point
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 108
Inputs
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB – 45 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kΩ
Low Cut: 20 Hz – 1000 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB – 45 dB
Line Input Impedance: 11 kΩ
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (MΩ): 1 MΩ
A/D Dynamic range: 108 dB
Stereo Line: 2
Gain Selection: 0 dB – 45 dB
Stereo Line Input Impedance (kΩ): 11 kΩ
Outputs
AUX Send: 1
AUX Output: 1
Outputs specifications
Main Out Impedance: 150 ohm
Main Out Level: 19 dBu
Aux Out Impedance (ohm): 150 ohm
Aux Out Level: 19 dBu
D/A Dynamic Range: 108 dB
Compressors
RCF Compressors: 4 mono (6 preset)
EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description
– 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
Graphic 7 Band EQ on Main Mix and AUX send.
Auxiliary sends
AUX: 1 PRE/POST
FX POST: 1
Internal Effects
Send Effects: 1
MultiFX Insert Effects: 1
Mastering processors
Main OUT processors: 1
USB audio
Play trk: 2
Other features
Footswitch: Yes
Electrical specifications
Power supply: Internal
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: M20 thread

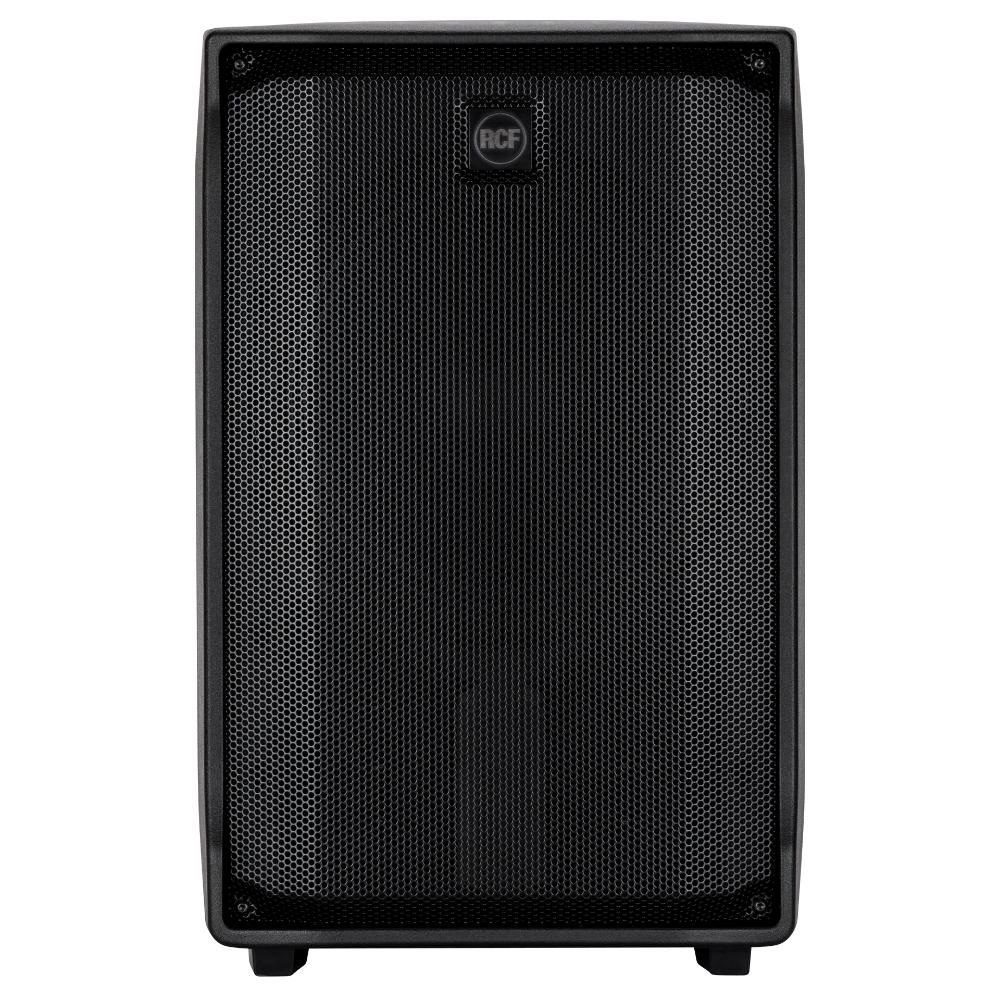

Grille: Steel
Color: Black, White
Size / Weight
Height: 623 mm / 24.53 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 22.2 kg / 48.94 lbs
