Description
Acoustical specifications
Frequency Response: 40 Hz – 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Transducers

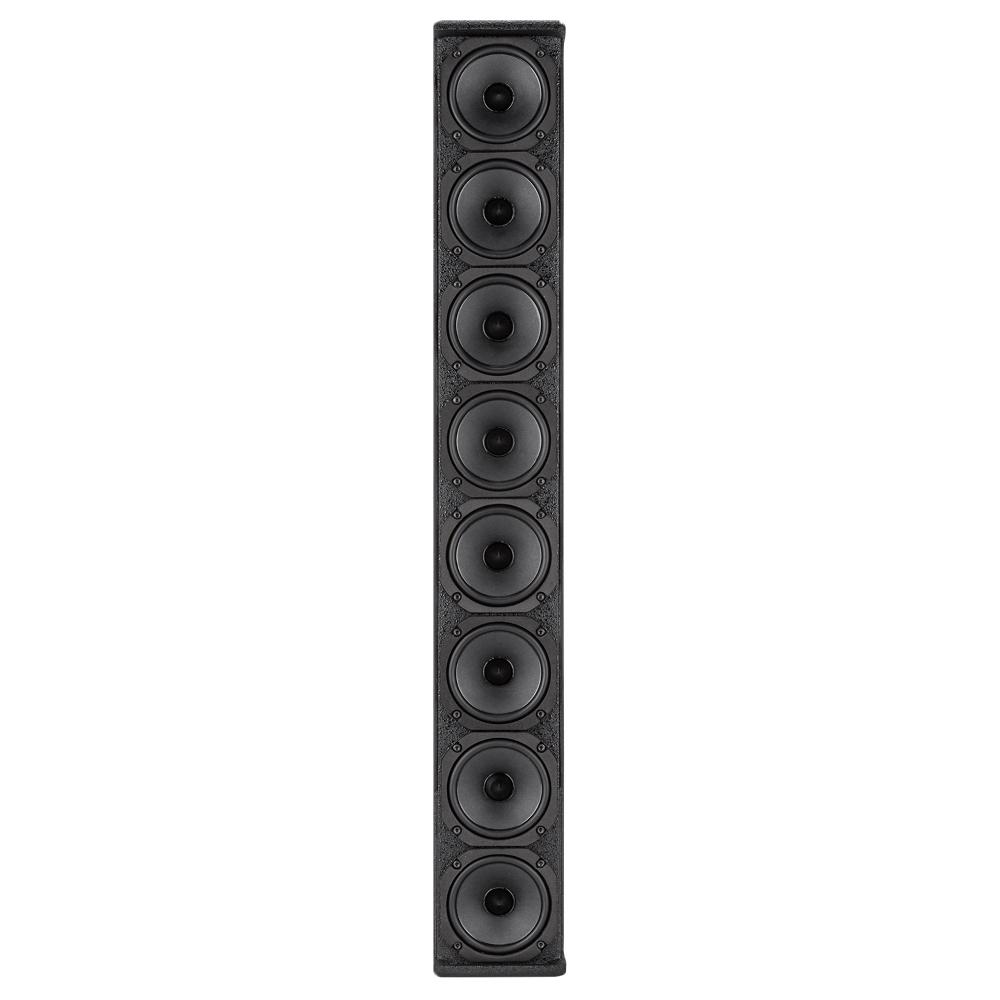

Fullrange: 8 x 4.0”, 1.0” v.c

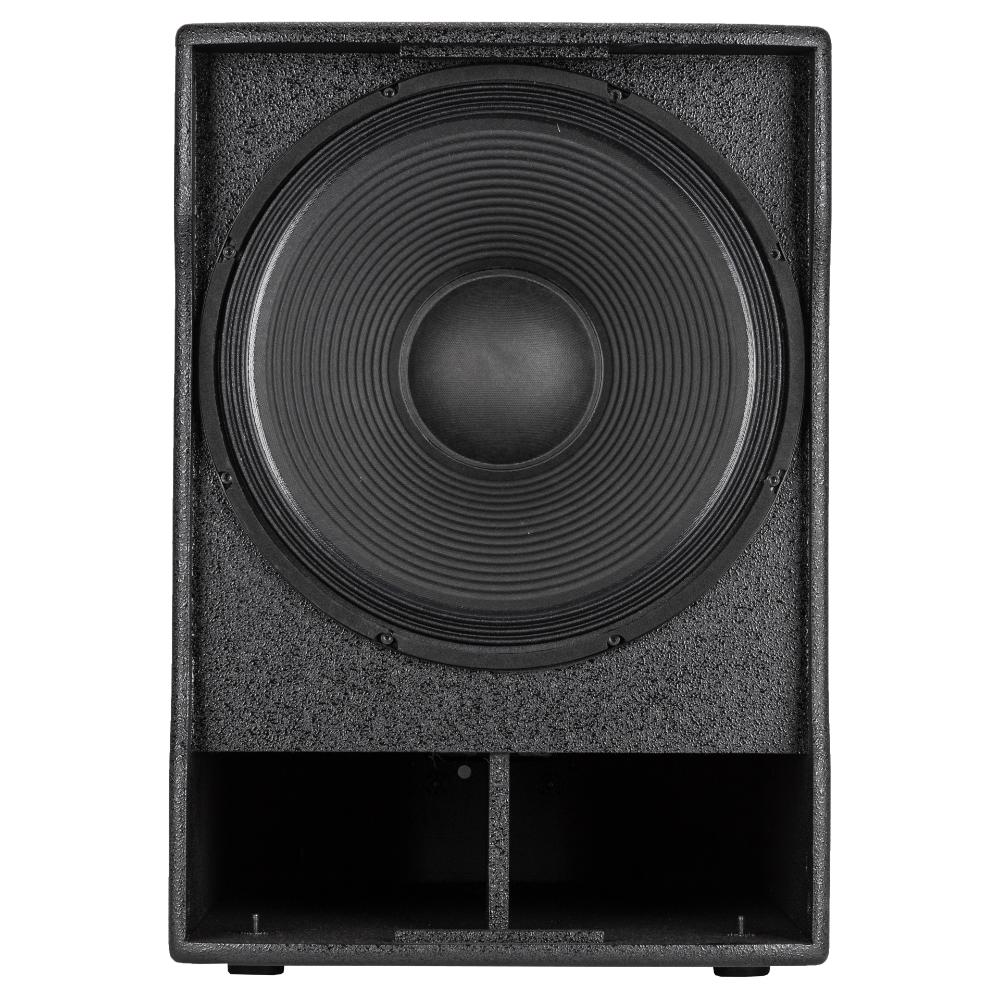

Woofer: 15”, 3.0” v.c

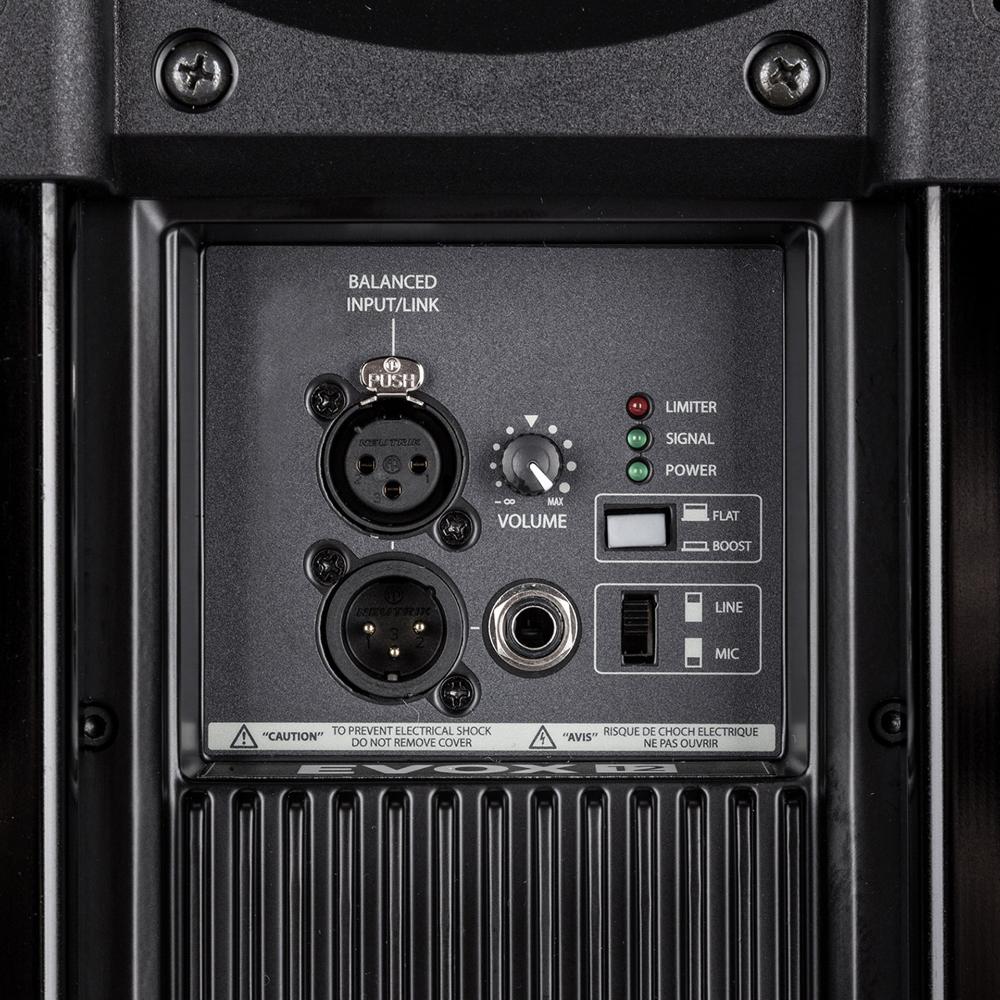

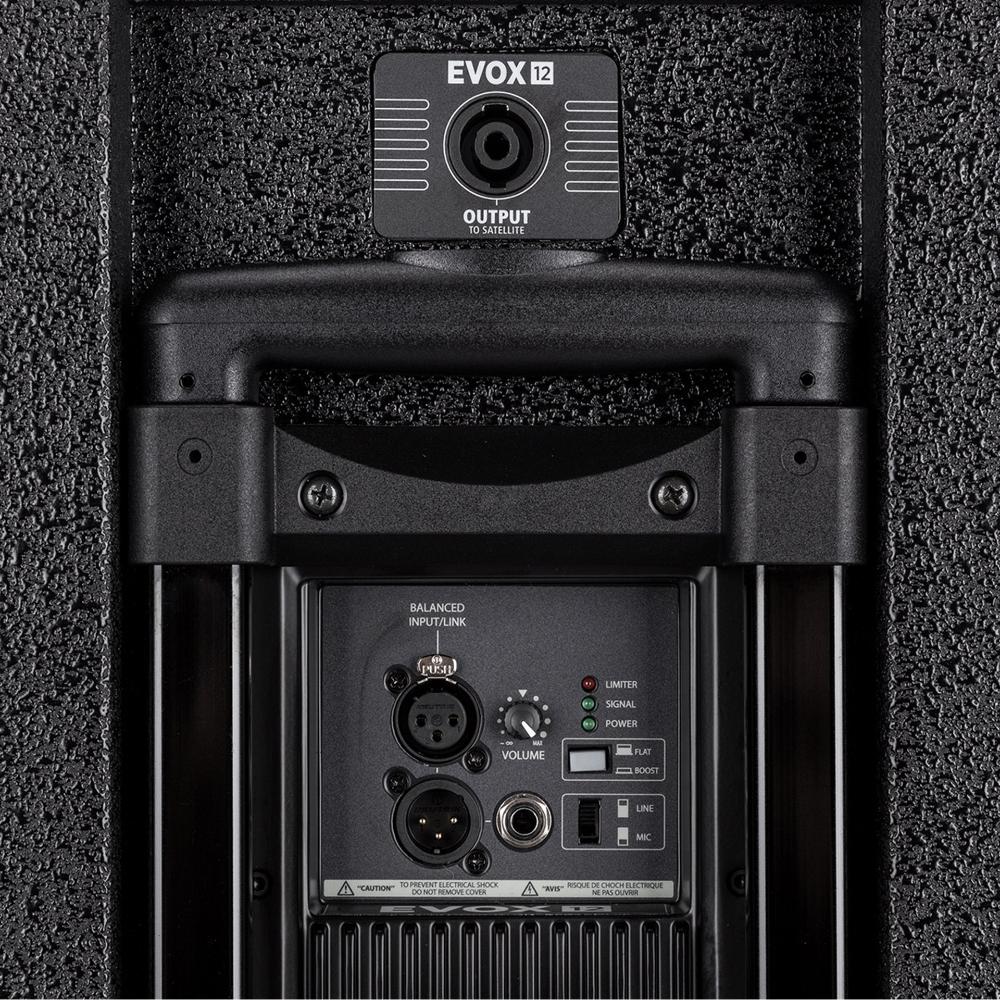

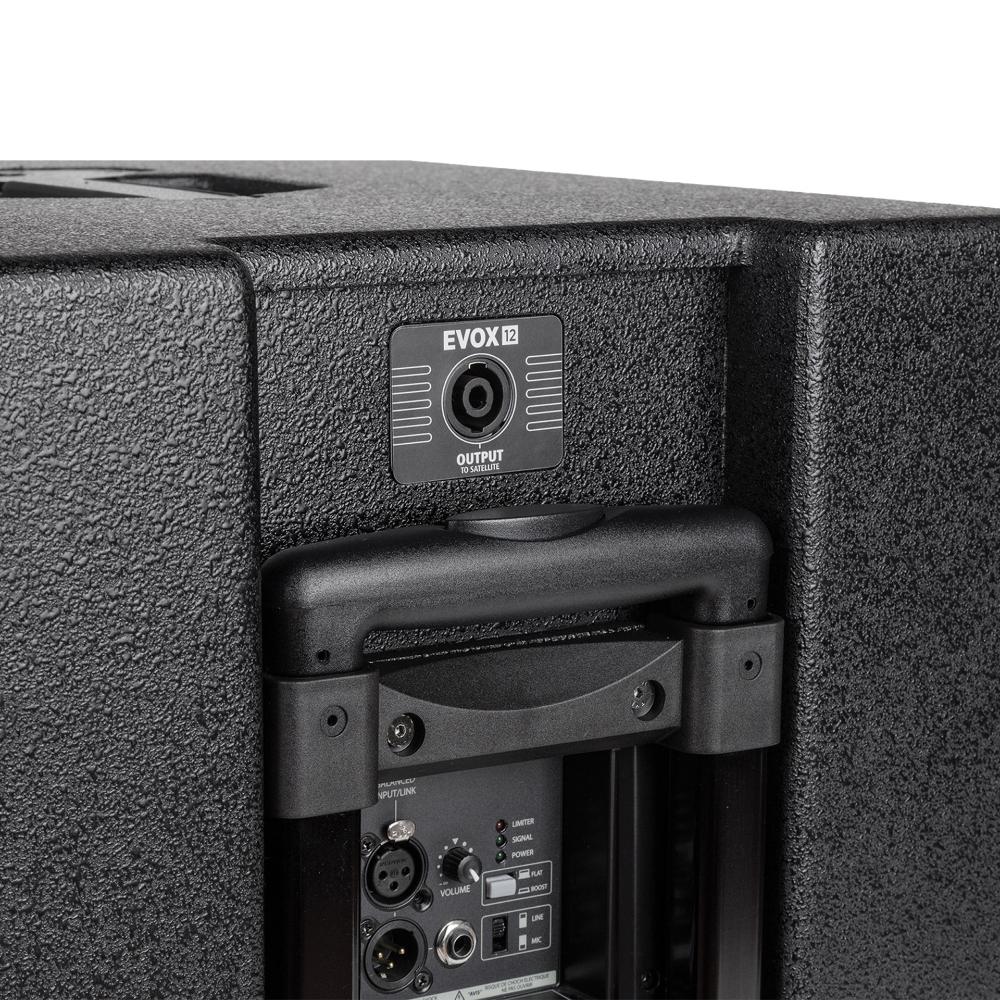

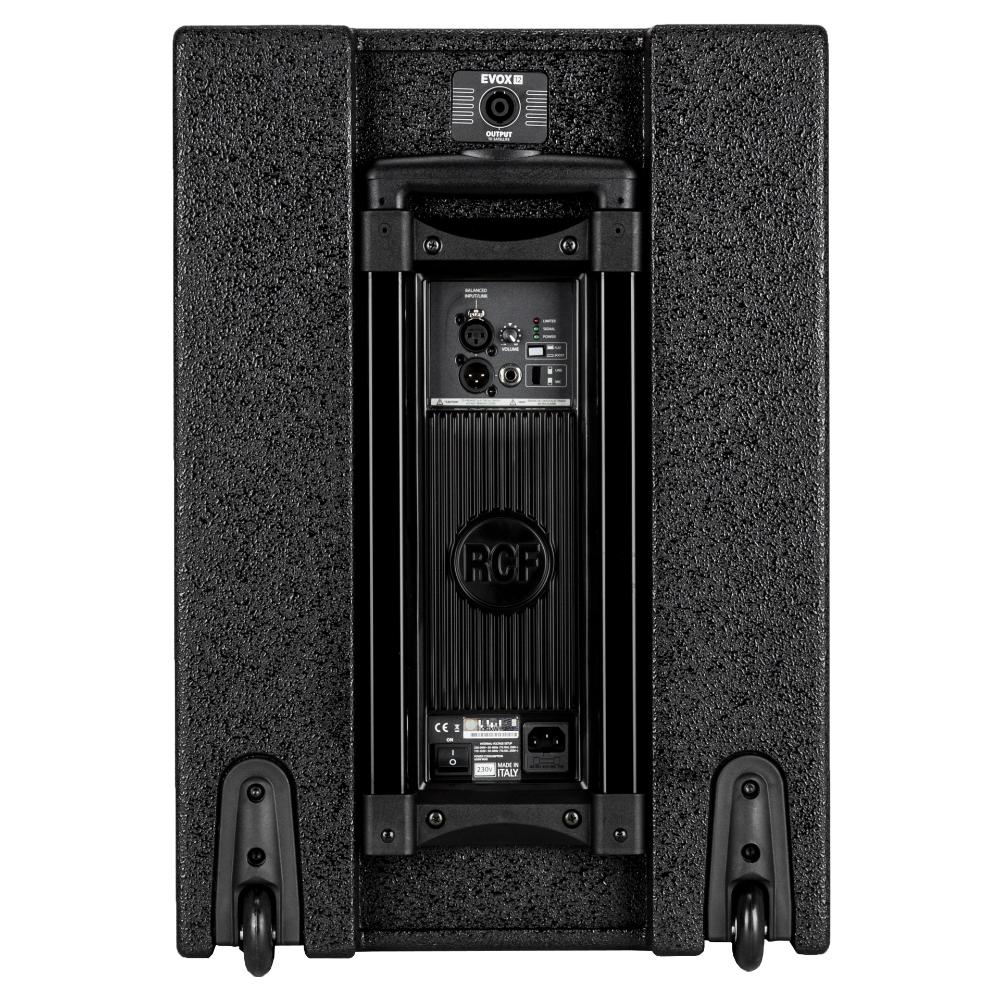

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 180 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ
Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection

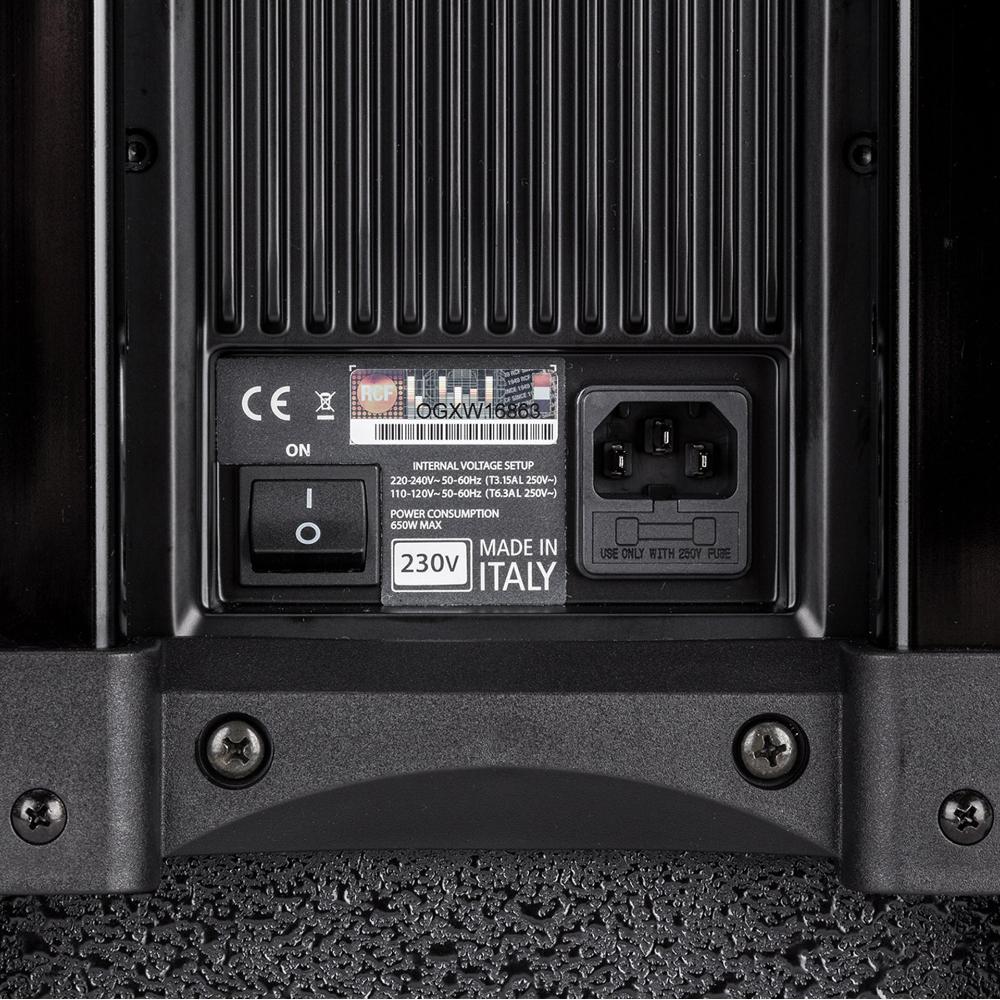

Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood
Color: Black, White – RAL 9003
Size / Weight
Height: 2200 mm / 86.61 inches
Width: 410 mm / 16.14 inches
Depth: 560 mm / 22.05 inches
Weight: 36.4 kg / 80.25 lbs
