Description
Acoustical specifications
Frequency Response: 45 Hz – 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°

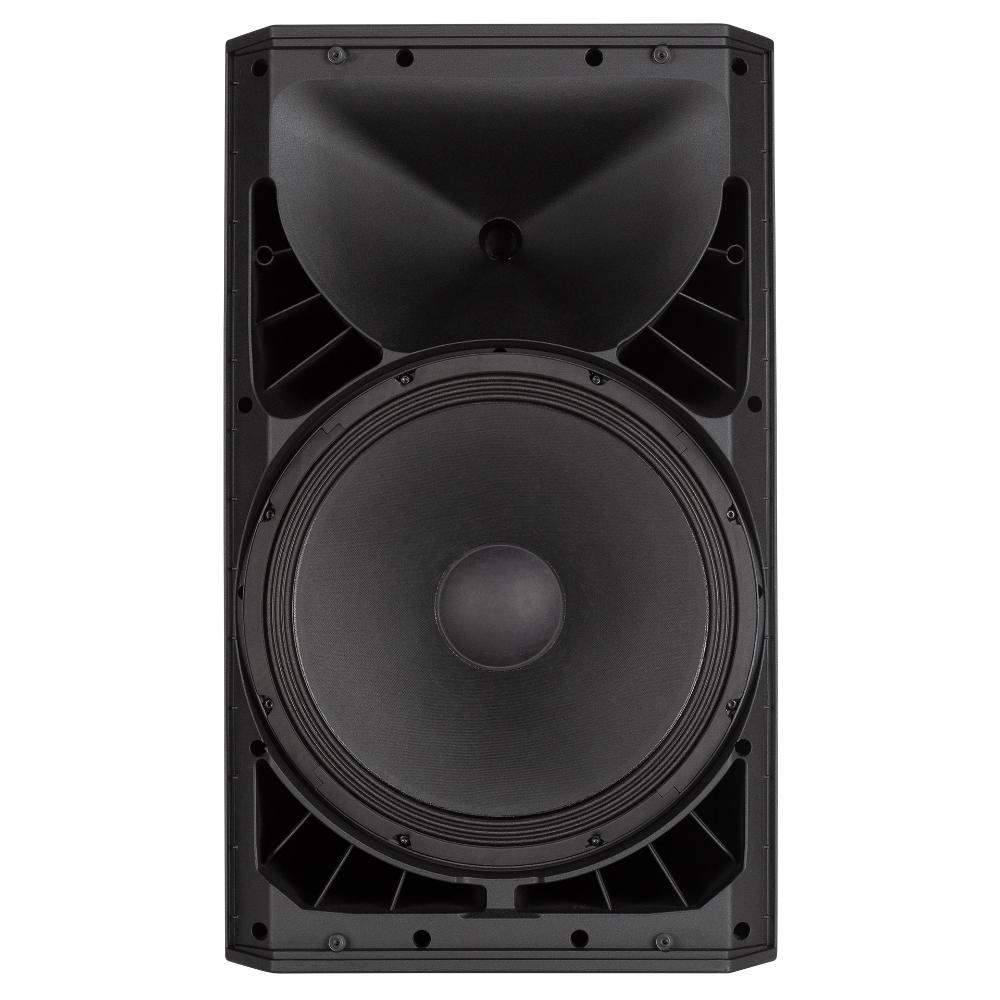

Transducers
Compression Driver: 1 x 1.0”, 1.75” v.c
Woofer: 1 x 15”, 2.5” v.c

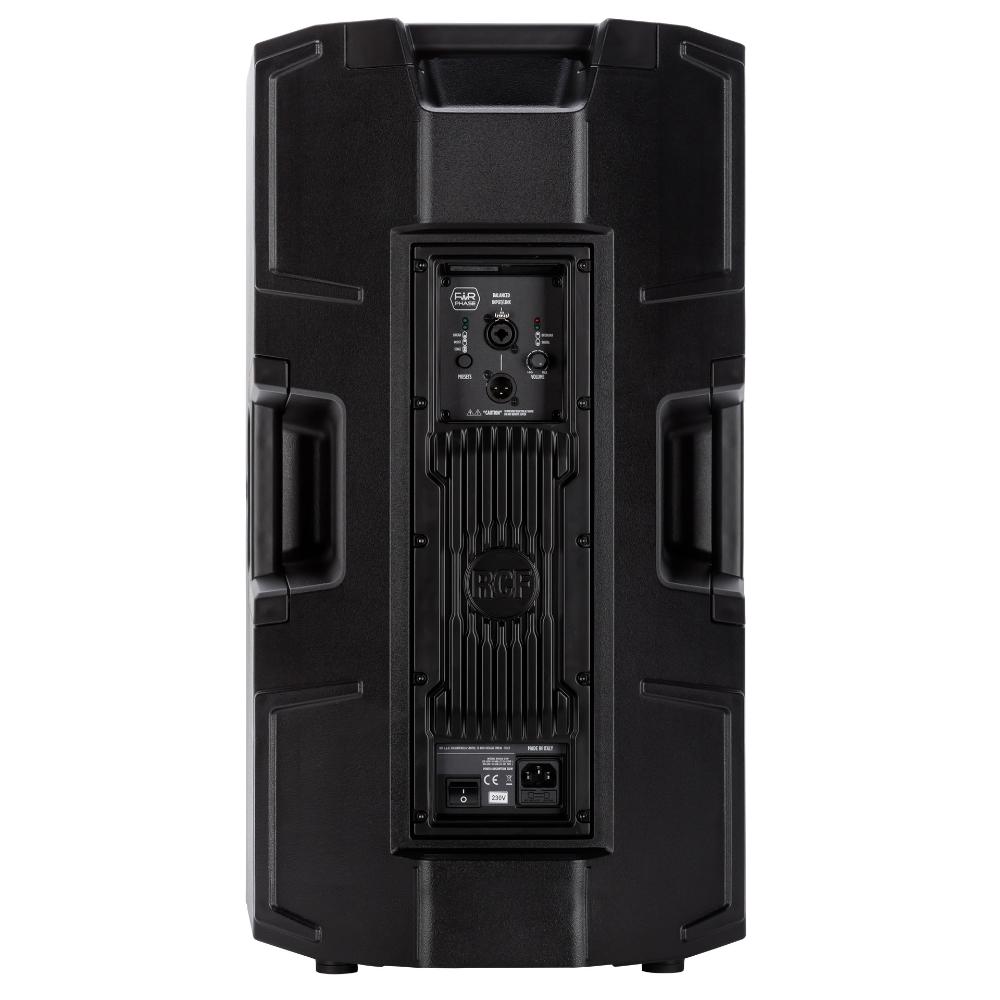

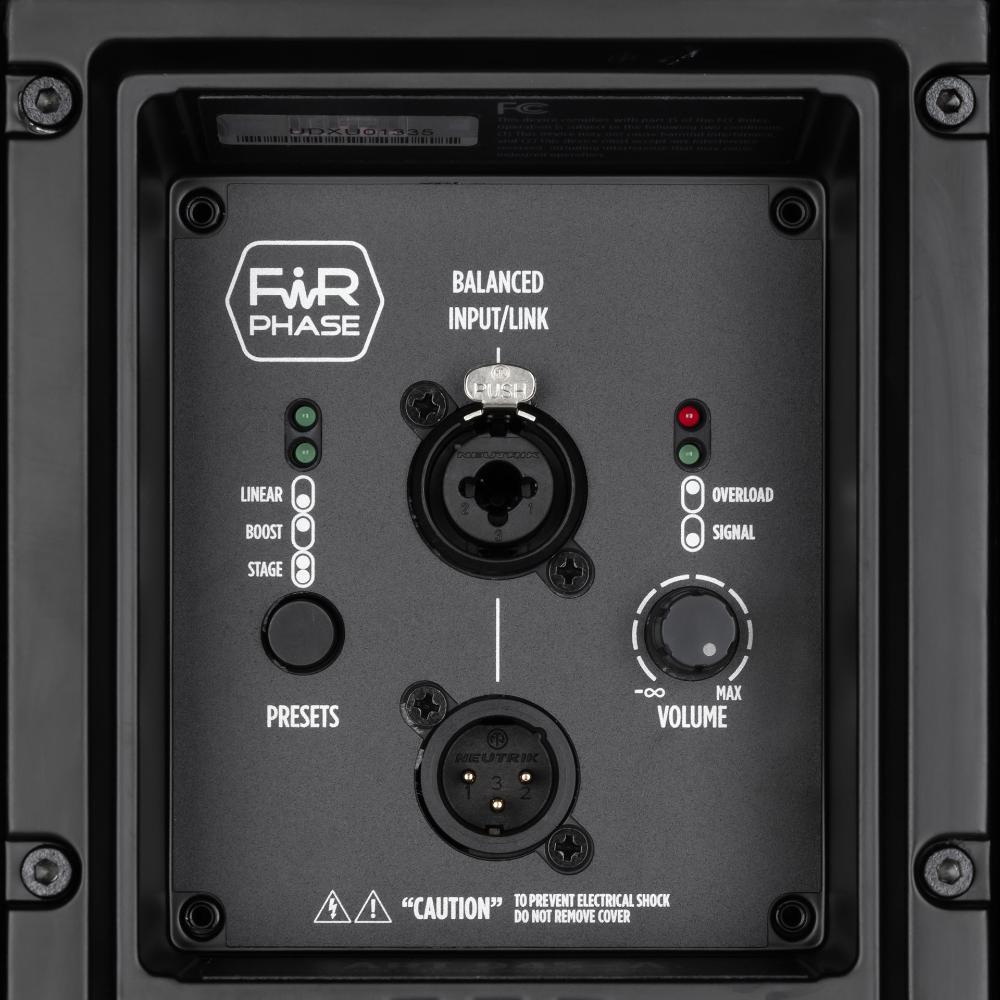

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity:-2 dBu/+4 dBu
Processor section
Crossover Frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume
Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 Top, 1 x M10 each side

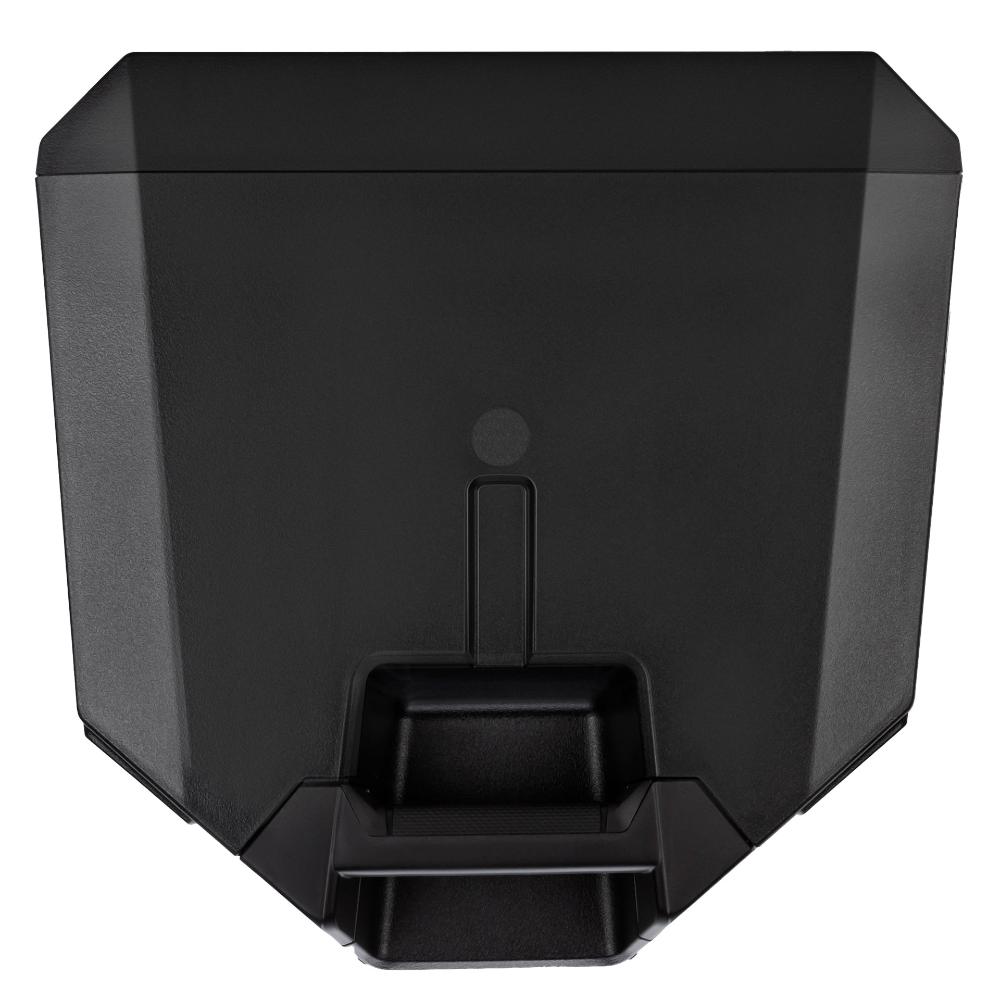

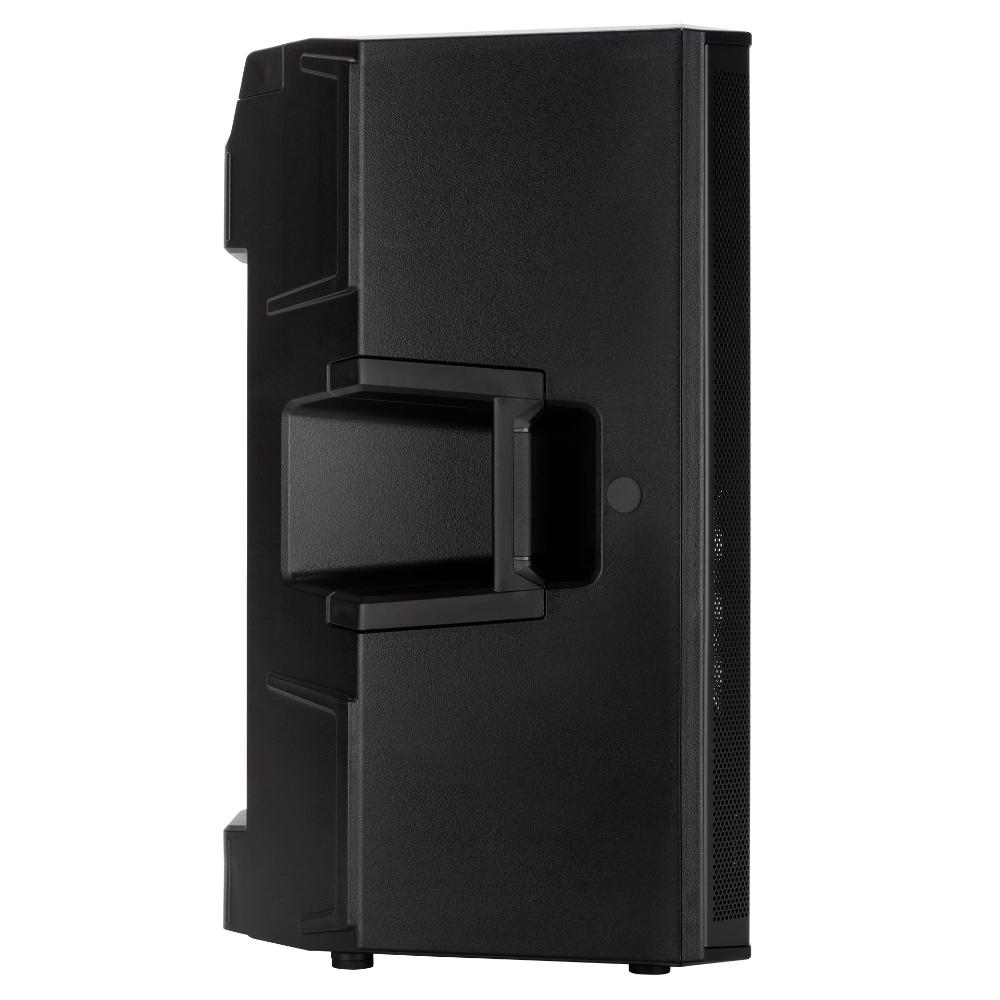

Handles: 1 Top , 1 each side

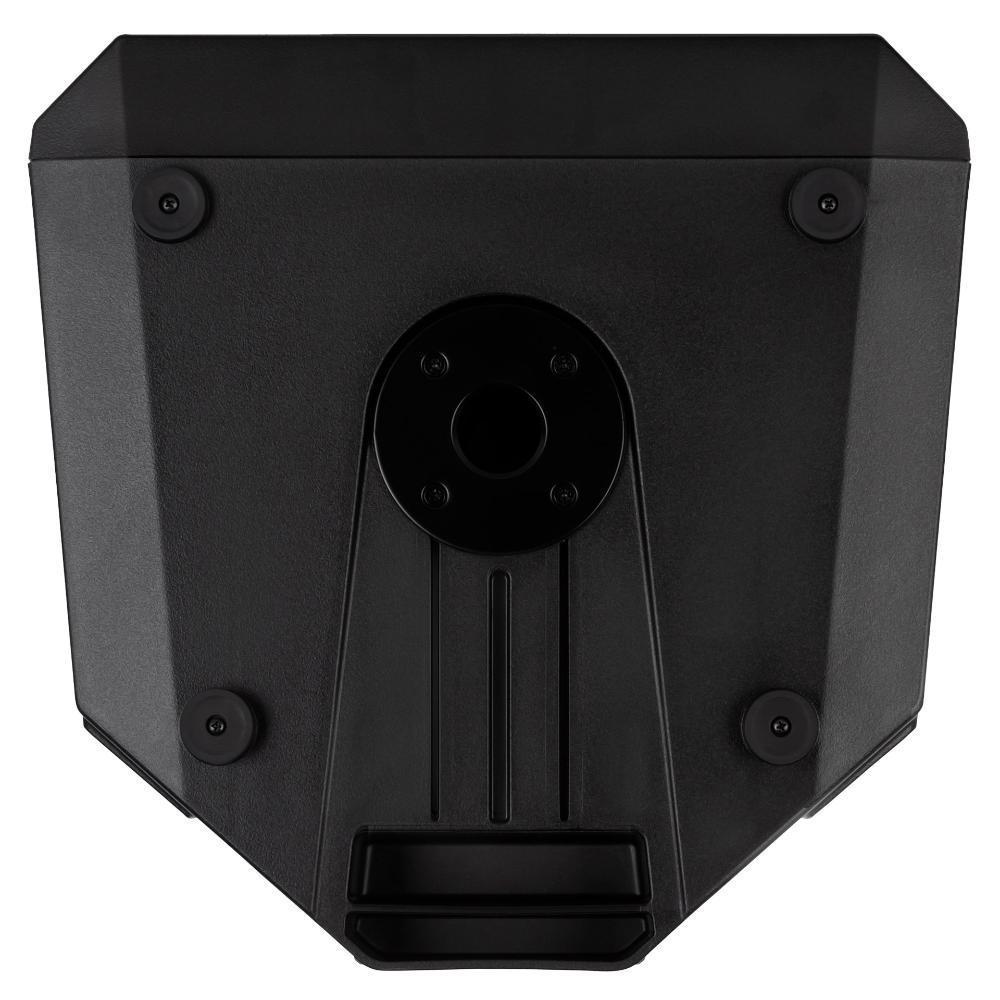

Pole mount/Cap: 35 mm insert

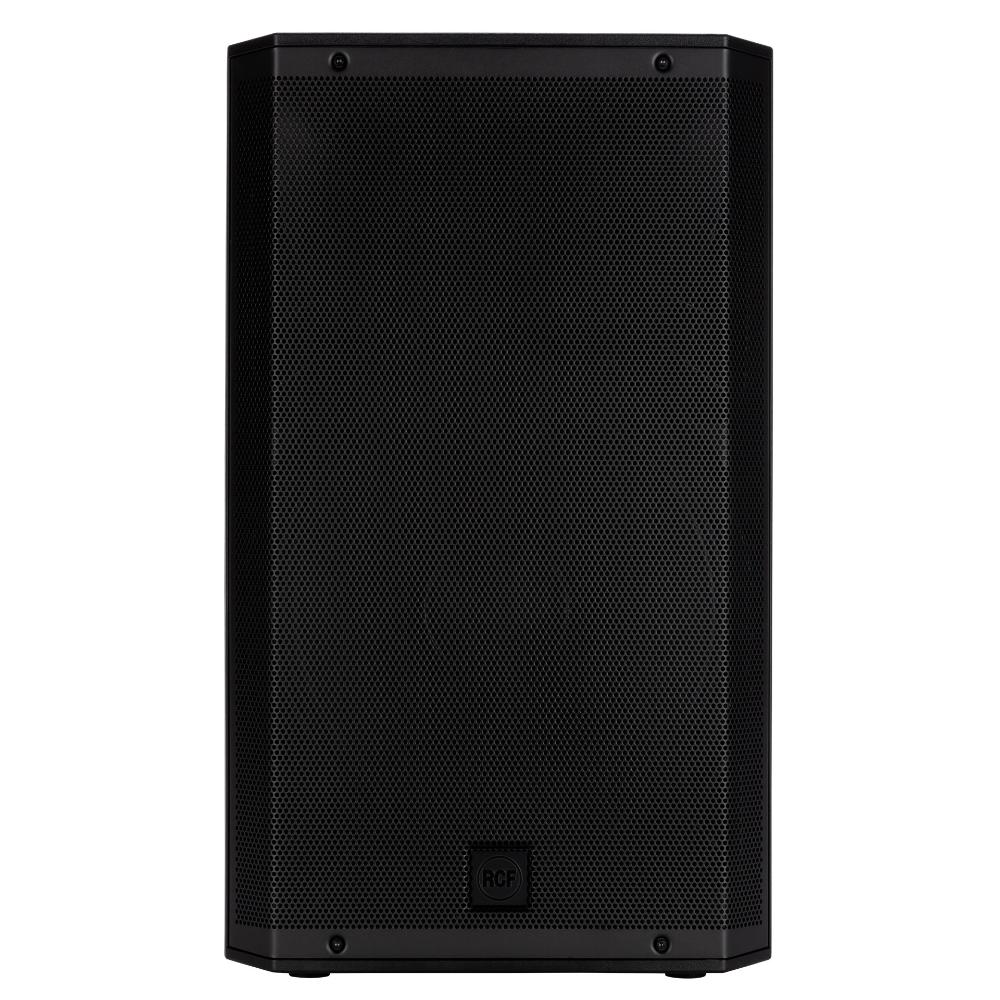

Grille: Steel
Color: Black
Size / Weight
Height: 717 mm / 28.23 inches
Width: 415 mm / 16.34 inches
Depth: 410 mm / 16.14 inches
Weight: 22.4 kg / 49.38 lbs
