Description
Mic Input CH 1
- Connector: XLR/TRS Combo Input Connector (Mic: XLR only)
- Dynamic Range: 108 dB (A-Weighted)
- THD + N: <0.01%
- Noise (EIN): >-110 dB (A-Weighted)
- Maximum Input Level: +1.5 dBu
- Gain Range: 50 dB
- Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
- Input Impedance: 600 Ω
Line Inputs CH 1
- Connector: XLR/TRS Combo Input Connector (Line: TRS only)
- Dynamic Range: 108 dB (A-Weighted)
- THD + N (%, -1 dBFS Input): <0.01%
- Maximum Input Level: +16 dBu
- Gain Range: 24 dB
- Frequency Response (20 Hz – 20 kHz): 20 Hz – 20 kHz (±0.1 dB)
- Input Impedance: 20 kΩ
Mix Out
- Connector: XLR Output Connector
- Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
- Output Level (for 0.5% THD): Fixed +10 dBu
- Output Impedance (Unbalanced): 100 Ω
General

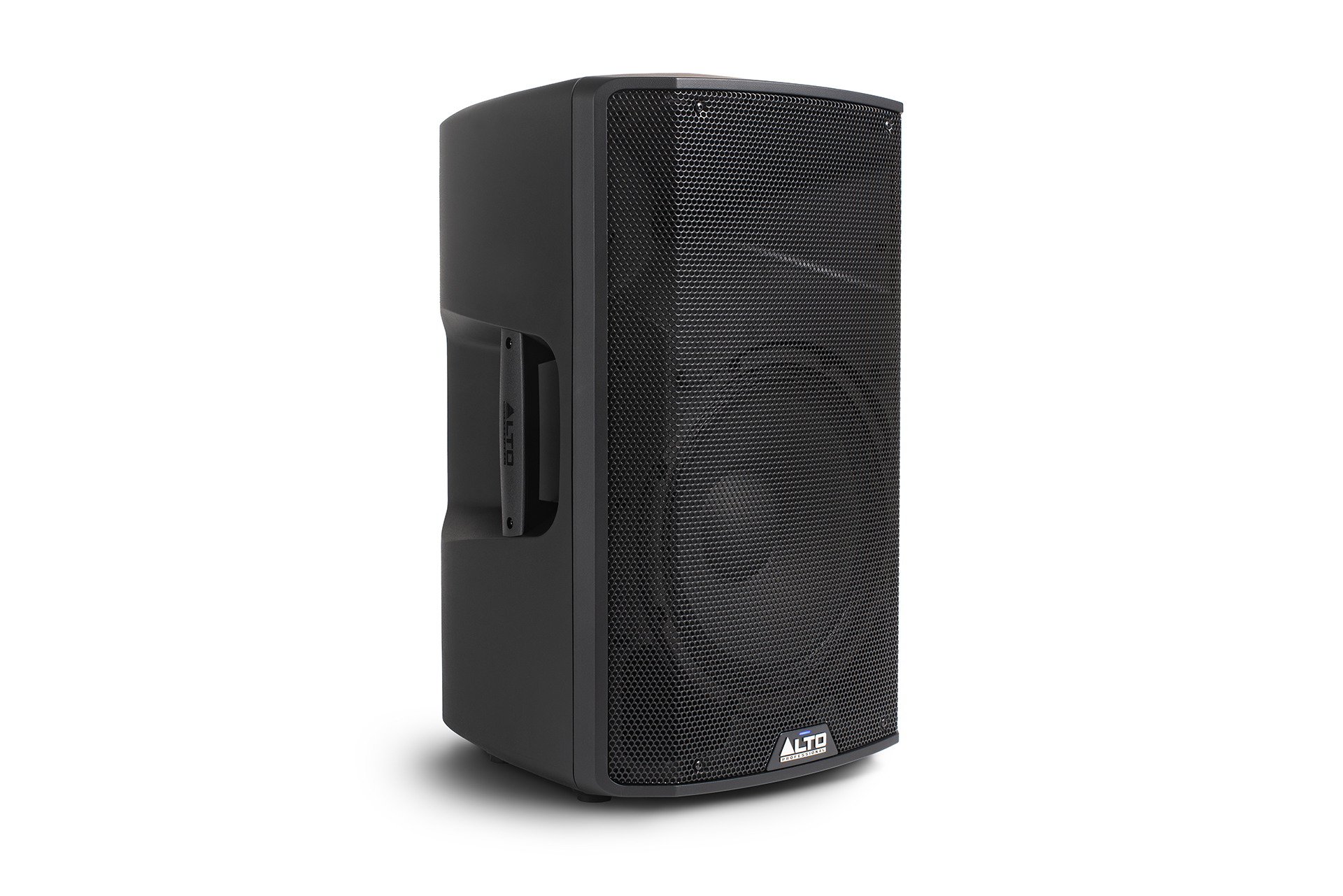

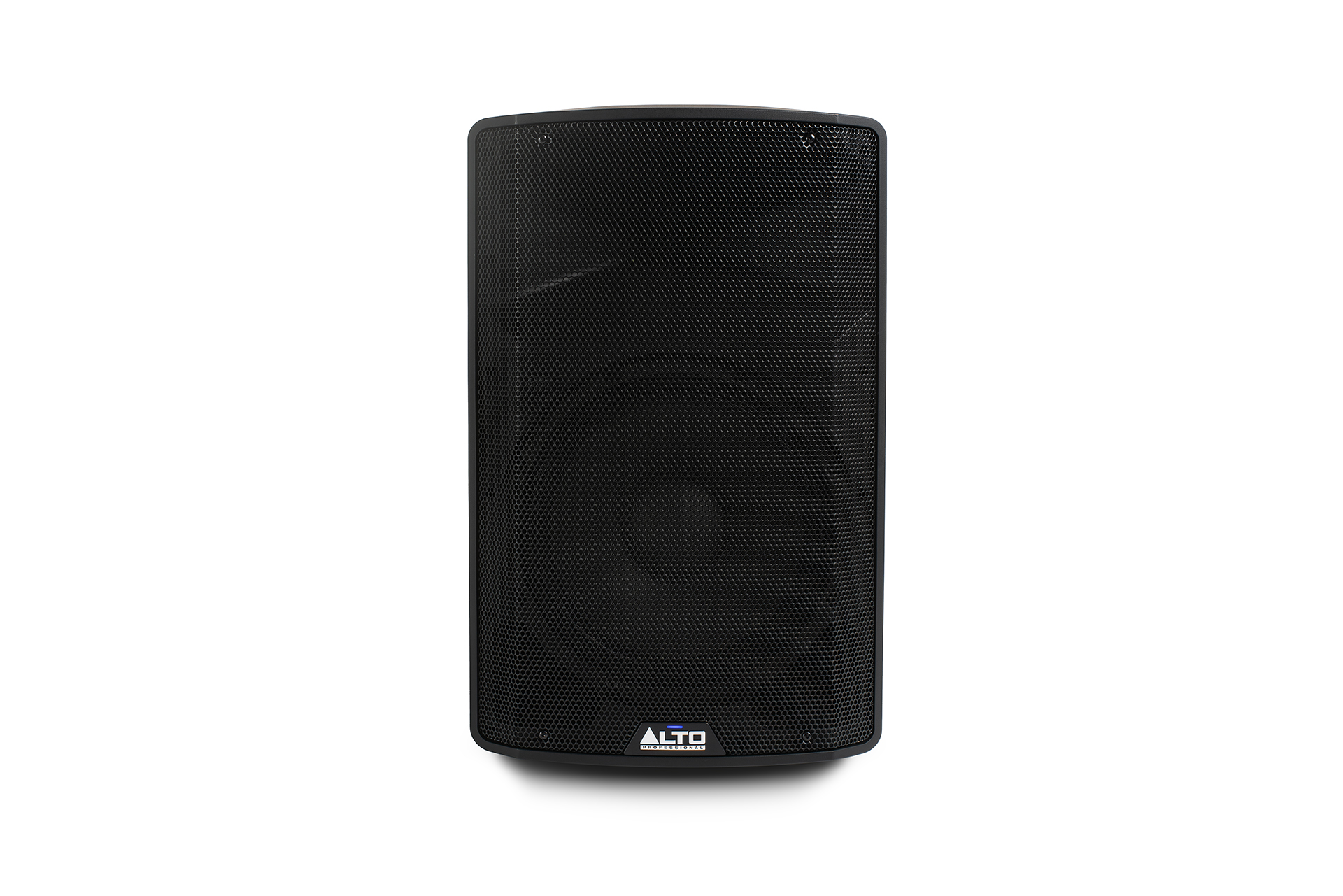

- System Type: 2-Way Active Ported Loudspeaker
- Drivers:
- Low-Frequency: 12.0″ (305 mm) Driver, 2.0″ (51 mm) Voice Coil
- High-Frequency: 1.0″ (25 mm) Titanium-Diaphragm Compression Driver, 1.0″ (25 mm) Voice Coil
- Power Amplifier: 150 W LF + 150 W HF RMS
- Horn Coverage: 90° Horizontal × 60° Vertical (Nominal)
- Frequency Response: 70 Hz – 20 kHz (-3 dB)
- Signal-to-Noise Ratio: >100 dB
- Maximum SPL: 120 dB @ 1 m
- Equalization: Contour Switch with Low- and High-Frequency +3 dB Boost

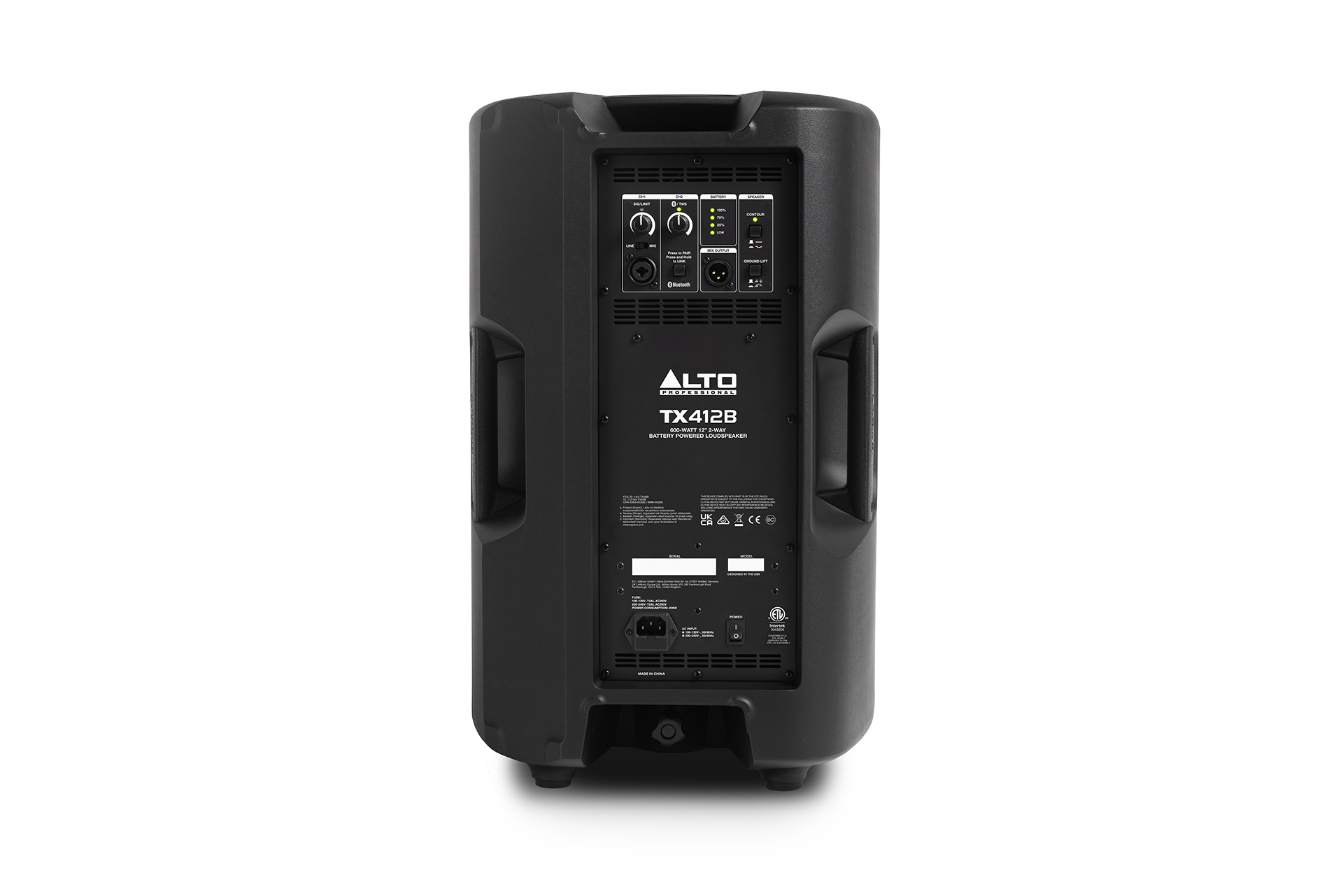

Connectors
- Input: (1) XLR/TRS Combo Input (Line/Mic)
- Output: (1) XLR/TRS Output
- Power: (1) IEC Power Cable Input

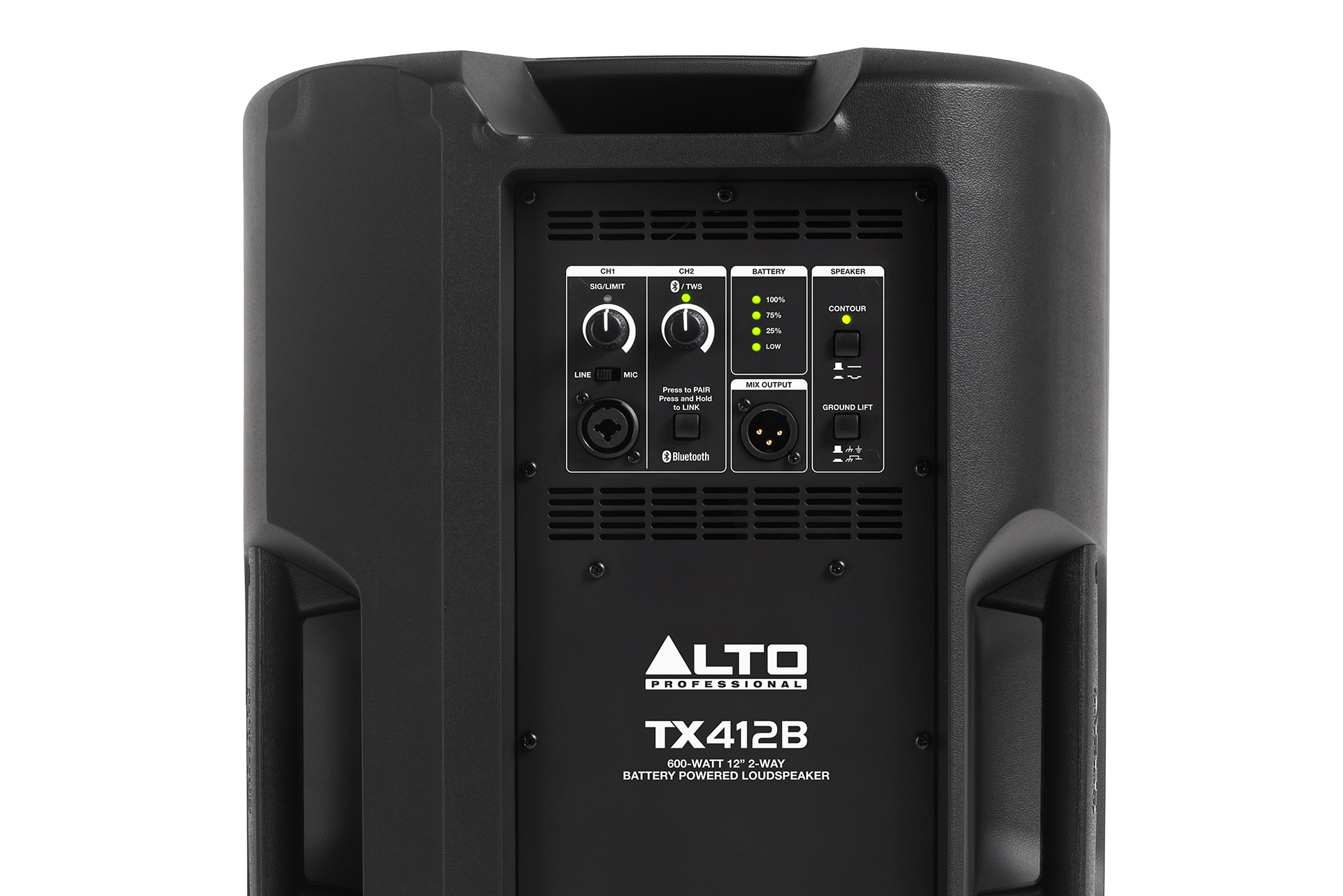

Controls
- Power Switch: Yes
- Volume Control: Knob
- Contour Switch: Yes
- Ground-Lift Switch: Yes
Indicators
- Clip Limiter LED: Yes
- Battery Level Indicator: Yes
Bluetooth
- Profile: Classic Audio
Battery
- Type: Lithium-Ion
- Battery Life: Up to 10 Hours (at 70% Volume)
- Charging Time: 4 Hours
Power
- Power Connection: IEC
- Voltage: 100–240 V~, 50/60 Hz
- Fuse: 100–120 V T4AL AC250V; 220–240 V T2AL AC250V
- Power Consumption: 200 W
Protection
- Protection: Thermal, Overload Analog Limiter/Compressor

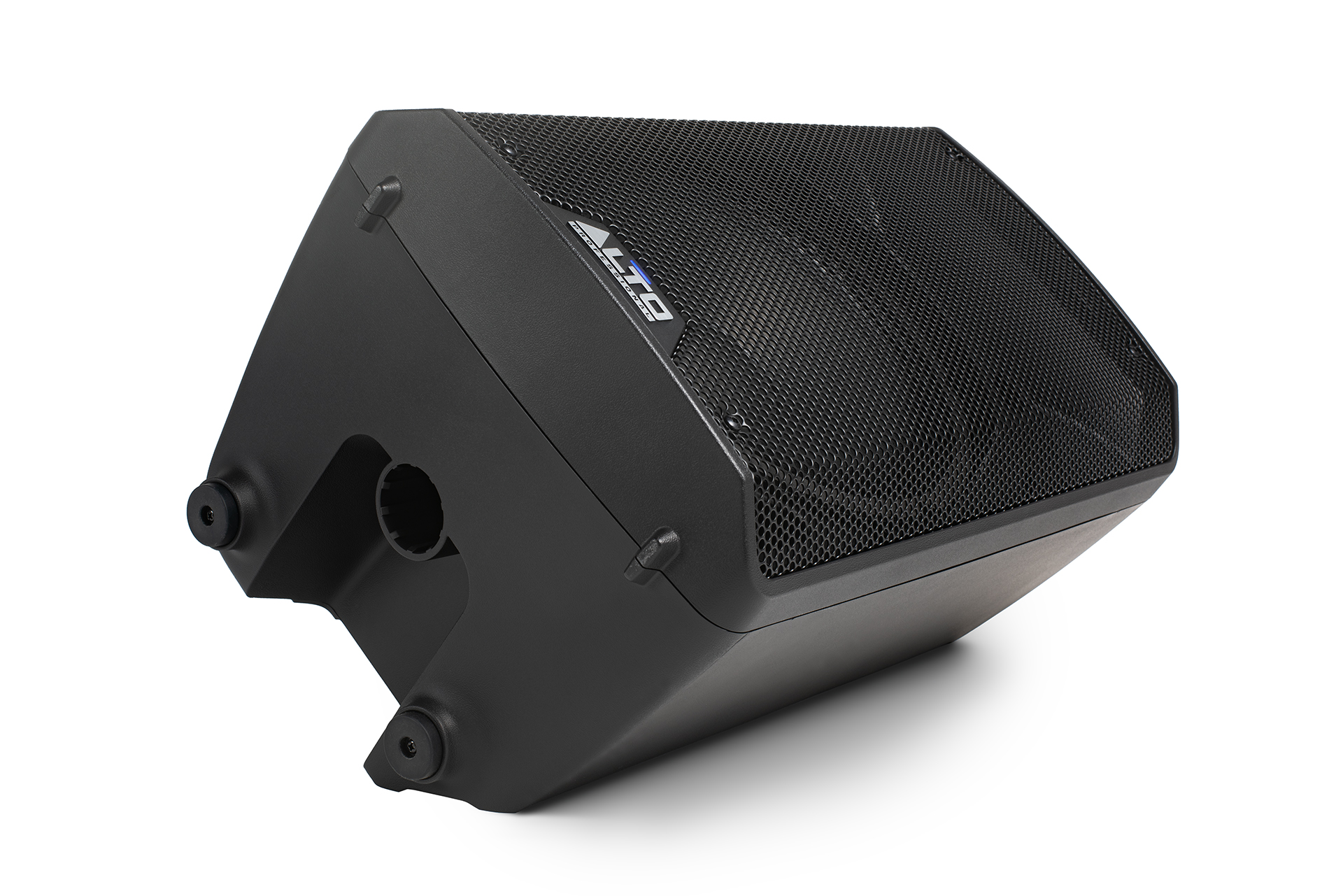

Enclosure
- Material: Injection-Molded Polypropylene

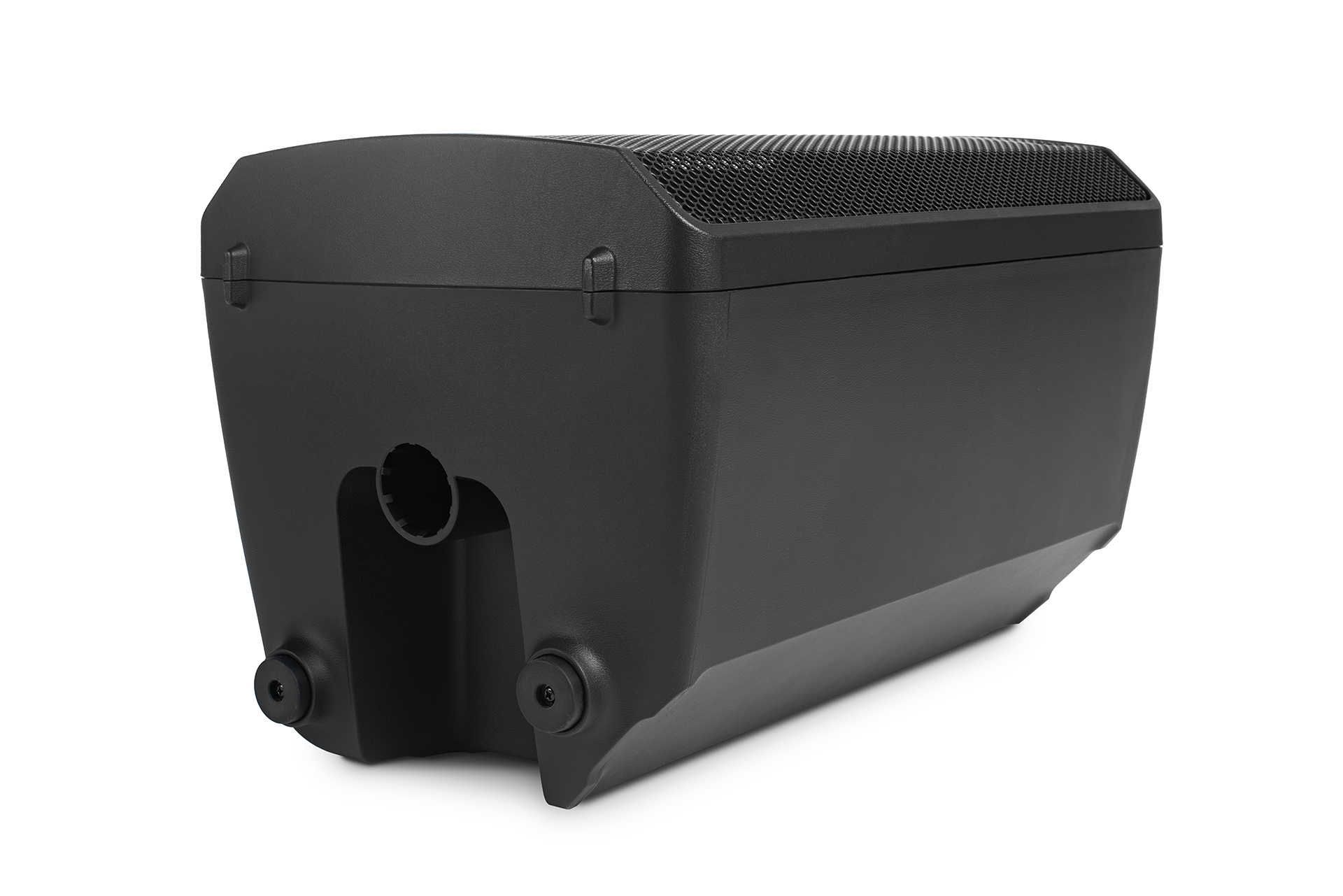

- Design: Multi-Angle for Main or Monitor Applications
- Grille: Metal
- Feet: Rubber

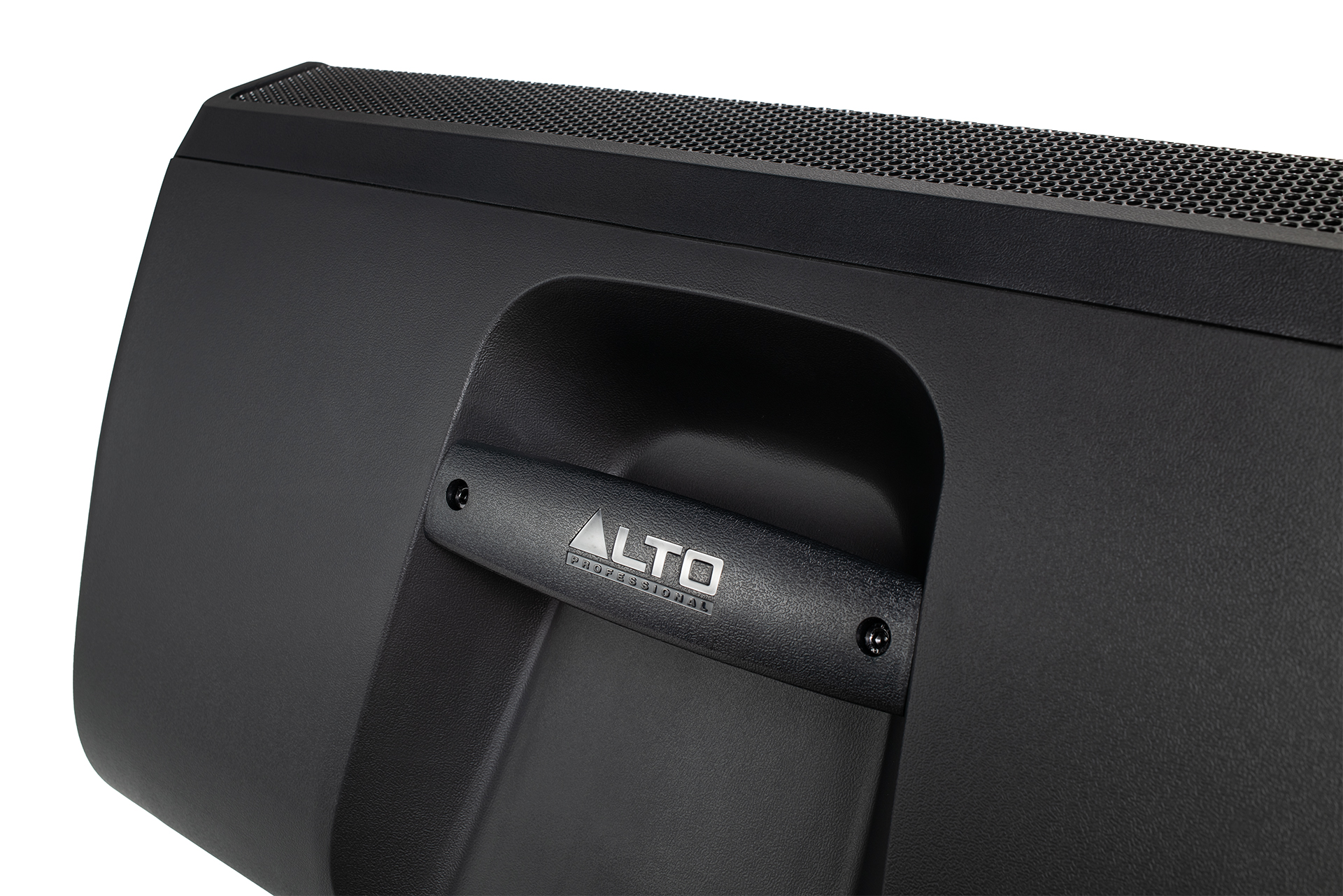

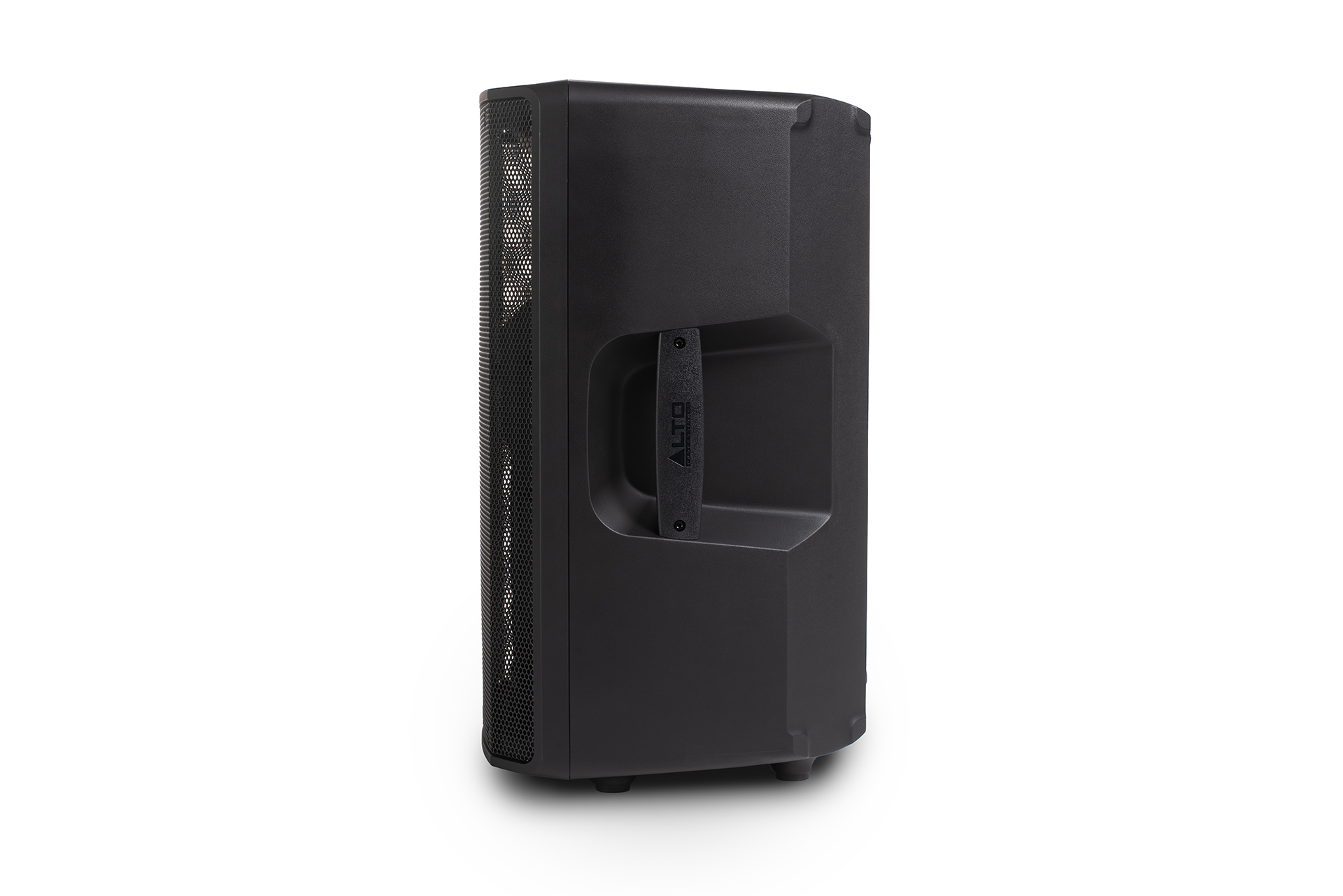

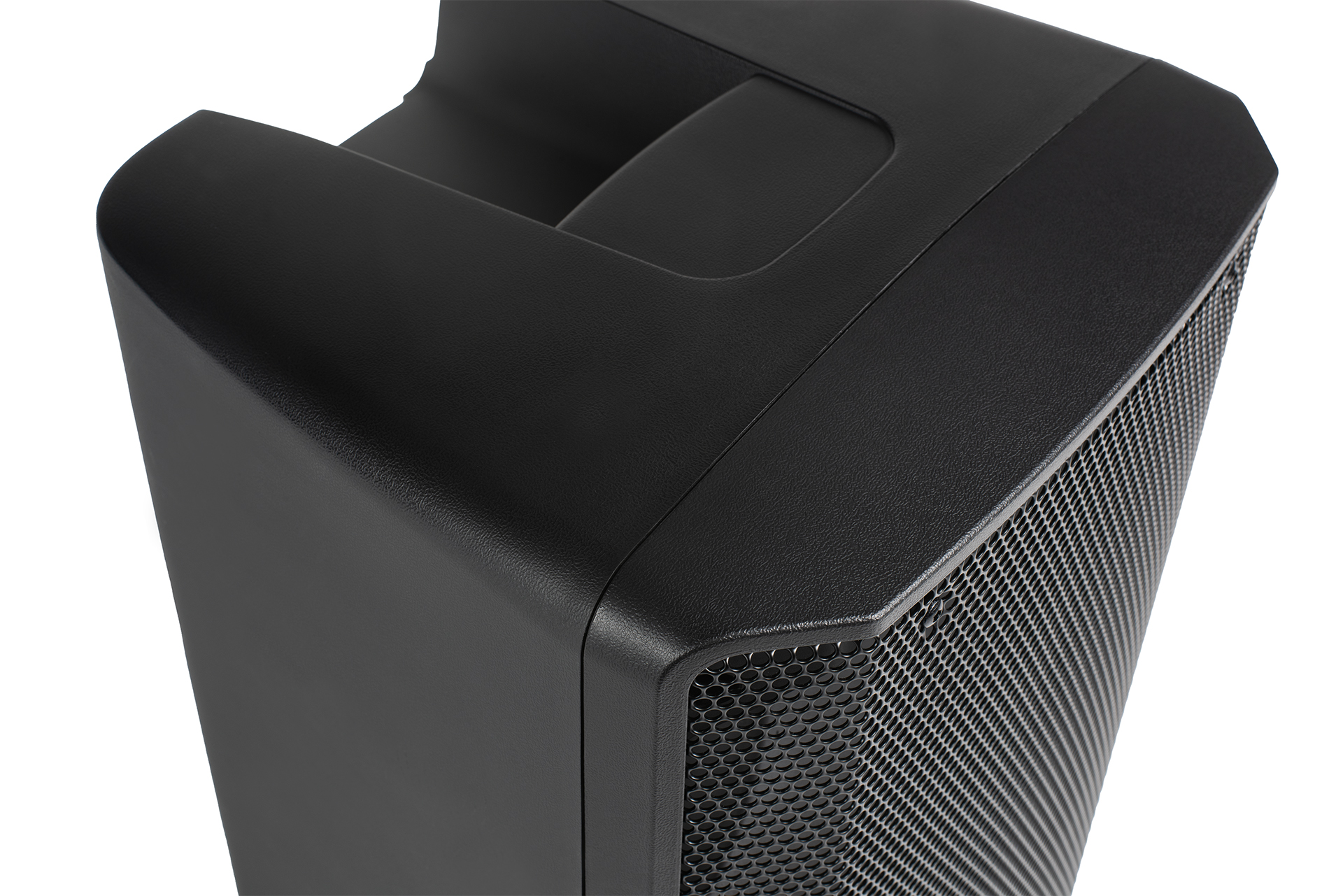

- Handles: 2 Side Handles
Mounting / Installation

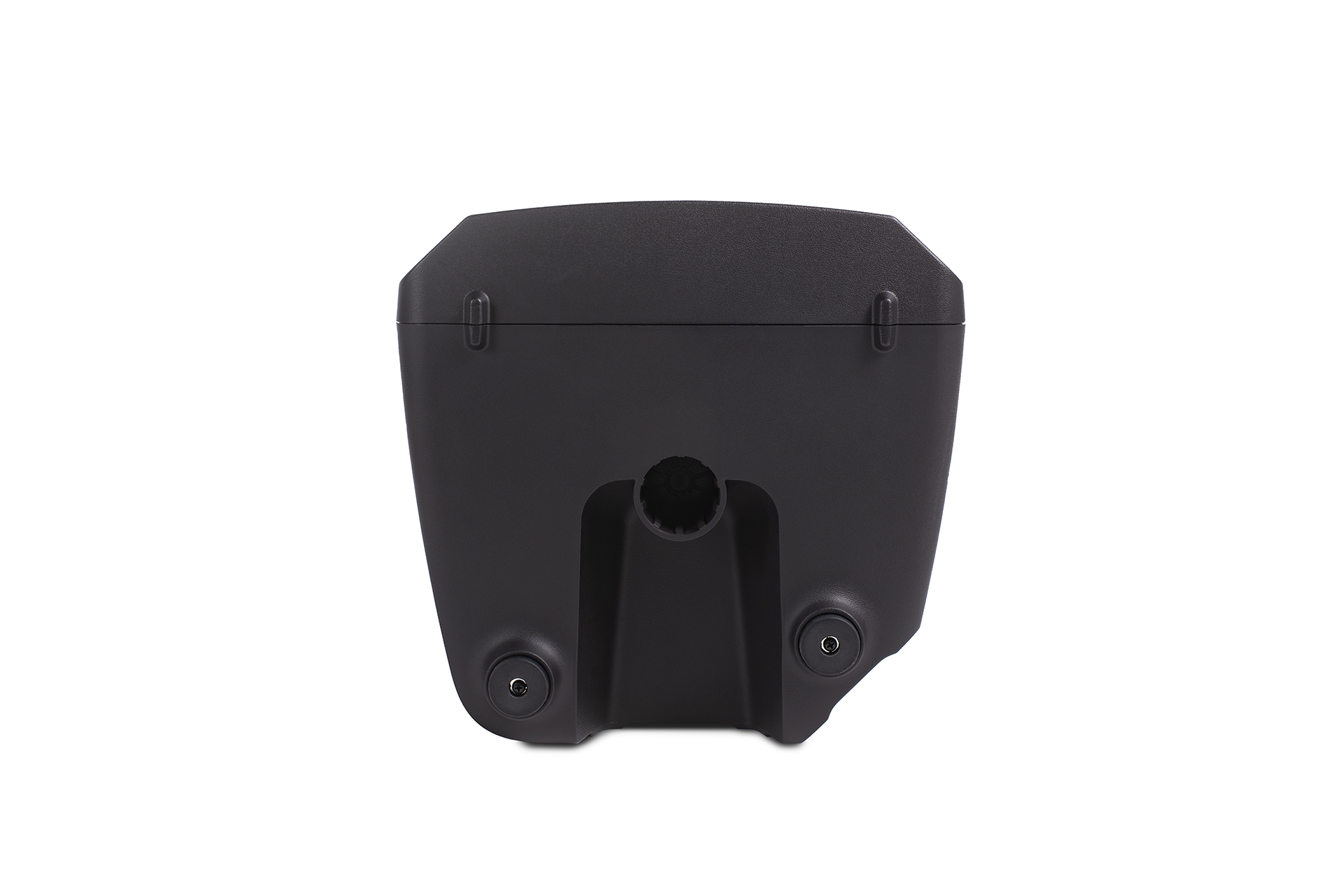

- Pole Socket: Standard 36 mm
- Monitor Position: Wedge Monitor Compatible
Dimensions (H × W × D): 23.7″ × 15.0″ × 13.5″ / 602 × 381 × 343 mm
Weight: 29.3 lbs / 13.3 kg
