Description
1. Preliminary Specifications:
2. Freq. Range (-10 dB): Freq. Response (±3 dB): Horz. Coverage (-6 dB): Vert. Coverage (-6 dB): Rated Maximum SPL: Dimensions (H x W x D): Net Weight: LF Driver: HF Driver: Amplifier Power LF: Amplifier Power HF: Input 1 Sensitivity: 39 Hz – 18 kHz
3. 42 Hz – 17 kHz
4. 90° Nominal
5. 60° Nominal
6. 129 dB, @ 1 m (3.3 ft)
7. 686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in.)
8. 21 kg (46 lbs.)
9. Integral frame with one 15˝ (380 mm) driver, dual
10. neodymium magnet, 2˝ differential drive voice-coil.
11. JBL 2418H-1 1˝ (throat diameter) compression
12. driver with 1.75˝ diameter titanium diaphragm.
13. Ferro-fluid cooled.
14. 300 watts @ low-frequency driver impedance.
15. 100 watts @ high-frequency driver impedance.
16. -44 dBu to -22 dBu for rated output (Mic/Line switch
17. in MIC position)
18. -12 dBu to +20 dBu for rated output (Mic/Line switch
19. in LINE position)
20. -18 dBu to +20 dBu for rated output
21. +20 dBu (peak), Loop/Mix switch in MIX position
22. Input 2 & 3 Sensitivity: Output Level: Audio Connectors:
23. •Input 1: XLR/F, balanced
24. •Input 2 & 3: 1/4˝ Phone, balanced (TRS)
25. Crossover Freq: 1.5 kHz
26. Limiting: Low frequency amplifier controlled by dynamic filter
27. Loop/Mix Out: XLR/M, balanced
28. EQ: High Frequency Shelving, ±15 dB @ 5 kHz
29. Low Frequency Shelving, ±15 dB @ 120 Hz.

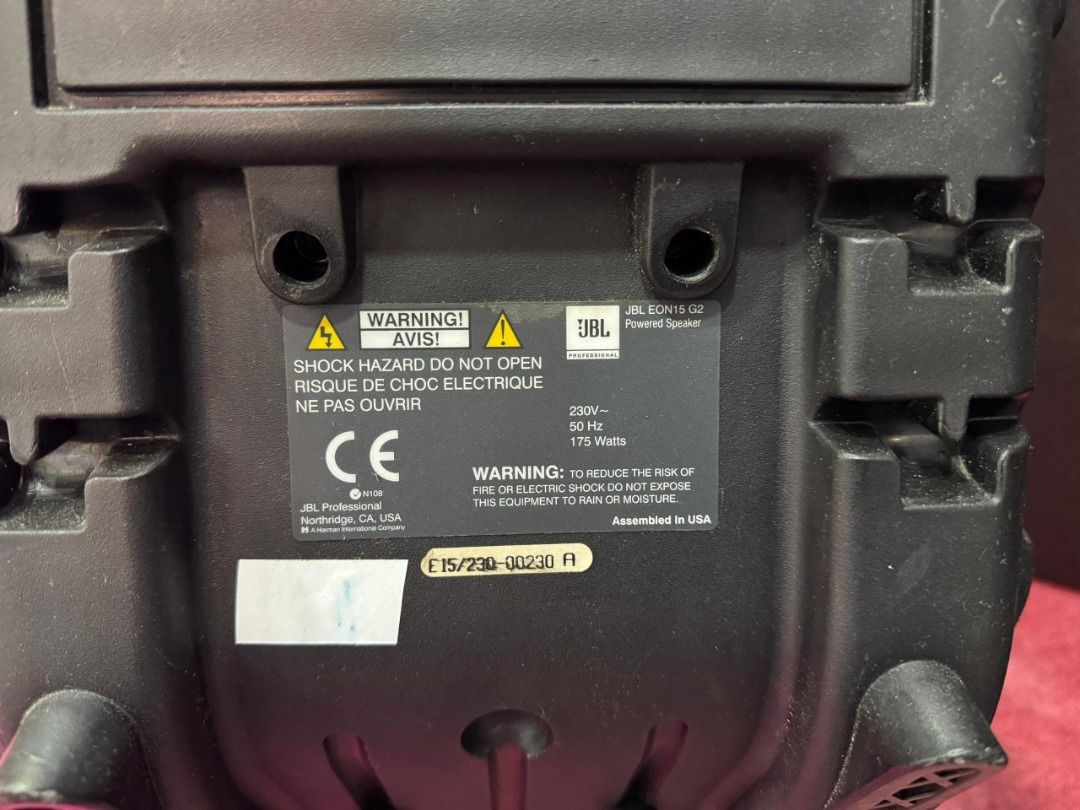

30. AC Input: 110 – 230 VAC, 50 – 60 Hz., 175 watts rating per UL,
31. detachable IEC power cable
