Description
Acoustical specifications
Frequency Response: 30 Hz – 200 Hz
Max SPL @ 1m: 137 dB
Transducers
Woofer: 1 x 16” neo, 4.0” v.c

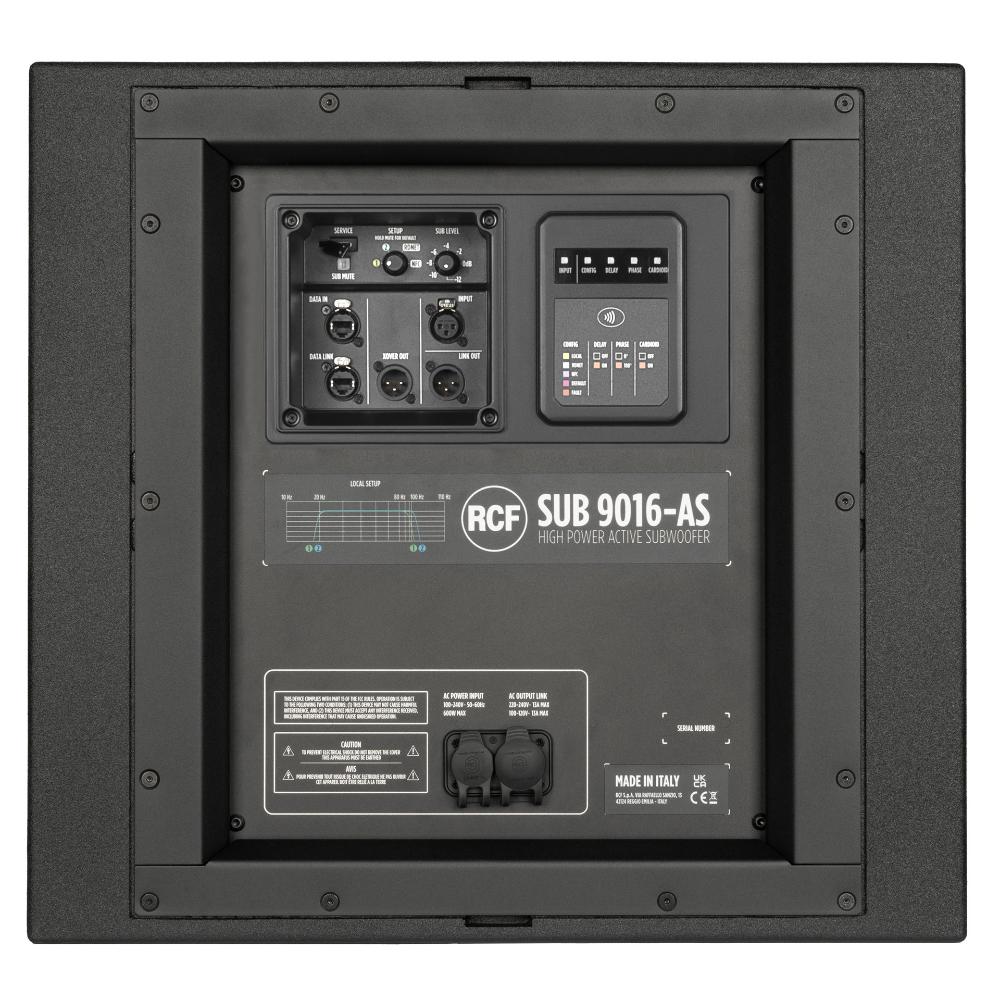

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Processor section
Protections: Thermal
Limiter: Soft Limiter
Controls: MUTE, VOL, PRESETS, RDTAP
RDNet: Onboard
Power section
Total Power: 4000 W Peak
Cooling: Convection/Forced
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Plywood
Hardware: 2 x M20 pole mount accessories

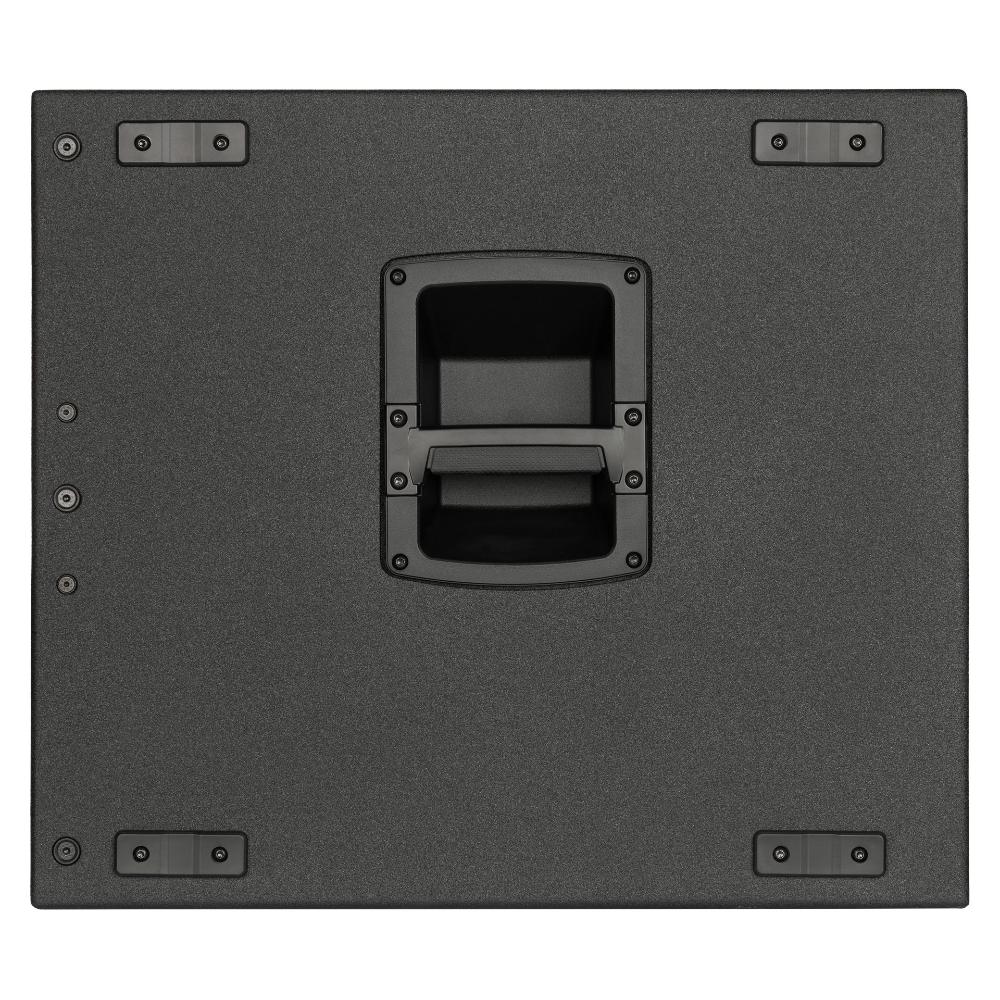

Handles: 1 handle per side

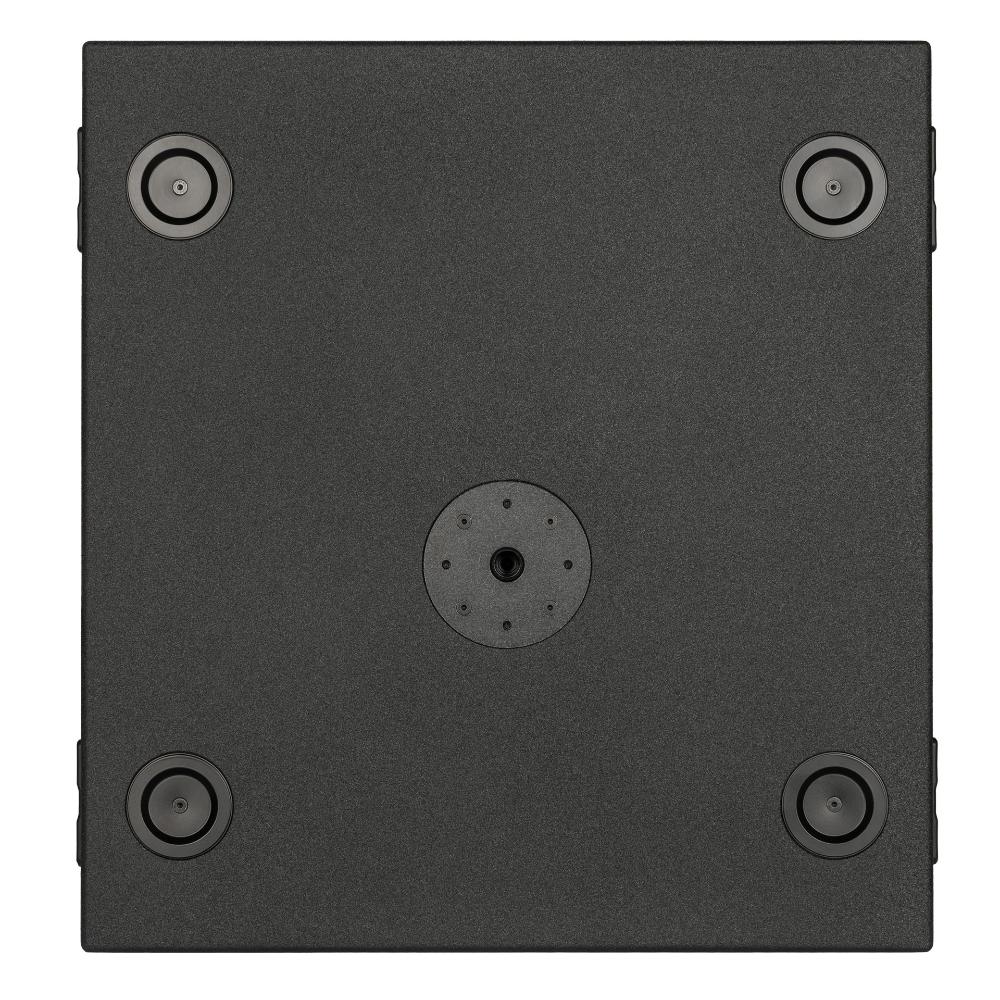

Pole mount/Cap: M20 thread

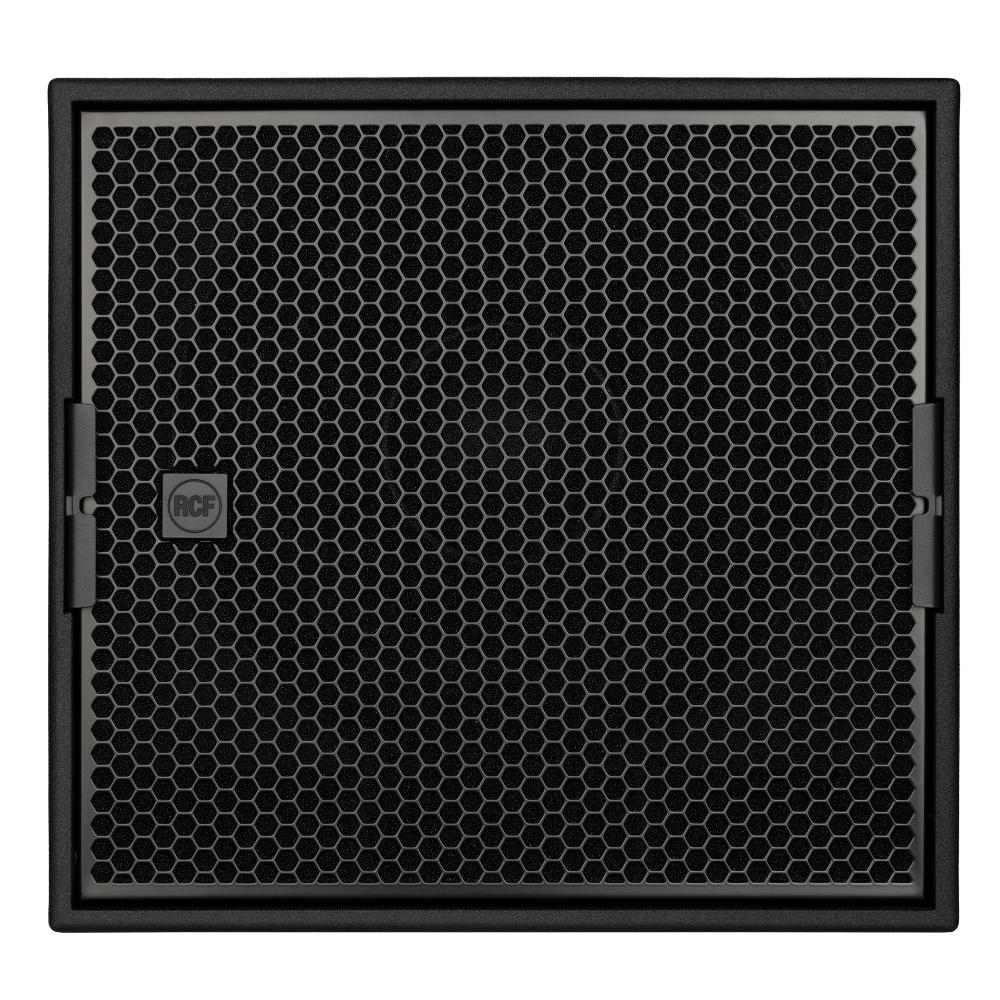

Grille: Steel with clothing
Color: Black
Size / Weight
Height: 533 mm / 20.98 inches
Width: 570 mm / 22.44 inches
Depth: 600 mm / 23.62 inches
Weight: 45 kg / 99.21 lbs
