Description
Acoustical specifications
Frequency Response: 60 Hz – 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 50°

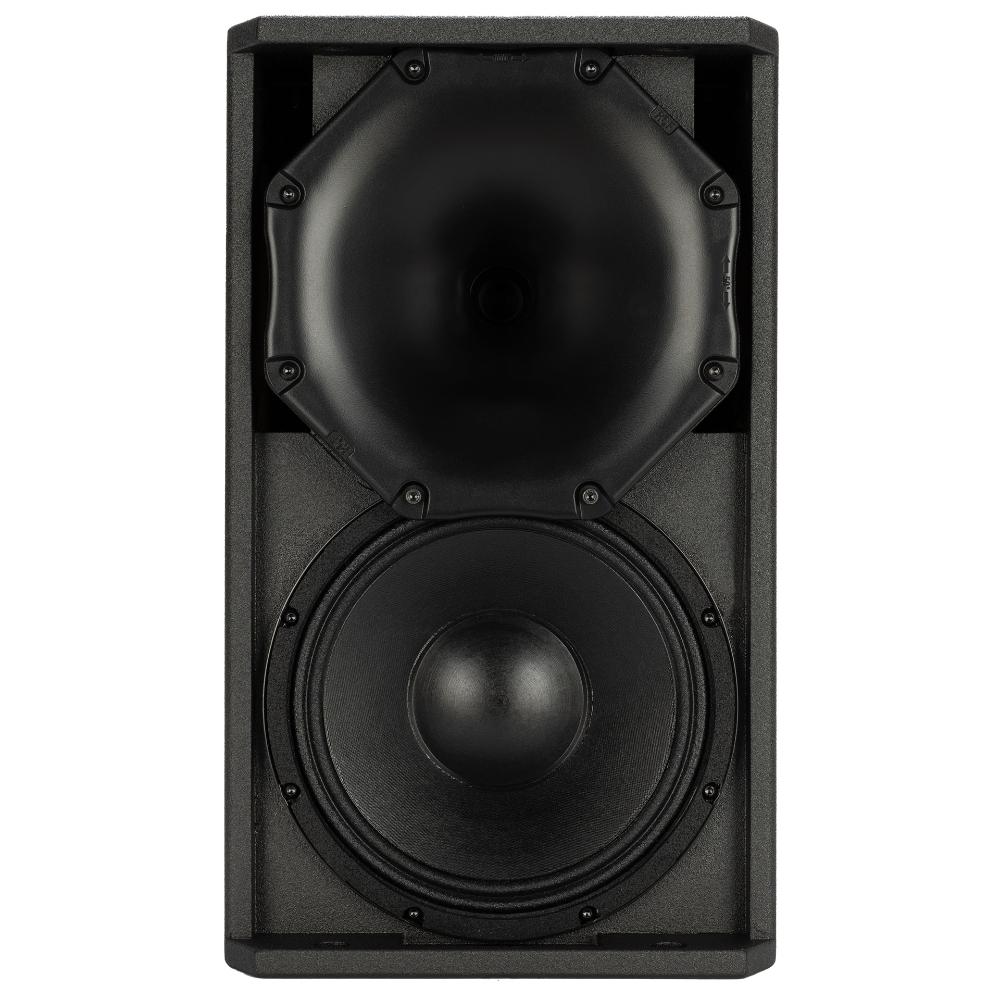

Transducers
Compression Driver: 1 x 1.0” neo, 1.75” v.c
Woofer: 10” neo, 2.5” v.c

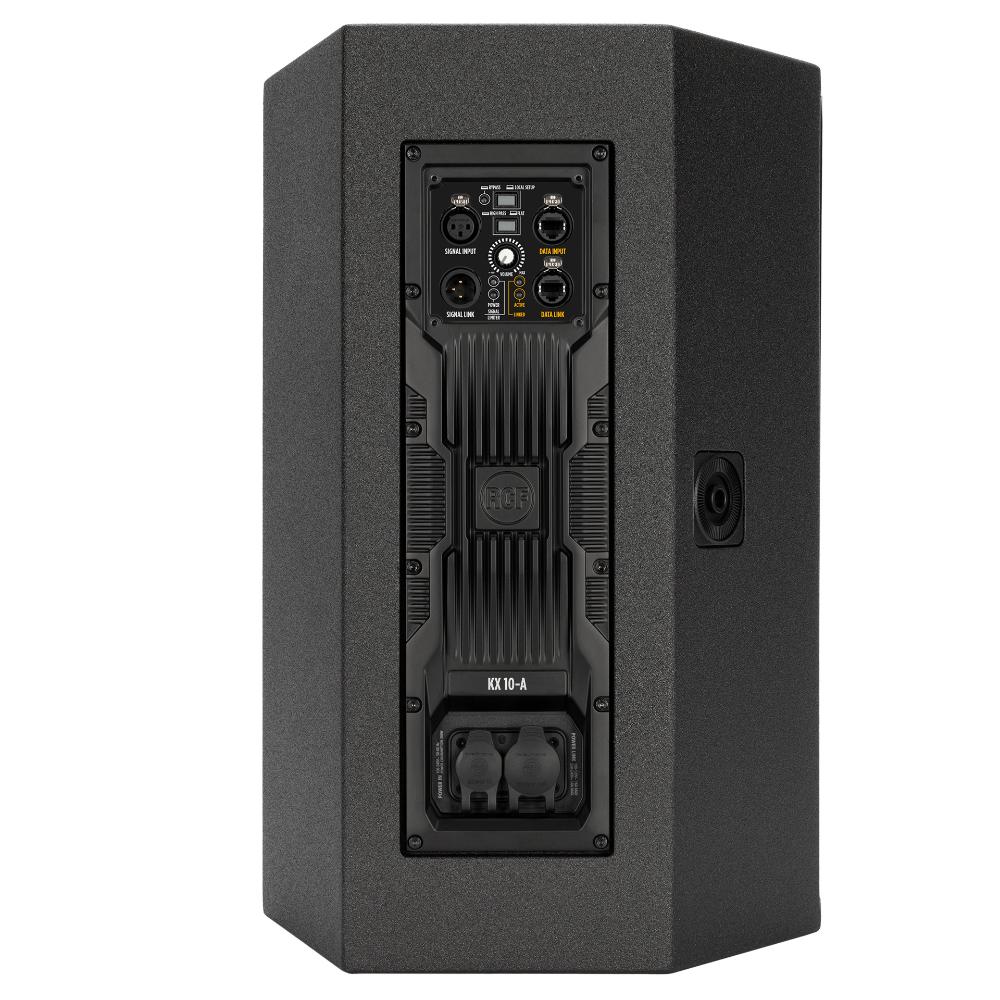

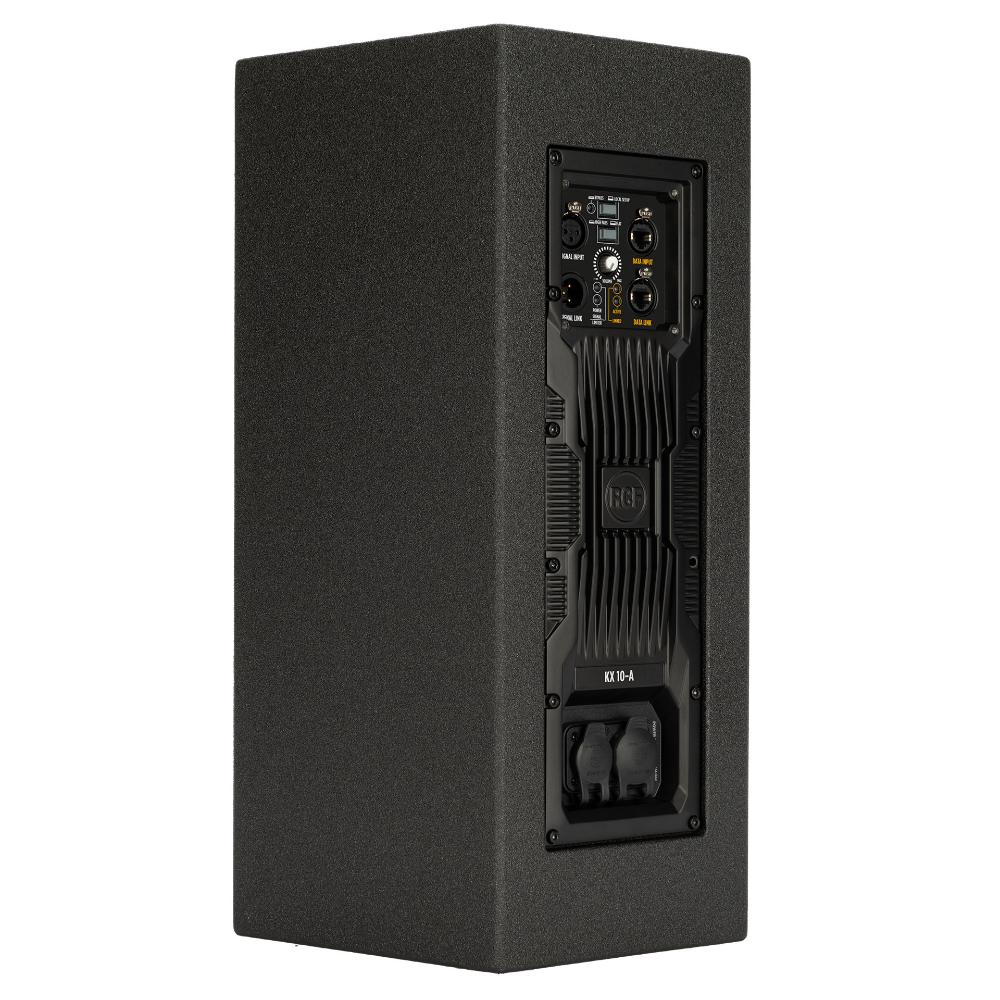

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 1600 Hz
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume
RDNet: Onboard
Power section
Total Power: 2000 W Peak
High frequencies: 600 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: Baltic birch plywood

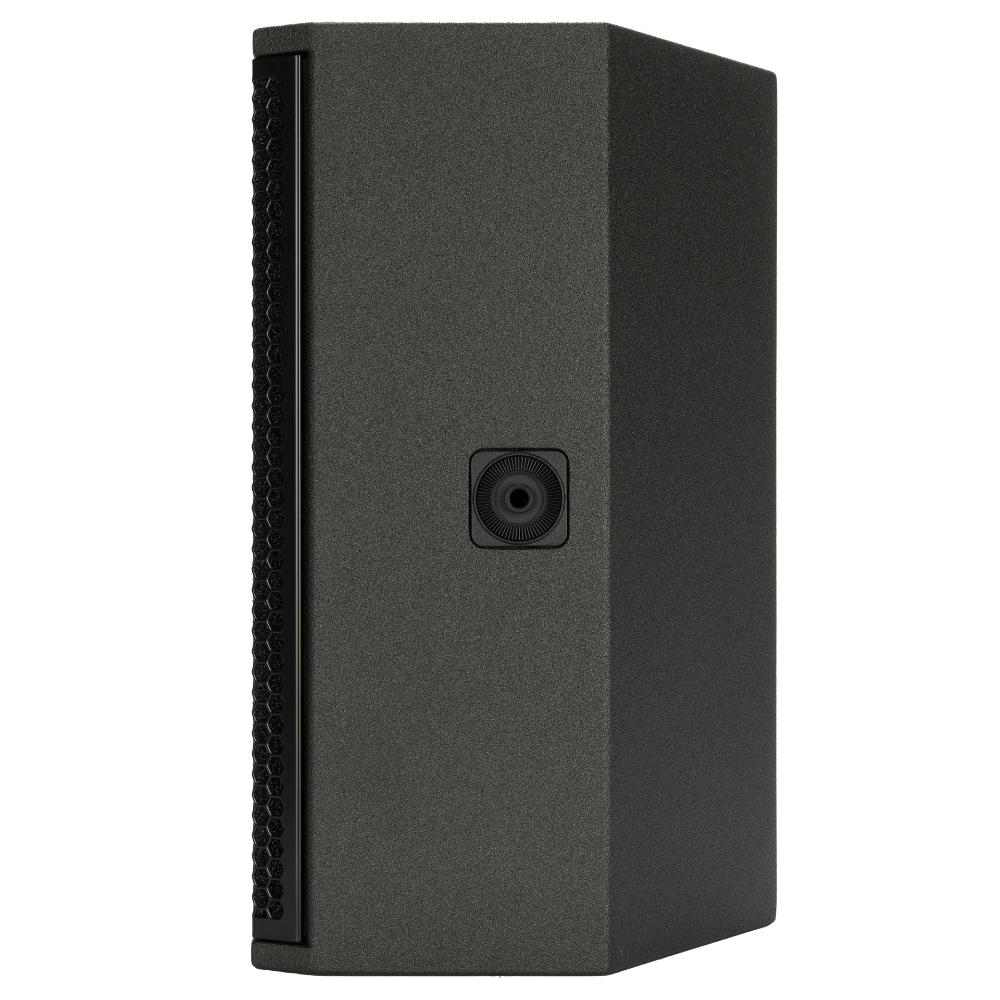

Hardware: 3 x M10 Top and Bottom, 2 x Pin D.10 and M10 Side

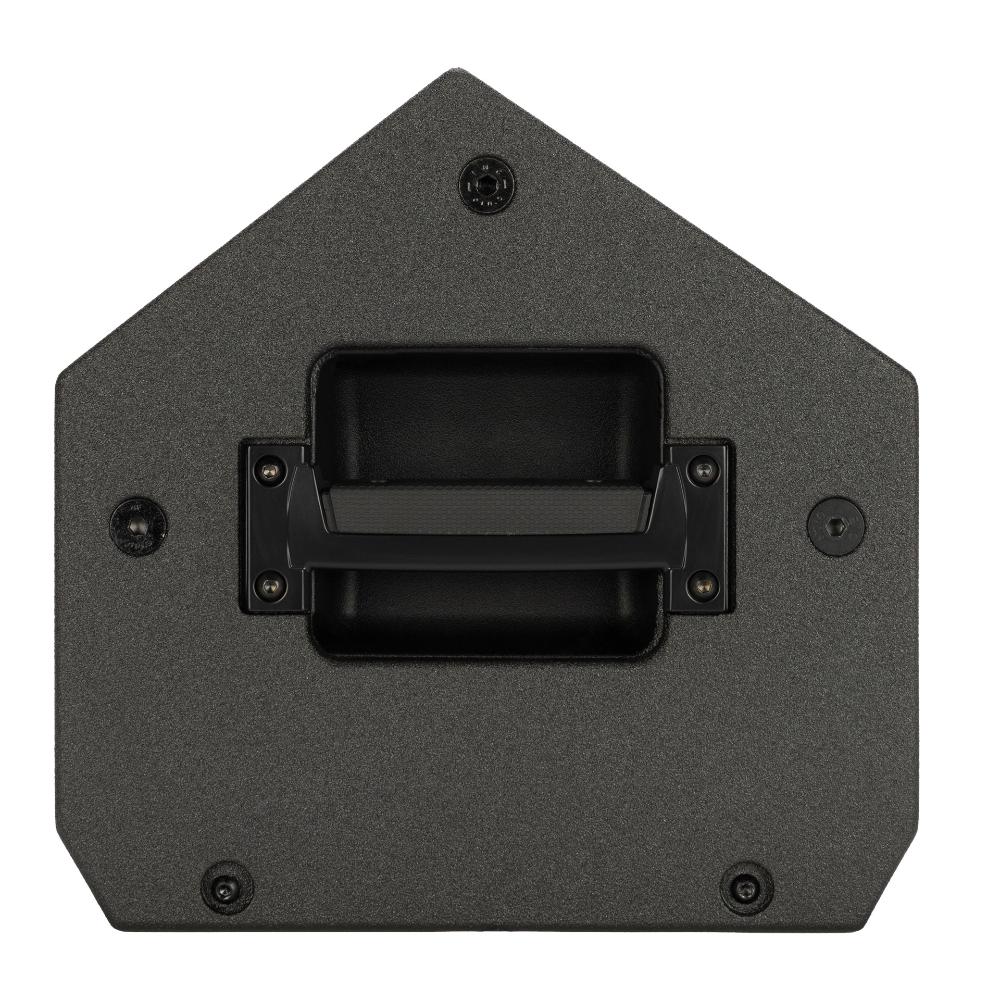

Handles: 1 Top

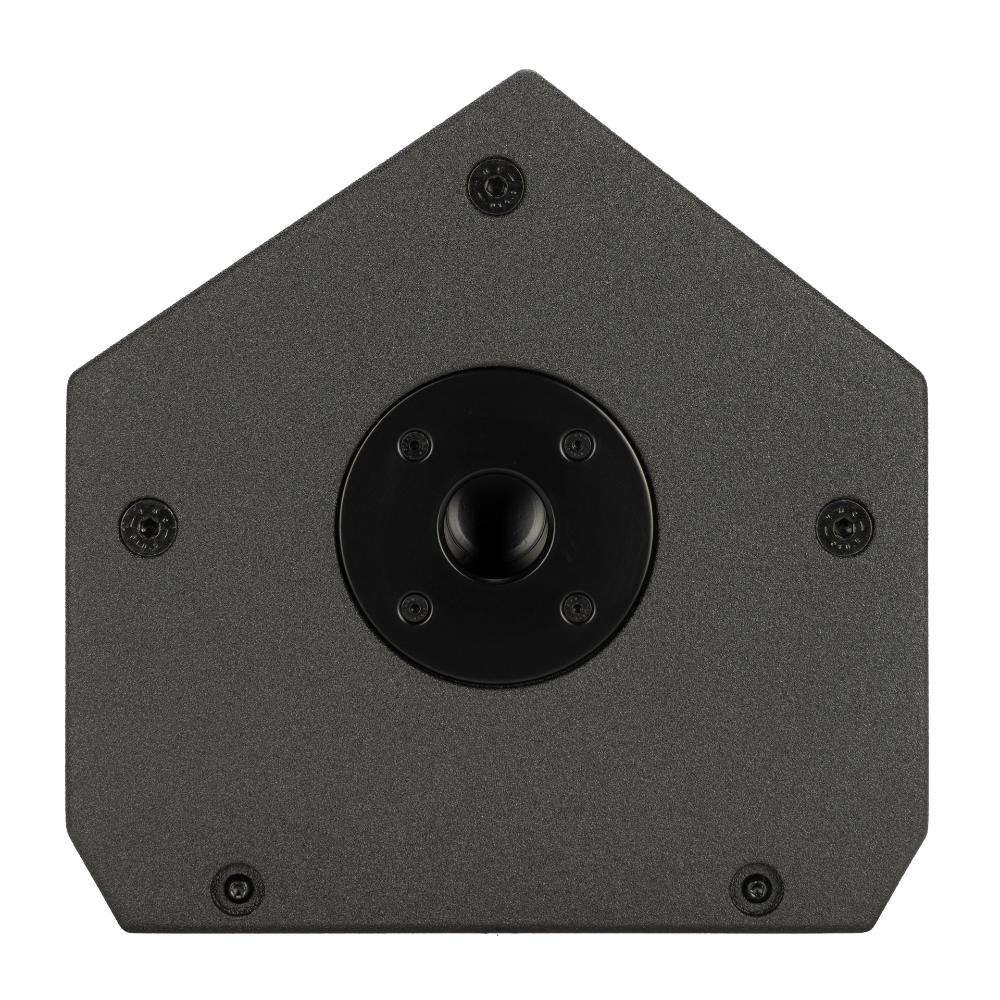

Pole mount/Cap: 35 mm insert

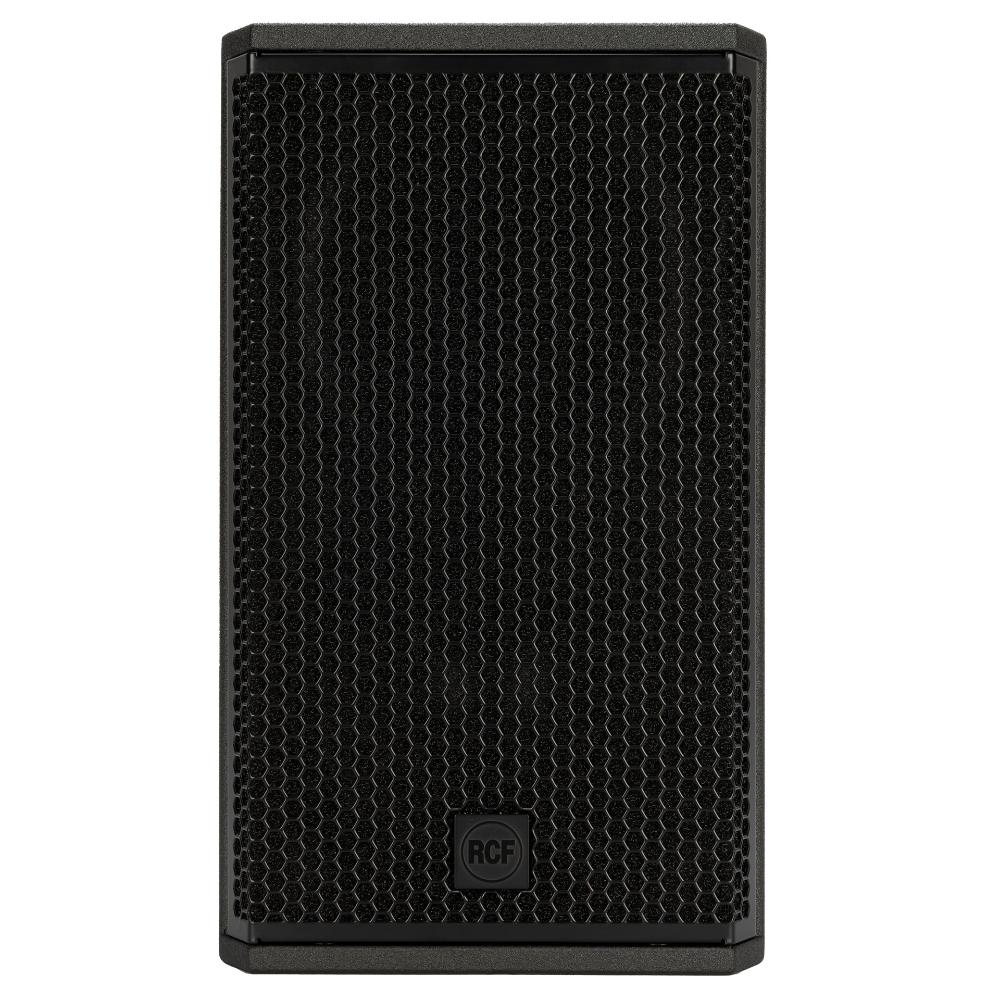

Grille: Steel with clothing
Color: Black
Size / Weight
Height: 510 mm / 20.08 inches
Width: 300 mm / 11.81 inches
Depth: 300 mm / 11.81 inches
Weight: 14 kg / 30.86 lbs
