Description
The McIntosh MX100 is a premium 11.2-channel A/V processor designed for high-performance custom home theater systems. Supporting Dolby Atmos®, DTS:X®, and Auro-3D®, it delivers immersive surround sound while offering 4K Ultra HD video passthrough with HDR compatibility. Equipped with 13 balanced XLR outputs, the MX100 is built to pair with external power amplifiers such as the McIntosh MC8207.
Key Technical Specifications
- Audio Channels: 11.2-channel processing
- Speaker Configurations: 7.2.4, 7.1, 5.1, Stereo
- Audio Formats:
- Dolby Atmos®
- DTS:X®
- Auro-3D®
- Video Support:
- 4K Ultra HD (3840 × 2160) @ 60Hz
- 18Gbps HDMI bandwidth
- HDCP 2.2
- 4:4:4 Chroma
- Rec. 2020
- Dolby Vision
- HDR10
- Hybrid Log-Gamma (HLG)

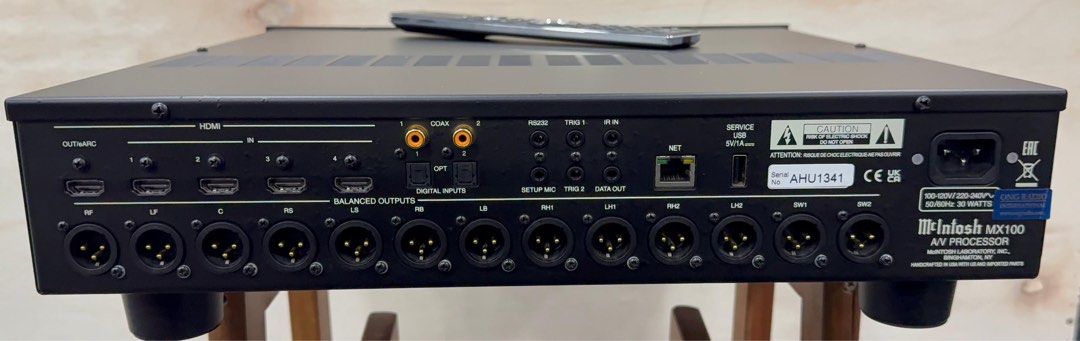

Connectivity
- HDMI Inputs: 4
- HDMI Output: 1 (eARC / ARC)
- Digital Coaxial Inputs: 2
- Digital Optical Inputs: 2
- USB Port: 1 (Firmware Updates)
- Balanced XLR Outputs: 13 (11.2-channel)
Features
- High-performance 11.2-channel surround processor
- Supports Dolby Atmos®, DTS:X®, and Auro-3D®
- Audyssey MultEQ XT32 automatic room calibration
- Audyssey Dynamic EQ® and Dynamic Volume®
- eARC / ARC support for high-quality TV audio
- Rack-mountable 2U chassis
- RS232, Web IP, and IR control for custom installations
- Includes remote control
- Classic McIntosh black glass front panel with illuminated logo
Dimensions & Weight
- Width: 17.5 in (44.45 cm)
- Height: 4.94 in (11 cm)
- Depth: 21 in (53.3 cm)
- Weight: 17 lbs (7.7 kg)
