Description
Key Specifications
Usable Bandwidth (-10 dB)
- 66 Hz – 20 kHz
Maximum SPL
- 140 dB (with LA2Xi in Bridge Mode, LA4X, LA8 or LA12X)
- 136 dB (with LA2Xi)
Nominal Directivity (-6 dB)
- Enclosure: 10°
- Panflex™ Horizontal Coverage:
- 70° Symmetric
- 110° Symmetric
- 90° Asymmetric
Transducers
- LF: 1 × 10-inch cone driver
- HF: 1 × 2.5-inch neodymium diaphragm compression driver
Acoustic Design
- LF: Bass-reflex with L-Vents
- HF: DOSC waveguide with Panflex™ technology
Nominal Impedance
- 8 Ω
Connectors
- 1 × 4-point push-in terminal block
- 1 × Connector sealing plate with cable gland
Installation & Rigging
- External rigging kits
- M6 inserts for rigging plates
- M8 inserts compatible with A-U10i mounting accessories
- 4 × M6 inserts for rigging accessories
- 1 × DIN580-compatible M8 threaded insert
Construction
Cabinet
- Premium-grade Baltic beech and birch plywood
Front Grille
- Coated steel grille
- Acoustically transparent 3D fabric
Physical Specifications

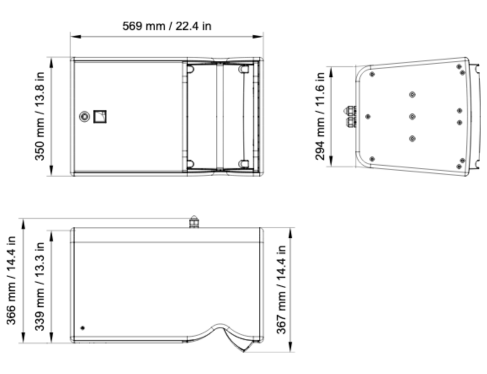

- Dimensions (W × H × D): 569 × 350 × 367 mm
- Weight: 19 kg (42 lb)
Finish Options
- Dark Grey Brown (Pantone 426 C)
- Pure White (RAL 9010)
- Custom RAL colours available on special order
Environmental Rating
- IP55 weather protection
Applications
- Permanent installed sound systems
- Houses of worship
- Theatres and performing arts venues
- Auditoriums
- Sports facilities
- Theme parks
- Outdoor venues
- Corporate and conference facilities
- Hospitality and entertainment venues requiring precise medium-throw coverage and weather-resistant performance
