Description

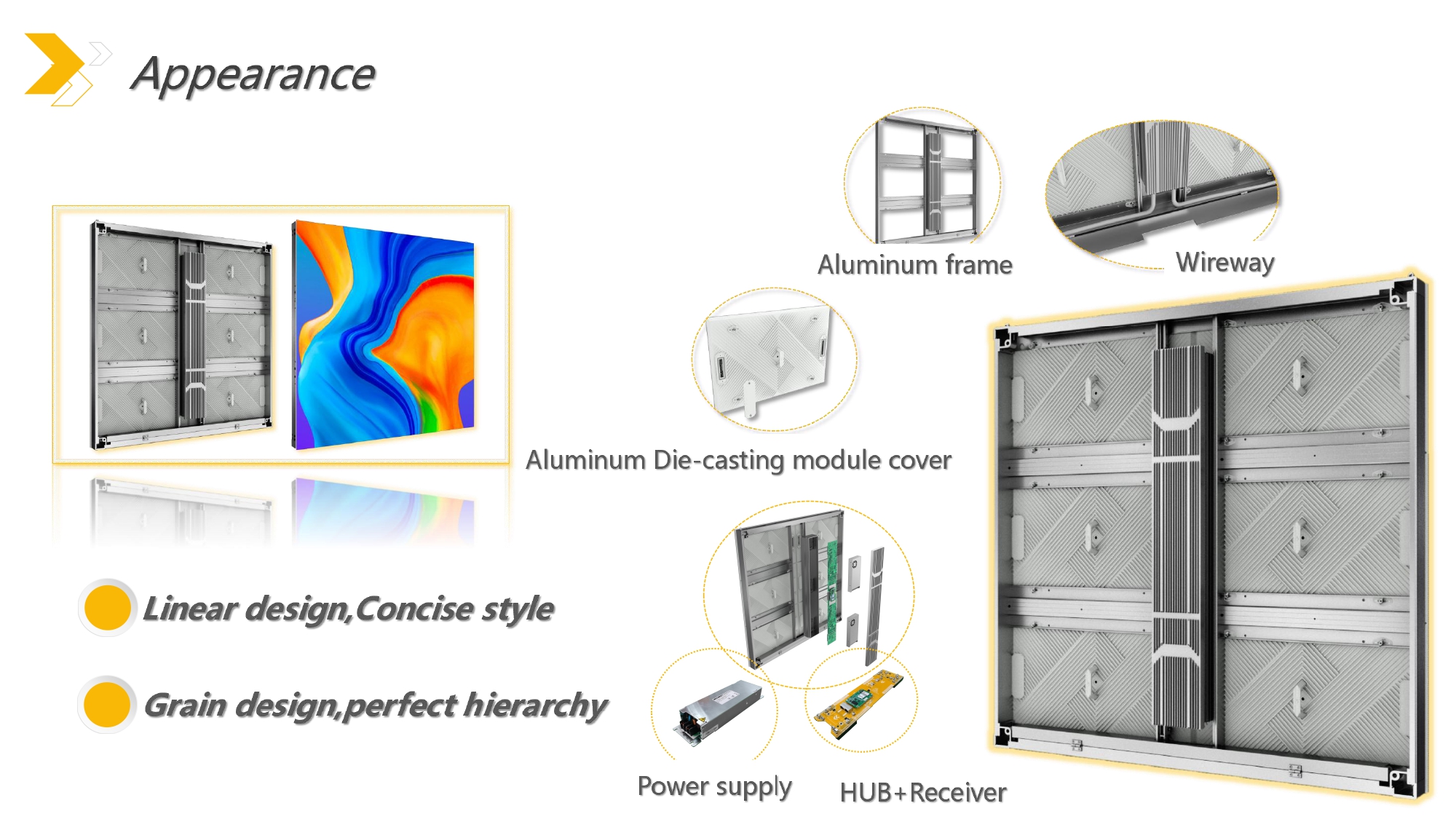

Appearance
- Linear design, Concise style
- Grain design, perfect hierarchy

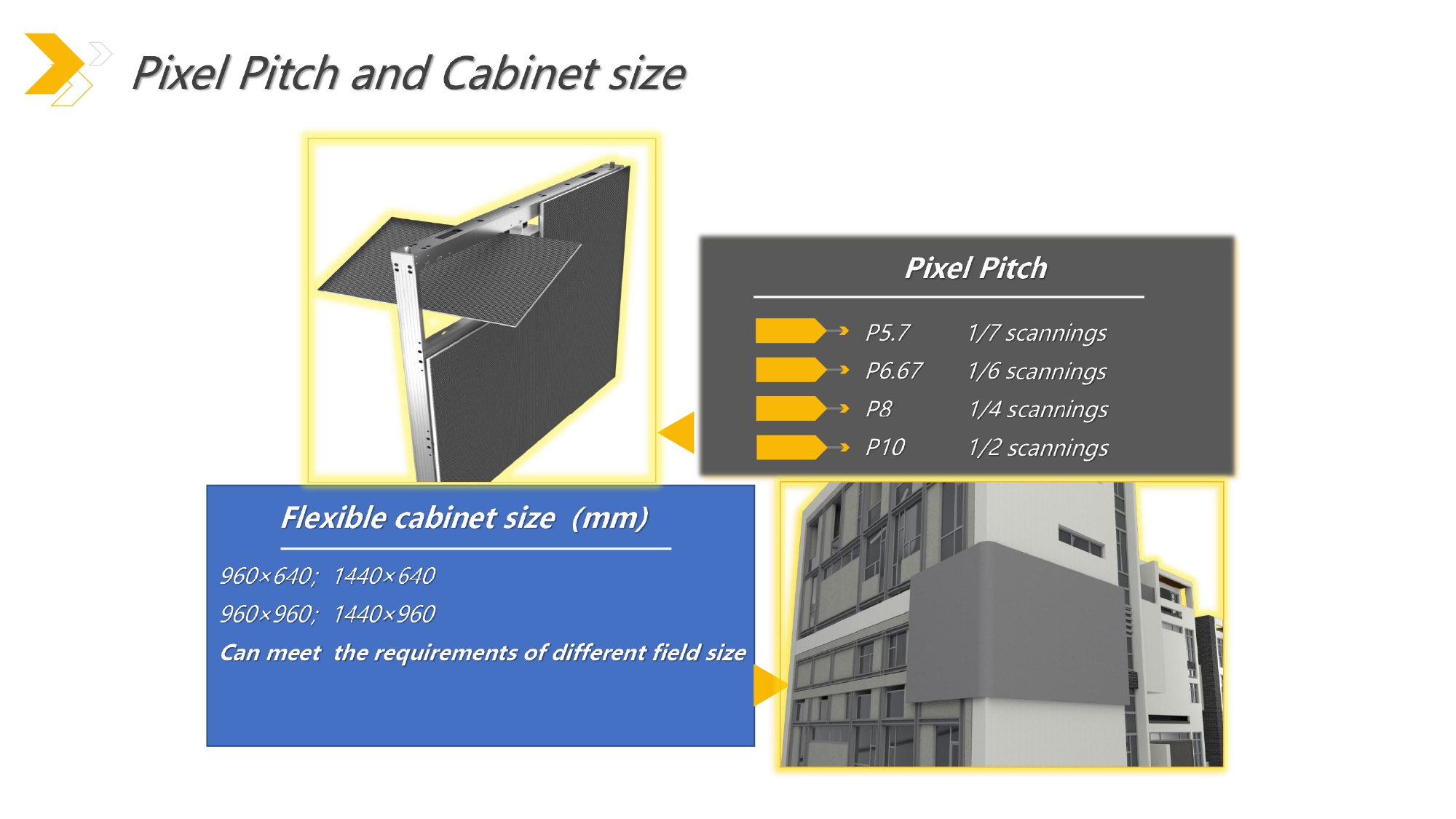

Pixel Pitch
P5.7 – 1/7 scannings
P6.67 – 1/6 scannings
P8 – 1/4 scannings
P10 – 1/2 scannings
Flexible cabinet size (mm)
960×640; 1440×640
960×960; 1440×960
Can meet the requirements of different field size

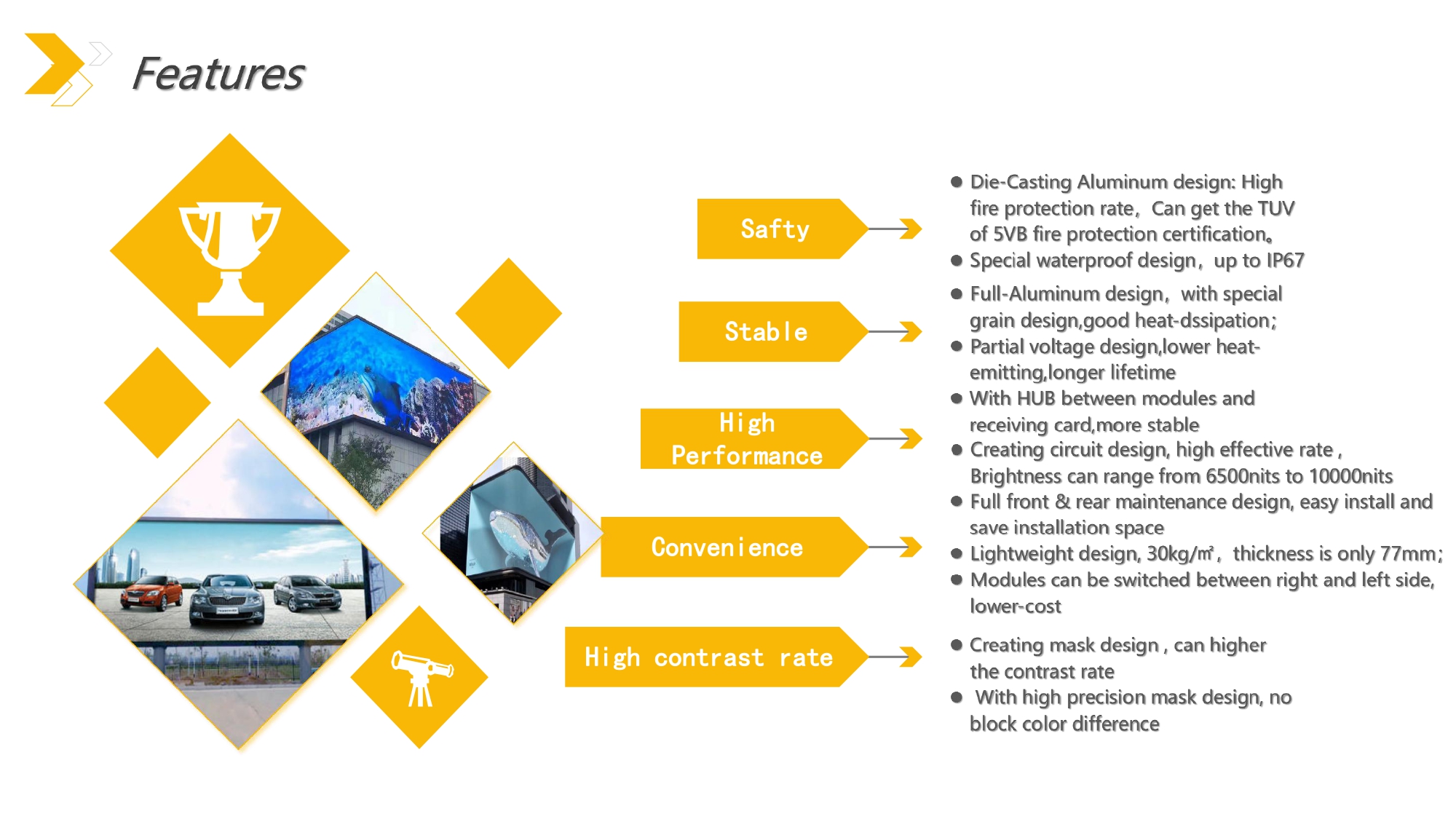

Features:
Safety
- Die-cast aluminum cabinet with excellent fire resistance
- Certified to UL94 V-0 (or TUV fire safety certification, if applicable)
- IP67-rated waterproof design
Stability
- Full aluminum cabinet with enhanced heat dissipation
- Low-voltage design for reduced heat generation and longer lifespan
- HUB board connection between modules and receiving card for improved stability
High Performance
- Optimized PCB circuit design for higher efficiency
- High brightness ranging from 6,500 to 10,000 nits
Convenience

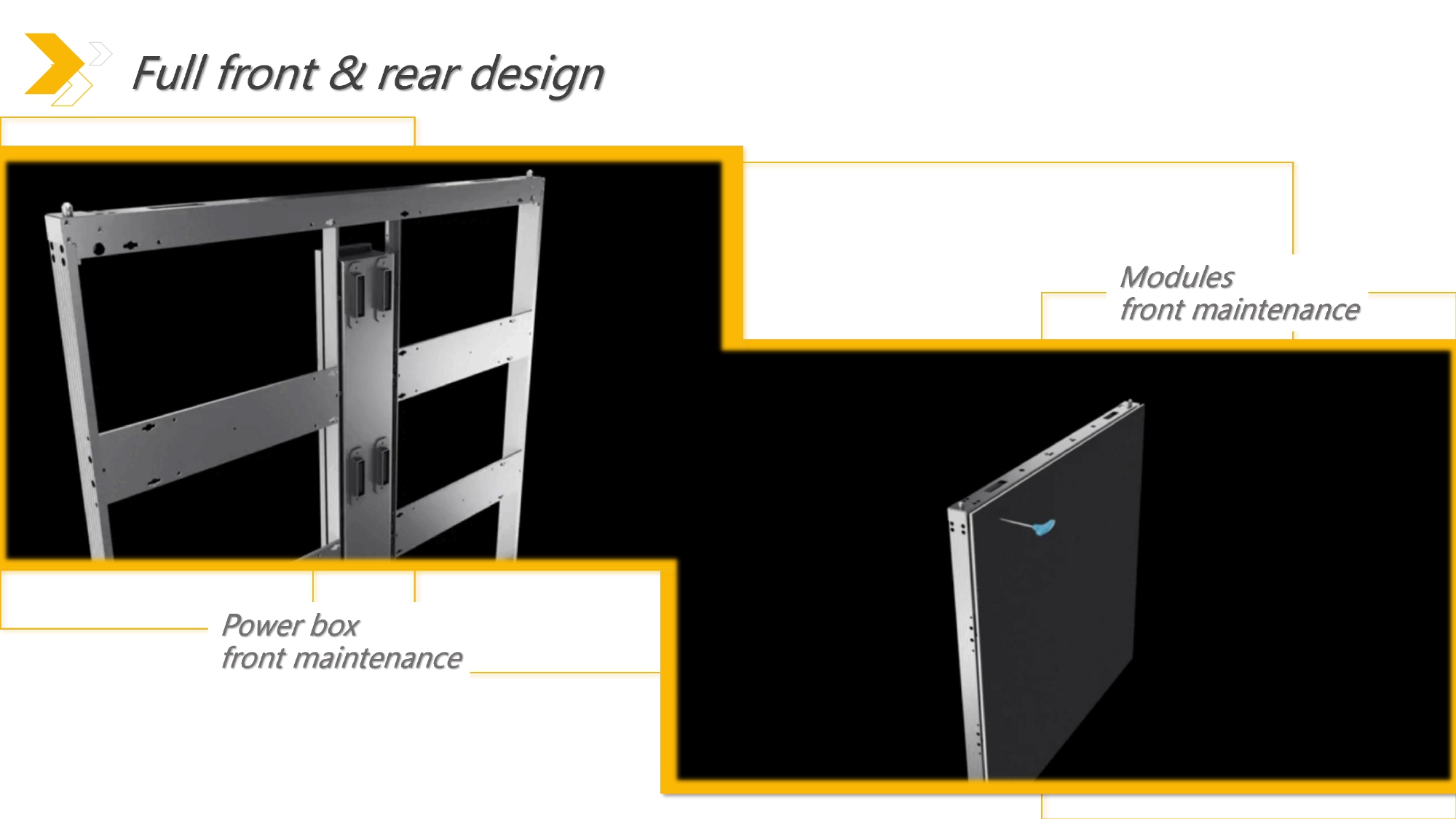

- Front and rear maintenance for easy installation and servicing
- Lightweight design: 30 kg/m², cabinet thickness only 77 mm

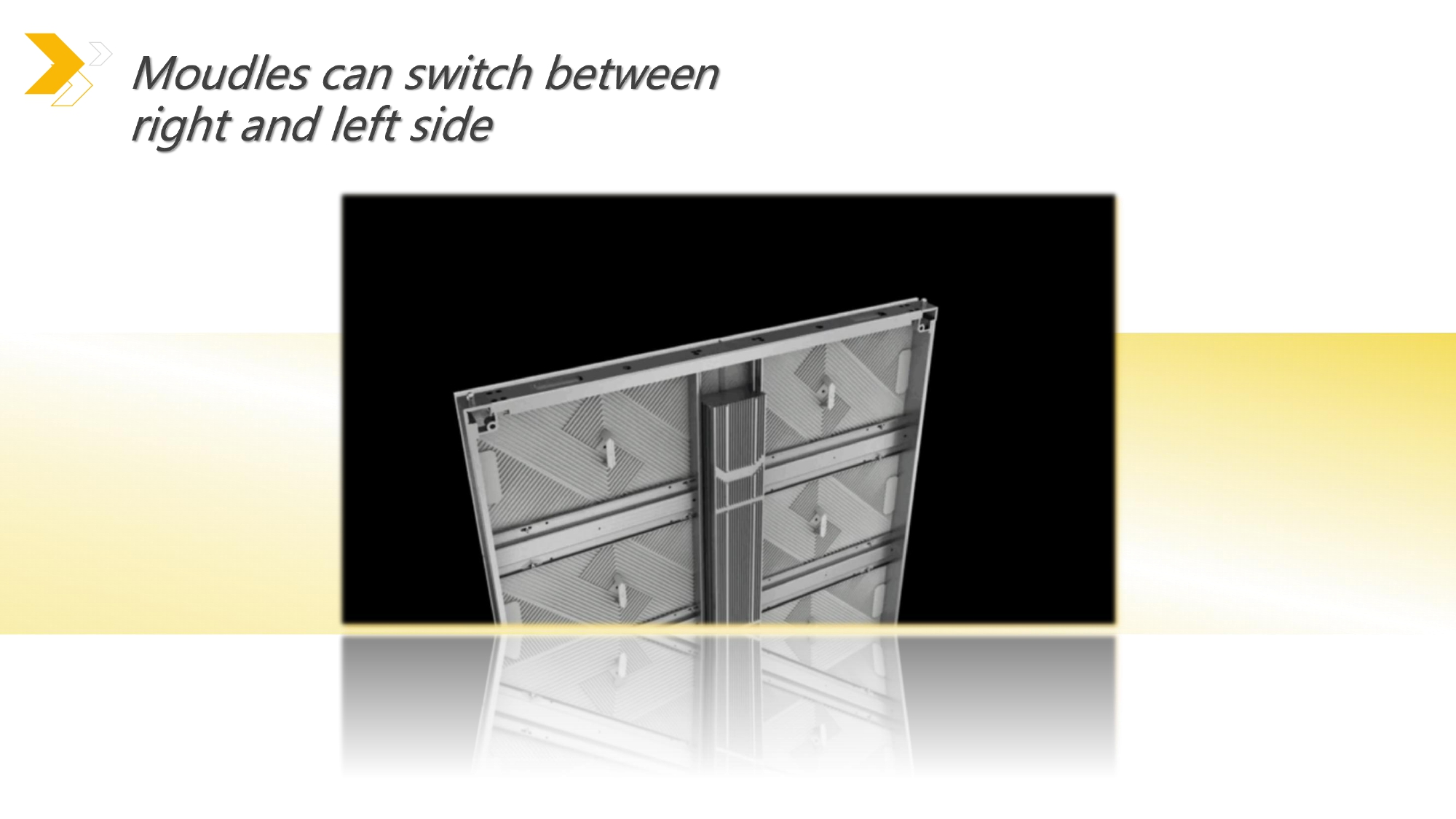

- Modules can be installed on either the left or right side, reducing maintenance costs
High Contrast
- Advanced black mask design for enhanced contrast
- Precision mask technology ensures uniform color with no visible color variation between modules

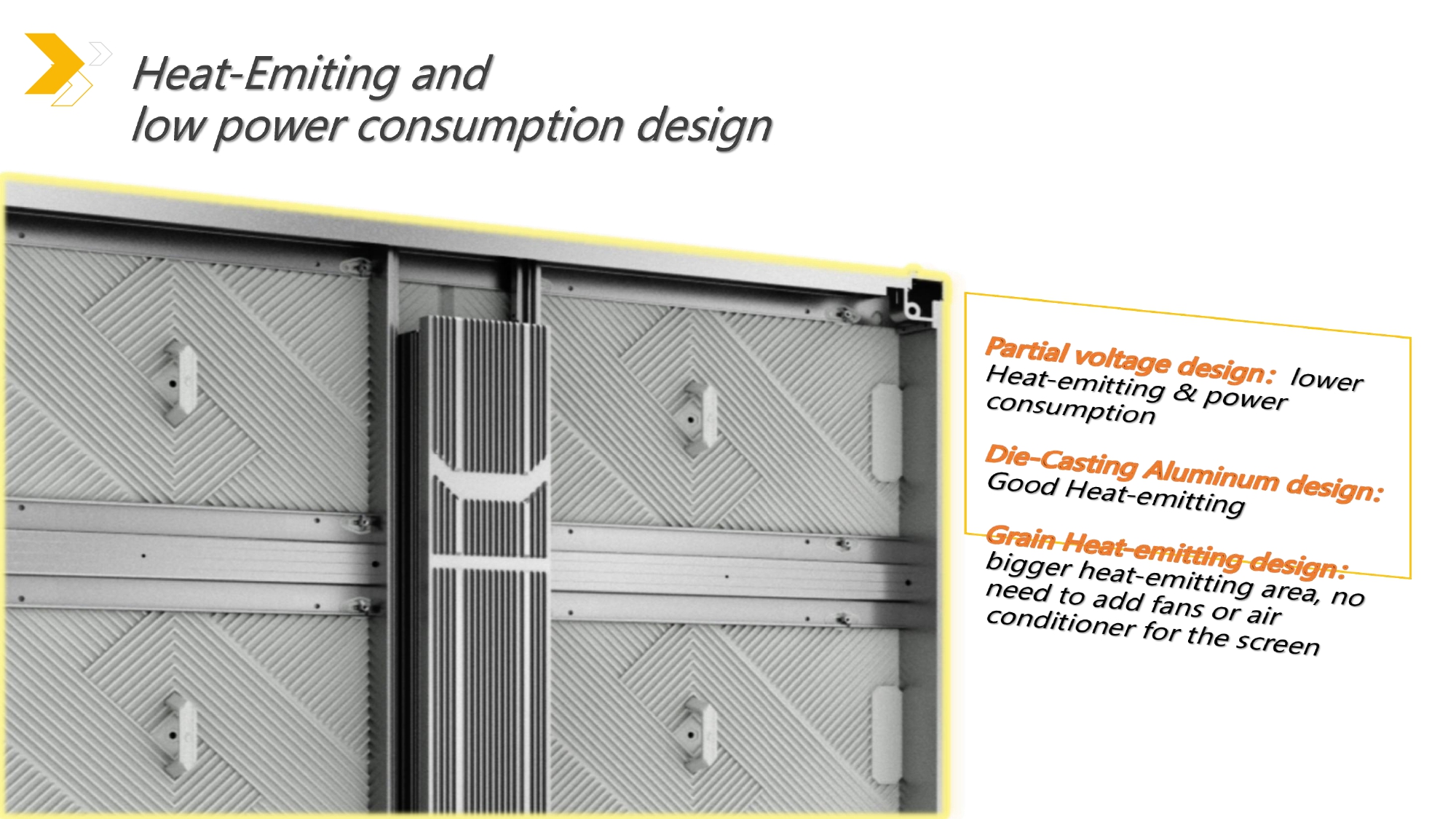

Heat-emitting and low-power-consumption design
- Partial voltage design: lower Heat-emitting & power consumption
- Die-Casting Aluminum design: Good Heat-emitting
- Grain Heat-emitting design: bigger heat-emitting area, no need to add fans or air conditioner for the screen

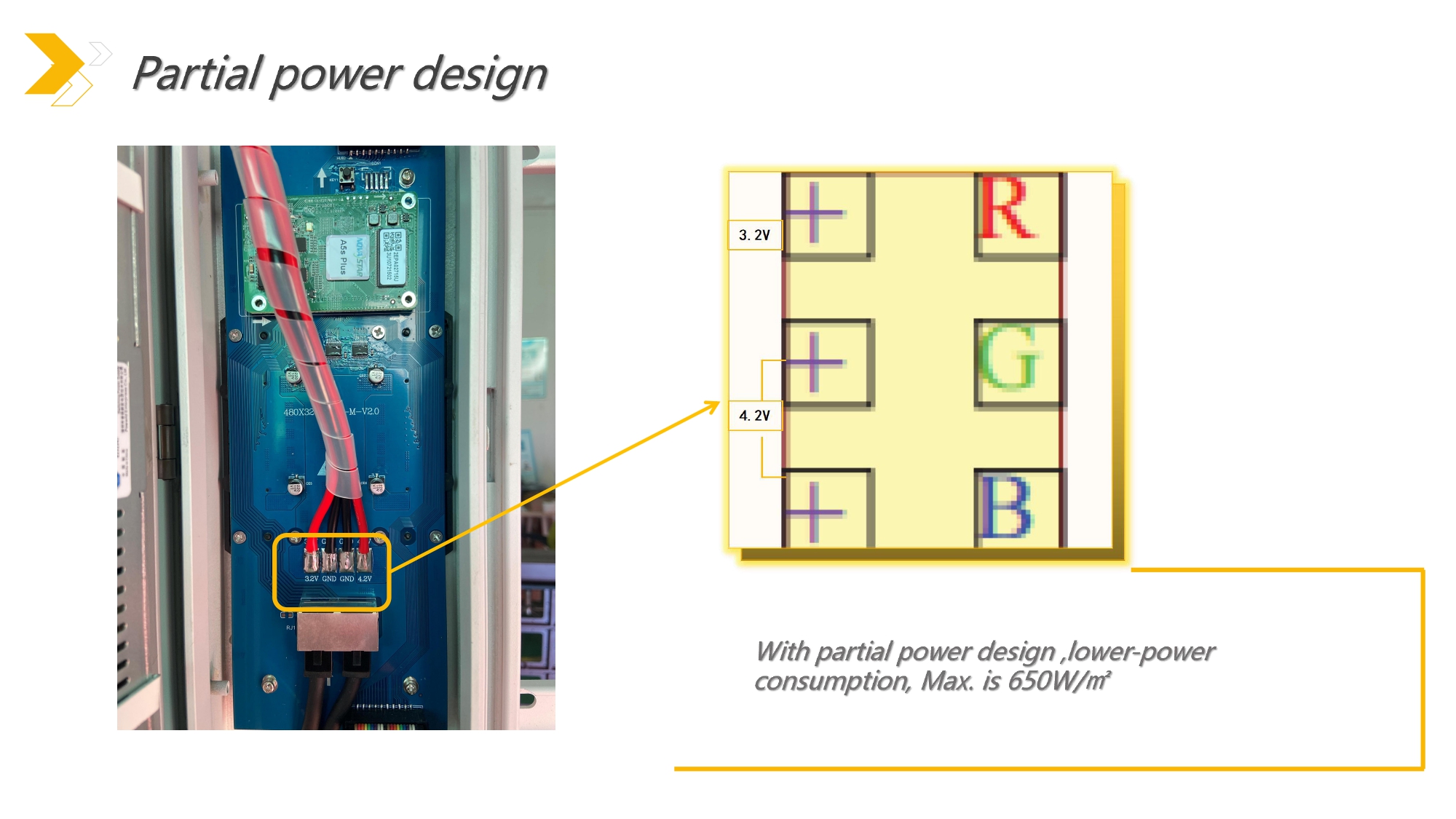

Partial power design
-
With partial power design, lower-power consumption, Max. is 650W/m

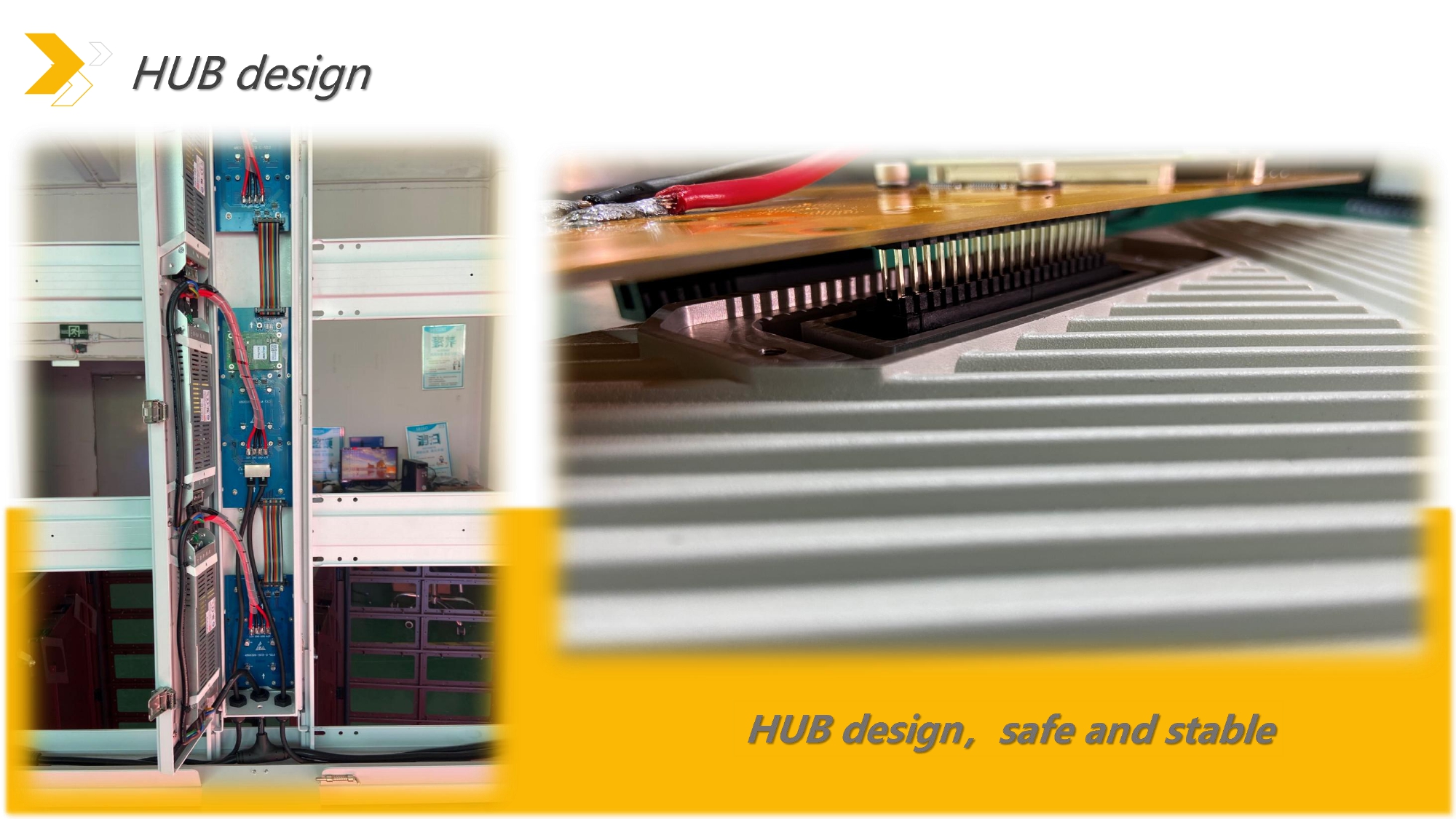

HUB design
-
HUB design, safe and stable

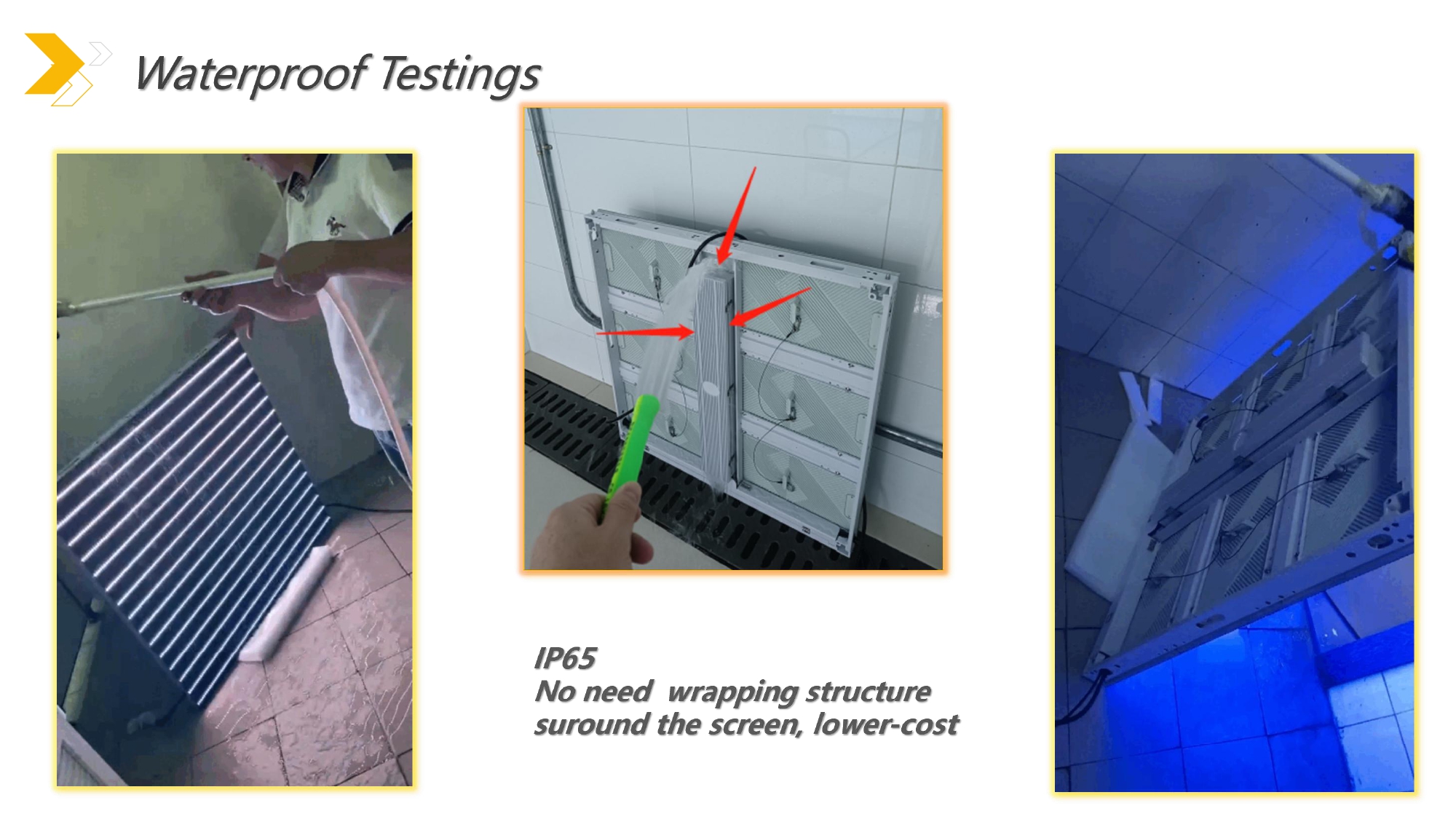

Waterproof Testing
- IP65 (No need for a wrapping structure surrounding the screen, lower cost)

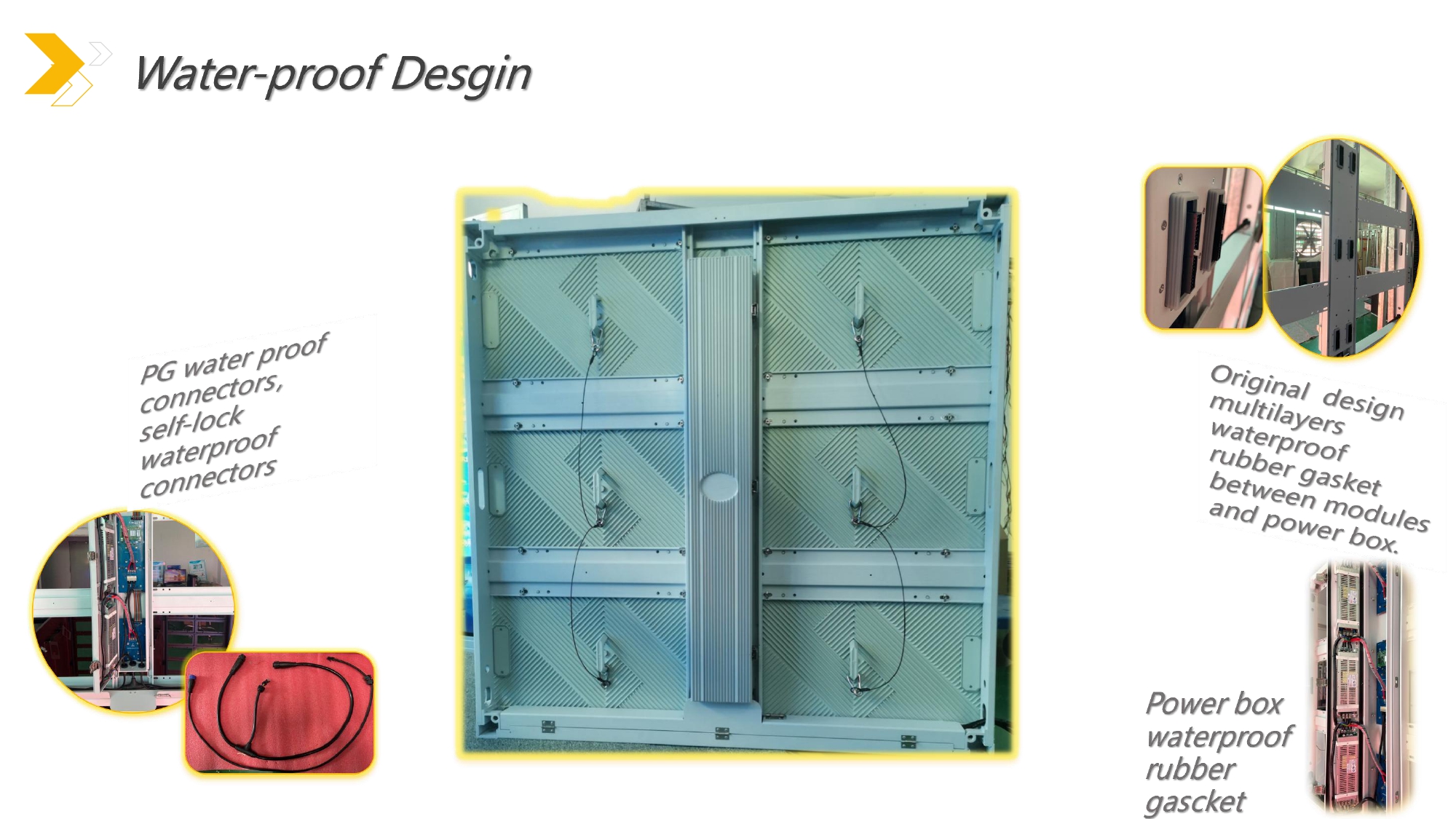

Waterproof Design
-
PG waterproof connectors, self-lock waterproof connectors
-
Original design multilayers waterproof rubber gasket between modules and power box.
-
Power box waterproof rubber gasket

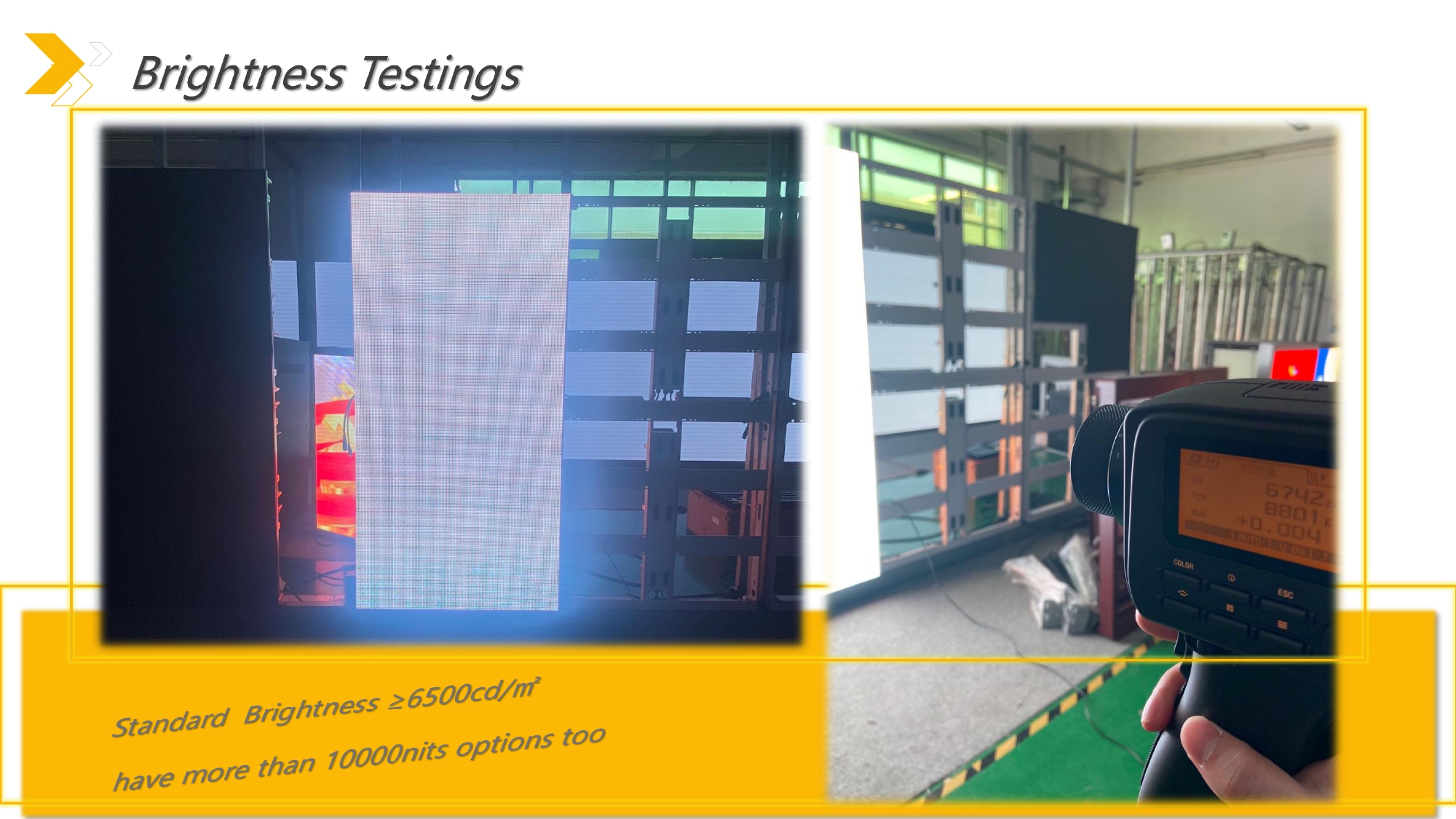

Brightness Testing
Standard brightness ≥6500 cd/m² has more than 10000 nits options too

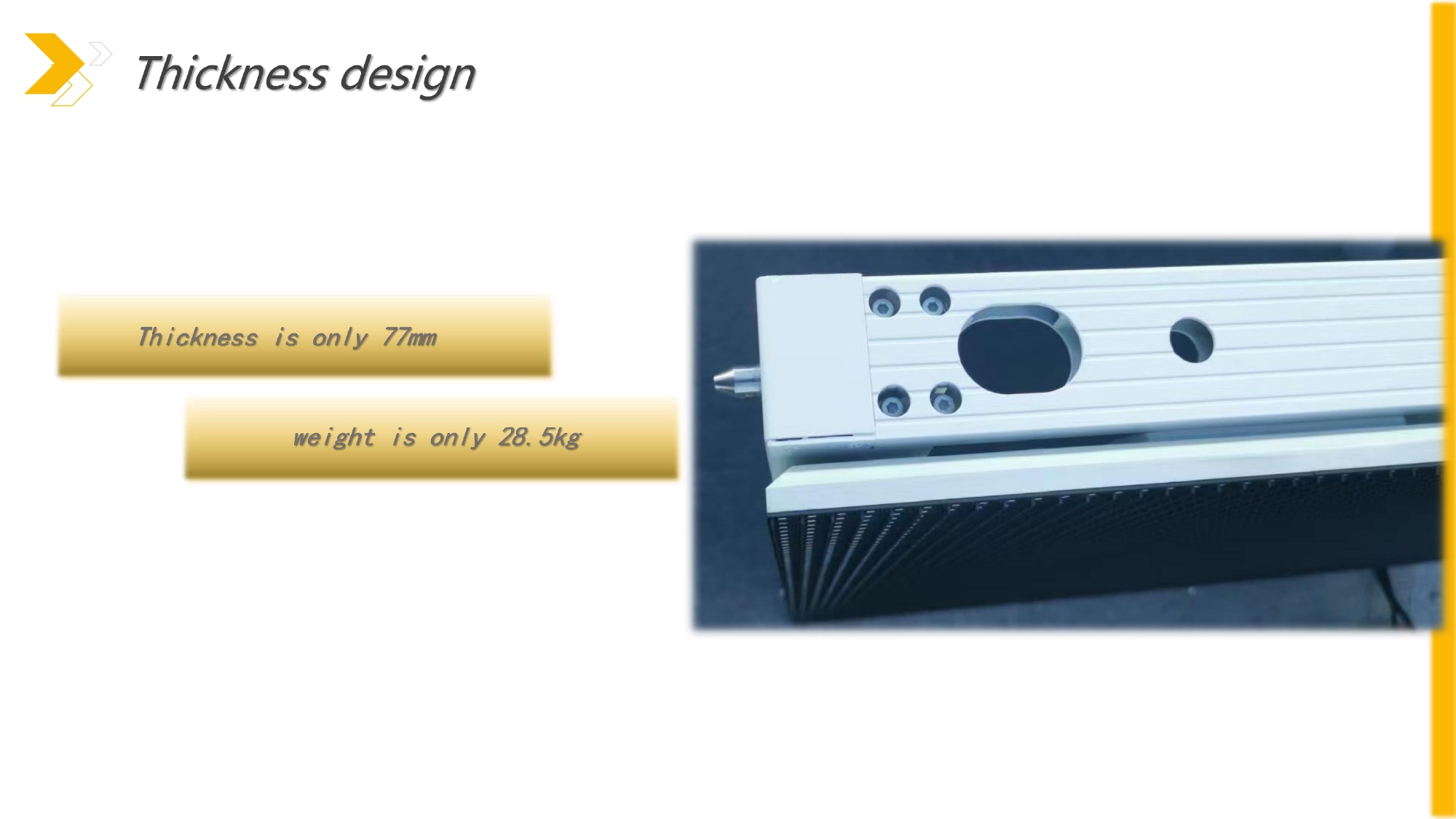

Thickness design
- Thickness is only 77mm
- weight is only 28.5 kg

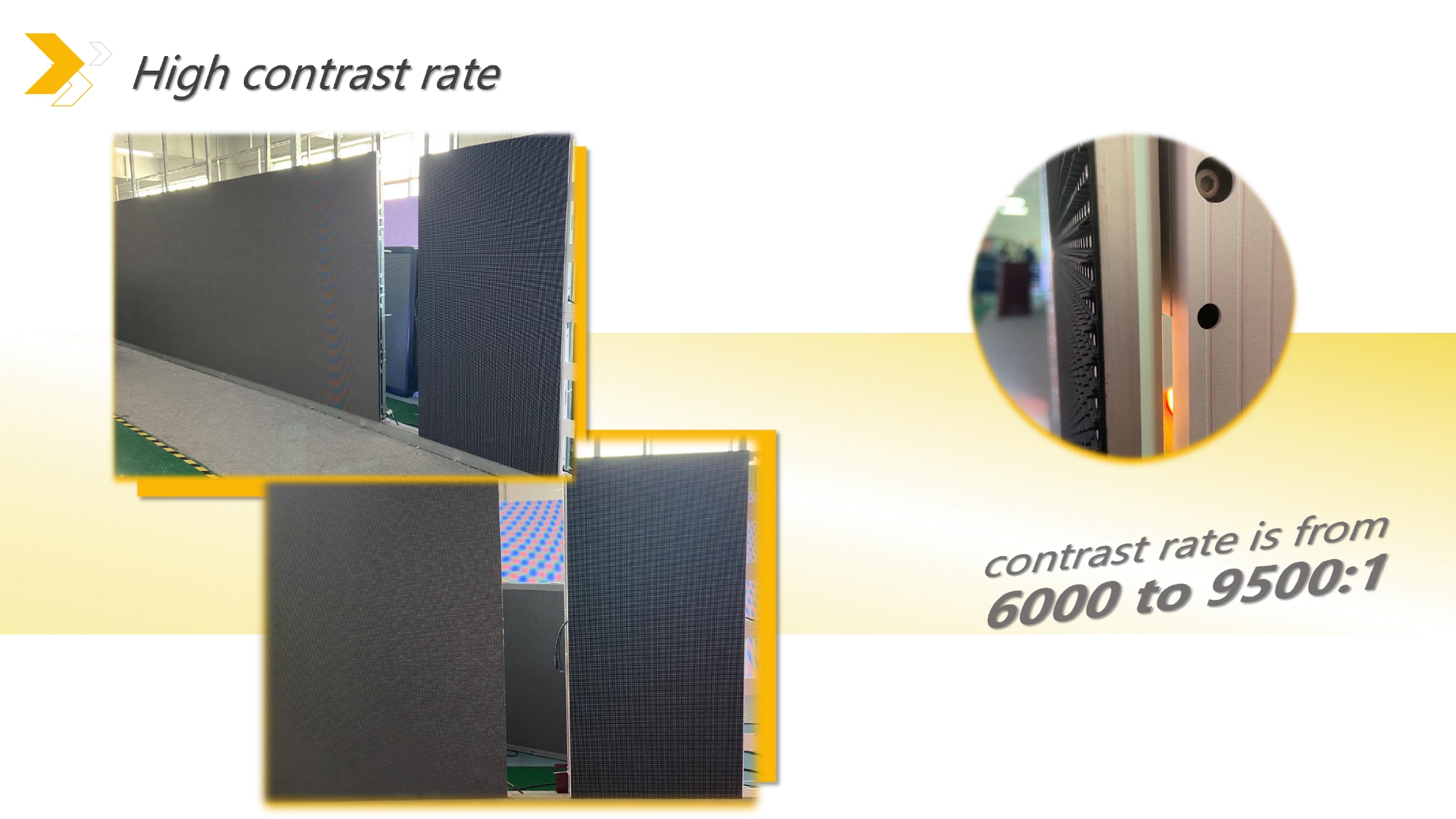

High contrast rate
- Contrast rate is from 6000 to 9500:1
